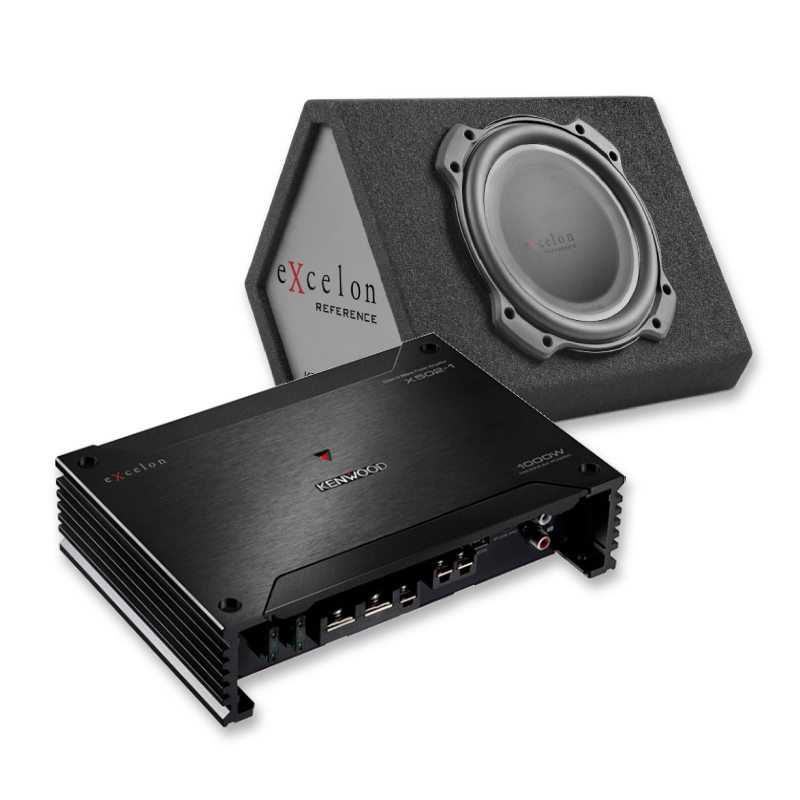

Kenwood Excelon X502-1 X Series 1000W Max Power Class-D Mono Subwoofer Amplifier + Kenwood Excelon P-XRW1202WB 12" 2000W Peak Power Handling 2 Ohm, Oversized Subwoofer with Sealed Wedge Enclosure
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • X502-1 Mono subwoofer amplifier
- • X502-1 (2) 30-amp ATC fuses (installed)
- • X502-1 Terminal cover (installed)
- • X502-1 8" Speaker level input harness
- • X502-1 (4) 5/8" Screws
- • X502-1 Instruction manual (English/ French/ Spanish)
- • X502-1 Owner's Manual
- • P-XRW1202WB Loaded single 12" subwoofer enclosure
- • P-XRW1202WB Owner's Manual
Can Produce a Powerful Bass Performance
A mono subwoofer amplifier belonging to Kenwood's flagship brand, Excelon, the X502-1 is a compact amplifier that can produce a powerful bass performance. Thanks to its sleek design, you can easily install the amplifier anywhere in your vehicle.
Able to Produce a Lot of Power With Excellent Sound Quality
With its Class-D amplifier technology, the X502-1 is able to produce a lot of power with excellent sound quality, even with its small stature. Its output coil comes with a magnetic shield, greatly reducing noise while improving sound quality. For its heat management system, it has an extruded aluminum heat sink design, which is highly efficient in dissipating the heat that has build-up from long periods of usage.
Newly Designed Cone
Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.
Delivering Smooth and Strong Bass Sound
By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability. Subwoofers are one of the most important pieces of the sound quality puzzle. eXcelon oversized woofers provide quick response and offer stable and powerful bass that remains true to the original recording.
X502-1 X Series 1000 Watts Max Power Class D Mono Subwoofer Amplifier
Features:
- mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
- CTA-2006 compliant
- Class-D amplifier design
- variable low-pass filter (50-200 Hz at 24 dB/octave)
- bass boost (0-18 dB at 40 Hz)
- subsonic filter (25 Hz at 24 dB per octave)
CTA-2006 Primary Ratings
- Power Output: 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
- MAX POWER: 1000W
Rated Power Output at 14.4V
- A/B (4 Ohms): -
- A/B (2 Ohms): -
- SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
- SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
- A/B (Bridged 4Ohms):
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-200Hz (+0dB, -3dB)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- optional KCA-RC01A wired remote level control available
- preamp and speaker-level inputs
- wiring and hardware not included with amplifier
- 8-gauge power and ground leads recommended
- fuse rating: 30A x 2
- 8-7/16"W x 2-1/8"H x 5-15/16"D
Audio Section
- Low-Pass Filter: 50Hz-200Hz, -24dB/oct
- High-Pass Filter: -
- Bass Boost: 40Hz, 0dB - +18dB
- Infrasonic Filter: 25Hz, -24dB
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]
Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
P-XRW1202WB 12" 2000W Peak Power Handling 2 Ohm, Oversized Subwoofer with Sealed Wedge Enclosure
Features:
- Dual Ventilation System
- Stress-Free Damper
- 8AWG Push Terminals
- Rubber Magnet Cover
Subwoofer Specification:
- 12" Oversized Cone Subwoofer
- Peak Power: 2000W
- RMS Power: 400W
- Impedance: 2 ohms Single Voice Coil
- Frequency Response: 31Hz-300Hz
Enclosure Specifications:
- Sealed Wedge Design
- Black Carpeted 3/4" MDF Enclosure
- Acoustic Damping Material
- Dimensions: 14"(H) x 14"(W) x 20"(L)
- UPC:
- Weight: 36
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
