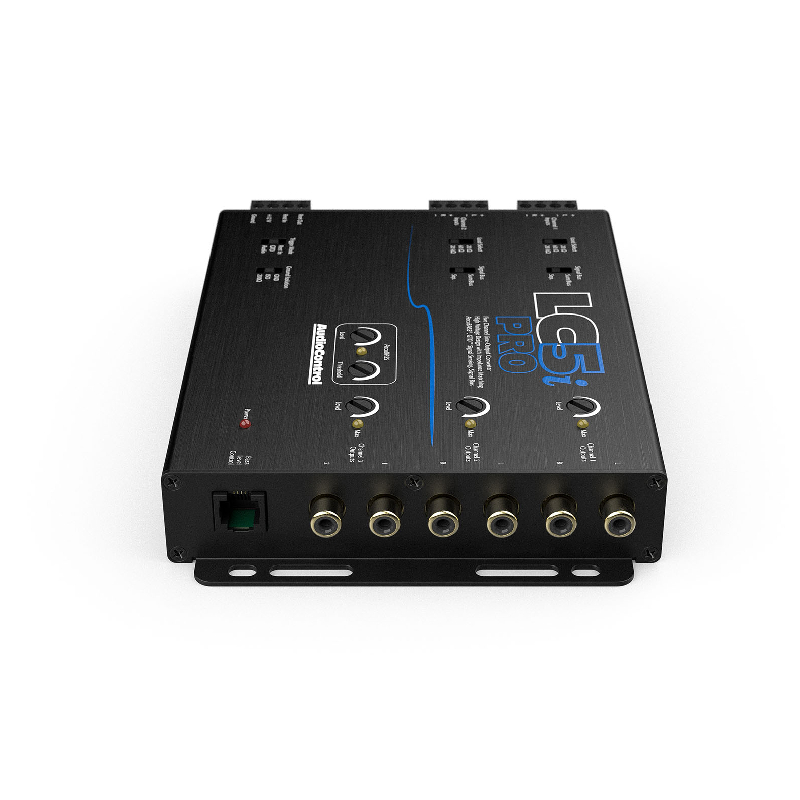

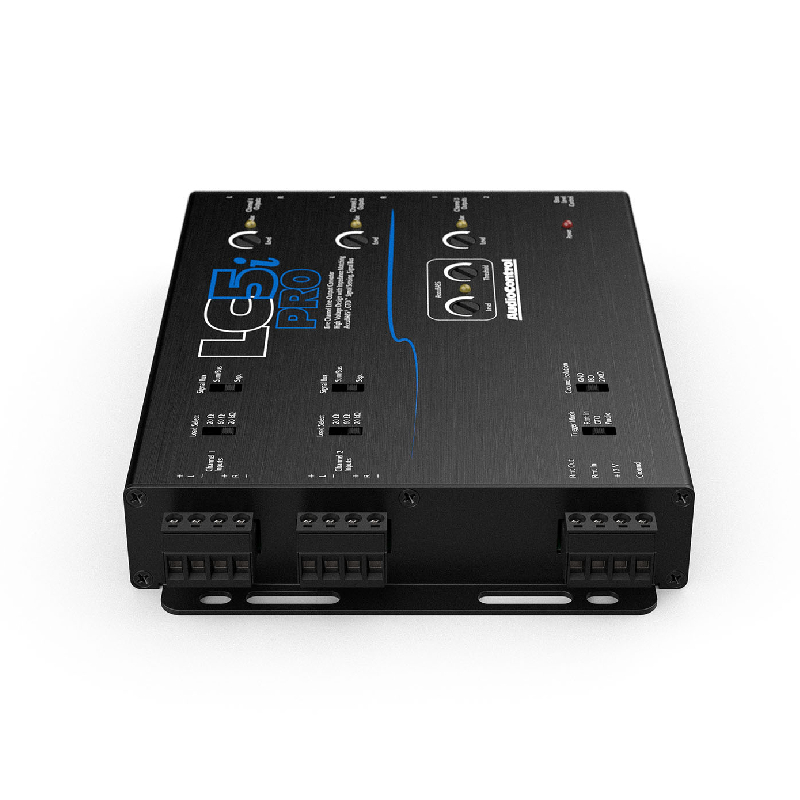

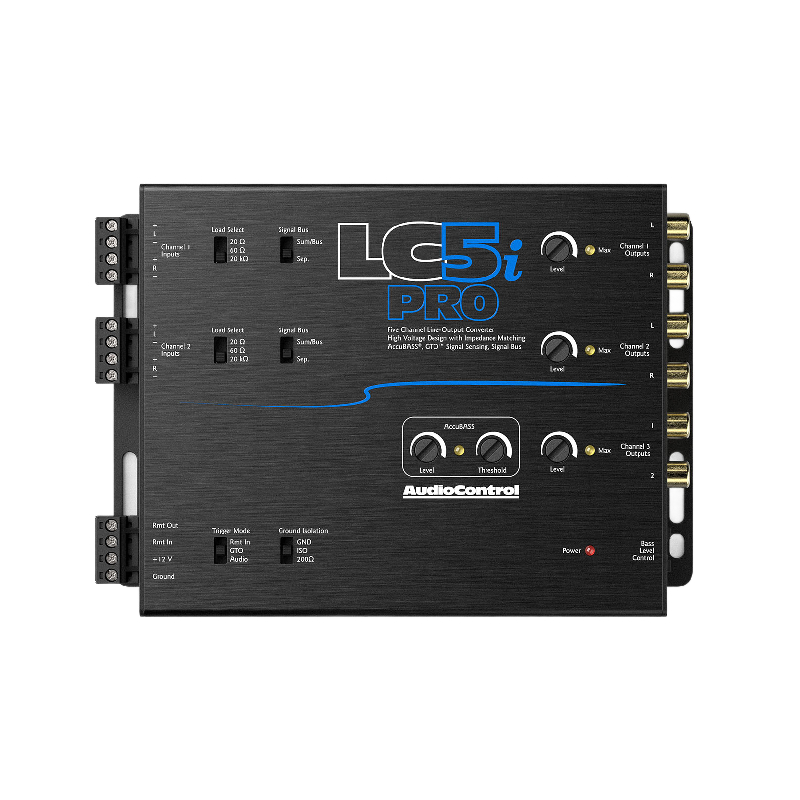

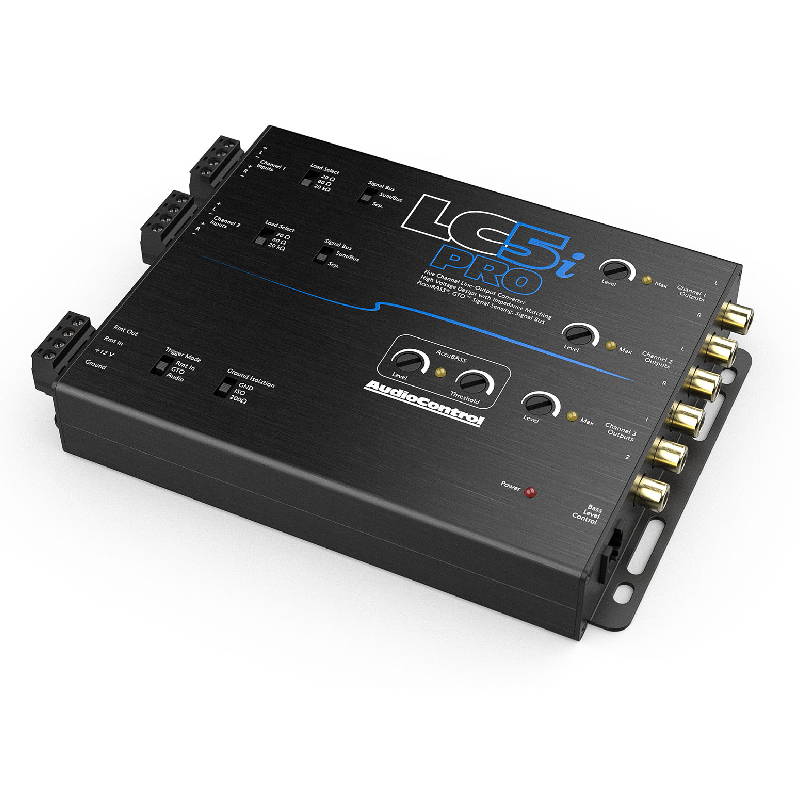

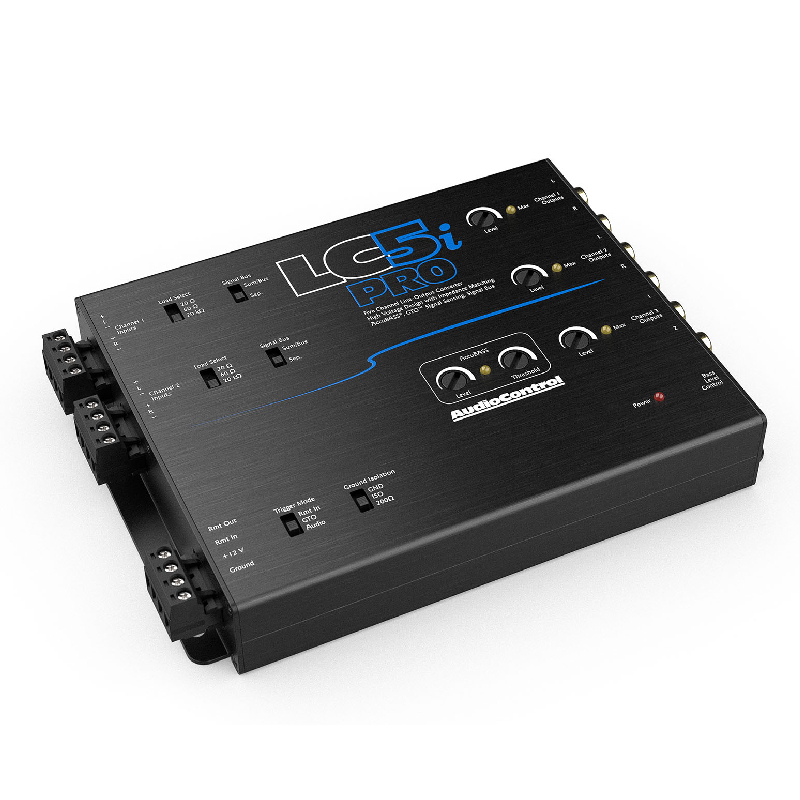

AudioControl  LC5i PRO

5-Channel Line-Output Converter High Voltage Design with Impedance Matching AccuBASS, GTO Signal Sensing, and Signal Bus

Item #93394

Condition:   Brand New

Product Highlights

  • 5-Channel Line-Output Converter
  • High Voltage Design
  • Impedance Matching
  • AccuBASS Technology
  • GTO Signal Sensing and Signal Bus

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$249.00

Reg. Price $350.00  Save $101.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $23/mo with . Check your purchasing power

No Credit needed for Learn More


AudioControl Authorized Dealer

Huge Saving on Other items:


AudioControl LC5i PRO - 5-Channel Line-Output Converter High Voltage Design with Impedance Matching AccuBASS, GTO Signal Sensing, and Signal Bus


We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

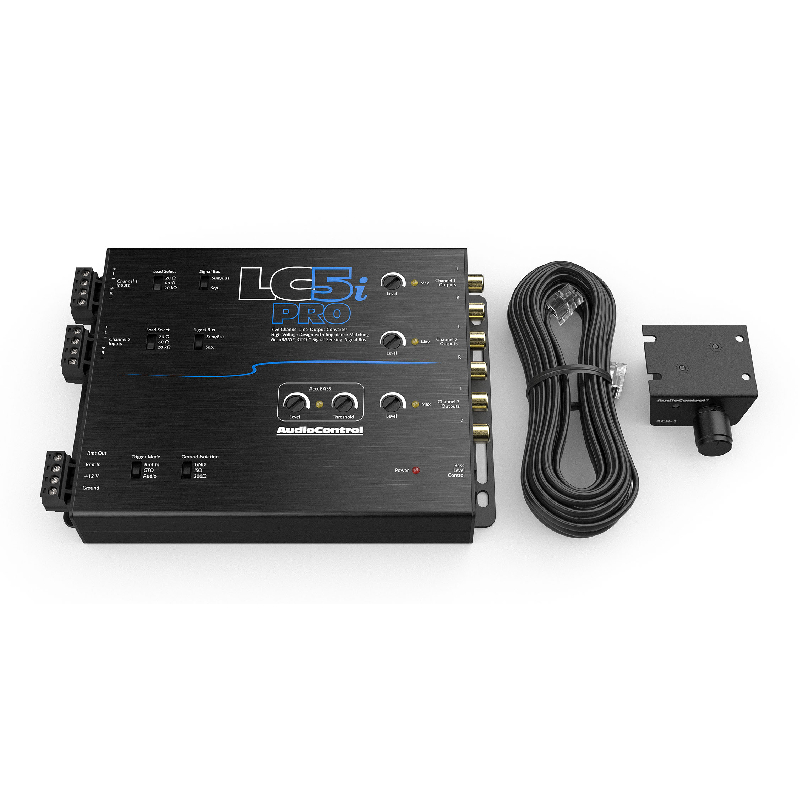

What's Inside?
  • • 5-Channel Output Converter
  • • ACR-1 Dash Remote
  • • Hardware
  • Owner's Manual
AudioControl_ACM-2.300
High-Power Signal-Mixing

The LC5iPRO accepts 4 channels of speaker-level signals, up to 400 watts per channel, so you can use it with just about any setup, even high-powered amplified factory systems. Load selection switches make OEM integration easier, so the LC5iPRO will work in almost any system. Selectable turn-on modes include GTO™ Signal Sense (DC offset), audio sense, or remote 12-volt input. You can add together, "sum" the LC5iPRO's input signals, even if they've been crossed over for tweeters and mid-bass woofers by the factory system, to create strong, smooth, full-range signals for your amplifiers, speakers, and subwoofers to handle.

Upgrade the factory audio — keep all the cool Features

A great way to upgrade your vehicle's sound system is to add aftermarket amplifiers and speakers that will improve your music's impact and enjoyment while leaving the factory audio system's convenient interface controls, signal routing, and automatic settings features intact and operating properly. AudioControl's LC5iPRO 5-channel line output converter does this by using the vehicle's processed output signals for its inputs, so you can enjoy better and more powerful sound without losing climate controls, voice-activated functions, hands-free calling, or other built-in factory features.



AudioControl_ACM-2.300-4
  • Number of Channels : 4

Features:

  • Enjoy the benefits of 4 channels of active speaker-level inputs, capable of handling up to 40V input.
  • Customize your audio system with variable outputs and discrete-level controls for precise sound adjustments.
  • Experience enhanced bass quality with AccuBASS® processing, which corrects bass roll-off.
  • Benefit from internal channel summing for improved audio performance.
  • Easily select load settings with the Load Selection Switch.
  • Ensure optimal signal detection with GTO Signal Sensing.
  • Appreciate automatic turn-on with Audio Sense technology.
  • Enhance audio quality and minimize interference with the Ground Isolation Switch.
  • Included ACR-1 dash remote for convenient control.



Specifications:

  • Maximum Input Handling 40V / 400W
  • Maximum Output Level 9.5 Vrms
  • Output Gain +/- 15 dB
  • ACR-1 Attenuation Range 0 dB to -21 dB
  • Frequency Response 20 Hz to 20 kHz
  • Total Harmonic Distortion <0.1%
  • Signal to Noise >124 dB
  • Input Impedance Selectable (20 Ω, 60 Ω, 20 kΩ)
  • Output Impedance 150 Ω
  • Power Draw 330 mA
  • Recommended Fuse Rating 2 Amp
  • Weight & Dims 1.10 lbs. / 7”L x 5.1”W x 1.14”H
  • UPC: 850038647223
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
