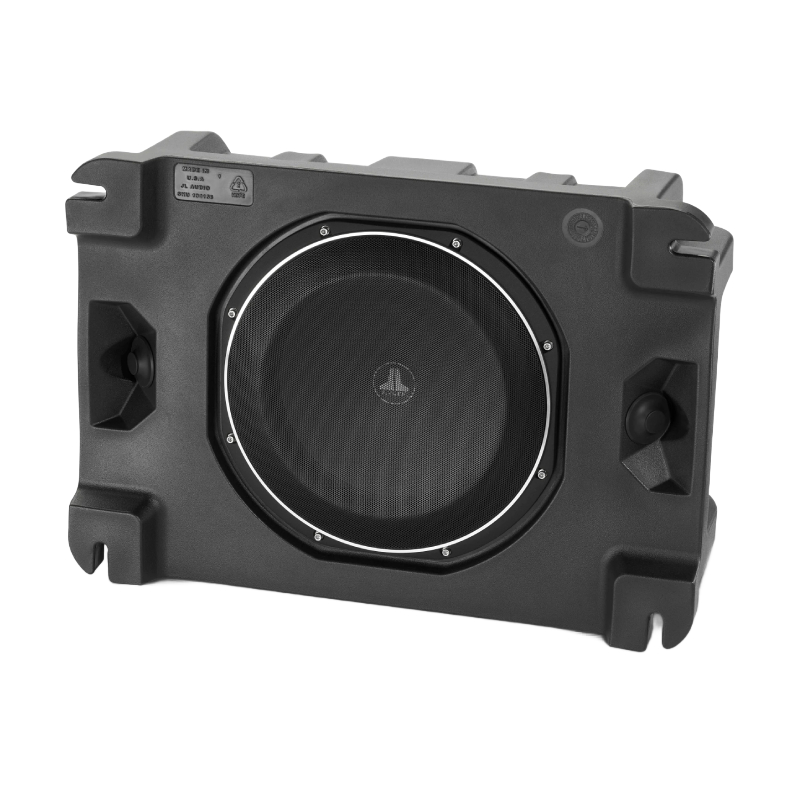

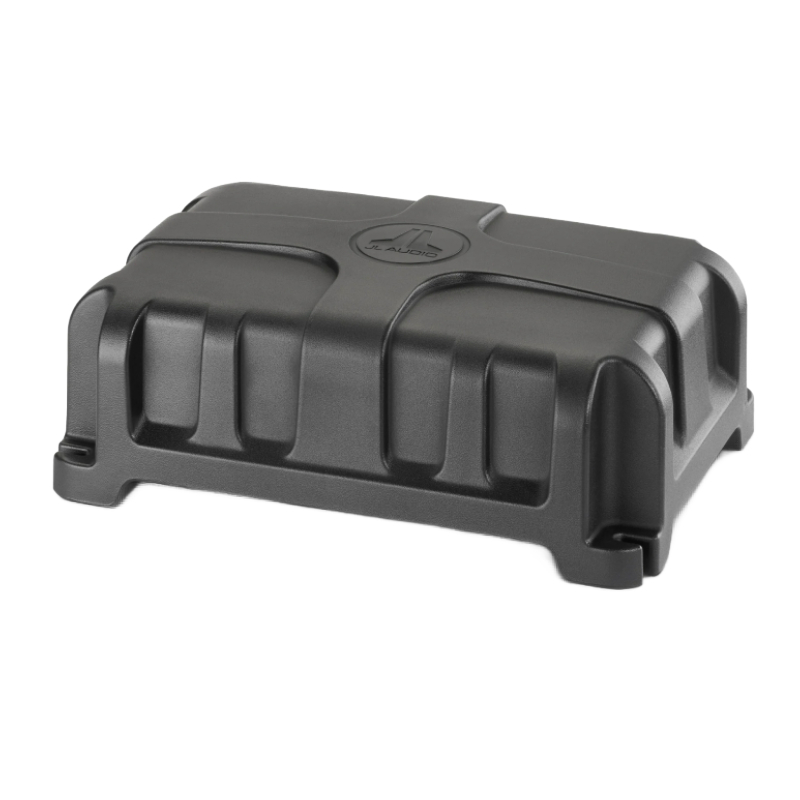

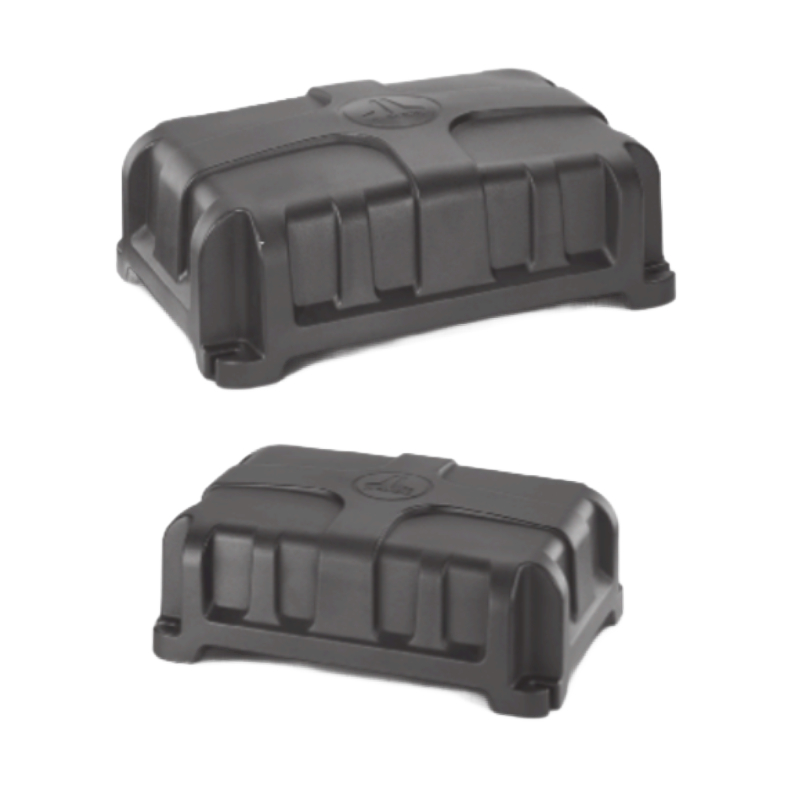

JL Audio PES112-TW1-2 Single 12TW1-2 12" 300W RMS (600W Peak Power Handling) 2 Ohm Subwoofer in Sealed Enclosure
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • PES112-TW1-2 12" 2 Ohm Subwoofer in Sealed Enclosure
- • Owner's Manual
Powerful Bass Performance in a Sleek, Compact Design
Introducing the PES112-TW1-2 subwoofer system, delivering powerful bass with a single 12-inch subwoofer and 300 watts of power. Wrapped in a sleek black texture finish, it provides deep, clear sound with impressive sensitivity and a wide frequency range. Compact and easy to fit in any space, it measures 8.23 inches in height, 21.78 inches in width, and 15.16 inches in depth. Perfect for enhancing your audio setup, it comes with a protective mesh grille for added durability and style.
Unmatched Bass Performance for Any Environment
Experience powerful, smooth bass with our enclosed subwoofer system, featuring a single 12TW1-2 subwoofer in a sleek black texture finish. Engineered for challenging environments, this system boasts a down-firing hard-shell design, marine-grade materials, and a low-profile enclosure ideal for cargo areas or tight spaces. With 300 watts of power handling, slotted mounting feet, and selectable prewiring, it's perfect for any setup, while the protective mesh grille ensures durability. Please note, mounting hardware is not included and must be securely installed to prevent movement and vibration.
TECHNOLOGY
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Engineered Lead-Wire System (U.S. Patent #7,356,157)
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
Tab-Ear Frame Design
This frame design feature facilitates mounting the Subwoofer in tight spaces.
Concentric Tube Suspension
Our Concentric Tube Suspension™ technology delivers unprecedented excursion in a low-profile woofer.
Built in U.S.A. with Global Components
JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.
- Diameter : 12 Inch
- Sensitivity : 85.07 dB
- Impedance : 2 Ohm
- Frequency Response : 24-200 Hz
- Peak Power Handling : 600 Watts
- Number Of Subwoofers : 1
- Enclosure Type : Sealed
- Color : Black
- Amplified : No
- RMS Power Handling : 300 Watts
Features:
- Enclosed Subwoofer System: Single 12TW1-2 Subwoofer
- Finish: Black texture with debossed logo on top
- Power Handling: 300 watts
- Nominal Impedance: 2 ohms
- StowAway™ Design: Engineered for challenging environments and applications
- Design: Down-firing hard-shell
- Suitability: Ideal for mounting areas shared with cargo or exposed to the elements
- Materials: Constructed from marine-grade materials
- Enclosure: Low-profile design
- Performance: Delivers smooth and powerful bass from a compact enclosure
- Mounting Features: Slotted mounting feet at each corner for “off-the-floor” installations
- Space Compatibility: Suitable for tight spaces where access is limited
- Prewiring: Selectable harness exits located underneath at opposite ends
- Protective Features: Includes protective mesh grille to safeguard the subwoofer
- Recommended Amplifier Power: 75–300 watts
- Note: Mounting hardware not included; installation method and hardware will vary based on specific application requirements
- Installation: Final mounting method must securely affix the enclosure to prevent movement and vibration
PES112-TW1-2 Specifications:
- Model: PES112-TW1-2
- Driver: Single 12TW1-2 subwoofer
- Power Handling: 300 watts
- Impedance: 2 ohms
- Finish: Black texture
- Included: Protective mesh grille
12TW1-2 Specifications:
- Diameter : 12 Inch
- Sensitivity : 85.07 dB
- Impedance : 2 Ohm
- Frequency Response : 24-200 Hz
- Peak Power Handling : 600 Watts
- Top Mount Depth : 4.62 Inches
- Shallow Mount : Yes
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.65 Cubic ft.
- Suggested Ported Box Volume : 1.125 Cubic ft.
- RMS Power Handling : 300 Watts
Physical Specifications:
- Height (H): 8.23 in / 209 mm
- Width (W): 21.78 in / 553 mm
- Depth (D): 15.16 in / 385 mm
- Mounting Location Depth (A): 12.66 in / 322 mm
- Mounting Location Width (B): 19.29 in / 490 mm
- UPC: 699440939669
- Weight: 31
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
