Hertz  DBA201

Deici Series 8" 440W Peak Power Handling 0.4 Ohms Enclosed Active Subwoofer w/ Double Passive Radiators (Remote Control Incl.)

Item #93611

Condition:   Brand New

Product Highlights

  • Deici Series 8" Subwoofer
  • 440W Peak Power Handling
  • 0.4 Ohms Impedance
  • Enclosed Active Design
  • Double Passive Radiators
  • Remote Control Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$299.99

Reg. Price $399.99  Save $100.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $28/mo with . Check your purchasing power

No Credit needed for Learn More


Hertz Authorized Dealer

Huge Saving on Other items:


PAC Banner

Hertz Deici Series 8" 440W Peak Power Handling 0.4 Ohms Enclosed Active Subwoofer w/ Double Passive Radiators (Remote Control Incl.)


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •8" Enclosed Active Subwoofer
  • •(HRC-01) Wired Remote Control
  • •Remote In/Out Cable
  • •Hex Key 2.55mm
  • •(4) Screws (4.2 x 55 mm)
  • •(2) Ferrules
  • •Screwdriver
  • •Owner's Manual
Auto turn-on and standby mode

The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

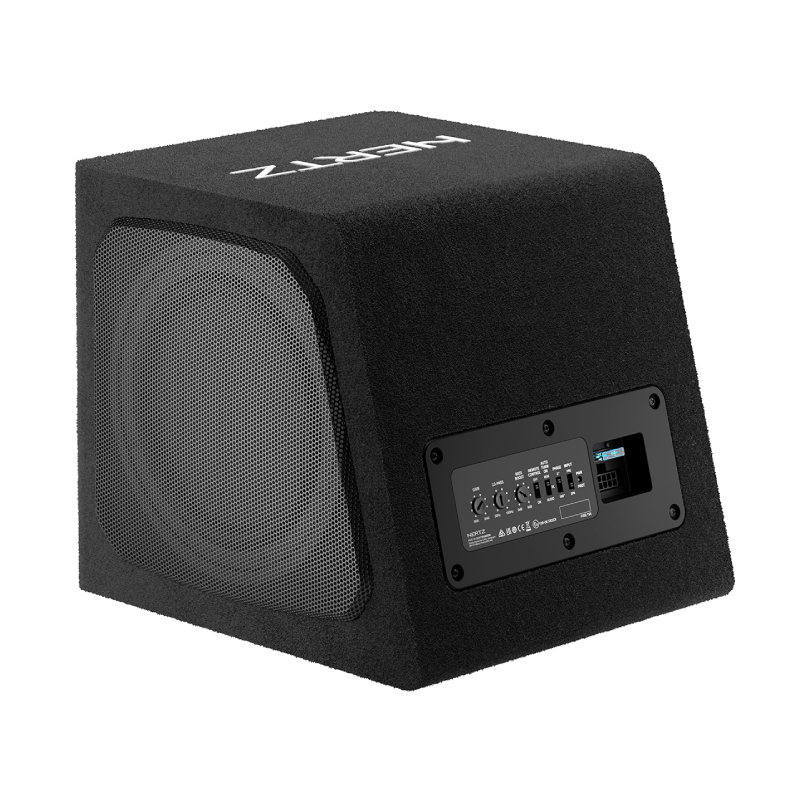

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping

High performance in a compact stylish design

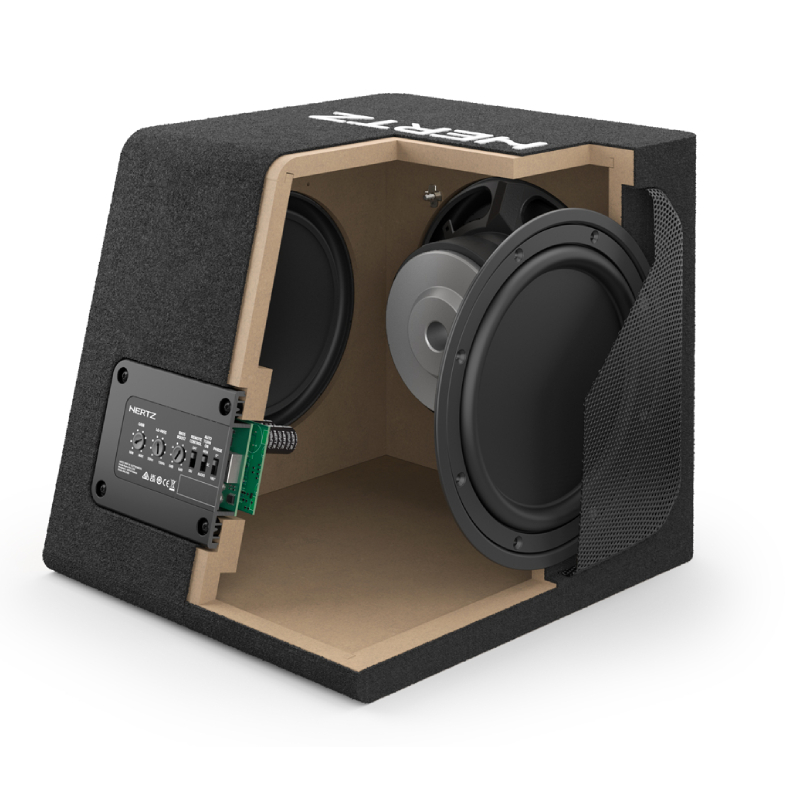

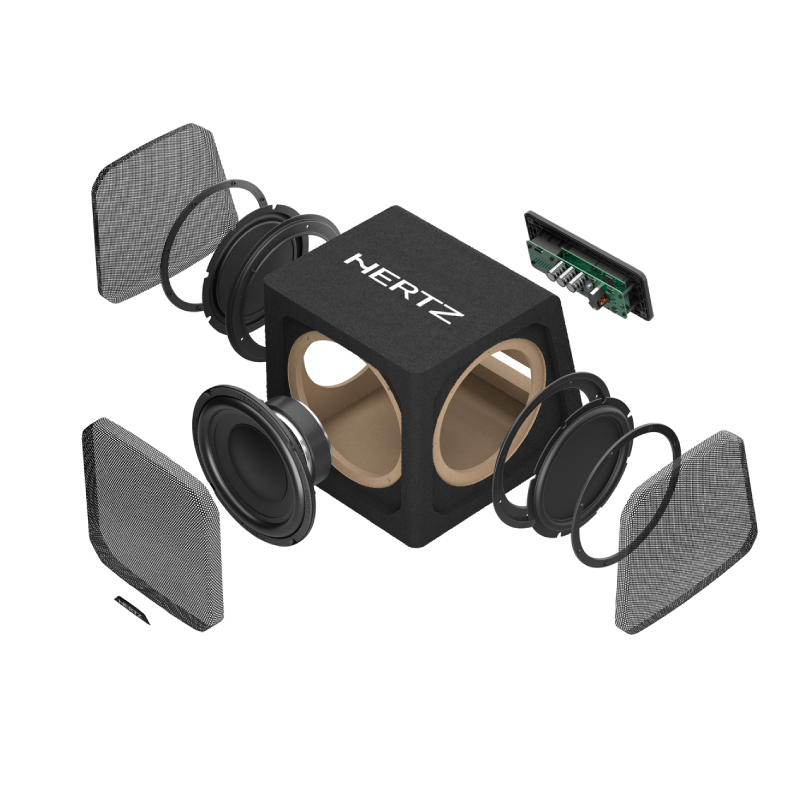

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

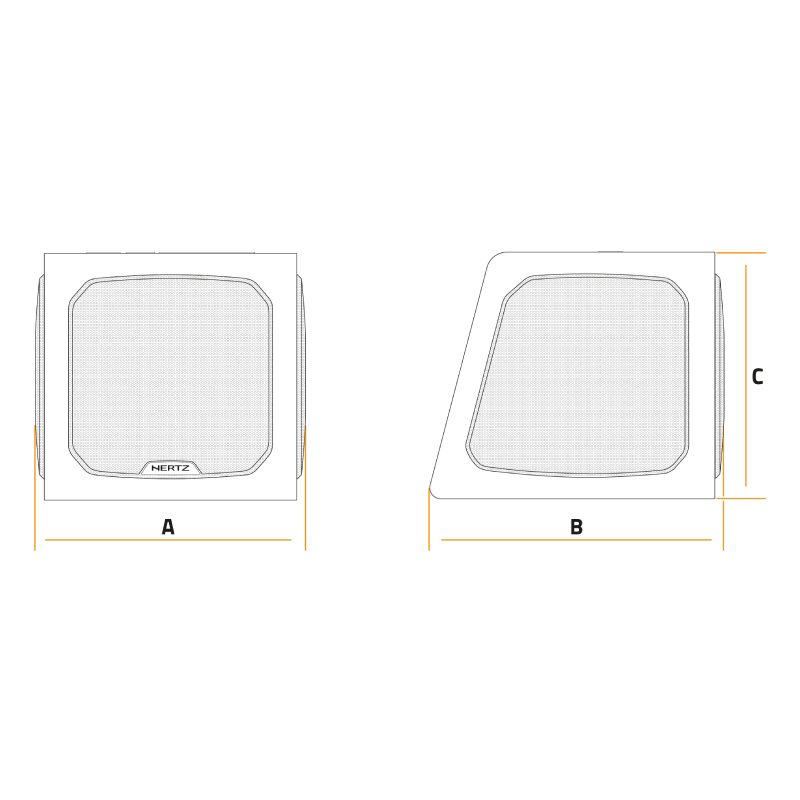

Physical Specifications
  • •Dimension A: 291 mm (11.46 in.)
  • •Dimension B: 315.5 mm (12.42
  • in.)
  • •Dimension C: 264 mm (10.39 in.)
  • Diameter : 8 Inch
  • Maximum Power : 440 Watts
  • Impedance : 0.4 Ohm
  • Frequency Response : 32 - 400 Hz
  • RMS Power Range : 220 Watts

Features and Specifications:

  • Size: 200 mm (8 in.)
  • Power Handling - Continuous: 220 W
  • Power Handling - Peak: 440 W
  • Impedance: 0.4 Ohm
  • Design: Active subwoofer box with double passive radiators
  • Voice Coil Diameter: 38.6 mm (1.52 in.)
  • Frequency Response: 32 - 400 Hz
  • Magnet Size (D x d x h): 115 x 47 x 25 mm (4.5 x 1.8 x 0.98 in.)
  • Weight of One Component: 6.7 kg (10.54 lb.)
  • Magnet Type: High Density Flux Ferrite
  • Cone Material: Pressed paper
  • Voice Coil Type: Copper



Power Supply:

  • Operating Voltage: 6.5 - 18 VDC (Fuse: 15A)
  • Start-Stop Voltage: 6 VDC
  • Idling Current (Power OFF): 260 mA (1 mA)
  • Consumption at 14.4 VDC (Max Musical Power): 8.5 A
  • Remote IN Turn On Voltage (Current): 4 VDC (1 mA)
  • PRE Input Signal Turn ON: 10 mV VRMS
  • SPK Input DC Turn ON: 2 VDC



Amplifier Stage:

  • Distortion - THD @ 100 Hz: 0.15%
  • Bandwidth: 15 - 150 Hz
  • Signal-to-Noise Ratio: 100 dBA
  • Output Power (RMS) @ 14.4 VDC, 1% THD: 220 W



Signal Inputs/Filter:

  • PRE Input Signal: 0.2 - 5 VRMS (Impedance: 10 k?)
  • SPK Input Signal: 1.2 - 30 VRMS (Impedance: 6 ?)
  • LO-PASS Filter @ 24 dB/Oct Adjustable: 50 - 150 Hz
  • Subsonic Filter @ 24 dB/Oct Fixed: 15 Hz
  • Phase Switch: 0 / 180°
  • Bass Boost @ 45 Hz: 0 - 6 dB
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
