Hertz Deici Series 8" 440W Peak Power Handling 0.4 Ohms Super Flat Sealed Active Enclosed Subwoofer (Remote Control Incl.)
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

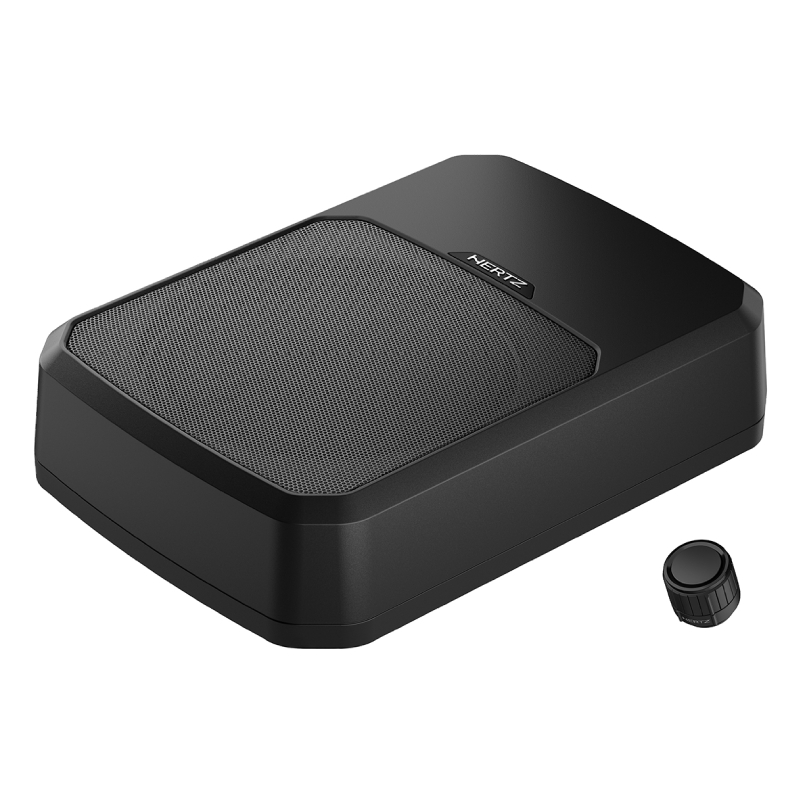

- •8" Enclosed Active Subwoofer
- •(HRC-01) Wired Remote Control
- •(2) Round Clip Connector (male/female)
- •Remote In/Out Cable
- •Hex Key 2.55mm
- •(4) Screws (4.2 x 55 mm)
- •(2) Ferrules
- •Screwdriver
- •Owner's Manual
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping
High performance in a super flat design

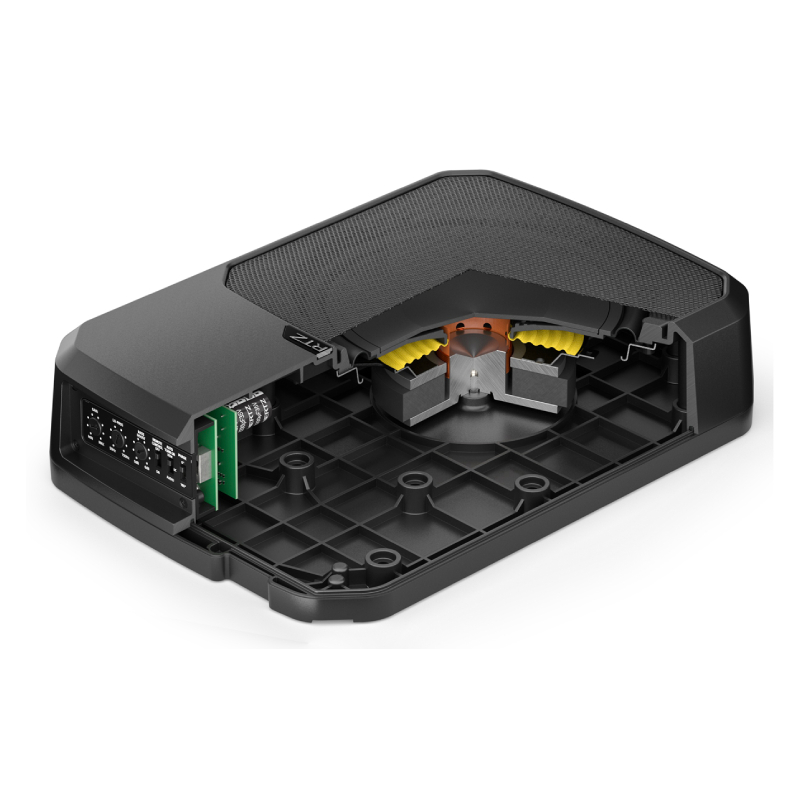

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.

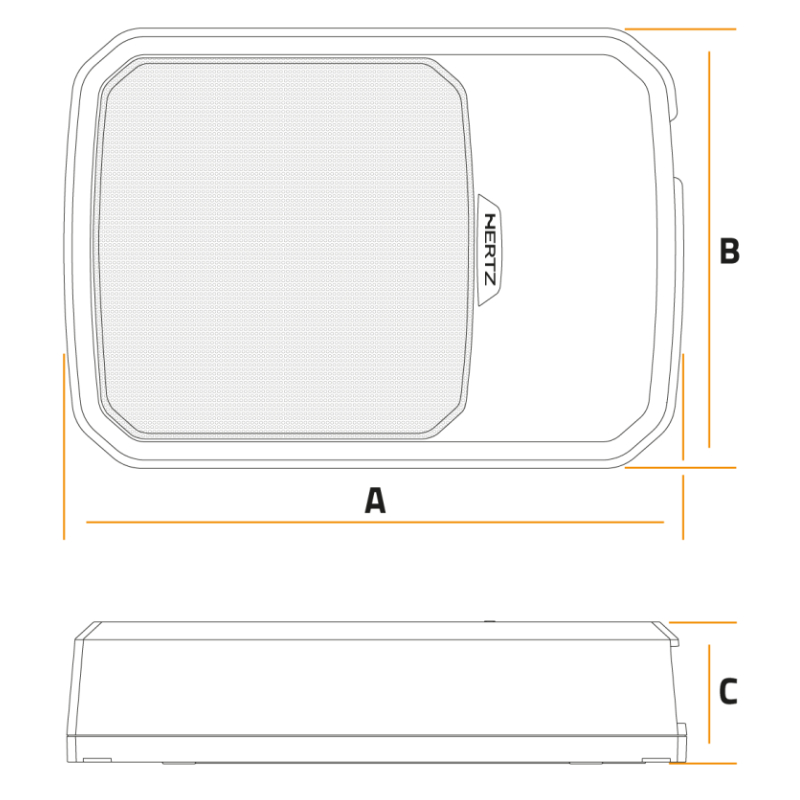

Physical Specifications
- •Dimension A: 345 mm (13.58 in.)
- •Dimension B: 245 mm (9.42 in.)
- •Dimension C: 79 mm (3.11 in.)
- Diameter : 8 Inch
- Maximum Power : 440 Watts
- Impedance : 0.4 Ohm
- Frequency Response : 32-400 Hz
- RMS Power Range : 220 Watts
Features and Specifications:
- Size: 200 mm (8 in.)
- Power Handling - Continuous: 220 W
- Power Handling - Peak: 440 W
- Impedance: 0.4 Ohm
- Design: Super Flat Sealed
- Voice Coil Diameter: 38.6 mm (1.52 in.)
- Frequency Response: 32 - 400 Hz
- Magnet Size (D x d x h): 110 x 45 x 17 mm (4.33 x 1.78 x 0.67 in.)
- Weight of One Component: 4.3 kg (9.48 lb.)
- Magnet Type: High Density Flux Ferrite
- Cone Material: Pressed paper
- Voice Coil Type: Copper
Power Supply:
- Operating Voltage: 6.5 - 18 VDC (Fuse: 15A)
- Start-Stop Voltage: 6 VDC
- Idling Current (Power OFF): 260 mA (1 mA)
- Consumption at 14.4 VDC (Max Musical Power): 8.5 A
- Remote IN Turn On Voltage (Current): 4 VDC (1 mA)
- PRE Input Signal Turn ON: 10 mV VRMS
- SPK Input DC Turn ON: 2 VDC
Amplifier Stage:
- Distortion - THD @ 100 Hz: 0.15%
- Bandwidth: 15 - 150 Hz
- Signal-to-Noise Ratio: 100 dBA
- Output Power (RMS) @ 14.4 VDC, 1% THD: 220 W
Signals Inputs / Filter :
- PRE Input Signal: 0.2 - 5 VRMS (Impedance: 10 k?)
- SPK Input Signal: 1.2 - 30 VRMS (Impedance: 6 ?)
- LO-PASS Filter @ 24 dB/Oct Adjustable: 50 - 150 Hz
- Subsonic Filter @ 24 dB/Oct Fixed: 15 Hz
- Phase Switch: 0 / 180°
- Bass Boost @ 45 Hz: 0 - 6 dB
- Sub Remote Volume Control: 0 to -15 dB (HRC 01 included)
- UPC:
- Weight: 16
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
