Morel  MXT280C

Elate Carbon Series 2-Way Passive Crossovers (Pair)

Item #93649

Condition:   Brand New

Product Highlights

  • Elate Carbon Series
  • 2-Way Passive Crossovers
  • Pair

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$399.00

Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Morel Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

Morel MXT280C 2-Way Passive Crossovers (Pair)


We are a Morel authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
Exceptional Audio Quality

Enhance your audio setup with our 2-way passive crossover network tailored for Morel Elate Carbon component speaker systems, featuring a 2,500 Hz crossover point and a 12 dB/octave slope. This versatile system supports bi-wiring and bi-amping capabilities, allowing for enhanced signal separation and the flexibility of separate amplification for tweeter and woofer channels. Adjust the tweeter output precisely with a two-level adjustment (-2dB to +2dB), ensuring optimal audio performance tailored to your preferences.

Deliver Precision And Reliability

Ensure seamless integration and enhanced sound performance with our pair of passive crossover networks, specifically designed for compatibility with Morel's acclaimed 2-way Elate Carbon and Elate Carbon Pro component speaker sets (Elate Carbon 52, Elate Carbon 62, Elate Carbon Pro 52, and Elate Carbon Pro 62), each sold separately. Featuring user-friendly set screw terminals that support bare wires up to 10-gauge and equipped with easy adjustments using a 2mm Allen wrench (not included), these crossovers deliver precision and reliability for your audio setup.

Superior Audio Performance

Experience unparalleled control and customization with our passive crossover networks, featuring a tweeter output level adjustment ranging from -2 dB to +2 dB via an internal jumper. The high-pass and low-pass crossover points are precisely set at 2.5 kHz with a 12 dB/octave slope, ensuring optimal sound separation and clarity. Additionally, bi-amp capability enhances dynamic range and reduces amplifier load, making these crossovers an essential upgrade for audiophiles seeking superior audio performance.

  • Crossover Type : Passive

Features:

  • Compatibility: Designed for use with Morel 2-way Elate Carbon and Elate Carbon Pro component speaker sets (Elate Carbon 52, Elate Carbon 62, Elate Carbon Pro 52, and Elate Carbon Pro 62), all sold separately.

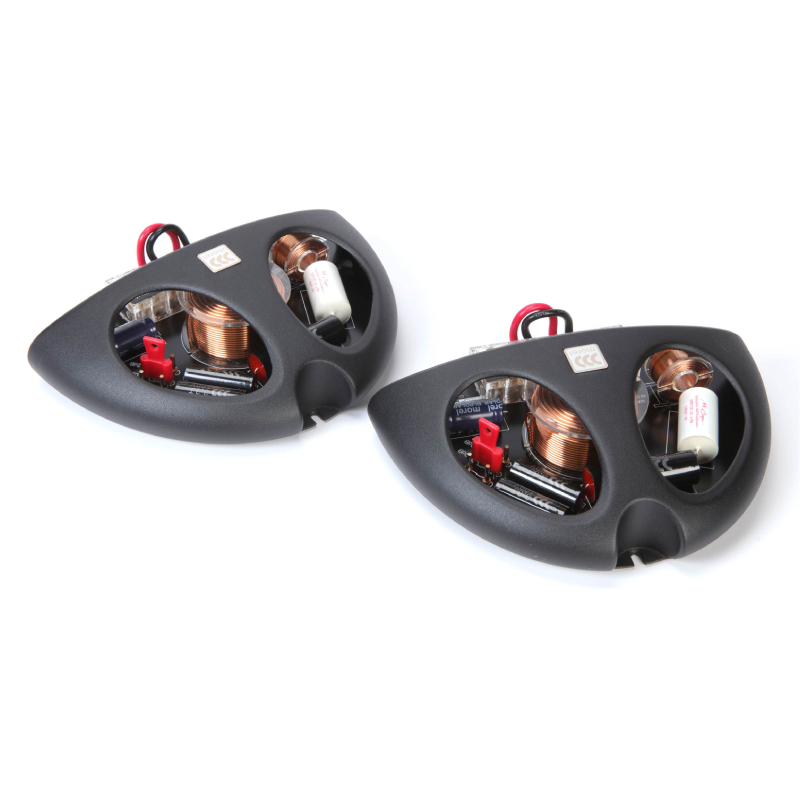

  • Sold as a Pair: Includes two crossovers to cover left and right channels.

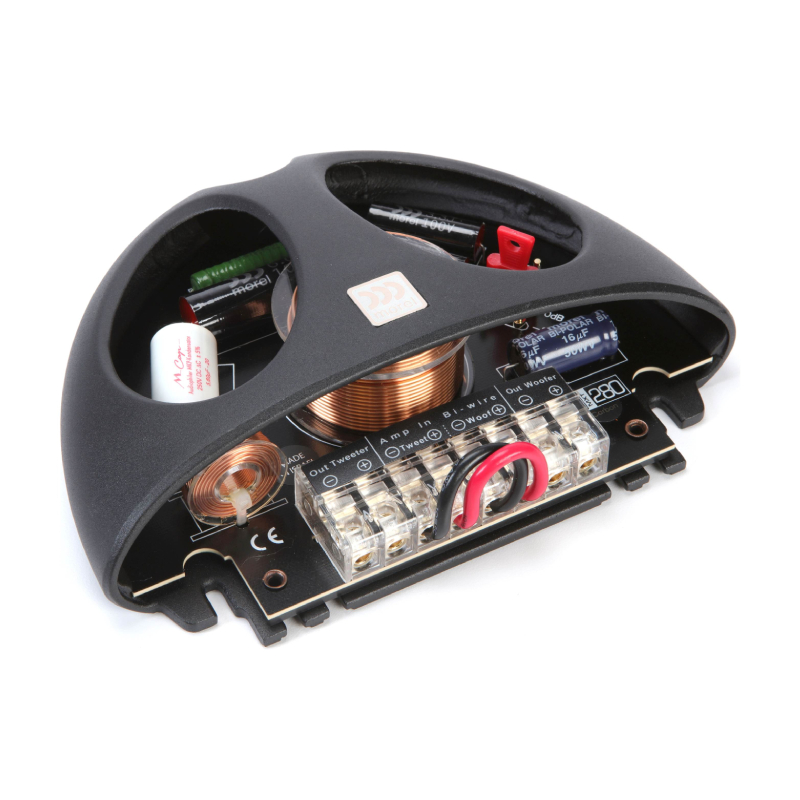

  • Terminals: Features set screw terminals for inputs and outputs, accommodating bare wires up to 10-gauge; adjustments are made with a 2mm Allen wrench (not included).
  • Tweeter Output Level Adjustment: Internal jumper allows for tweeter output level adjustment of -2 dB, 0 dB, or +2 dB.
  • Crossover Point and Slope: High-pass and low-pass crossover point set at 2.5 kHz with a slope of 12 dB/octave.
  • Bi-Amp Capability: Offers bi-amp inputs for tweeter and woofer; jumper wires need removal for bi-amping, enhancing dynamic range and reducing amplifier load.



Specifications:

  • Application: Designed for Morel Elate Carbon component speaker systems
  • System Type: 2-way passive crossover network
  • Crossover Point: 2,500 Hz
  • Crossover Slope: 12 dB/octave
  • Bi-Wire Capability: Supports bi-wiring for enhanced signal separation
  • Bi-Amp Capability: Allows separate amplification for tweeter and woofer channels
  • Tweeter Level Adjustment: Two-level adjustment (-2dB, +2dB) for precise tweeter output tuning
  • UPC:
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
