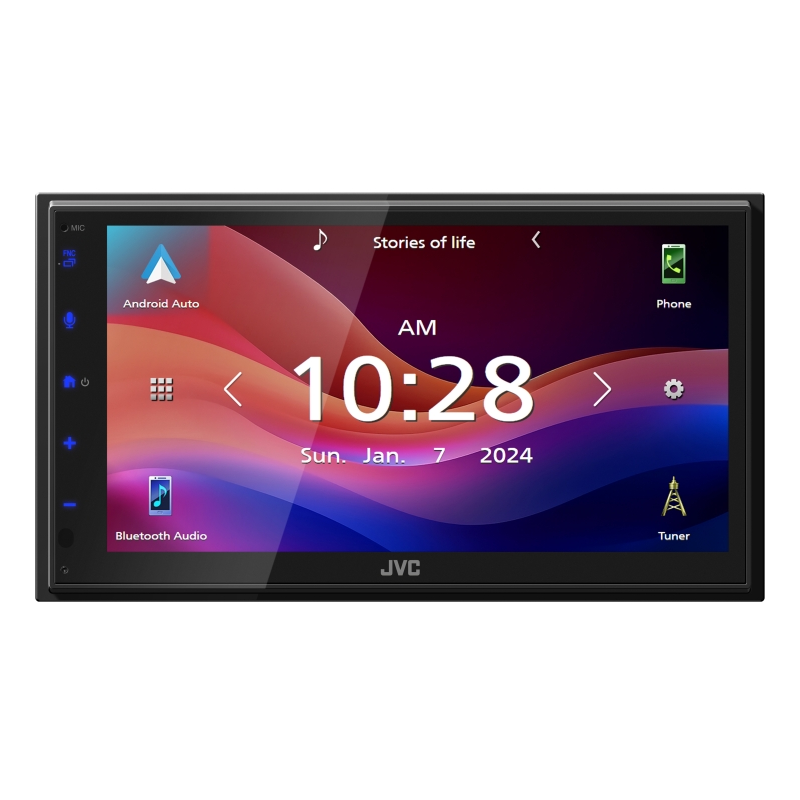

JVC KW-M590BT 2-DIN 6.8" Touchscreen Digital Multimedia Receiver with Wired Apple CarPlay® & Android Auto™, USB Mirroring, and Built-In Bluetooth (Does not play discs)
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • KW-M590BT 2-DIN Digital Multimedia Receiver (15A fuse)
- • Trim Ring
- • (2) Side Brackets (pre-installed)
- • Rear Bracket (pre-installed)
- • Wiring Harness
- • 6.5' Light-Green Parking Brake Wire (pre-installed)
- • Microphone with Bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • GPS Antenna (attached 10' cable terminated by a microUSB connector)
- • Self-Adhesive Mounting Pad
- • Two-Sided Tape
- • Trim-Ring Removal Tool
- • (4) Pan-Head ISO-Mount Screws
- • (4) Flat-Head ISO-Mount Screws
- • Warranty Card
- • Microphone Note
- • Owner's Manual

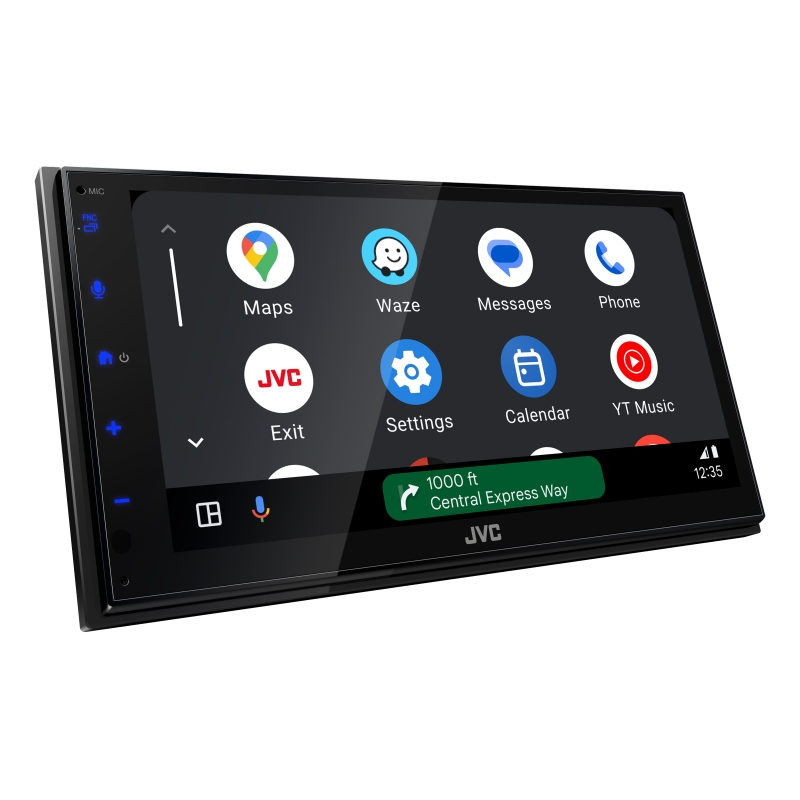

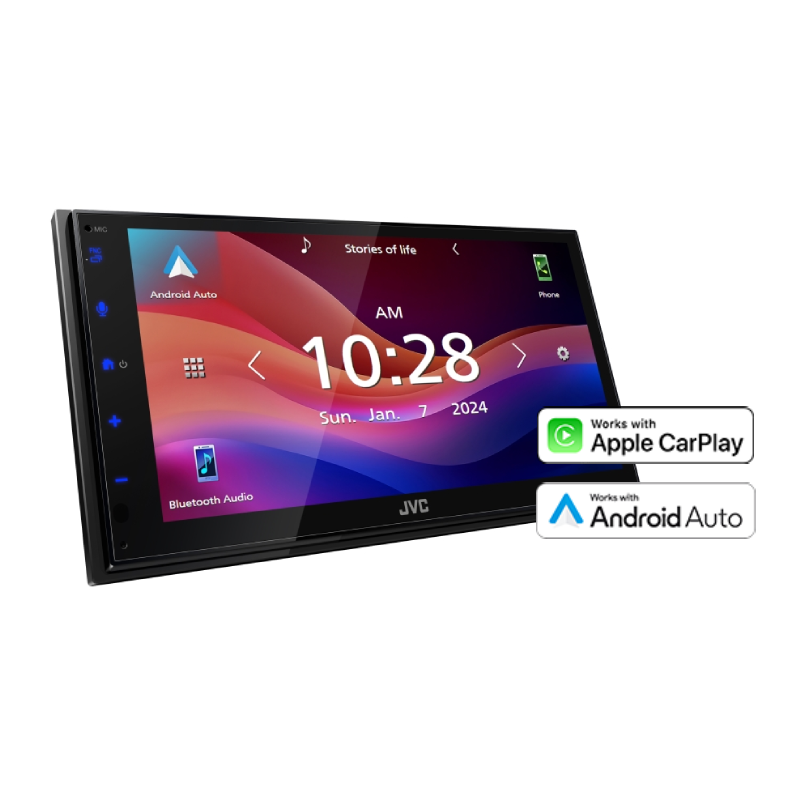

Stay Connected and Drive Smarter with Apple CarPlay® and Android Auto™
Transform your driving experience with Apple CarPlay® and Android Auto™. Connect via USB to access your favorite apps, make hands-free calls, navigate with Maps, and stream music seamlessly. Apple CarPlay® offers an intuitive interface for iPhone users, letting you control everything with a simple touch or voice command through Siri. Android Auto™ enhances safety with larger touch targets, a split-screen layout, and easy voice actions, ensuring you stay connected without distractions—keeping your focus on the road ahead.
Seamless Connectivity with MirrorApp+ – Display and Control Your Favorite Apps on the Receiver's Screen
Enhance your driving experience with the “MirrorApp+” app—connect your phone via USB to seamlessly display popular apps like Waze for navigation, YouTube™ for entertainment, and Instagram for staying connected, all on the receiver's vibrant screen. Enjoy the convenience of touch controls from both the screen and your mobile device, making it easier than ever to navigate, stream, and stay engaged on the go (*compatible devices only).

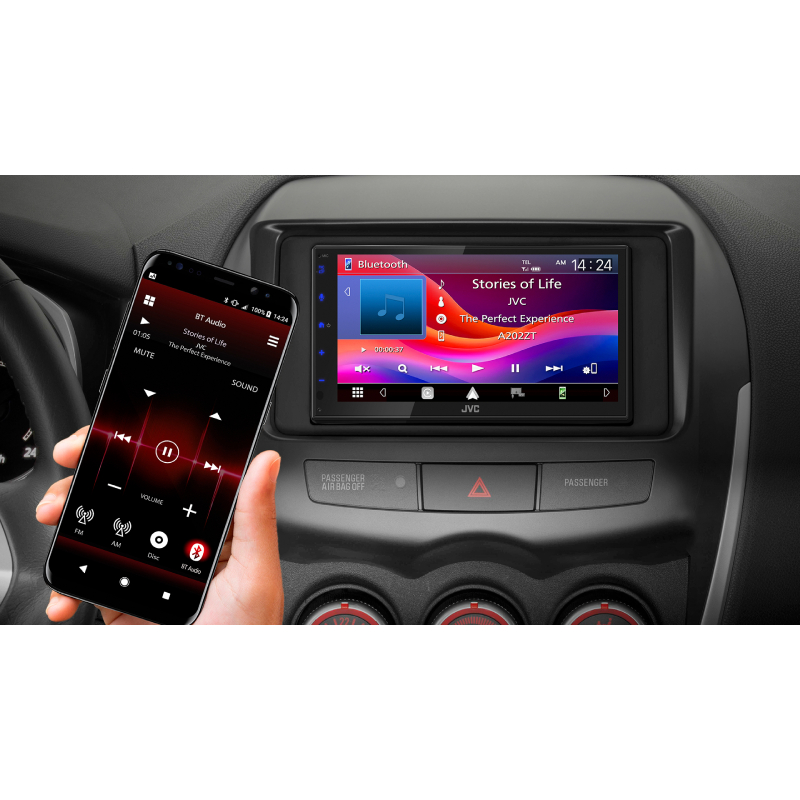

Crystal Clear Calls, Easy Song Selection, and Seamless Music Streaming with Bluetooth
Enjoy crystal-clear calls and music with Bluetooth Voice Recognition and HD Voice for enhanced sound quality and accurate voice commands. With Bluetooth AVRCP1.6, effortlessly browse and select your favorite songs by folder or title, while streaming music from popular apps or your device with easy audio controls for the ultimate listening experience.
Stunning 6.8" WSVGA Display and Capacitive Touchscreen for Superior Clarity and Control

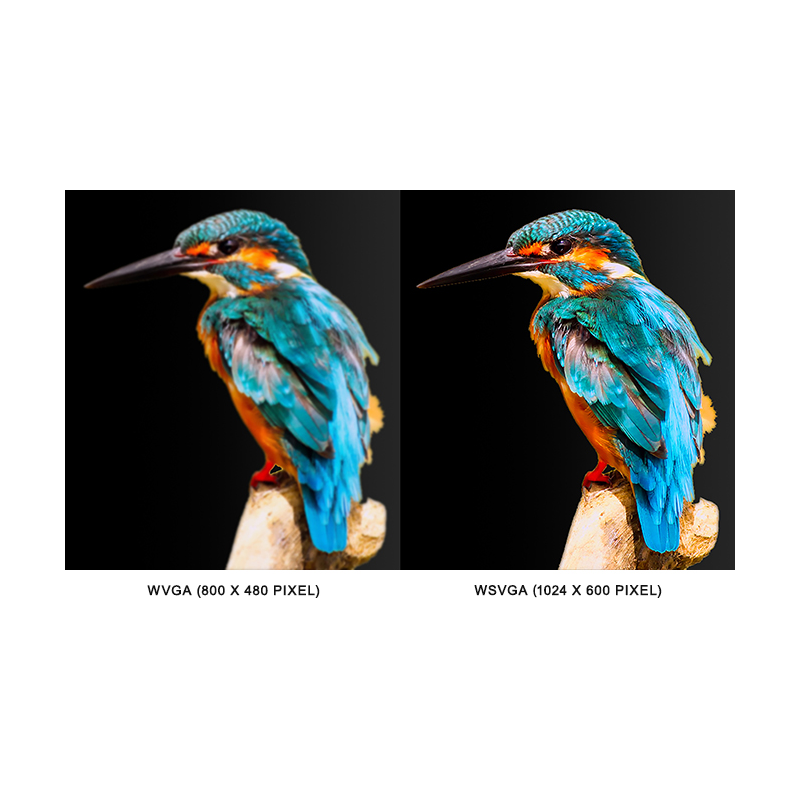

Upgrade your viewing experience with the 6.8" WSVGA LCD display, delivering 1.6 times the resolution of standard WVGA for stunningly detailed colors and lifelike visuals. The capacitive touchscreen ensures smooth, precise control with superior clarity, requiring just a light touch for an effortless experience.
- Satellite Radio Ready : No
- Built In Crossovers : Yes
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 2.5 volts
- Display Size : 6.8 Inch
- Bluetooth : Yes
- Aux Input : No
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 3
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features
Physical Features:
- Digital multimedia receiver with AM/FM tuner
- 6.8" capacitive touchscreen
- Gesture Touch Control for volume level and forward/back
- Fits double-DIN dash openings
Smartphone Features:
- Wired Android Auto and Apple CarPlay compatible
- Control and charging of Apple devices using the USB connection
- Siri Eyes Free Control
- Android mirroring via USB
- Built-in Bluetooth for hands-free calling and audio streaming with dual phone connection
Audio/Video Features:
- Plays USB memory devices
- 13-band equalizer with digital time alignment
- Subwoofer crossover adjustments
- Blue button illumination
Expandability:

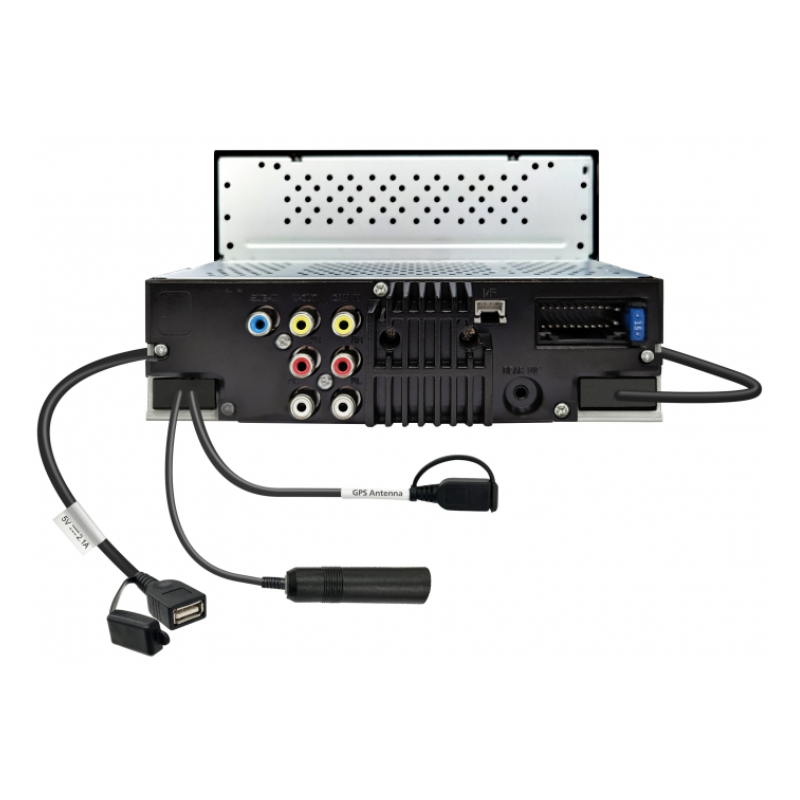

- Inputs: Rear USB input, backup camera input
- Outputs: Rear video output (RCA), 5-channel preamp outputs (2.5-volt front, rear, mono subwoofer)
Other Information:
- Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- Compatible with most factory steering wheel audio controls (adapter required)
- Built-in amp (22 watts RMS/50 peak x 4 channels)
- Optional wireless remote control
Specifications
Expandability:
- AUX Input: No
- Audio/video Input: No
- USB Input: Rear
- USB Port Power: 2.1A
- Backup Camera Input: Yes
- Second Camera Input: No
Smartphone Compatibility:
- CarPlay: Yes
- Android Auto: Yes
- Siri Control: CarPlay only
- Alexa Voice Control: No
- Android Control: Yes
- Memory Card Slot: USB memory
Radio Features:
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: No
- HD Radio: No
Navigation:
- Optional Navigation
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
Device Compatibility:
- iPod Compatibility: No
- iPhone Compatibility: 6S and newer
Power:
- RMS Power (Manufacturer): 22 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz
Outputs:
- Preamp Outputs: 5-channel
- Sub Preamp Outputs: Yes
- Preamp Voltage: 2.5 volts
Screen and Controls:
- Screen Size: 6.8 inches
- Screen Type: Swipeable (Capacitive)
- Key Button Color: Blue
- EQ Bands: 13
- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
Tuner:
- FM Sensitivity: 16.2 dBf
- European Tuning: Yes
- Seek/Scan: Seek
- Radio Data System: Yes
File Playback:
- Music File Playback: MP3, WMA, AAC, WAV, FLAC
- High-res Playback: FLAC/WAV (up to 24-bit/192kHz)
Dimensions:
- Chassis Depth: 3.435 inches
- Chassis Width: 7.005 inches
- Chassis Height: 3.945 inches
- UPC: 046838502651
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
