JL Audio C6-650 C6 Series 6.5" 100W RMS (150W Peak Power Handling) 4 Ohm, 2-Way Car Component System
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

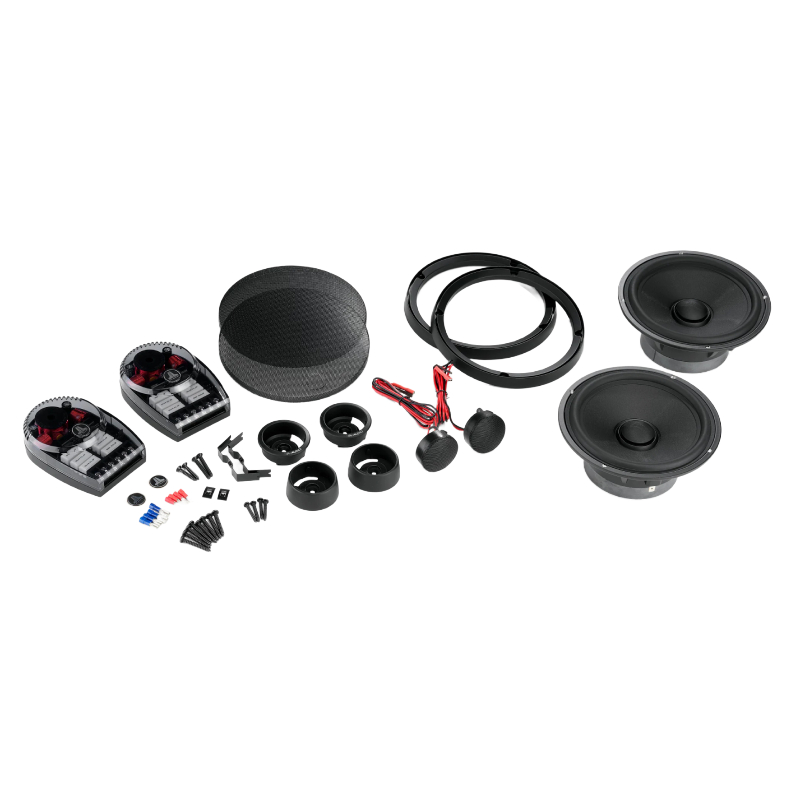

What's Inside?
- • (2) C6-650cw Woofers
- • (2) C6-100ct Tweeters (36" wires attached)
- • (2) C6-650-xo Crossovers
- • (2) Woofer grille frames
- • (2) Woofer grilles
- • (2) Flush-mount tweeter housings
- • (2) Surface-mount tweeter housings
- • (2) Metal spring clips for flush-mount tweeter housings
- • (2) Speed clips
- • (2) M4x30mm Machine screws
- • (2) 1" Flat-head screws
- • (4) 1" Pan-head screws
- • (8) 1-1/4" Pan-head screws
- • (2) Self-adhesive JL Audio badges
- • (2) Crimp-on 0.187" male quick slides
- • (2) Crimp-on 0.110" male quick slides
- • (2) Crimp-on 0.187" female quick slides
- • (2) Crimp-on 0.25" female quick slides
- • Owner's Manual
Ultimate Sound Performance
Discover the exceptional audio quality of our 6 1/2-inch 2-way component speakers, featuring a 1" edge-driven silk dome tweeter and a mineral-filled poly woofer with a rubber surround, available now at OnlineCarStereo. With an impedance of 4 ohms and sensitivity of 87.37 dB, these speakers deliver a frequency response of 53 - 21k Hz and handle a minimum RMS wattage of 30 W and a maximum of 100 W. Enjoy a seamless installation with a top-mount depth of 2 11/16 inches and cutout diameter of 5 9/16 inches. Upgrade your car audio system today and experience the ultimate in sound performance!
Seamless High-Frequency Transition
Experience the cutting-edge technology of JL Audio's C7 speakers with our premium component system, featuring a 6.5" woofer with cast alloy frames and Elevated Frame Cooling, a DMA-optimized motor system for powerful midbass and ultra-low distortion, and a large diameter, linear profile spider for exceptional excursion capability. The optimized center cap ensures seamless high-frequency transition to the silk dome tweeter, while the oversized voice coil extends power handling and minimizes distortion. Upgrade your audio system today and enjoy unmatched sound quality and performance!
Premium Passive Crossover Networks
Elevate your audio experience with our advanced component system, featuring ferrofluid cooling for enhanced reliability and smooth response, versatile surface- and flush-mount fixtures for easy tweeter installation, and premium passive crossover networks with four levels of tweeter adjustment. Equipped with top-tier components like polyester film capacitors, electrolytic capacitors, and low-loss air-core inductors, each crossover network also includes advanced electronic protection circuits and a durable polycarbonate cover to safeguard your investment. Upgrade now to enjoy superior sound clarity and durability!
- Diameter : 6.5 Inch
- Sensitivity : 87.37 dB
- Frequency Response : 53-21000 Hz
- Peak Power Handling : 150 Watts
- RMS Power Handling : 100 Watts
Features:
- Technology Origin: Born from shared technologies used in JL Audio's flagship C7 speakers.
- System Composition: Combines premium silk dome tweeter with a top-flight component woofer.

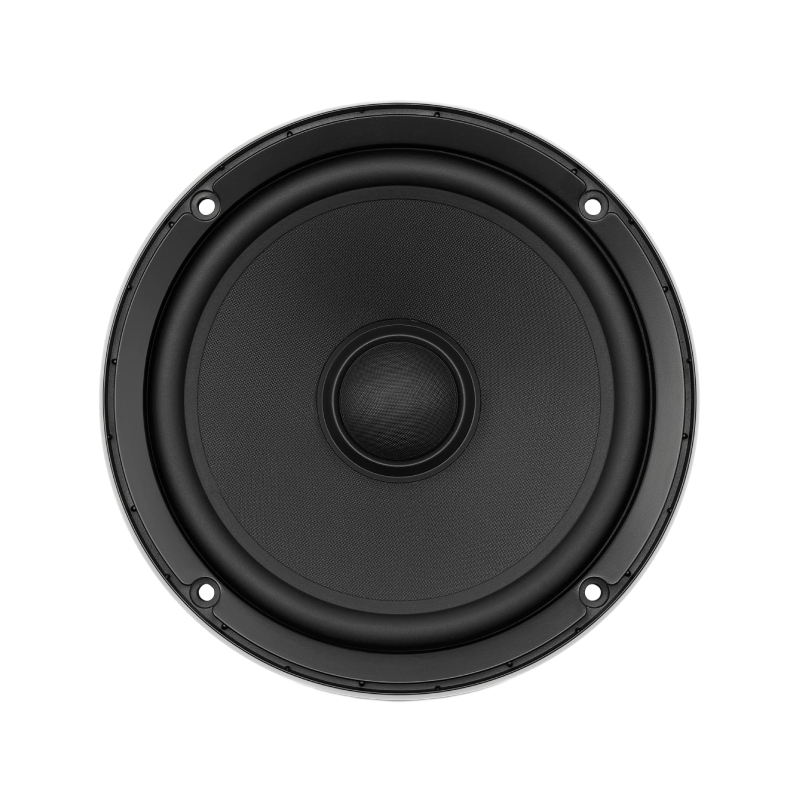

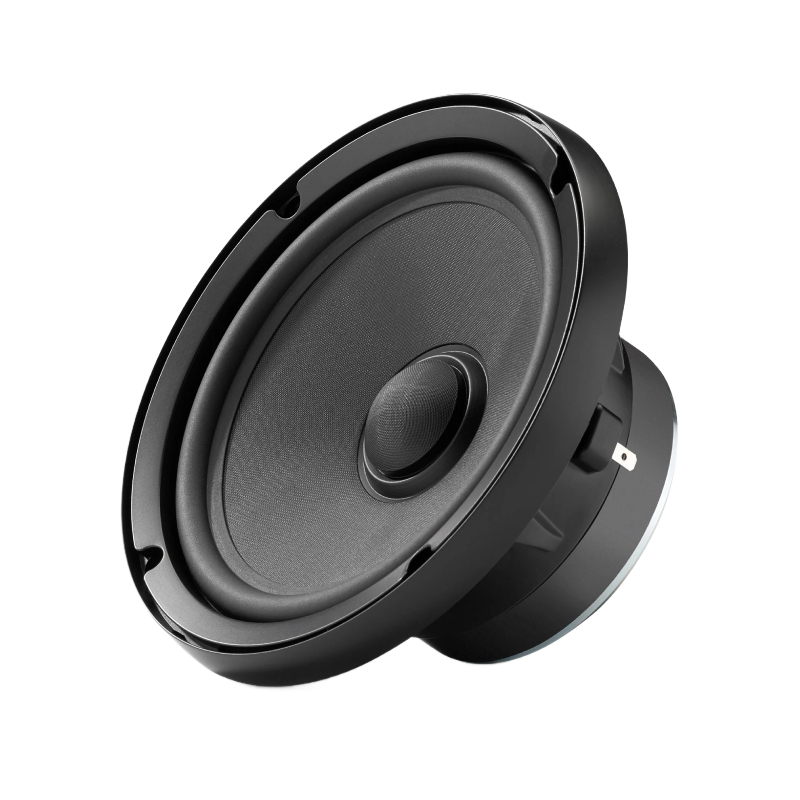

- Woofer Frame: The 6.5" (165 mm) woofer features purpose-engineered, cast alloy frames with Elevated Frame Cooling technology.

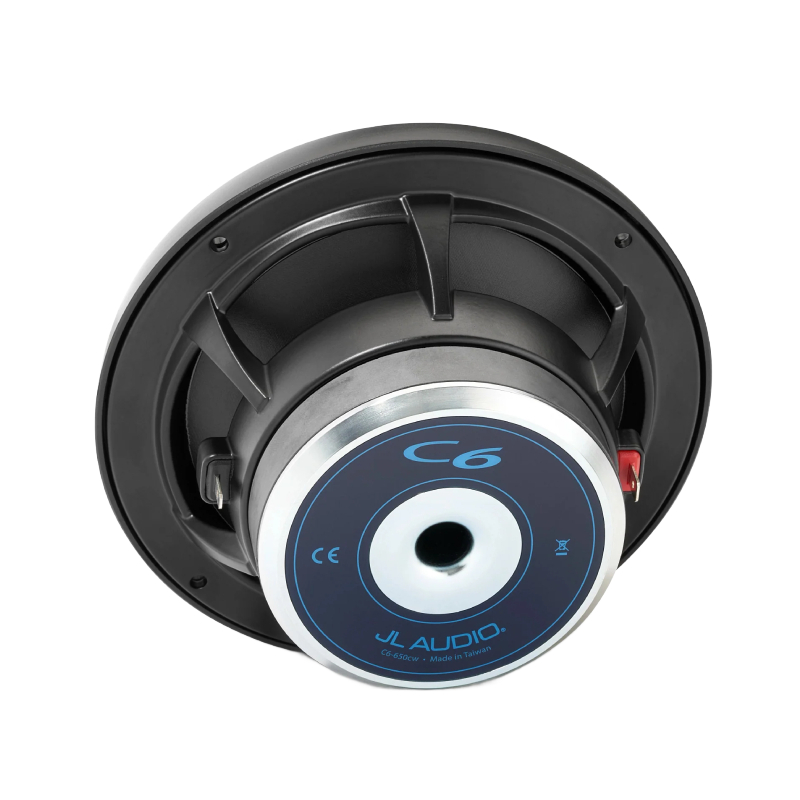

- Motor System: The DMA-optimized, forged and machined motor system provides midbass impact with ultra-low distortion.
- Spider Design: The large diameter, linear profile, flat spider offers linear compliance and excursion capability.
- Center Cap: The center cap is designed to optimize high-frequency response for seamless transition to the tweeter.
- Voice Coil: The oversized voice coil allows for extended power handling, minimizing thermal compression and distortion.
- Grilles: Includes fine mesh grilles for the woofer.

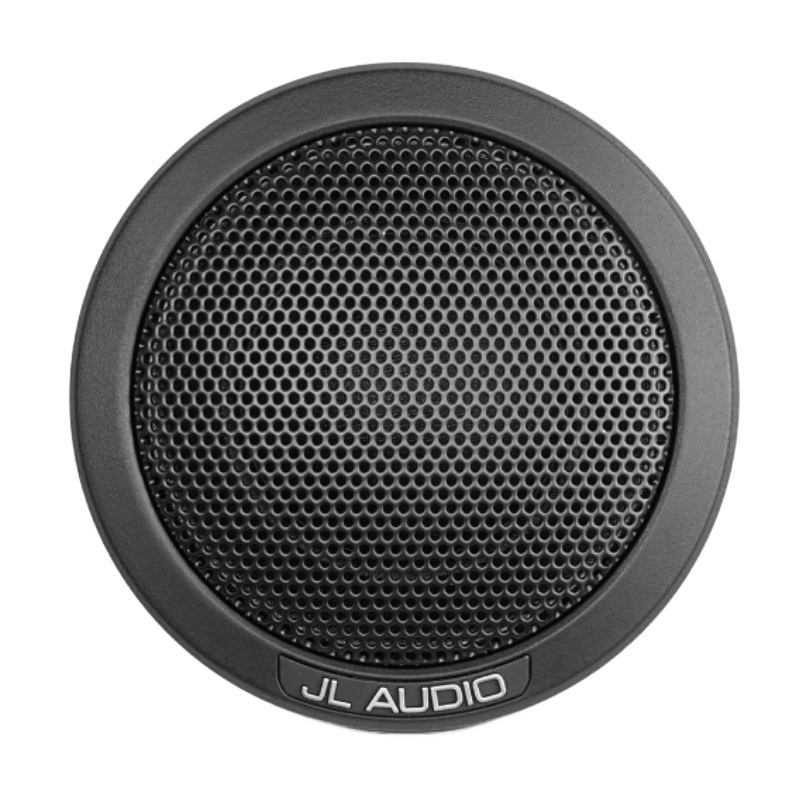

- Tweeter Performance: The 1" (25 mm) edge-driven pure silk dome tweeter delivers smooth high-frequency performance with excellent off-axis response and damping.
- Tweeter Motor: The neodymium motor provides high magnetic flux from a compact design.
- Cooling: Ferrofluid cooling and damping improve reliability and response smoothness.

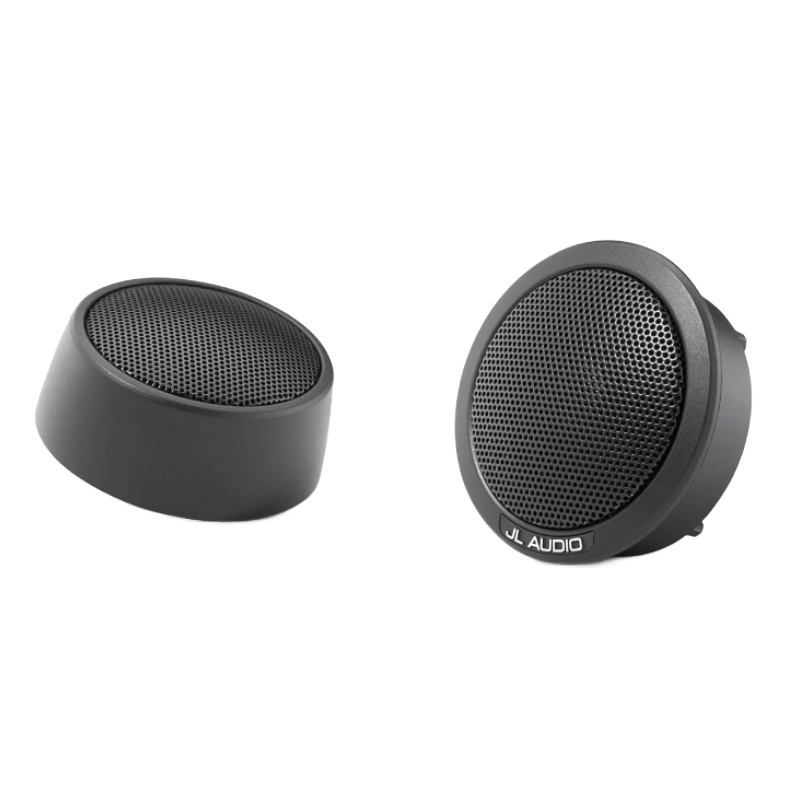

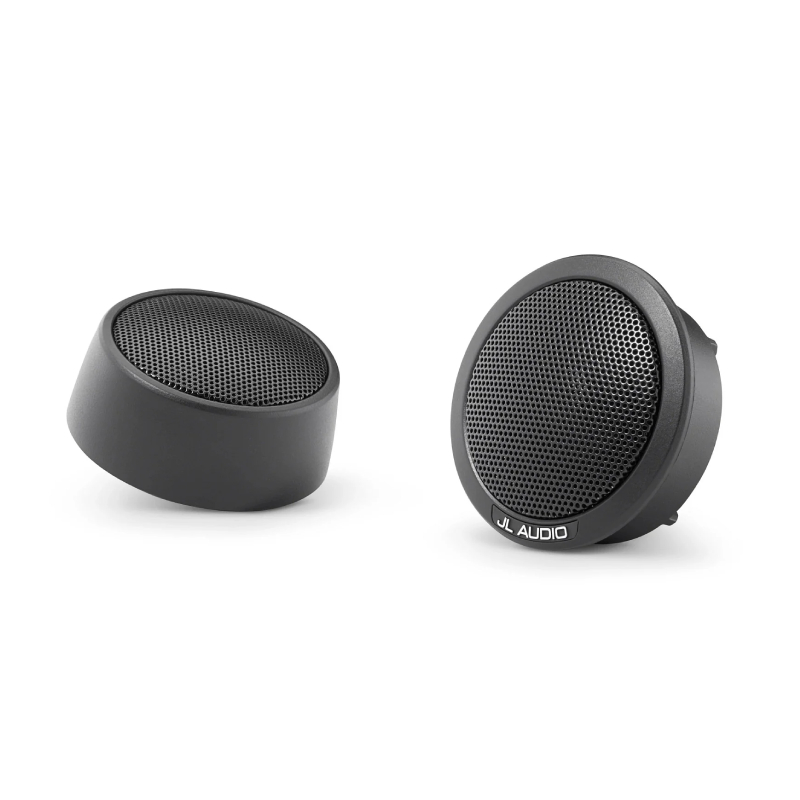

- Mounting Fixtures: Includes surface- and flush-mount fixtures for the tweeter.

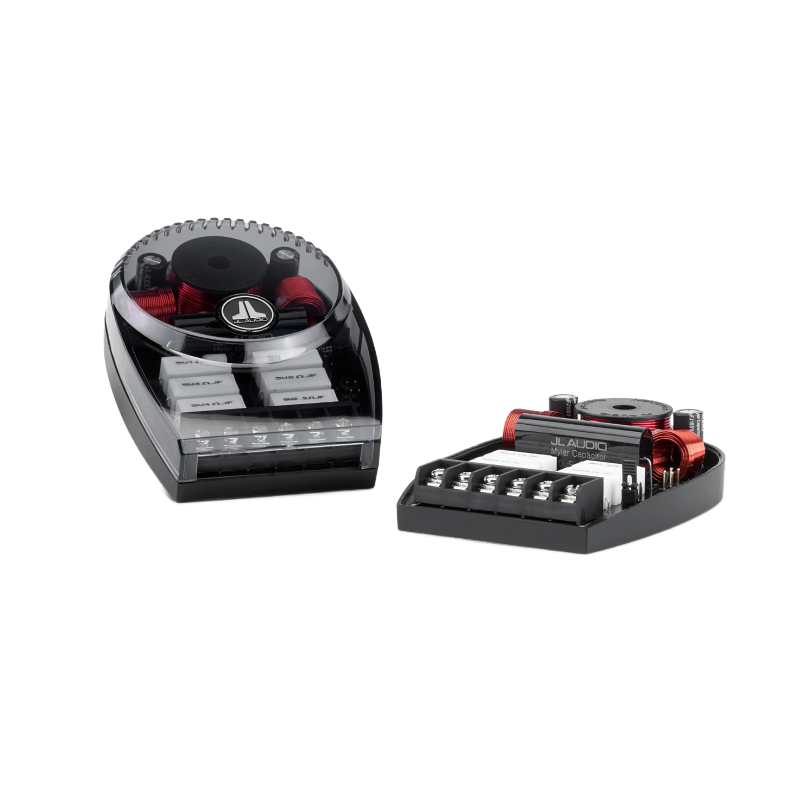

- Crossover Networks: Premium passive crossover networks with four levels of tweeter adjustment are included.
- Crossover Components: The crossover networks are equipped with premium polyester film and electrolytic capacitors, low-loss air-core inductors.
- Tweeter Protection: Advanced electronic tweeter protection circuits minimize the possibility of tweeter failure.
- Protective Cover: Each crossover network is covered with a protective polycarbonate cover.
- Design Experience: Benefits from JL Audio's vast woofer design experience and advanced modeling systems.

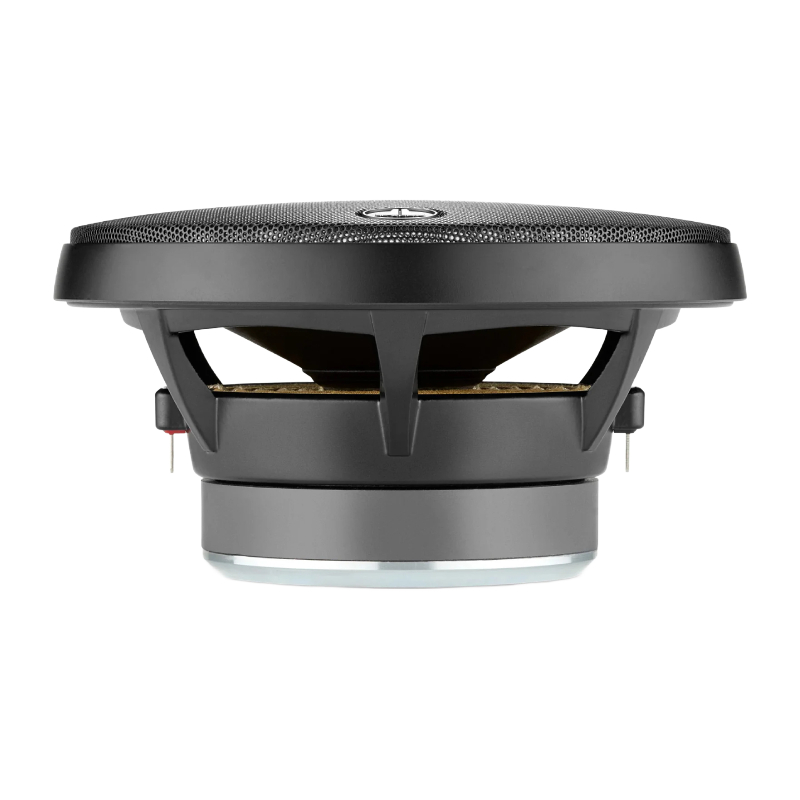

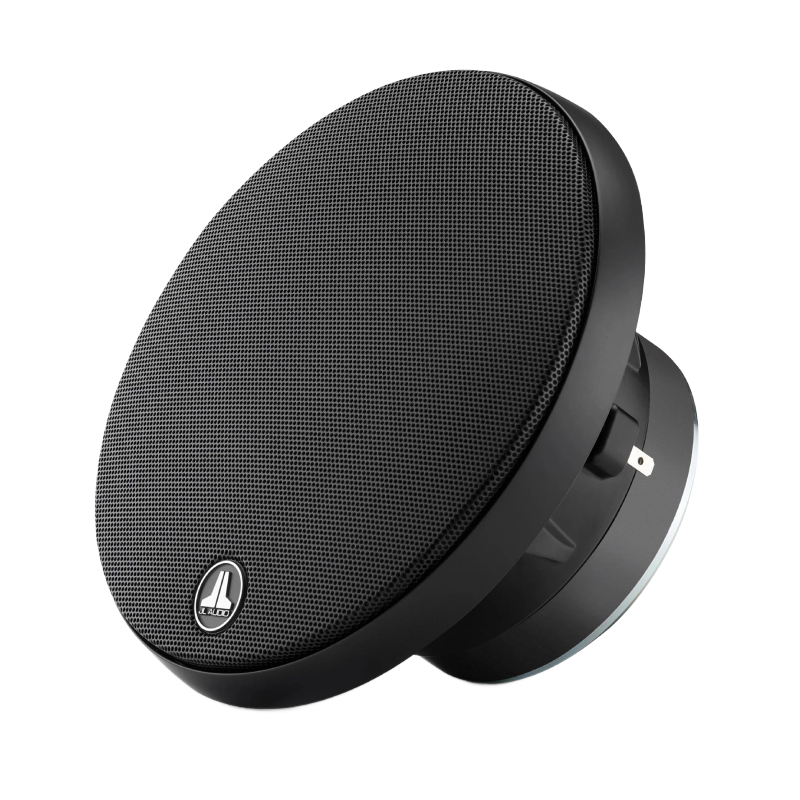

- Packaging: Woofer grilles are included, each with a black grille tray and fine steel mesh grille with electroformed JL Audio badge logo.
- Pair: Speakers are sold as a pair.
Specifications:
- Speaker Size: 6 1/2 inches
- Design: 2-way
- Tweeter Design: 1" Edge-Driven Dome
- Impedance: 4 Ohms
- Tweeter Composition: Silk
- Woofer Composition: Mineral-filled poly
- Woofer Surround: Rubber
- Sensitivity (1W at 1 meter): 87.37 dB
- Frequency Response: 53 - 21k Hz
- Minimum RMS Wattage: 30 W
- Maximum RMS Wattage: 100 W
- Peak Power Handling: N/A
- Top-mount Depth: 2 11/16 inches
- Bottom-mount Depth: 2 13/16 inches
- Cutout Diameter or Length: 5 9/16 inches
- Mounting Height: 0.363 inches
- Frame Width: 6.494 inches
- Frame Length: 6.494 inches
Woofer Physical Specifications:
- Frame Outer Diameter: 6.50 in / 165 mm
- Grille Tray Outer Diameter: 6.76 in / 172 mm
- Motor Outer Diameter: 3.54 in / 90 mm
- Frontal Coaxial Tweeter Protrusion: N/A
- Frontal Grille Protrusion: 1 in / 25 mm
- Mounting Hole Diameter: 5.46 in / 139 mm
- Mounting Depth: 2.60 in / 66 mm
Tweeter Physical Specifications:
- Flush Mount Fixture Diameter: 2.13 in / 54 mm
- Surface Mount Fixture Diameter: 2.11 in / 54 mm
- Flush Mount Mounting Hole Diameter: 1.85 in / 47 mm
- Flush Mount Mounting Depth: 1.85 in / 47 mm
- Flush Mount Protrusion: 0.30 in / 8 mm
- Surface Mount Protrusion: 1.04 in / 26 mm
Crossover Physical Specifications:
- Width: 3.36 in / 85 mm
- Height: 1.44 in / 37 mm
- Depth: 4.72 in / 120 mm
- UPC: 699440991339
- Weight: 4
