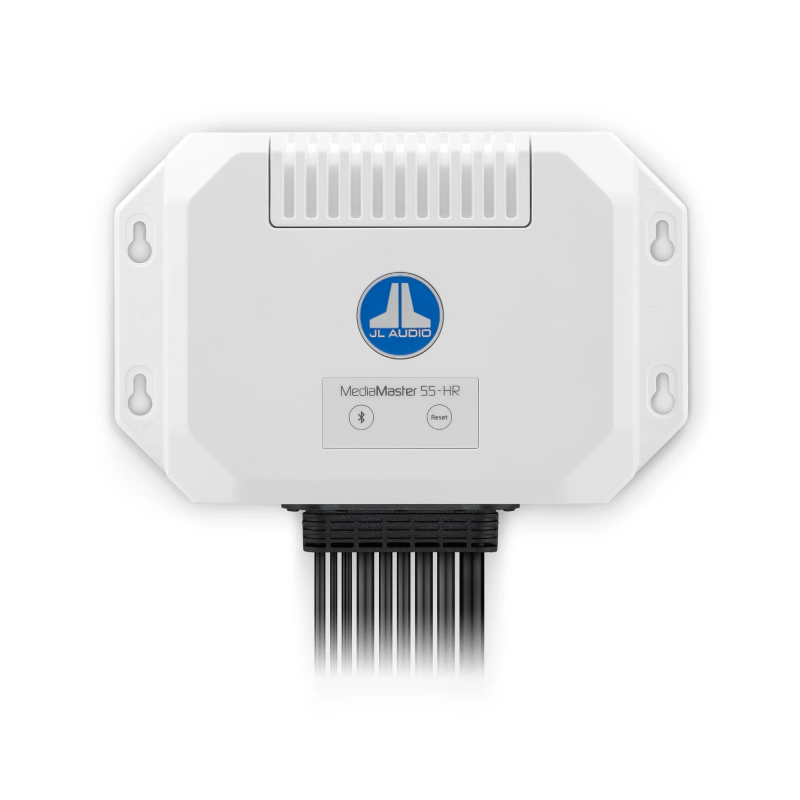

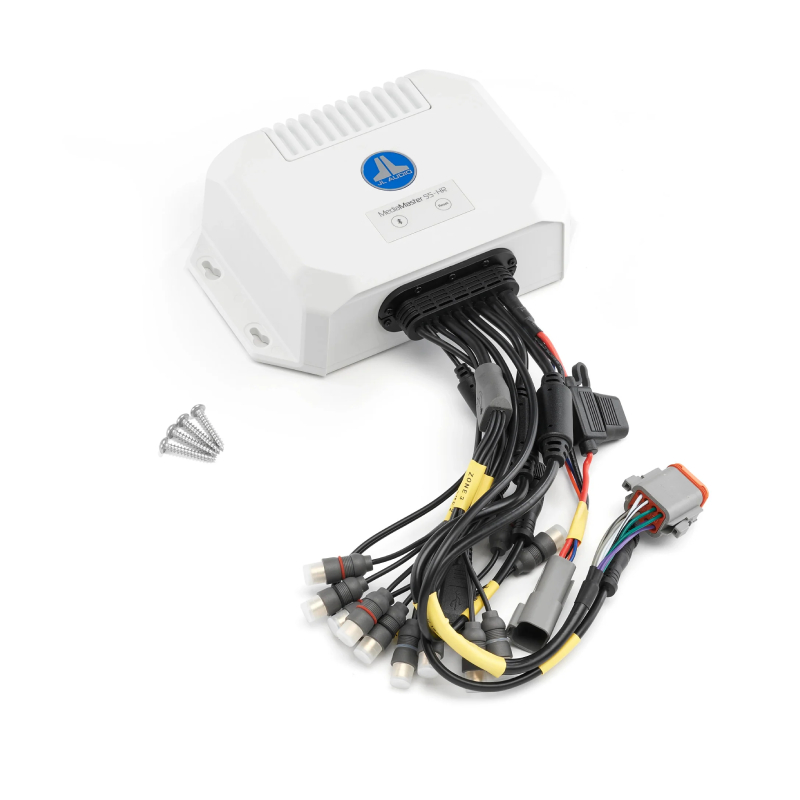

JL Audio MM55-HR MediaMaster® Series Hideaway Marine Source Unit with Built-in Amplifier
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Superior Audio Performance with Versatile Connectivity and Robust Features
Discover the ultimate in audio performance with our marine unit, featuring a versatile 10 - 16 VDC input range, robust 15 A current draw, and an extensive temperature tolerance from -4°F to +149°F. Enjoy premium audio with selectable output voltage, FM/AM/DAB+ tuners with 18 presets, and Bluetooth® with Qualcomm® aptX™ for high-fidelity streaming. Plus, connect effortlessly via USB 2.0, supporting a wide array of audio formats with a 1 A current output.

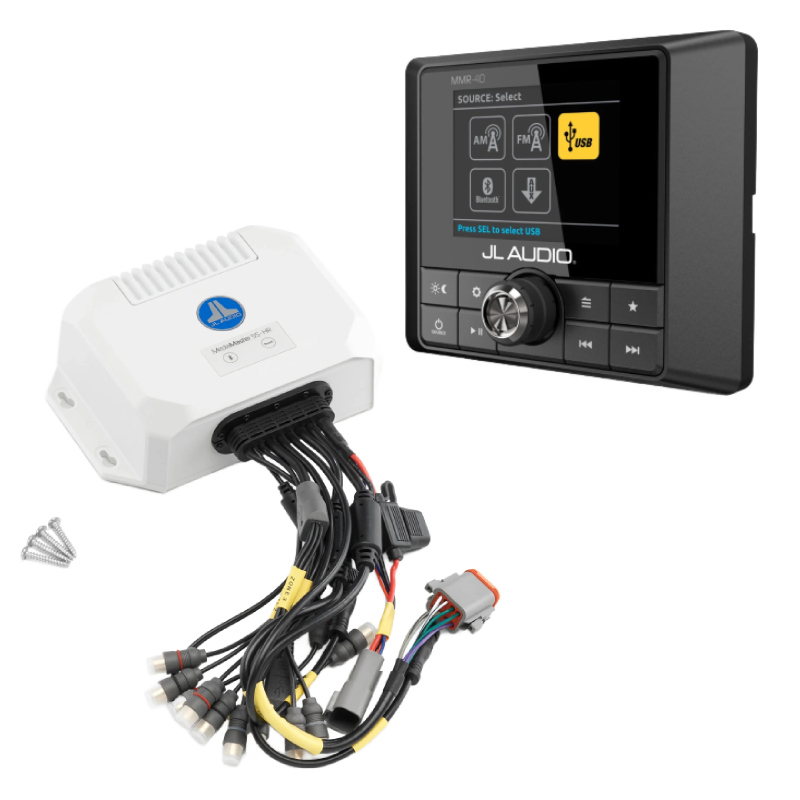

Enhance Marine Control with the Rugged MMR-40 Network Controller
Upgrade your marine audio experience with the MMR-40 Network Controller, a full-function, water-resistant (IP66-rated) unit featuring a full-color LCD, and enjoy seamless control with compatibility across Garmin, Simrad, Lowrance, and Raymarine MFDs. Built to endure the toughest marine environments, our unit’s IP67-rated design and intuitive user interface ensure reliable performance and effortless operation, whether you’re docked or navigating open waters.
Upgrade Your Marine Audio with Cutting-Edge Features and Versatile Controls
Transform your marine audio experience with our advanced features, including a digital AM/FM tuner with DAB+ (Europe), Bluetooth streaming with Qualcomm® aptX™ for exceptional sound quality, and USB 2.0 connectivity with 1 amp charging. Easily manage your favorite stations with up to 18 presets, connect external sources via auxiliary inputs, and enjoy seamless integration with NMEA 2000-certified MFD controls. For ultimate convenience, enhance your setup with our range of water-resistant controllers and interfaces, such as the MMR-40 full-color network controller, MMR-25W Bluetooth wireless controller, MMR-20-BE wired remote, and the MM-Remote app for complete control from your wireless device.
- Satellite Radio Ready : No
- RMS Power Output : 4x25 Watts
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 9
- Color : White

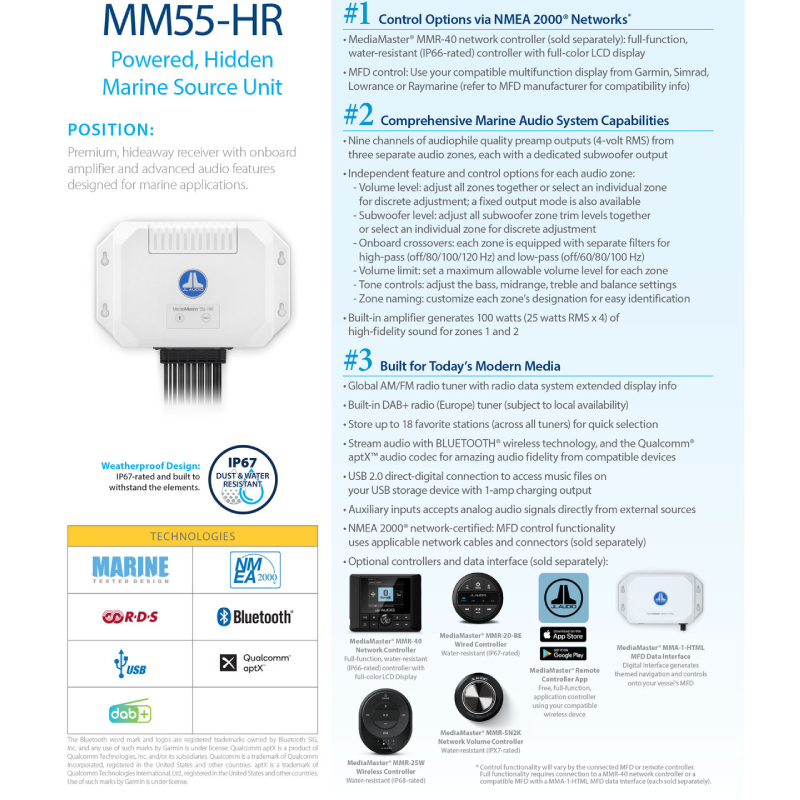

Features:
Control Options via NMEA 2000 Networks
- MMR-40 Network Controller (Sold Separately): Full-function, water-resistant (IP66-rated) controller with full-color LCD.
- MFD Control: Compatible with Garmin, Simrad, Lowrance, or Raymarine MFDs (refer to MFD manufacturer for compatibility info).
Engineered for Real-World Marine Duty
- Design & Construction: Tough, water-resistant (IP67-rated) to withstand harsh marine environments.
- User Interface: Intuitive design for easy operation while docked or underway.
Comprehensive Marine Audio System Capabilities
- Preamp Outputs: Nine channels of audiophile-quality preamp outputs (4-volt RMS) from three separate audio zones, each with a dedicated subwoofer output.
- Independent Zone Control:
- Volume Level: Adjust all zones together or select individual zones for discrete adjustment.
- Subwoofer Level: Adjust all subwoofer zone trim levels together or select individual zones.
- Onboard Crossovers: Separate filters for high-pass (off/80/100/120 Hz) and low-pass (off/60/80/100 Hz) in each zone.
- Volume Limit: Set a maximum allowable volume level for each zone.
- Tone Controls: Adjust bass, midrange, treble, and balance settings.
- Zone Naming: Customize each zone’s designation for easy identification.
- Built-in Amplifier: Delivers 100 watts (25 watts x 4) of high-fidelity sound for zones 1 and 2.
Built for Today's Modern Media
- Radio Tuners: Digital AM/FM radio tuner with radio data system extended display info; Built-in DAB+ radio (Europe) tuner (subject to local availability).
- Favorite Stations: Store up to 18 favorite stations across all tuners for quick selection.
- Bluetooth Streaming: Stream audio with BLUETOOTH wireless technology and Qualcomm® aptX™ audio codec for high-quality sound.
- USB Connectivity: USB 2.0 direct-digital connections for music files and 1 amp charging output.
- Auxiliary Inputs: Accept analog audio signals directly from external sources.
- NMEA 2000 Network-Certified: MFD control functionality with applicable network cables and connectors (sold separately).
Remote Controller and Interface Accessories (Sold Separately)
- MMR-40: Full-function, water-resistant (IP66-rated) network controller with full-color LCD (NMEA 2000 network).
- MMR-25W: Water-resistant (IP68-rated) wireless controller with BLUETOOTH.
- MMR-20-BE: Water-resistant (IP67-rated) wired remote controller.
- MMR-5N2K: Water-resistant (IPX7-rated) network volume controller.
- MMA-1-HTML: Digital interface for MFD navigation and controls (NMEA 2000 network).
- MM-Remote: Free full-function application controller for compatible wireless devices; available for download.
Specifications:
Electrical Specifications
- Input Operating Voltage: 10 - 16 VDC
- Standby Current Draw: 100 mA
- Operating Current Draw: 15 A
- Recommended Fuse Value: 15 A
- Remote Turn-on Capacity: 500 mA (max)
- Operating Temperature Range: -4°F to +149°F (-20°C to +65°C)
Audio Output
- Output Channels: One stereo pair and mono subwoofer RCA plugs per zone
- Output Zones: Relative, Absolute, Fixed, or Off
- Maximum Output Voltage: 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed)
Tuner
- FM Tuner with RDS: 87.5 MHz to 107.9 MHz (0.2 MHz step)
- AM Tuner: 530 kHz to 1710 kHz (10 kHz step)
- DAB+ Tuner: 170 MHz to 230 MHz
- Favorites: 18 presets across all tuners
Bluetooth®
- Profile: A2DP v1.2, AVRCP v1.4
- Core Specification: Version 2.1 + EDR
- Codec: SBC, Qualcomm® aptX™ audio
- Connection Range: Up to 35' (11 m)
USB
- Interface: USB 2.0 host
- Maximum Current Output: 1 A
- Supported Audio Formats: MP3, MP4, WAV, AAC, M4A, M4B
- UPC: 699440999779
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
