Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

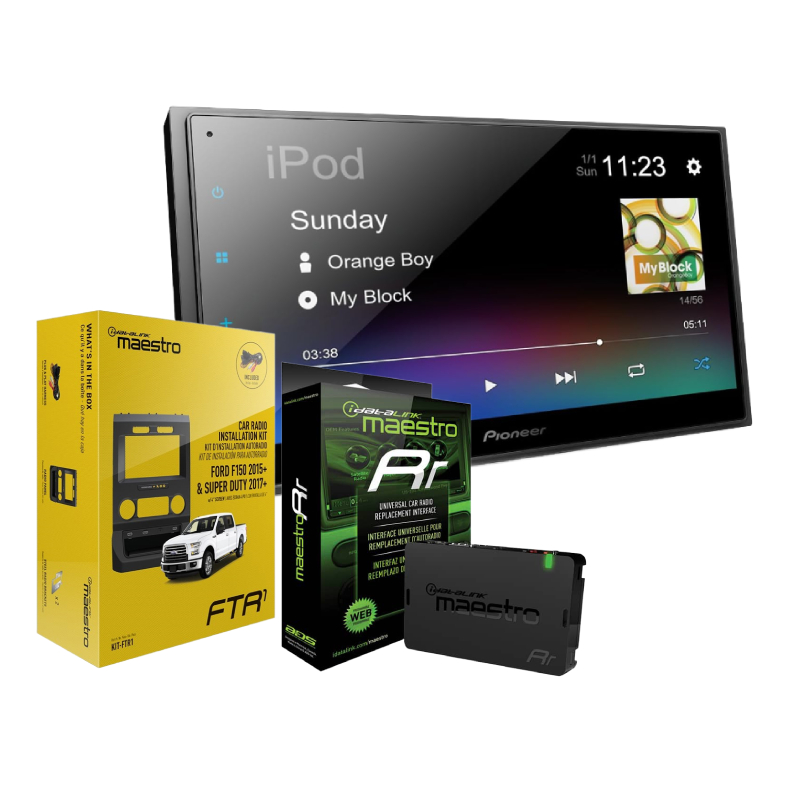

Pioneer DMH-342EX 2-DIN 6.8" Digital Media Receiver with Capacitive Touchscreen, Amazon Alexa when Paired with Pioneer Vozsis App, Bluetooth®, Back-up Camera Ready + iDatalink ADS-MRR Universal Radio Replacement and Steering Wheel Interface + iDatalink KIT-FTR1 Dash Kit and T-harness for Ford Trucks 2015-Up with 4.3" screen
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • DMH-342EX Digital receiver w/ fixed 6.8" touchscreen monitor (10A fuse)
- • DMH-342EX Wiring harness
- • DMH-342EX Remote control (CXE9605)
- • DMH-342EX CR2025 3V lithium battery (installed in remote)
- • DMH-342EX 1.5m USB Extension Cable Type A(M) to Type A(F)
- • DMH-342EX Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- • DMH-342EX 6 Installation Screws
- • DMH-342EX Quick Start Guide
- • DMH-342EX Installation Manual
- • ADS-MRR Radio replacement interface module
- • ADS-MRR 23" Wiring harness (18-pin to bare-wires)
- • ADS-MRR 23" Power/Ground harness (3-pin to bare-wires)
- • ADS-MRR 18" Interface harness (4-pin to 4-pin)
- • ADS-MRR 18" SWC harness (4-pin to 3.5mm/bare-wire)
- • ADS-MRR 22" Audio harness (3-Pin to 3.5mm)
- • ADS-MRR User's Manual

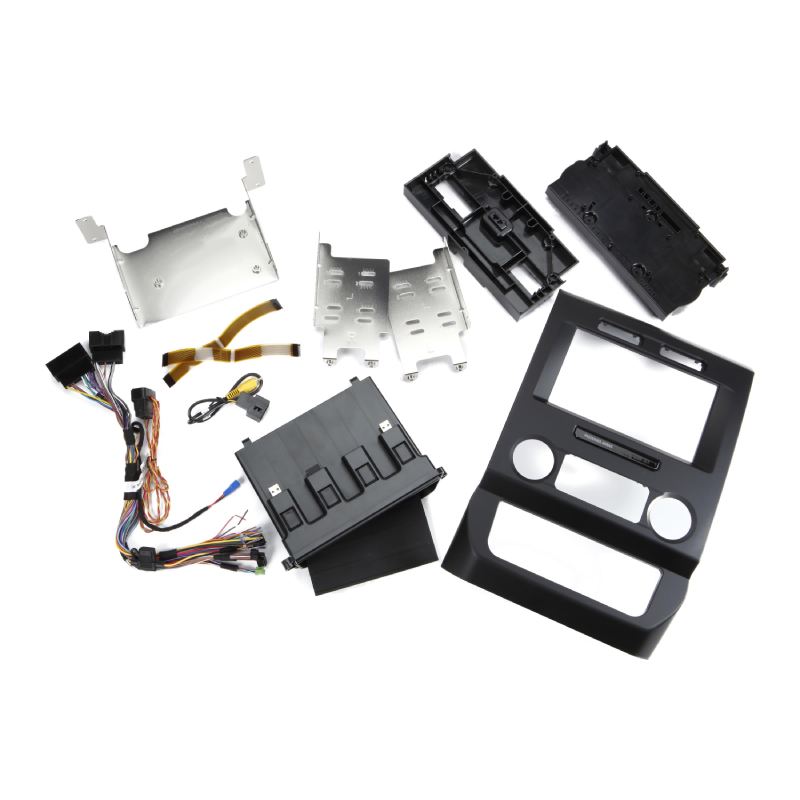

- • KIT-FTR1 Radio housing
- • KIT-FTR1 Vehicle harness
- • KIT-FTR1 Backup camera harness
- • KIT-FTR1 Ribbon-cable
- • KIT-FTR1 Pocket
- • KIT-FTR1 Rubber mat
- • KIT-FTR1 (2) Side brackets
- • KIT-FTR1 Bottom bracket
- • KIT-FTR1 (2) Control board covers
- • KIT-FTR1 (2) Pocket screws
- • KIT-FTR1 (4) M5 x 20mm screws
- • KIT-FTR1 (3) M6 x 12mm screws
- • KIT-FTR1 (4) M5 washers
- • KIT-FTR1 (3) M6 washers
- • KIT-FTR1 User's Manual
Elevate Your Car Experience with Effortless Amazon Alexa Integration
Vozsis, a smartphone app for iOS and Android, brings Amazon Alexa to Weblink-enabled Pioneer car receivers. By downloading Vozsis and Weblink apps, using Alexa in your car becomes effortless – just tap and ask for instant responses. With Alexa, you can request music, news, weather updates, smart home control1, and more. Alexa continually evolves in the cloud, gaining new features automatically.
Where High-Resolution Audio Meets Automotive Excellence
Extend your appreciation for high-resolution audio beyond your home. Experience FLAC files in your car effortlessly, without the requirement for conversion. Pioneer's NEX in-dash receivers led the industry by enabling playback of high-res FLAC files at up to 192kHz/24 bit, delivering CD-quality output. Pioneer ensures that your high-res FLAC files are no longer limited to your home hi-fi system – take your music with you on the road.
Seamlessly Switch to Rearview with Effortless Reverse Integration
Equipped for Rear-View Camera Integration, allowing you to effortlessly install a backup camera. The system seamlessly transitions to a full-screen rearview image upon engaging reverse gear, while reverting to the previously used source screen upon exiting reverse mode.
Upgrade Your Audio, Keep Control
The iDataLink ADS-MRR is a radio replacement and steering wheel control interface module used in car audio systems. It is designed to facilitate the installation of aftermarket head units or radios while retaining the functionality of the vehicle's factory steering wheel controls and other features.
Elevate Your Driving Experience
The ADS-MRR acts as a bridge between the aftermarket radio and the vehicle's steering wheel controls, allowing you to retain the ability to adjust volume, change tracks, and access other audio functions directly from the steering wheel buttons. It communicates with the vehicle's data bus system to interpret and translate the signals from the steering wheel controls into commands that the aftermarket radio can understand.
Tailor-Made Integration for Your Vehicle's Unique Sound System, Effortlessly Upgraded
The ADS-MRR module typically requires vehicle-specific firmware and programming to ensure compatibility with the particular make and model of the car. This programming can be done using a computer and specific software provided by iDataLink. Once programmed and installed, the ADS-MRR simplifies the process of upgrading your car's audio system while preserving the convenience and functionality of the steering wheel controls.
Custom-designed to Fit Perfectly
The iDatalink KIT-FTR1 is a car stereo installation kit for select Ford vehicles. It includes everything needed to integrate an aftermarket stereo into the vehicle's factory system, including a dash kit, wire harness, and steering wheel control interface.The dash kit is custom-designed to fit perfectly into the vehicle's dashboard, providing a professional, factory-like look.
Retain the Functionality
The wire harness simplifies installation by connecting the aftermarket stereo's wiring to the factory wiring without splicing or cutting. The steering wheel control interface allows the driver to retain the functionality of their vehicle's steering wheel controls, such as volume and track selection.
Enhance Driving Experience
Overall, the iDatalink KIT-FTR1 makes upgrading your vehicle's stereo system easy while retaining its original features and appearance. It is compatible with various popular aftermarket stereo brands, making it a versatile choice for anyone looking to enhance their driving experience.
- Satellite Radio Ready : No
- DIN : 2
- Vehicle Make : Ford
DMH-342EX 2-DIN 6.8" Digital Media Receiver with Capacitive Touchscreen, Amazon Alexa when Paired with Pioneer Vozsis App, Bluetooth®, Back-up Camera Ready
Features:
- 6.8" WVGA (Capacitive Touch)
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
- Smartphone Compatible
- Built-in Bluetooth®
- Back-up Camera Ready
Specifications:
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm
- RCA Preamp Outputs: 5-ch
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 5 key colors / 3 Preset Background Images
- Device (Non-DIN/Modular Unit): 2-DIN
- Dimmer: Automatic with vehicle illumination, Manual
- Display Off Mode: Yes
- Monitor Mechanism: Fixed
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 6.8"/16:9
- Touch Screen: Capacitive
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
TUNER
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18FM 12AM
- PS (Preset Scan): Hide or display radio station name
- RDS: Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Vozsis
- Mobile Operating System: Android / Apple iOS
- Pandora®: Bluetooth Audio Source
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: Bluetooth Audio Source
- Voice Control: Yes
- Weblink: 2.0
- WiFi: Tethering, WiFi Hotspot
DIGITAL MEDIA PLAYBACK
- Audio Playback via USB: AAC Audio Playback / FLAC Audio Playback (Hi-Res) / MP3 Audio Playback / WAV Audio Playback (Hi-Res) / WMA Audio Playback
- Audio Video Playback via USB: .avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264
- Image Display via USB: BMP / JPEG / PNG
AUDIO
- Bass Boost: Yes
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-ch
- Subwoofer Control: Yes
EXPANDABILITY
- RCA Video Output: Yes
- USB: Single Rear Type-A (5V, 1-1/2 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
ADS-MRR Universal Radio Replacement and Steering Wheel Interface
Features:
- Allows installation of a new car stereo in select 2006-up Ford, Chrysler, GM, and VW vehicles
- Works with required vehicle-specific harness (sold separately) to retain factory steering
- Wheel audio controls, retain the factory amp if present, and integrate all car stereo connections
- Retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, and Pioneer touchscreen receivers
- Displays engine performance data on touchscreen with select Kenwood and Alpine navigation receivers
- Dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

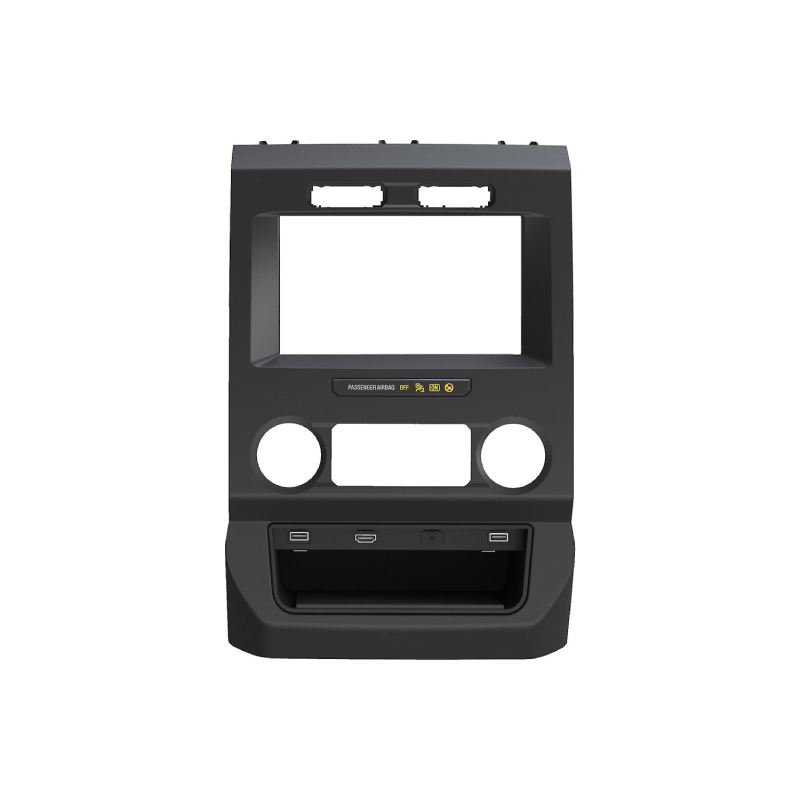

KIT-FTR1 Dash Kit and T-harness for Ford Trucks 2015-Up with 4.3" screen
Features:
- Designed to allow you to install Double-DIN radio in your 2015 and up Ford F150 and 2017 Superduty with 4.3 inch factory radio (also requires the Maestro iDataLink ADS-MRR or iDataLink ADS-MRR2 Radio Replacement Interface module (sold separately)
- Retains steering wheel controls, backup camera, and factory amp turn on with any car stereo
- Retains the use of your steering wheel audio controls, OnStar, factory amp, and warning chimes
- Also retains Bluetooth, USB media player, Aux input, backup camera, and Retained Accessory Power (RAP) with an iDatalink-ready radio
- Retains rear seat entertainment system, visual park assist, tire pressure display, voltage display, and more
- UPC:
- Weight: 17
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
