Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

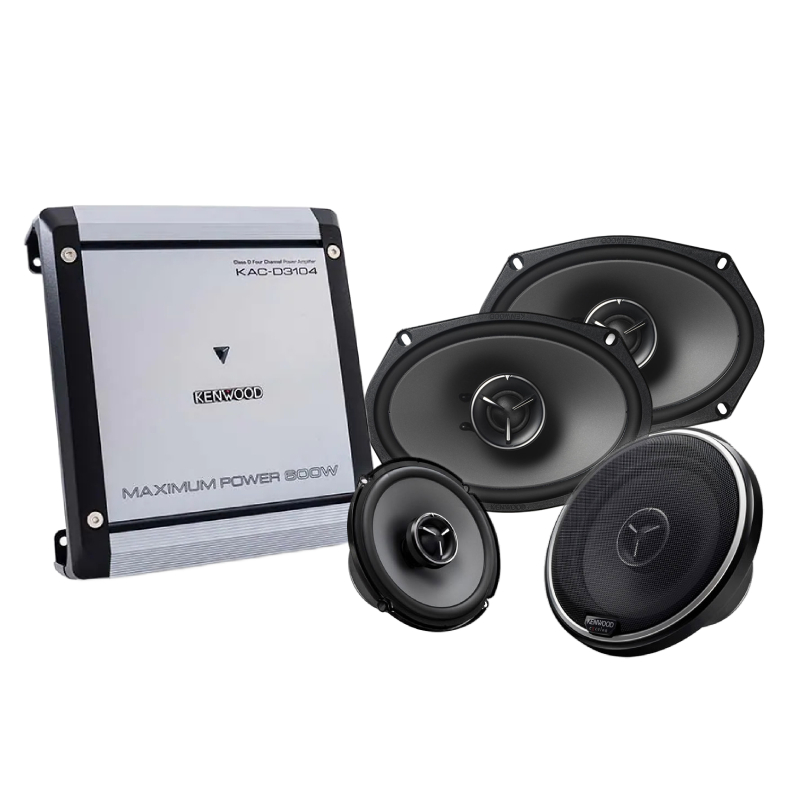

Kenwood KAC-D3104 D Series 75W x 4 RMS @2Ohms, 600W Max Power Class D 4-Channel Power Amplifier + Kenwood KFC-X174 Excelon Series 6.5" 240W Peak Power Handling 4 Ohms 2-Way Coaxial Car Speakers (pair) + Kenwood KFC-X694 Excelon Series 6"x9" 300W Peak Power Handling 3 Ohms 2-Way Full Range Car Speaker (pair)
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • KAC-D3104 600W Amplifier
- • KAC-D3104 (4) Mounting screws
- • KAC-D3104 Allen wrench
- • KAC-D3104 Owner's Manual
- • KFC-X174 Two 2-way speakers
- • KFC-X174 2 Grilles
- • KFC-X174 2 Grille frames
- • KFC-X174 2 Adapter brackets
- • KFC-X174 Two 11" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- • KFC-X174 Eight 1" Screws
- • KFC-X174 8 Speed clips
- • KFC-X174 Eight 3/8" Screws (for attaching adapter brackets)
- • KFC-X174 Grille putty
- • KFC-X174 Warranty information
- • KFC-X174 Owner's Manual
- • KFC-X174 Specifications and template are on the box
- • KFC-X694 (2)2-way speakers
- • KFC-X694 (2)Grilles
- • KFC-X694 (2)Grille frames
- • KFC-X694 (2)11" lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- • KFC-X694 (8) 1-5/8" Screws
- • KFC-X694 (8)Split lock washers
- • KFC-X694 (8)Large flat washers
- • KFC-X694 (8)Small flat washers
- • KFC-X694 (8)M4 Hex nuts
- • KFC-X694 Grille putty
- • KFC-X694 Warranty information
- • KFC-X694 Instruction manual (English/ French/ Spanish)
- • KFC-X694 Owner's Manual
D Series Car Amplifier
Big power does not always mean big size. When it comes to Kenwood car amplifiers, like its KAC-D3104, it does not need to have a big chassis to be able to deliver a massive audio output like its other competitors. So you won't have any issues installing it, even with tight spaces.
Kenwood's Dual Sigma Drive Technology
The Kenwood KAC-D3104 comes with Kenwood's Dual Sigma Drive technology, which is an advanced negative feedback circuit that results in improved damping factor and accuracy for a better audio quality that you would surely love. It also has a signal-sensing turn-on feature.
Class D Amplifier
With its Class-D amplifier design, the Kenwood KAC-D3104 can handle 50 Watts of RMS Power per channel at 4 ohms and 75 Watts of RMS Power per channel at 2 ohms. It has a frequency response of 20 Hz up to 50 kHz, which is pretty impressive, especially for its size and price point, as amps rarely reach these figures.
Variable High and Low-Pass Filter
The Kenwood KAC-D3104 has variable high and low-pass filters, a bass boost control of up to 18 dB, input sensitivity knobs, and speaker-level inputs for easier integration with factory audio systems. With this four-channel amp, you can power up your car speakers comfortably.
Small Size Big Power
The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.
- •(1) Fuse (20A x 2)
- •(2) Battery Terminal (Power IN BATT.)
- •(3) Power Control Terminal (P.CON)
- •(4) Ground Terminal (GND)
- •(5) Speaker Output Terminals (A.ch / B.ch)
- •(6) Filter Frequency Control (A.ch / B.ch)
- •(7) Filter Switch (A.ch / B.ch)
- •(8) Bass Boost Level Control (B.ch)
- •(9) Input Sensitivity Control (A.ch / B.ch)
- •(10) Line In Terminal (A.ch / B.ch)
New Speakers Feel Overwhelming
I know — your choices when it comes to new speakers feel overwhelming, but these Kenwood Excelon X174 6-1/2" 2-way car speakers belong on your list. Their famous 2-year warranty is a meaningful symbol of the sound quality you can expect from these classics.
Resilient Butyl Rubber
You'll gain a rich, full sound, thanks to a strong polypropylene woofer and a resilient butyl rubber surround that shrugs off weathering and provides support no matter what. A substantial 1" soft dome tweeter supplies all the delicate high-frequency details without any harshness.
Enjoy Premium Audio
With speakers this fine, you'll enjoy premium audio that'll make every drive a joy. And these well-built speakers will handle up to 80 watts RMS, so you'll maximize their performance when you power them with a nice amp.
Woofer Diaphragm
Woofer Size: 6 x 9 in (153 x 229mm), Woofer Diaphragm: Injection PP cone Tweeter, Tweeter Size: 1-3/16 in (30mm), Tweeter Diaphragm: Soft Dome, Dimensions (without grill), Width: 9-5/16 in (236.4mm), Height: 6-7/16 in (164mm), Depth: 4-1/8 in (104.5mm), and Mounting Depth: 3-3/8 in (85mm).
KAC-D3104 D Series 75W x 4 RMS @2Ohms, 600W Max Power Class D 4-Channel Power Amplifier
Features:
- Expanded Frequency Response: Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.
- Dual Sigma Drive: This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
- Small Size Big Power: The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.
Specifications:
- Speaker Level Input
- Signal Sensing Turn-On
- Max Power: 600W
- RMS Power Output (4ohm): 50Wx4
- RMS Power Output (2ohm): 75Wx4
- RMS Power Output Bridged: 150W x 2 (Bridged)
- Variable High Pass Filter: 50-200Hz
- Variable Low Pass Filter: 50-200Hz
- Bass Boost: 40Hz 0-18dB
- Dimensions: (W)6-11/16” x (H)2-3/16” x (D)7-3/8”
KFC-X174 Excelon Series 6.5" 240W Peak Power Handling 4 Ohms 2-Way Coaxial Car Speakers (pair)
General Features
- Peak Power : 240W
- RMS Power : 80W
- Sensitivity : 88dB/ W at 1 m
- Frequency Response : 69Hz - 21,000Hz
- Woofer
- - Woofer Size: 6-1/2 in (165mm)
- - Woofer Diaphragm: Injection PP cone
- Tweeter
- - Tweeter Size: 1 in (25mm)
- - Tweeter Diaphragm: Soft Dome
- Dimensions (without grill)
- - Width: 6-1/14 in (158mm)
- - Height: 6-1/4 in (158mm)
- - Depth: 2-15/16 in (75mm)
- - Mounting Depth: 2-3/16 in (56mm)
KFC-X694 Excelon Series 6"x9" 300W Peak Power Handling 3 Ohms 2-Way Full Range Car Speaker (pair)
Specifications:
- Peak Power : 300W
- RMS Power : 130W
- Sensitivity : 89dB/ W at 1 m
- Frequency Response : 51Hz - 20,000Hz
- Woofer Woofer Size: 6 x 9 in (153 x 229mm)
- Woofer Diaphragm: Injection PP cone
- Tweeter Tweeter Size: 1-3/16 in (30mm)
- Tweeter Diaphragm: Soft Dome
- Dimensions (without grill)
- Width: 9-5/16 in (236.4mm) Height: 6-7/16 in (164mm)
- Depth: 4-1/8 in (104.5mm)
- Mounting Depth: 3-3/8 in (85mm)
- UPC:
- Weight: 18
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
