Kicker 51HS10 Hideaway Series 10" 180W RMS Compact Powered Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Amplified subwoofer
- • 17" Power input wiring harness / 8" Speaker level input / (2') Ground / 2" Remote turn-on
- • 12" Power wire with in-line fuse holder and installed 15A ATO fuse
- • (2) 15A ATO fuses (1 installed in the chassis of the unit / 1 spare)
- • Remote bass level control
- • 19.5' Remote cable (3.5mm TRS plugs on both ends)
- • (4) Mounting brackets
- • (4) 3/4" pan head screws
- • (8) 1/4" counter-sunk screws
- • (2) 3/8" screws
- • (2) 10-12 gauge crimp-on ring terminals
- • 10-12 gauge butt connector
- • Owner's manual (English / Spanish / German / French)
Kicker's Hideaway Series
Belonging to Kicker's Hideaway Series, the Kicker HS10 is an excellent option if you are looking for a powered subwoofer that can give you the bass performance you are looking for and can easily be installed in your vehicle.
High-Quality Bass Output
The powered Kicker HS10 subwoofer comes with an all-aluminum frame and a metal grille to protect the 10-inch subwoofer while still being able to produce high-quality bass output. It also has high and low-level inputs, giving you flexibility with your connectivity options. It comes with a 16-foot power cable as well, which is long enough to connect the powered subwoofer to its power source.
Class-D Amplifier
With its Class-D amplifier, the Kicker HS10 can handle a power output of 180 Watts RMS at 4 ohms. The powered subwoofer has a frequency response of 25 to 120 Hz, allowing it to deliver an extensive low-frequency performance. The subwoofer also comes with a polypropylene cone and a rubber surround to ensure accurate bass output while being driven at high volume levels for extended periods.
- Diameter : 10 Inch
- Maximum Power : 360 Watts
- Frequency Response : 25-120 Hz
- RMS Power Range : 180 Watts
Product Highlights:
- Compact powered subwoofer with 10" speaker for deep, impactful bass
- Wired remote control for convenient operation
- Durable all-aluminum chassis with protective metal grille
- Built-in amplifier with 180 watts RMS power output
- Includes 16-foot power cable and necessary wiring for installation
- Speaker-level inputs; accepts preamp-level signals with optional adapter (sold separately)
- Auto turn-on functionality for seamless integration
- Frequency response: 25-120 Hz for broad bass reproduction
- Variable low-pass crossover: 50-120 Hz for customizable sound tuning
- Subsonic filter: 25 Hz at 24 dB per octave for ultra-low frequency protection
- Variable phase control: 0 or 180 degrees for optimal sound alignment
- Bass boost control: Adjustable up to +6 dB at 40 Hz for enhanced low-frequency output
- Dimensions: 9.83" (W) x 3.25" (H) x 15" (D)
- Weight: 11.4 lbs.
- Warranty: 1 year
- 60-day return policy
- Model: 51HS10
- Item #: 20651HS10
Features & Specifications
General:
- Enclosure Type: Sealed for tight, accurate bass
- Finish Material: Aluminum for durability and heat dissipation
- Grille: Metal mesh for speaker protection
- Connector Type: Quick-connect harness for easy installation
- Quick-disconnect Plug: Yes, for hassle-free removal
- Woofer Size: 10 inches for deep bass response
- Woofer Material: Not specified
- Passive Radiator: Not applicable
- Dimensions:
- Width: 9-7/8"
- Height: 3-1/4"
- Depth: 15"
- Warranty:
- Parts: 1 year
- Labor: 1 year
Specifications:
- Frequency Response: 25-120 Hz for wide-ranging bass performance
- Amplifier Power (RMS): 180 watts for powerful, continuous output
- Maximum Wattage: 360 watts peak power
- Sensitivity: Not applicable
- Impedance: Not specified
- Second Voice Coil Impedance: Not applicable
- Crossover Point: 50-120 Hz for optimized low-pass filtering
Product Replacements:
Product Research:
Overview:

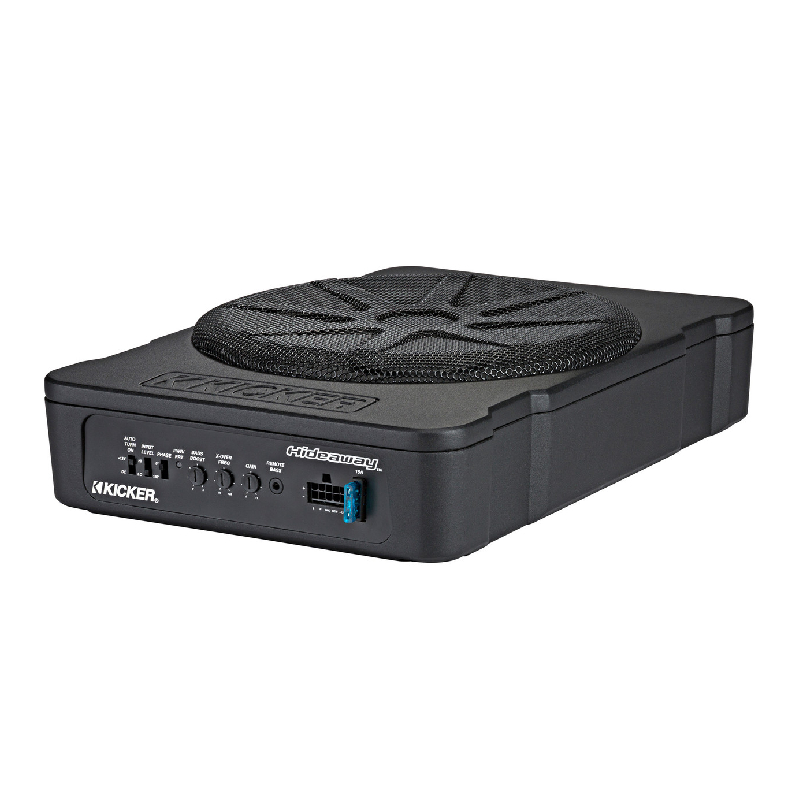

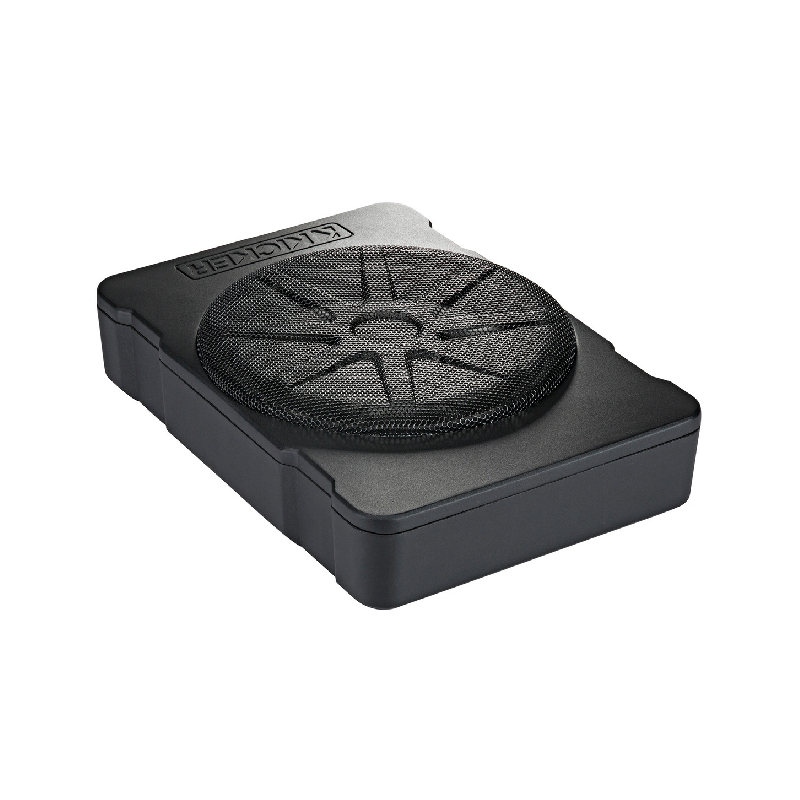

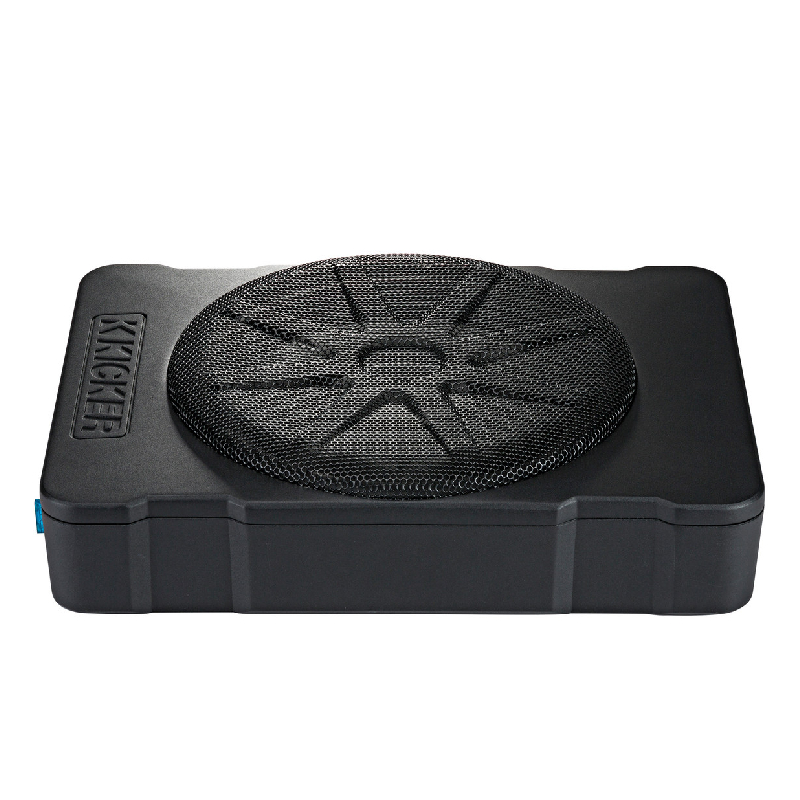

The Kicker Hideaway HS10 (51HS10) subwoofer integrates a built-in 180W RMS amplifier and a 10" subwoofer into a compact enclosure, designed to fit in tight spaces like under seats.

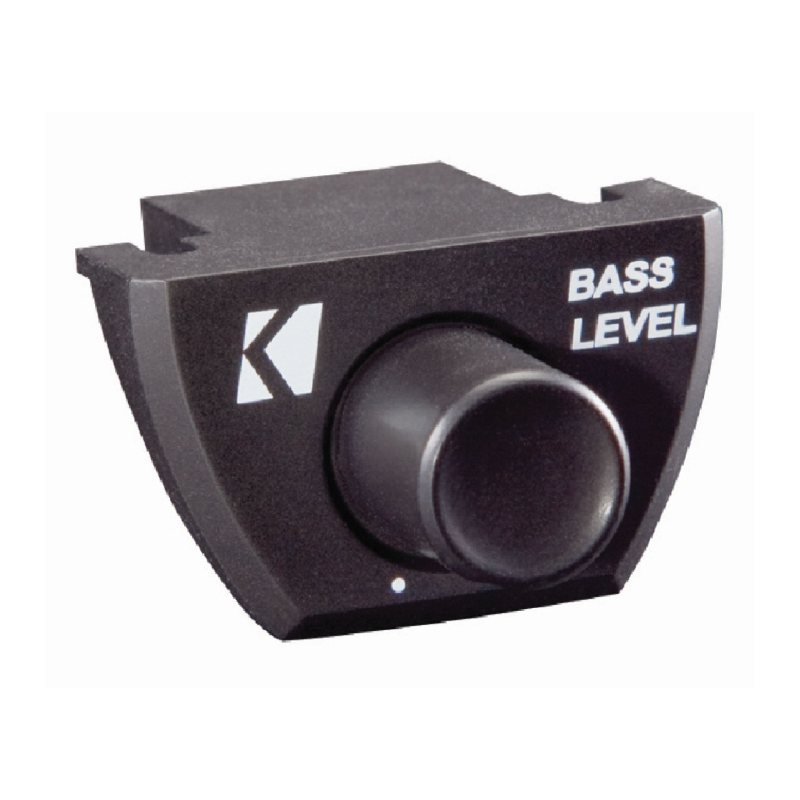

Remote Control:
The included wired remote provides easy access to output level control and can be mounted under the dash. The remote uses a 19.5' cable with 3.5mm TRS plugs for connection to the amplifier.
- Dimensions: 1.65" (W) x 1.03" (H) x 1.27" (D) (3.20" deep including knob and cable)
Subsonic Filter:
A 24 dB/octave subsonic filter with a 25 Hz crossover point eliminates ultra-low frequencies, improving subwoofer performance. The filter is always active and cannot be disabled.
Mounting:
With a low profile of 3¼", this subwoofer fits into confined spaces, including under-seat mounting in many vehicles.

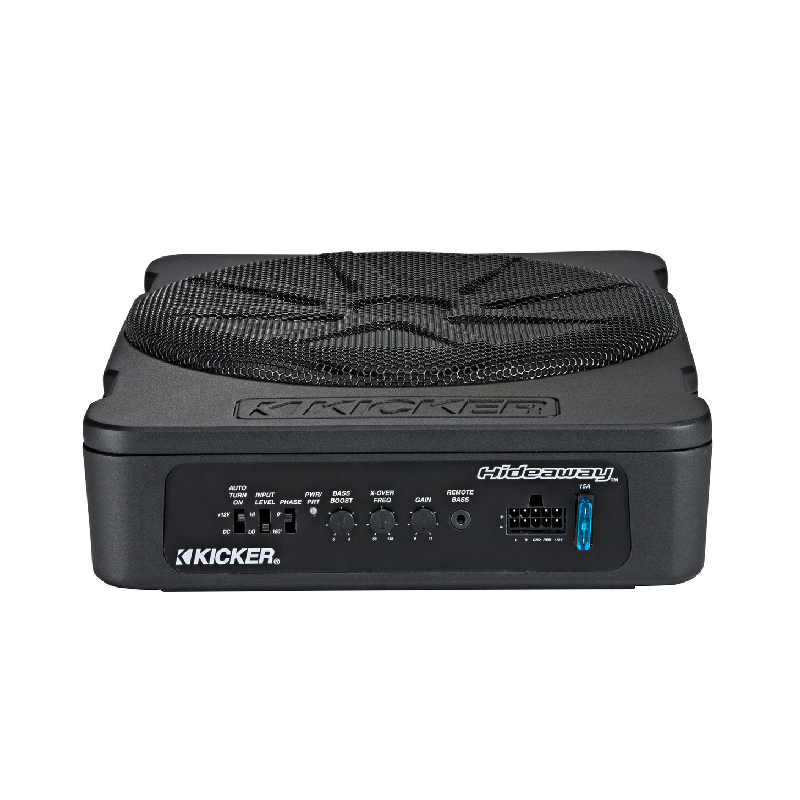

Controls:
- Auto Turn-on: Two-position switch
- +12V: Activates when 12 volts is applied to the remote wire
- DC: Activates when a signal is detected on the speaker-level input
- Input Level: Two-position switch
- Hi: Accepts signals from 1V to 40V
- Lo: Accepts signals from 250mV to 10V
- Phase: Two-position switch for setting phase to 0° or 180°
- Bass Boost: Rotary dial for adjusting bass boost, variable from 0 to 6 dB (boost at 40 Hz)
- Crossover Frequency: Rotary dial to adjust low-pass crossover (50-120 Hz, 12 dB/octave slope)
- Gain Control: Rotary dial to adjust gain for speaker level (250mV to 10V) and line level (125mV to 5V) inputs
Connections:
- Harness: Quick-Connect harness includes wires for:
- Power (17 feet)
- Ground (2 feet)
- Remote turn-on (2 feet)
- Signal input (8 feet)
If using speaker-level input, splice into the wire; for line-level input, a speaker wire to RCA adapter (sold separately) is required. The in-line fuse holder should be installed on the power wire at the battery.
- Remote Bass: 3.5mm mini-jack for wired remote connection
- Fuse: One 15-amp ATO fuse pre-installed in the chassis
- UPC: 713034045458
- Weight: 15
