Kicker 51HS8 Hideaway Series 8" 1500W RMS Compact Powered Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 8" Amplified subwoofer
- • 17' Power input wiring harness / 8' Speaker level input / 2' Ground / 2' Remote turn-on
- • 12" Power wire with in-line fuse holder and installed 15A ATO fuse
- • (2) 10A ATO fuses (1 installed in the chassis of the unit / 1 spare)
- • Remote bass level control
- • 19.5' Remote cable (3.5mm TRS plugs on both ends)
- • (2) 29" nylon mounting straps
- • (4) Mounting brackets
- • (4) 1-1/2" screws
- • (4) 3/4" pan head screws
- • (8) 3/4" flat head screws
- • (2) 3/8" screws
- • (4) Flat washers
- • (2) 10-12 gauge crimp-on ring terminals
- • (1) 10-12 gauge butt connector
- • Mounting template
- • Owner's manual (English / Spanish / German / French)
Powerful Bass in a Compact Design
Kicker designed the Hideaway™ compact powered subwoofer with versatility in mind, aiming to deliver powerful bass performance in tight spaces. Standing just over 3" tall, the Hideaway HS8 is perfect for installation under seats or in storage compartments where subwoofers are rarely found. Its built-in 150-watt RMS amplifier provides robust, deep bass that enhances any music genre, making it an ideal addition to your car audio system.
Impressive Performance in a Compact Package
The 8" woofer in the Hideaway™ delivers impressive low-end bass that will elevate your listening experience, especially when mounted inside the passenger compartment. With the included remote control bass knob, adjusting the bass level to suit your music is quick and easy. For simple installation, Kicker provides nylon straps with Velcro® fasteners for secure mounting, along with a quick-disconnect harness featuring power and signal wiring to streamline the setup process.
Class-D Amplifier
With its Class-D amplifier, the Kicker HS8 can handle a power output of 150 Watts RMS. The powered subwoofer has a frequency response of 25 to 120 Hz, allowing it to deliver an extensive low-frequency performance. The subwoofer also comes with a polypropylene cone and a rubber surround to ensure accurate bass output while being driven at high volume levels for extended periods.
- Diameter : 8 Inch
- Frequency Response : 25-120 Hz
- RMS Power Range : 150 Watts
Product Highlights:
- Featured in our article: Best Car Powered Subwoofers for 2024
- Compact powered subwoofer with 8" woofer
- Built-in amplifier delivering 150 watts RMS
- Frequency response: 25-120 Hz for deep, clear bass
- Adjustable low-pass crossover (50-120 Hz) to match your system
- High-pass crossover set at 25 Hz for cleaner sound
- Variable phase control (0° or 180°) to fine-tune sound timing
- Bass boost control (0dB to +6dB) to enhance low-end performance
- Speaker-level inputs (preamp-level input available with optional adapter, item 20646KiSL, sold separately)
- Auto turn-on switch for convenience
- Includes wired remote for easy bass level control
- Dimensions: 15.13" W x 3.13" H x 9.25" D
- 1-year warranty
- 60-day return policy
- MFR # 51HS8
- Item # 20651HS8
- California customers: Please click here for your Proposition 65 WARNING
Features & Specs
General:
- Enclosure Type: Sealed
- Finish Material: Aluminum
- Grille: Metal mesh
- Connector Type: Harness
- Quick-Disconnect Plug: Yes
- Woofer Size: 8"
- Woofer Material: Not provided
- Passive Radiator: None
- Dimensions: 15-3/16" (W) x 3-3/16" (H) x 9-1/4" (D)
- Parts Warranty: 1 year
- Labor Warranty: 1 year
Specifications:
- Frequency Response: 25-120 Hz
- Amplifier Power (RMS): 150 watts
- Maximum Wattage: Not provided
- Sensitivity: Not provided
- Impedance: Not provided
- Second Voice Coil Impedance: Not applicable
- Crossover Point: 50-120 Hz
The Kicker 51HS8 replaces the Kicker 11HS8.
Product Research & Features
Overview:
The Kicker Hideaway HS8 (51HS8) is a compact powered subwoofer featuring an 8" sub and a built-in 150W RMS amplifier. Its compact size makes it ideal for installation in tight spaces, such as under seats in many vehicles.
Remote Control:
A wired remote provides convenient access to output level control. It includes an integrated mounting bracket for easy installation under the dash. The remote connects to the amplifier using the included 19.5' cable with 3.5mm TRS plugs on both ends.
Note: The Remote Bass Control dimensions are approximately 1.65" (W) x 1.03" (H) x 1.27" (D), with a depth of 3.20" when considering the knob and cable.
Subsonic Filter:
The subwoofer comes with a built-in subsonic filter, which enhances performance by eliminating very low frequencies that the subwoofer cannot reproduce. The filter is set at 25 Hz with a 24 dB/octave slope and cannot be turned off.
Mounting:

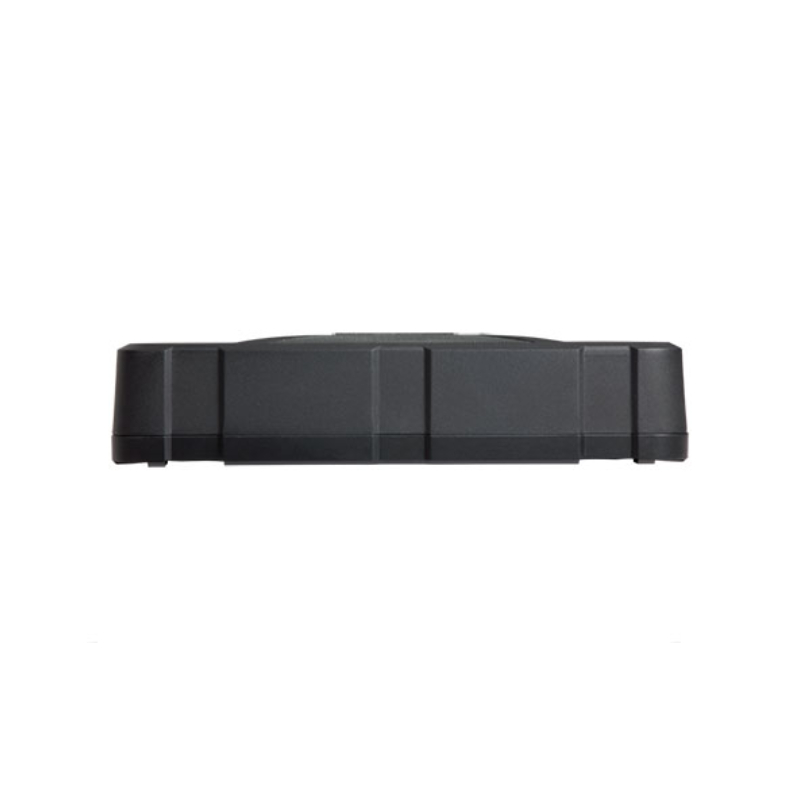

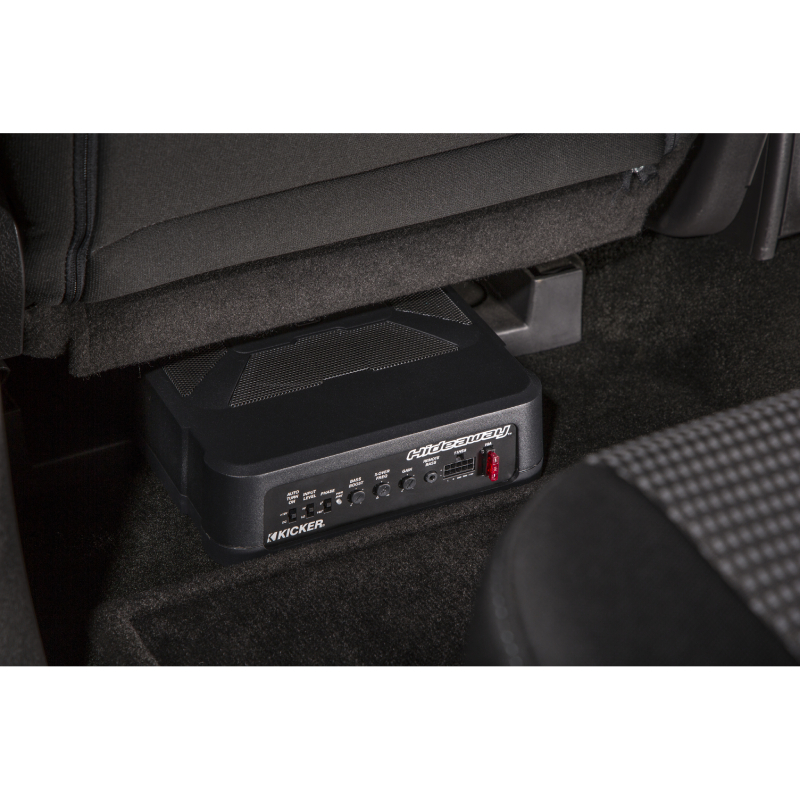

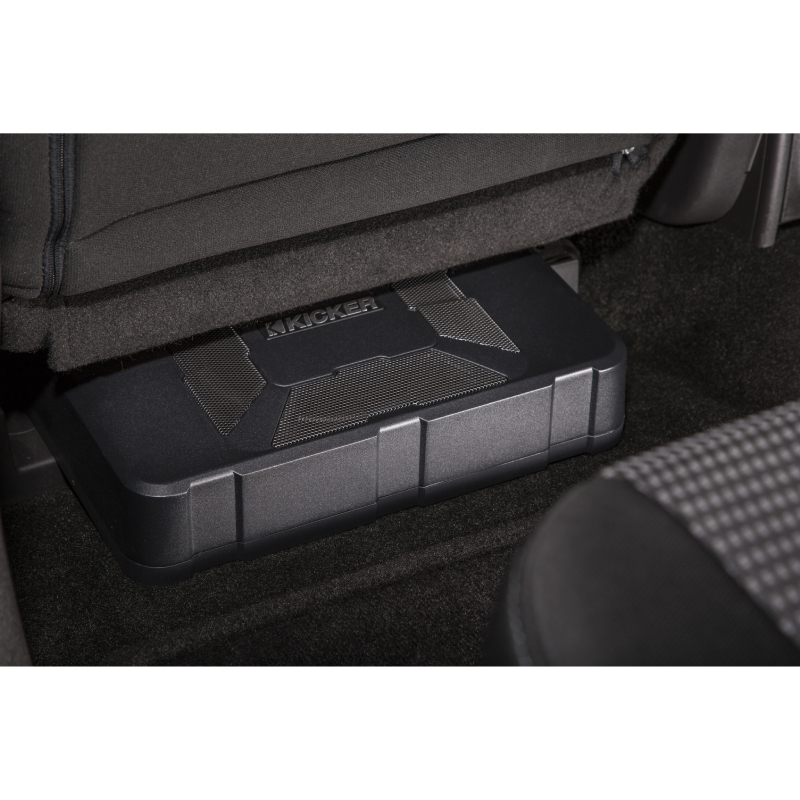

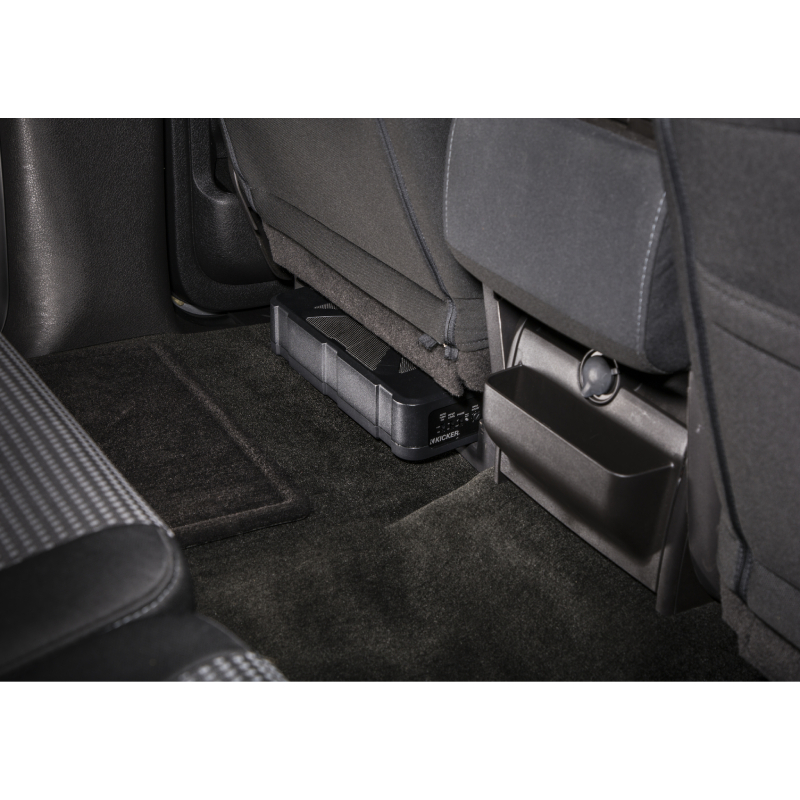

With its slim 3-1/8" height, the subwoofer is designed for applications with limited space, such as fitting under seats.

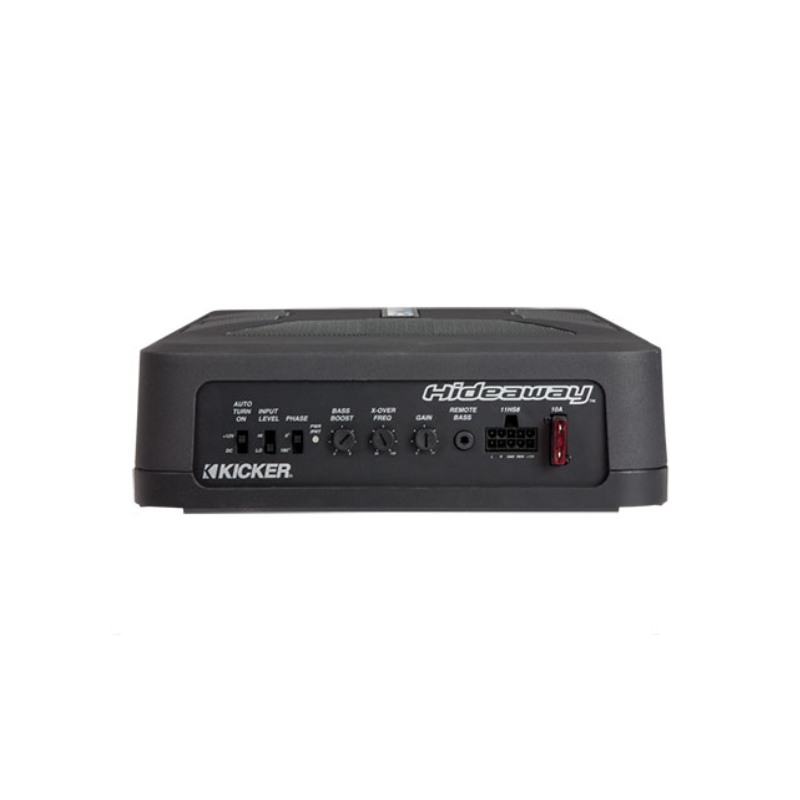

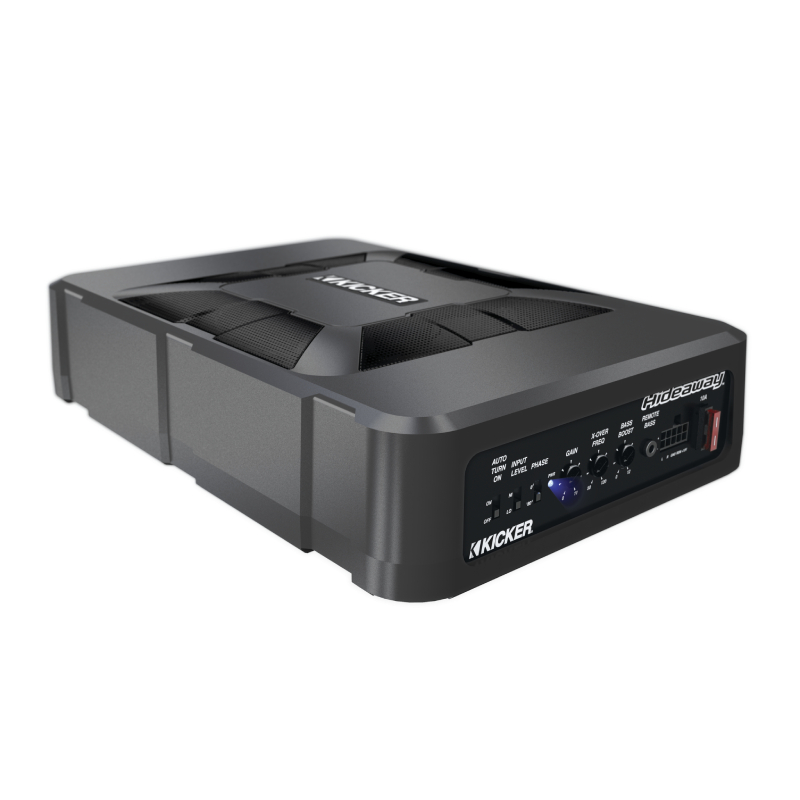

Controls:
- Auto Turn-on: A two-position switch for turn-on options:
- +12V: The amplifier turns on when 12V is applied to the remote turn-on wire.
- DC: The amplifier turns on when it detects a signal on the speaker-level input.
- Input Level: Two-position switch to select input signal strength:
- Hi: Accepts input signals ranging from 250mV to 10V.
- Lo: Accepts input signals from 125mV to 5V.
- Phase: Two-position switch for phase adjustment (0° or 180°).
- Bass Boost: Adjustable rotary dial providing up to +6 dB boost centered at 40 Hz.
- Crossover Frequency: Rotary dial to control the low-pass filter between 50 and 120 Hz, with a 12 dB/octave slope.
- Gain: Rotary dial to adjust amplifier gain:
- 250mV to 10V for speaker-level inputs
- 125mV to 5V for line-level inputs
Connections:
- Harness: The Quick-Connect harness includes wires for:
- Power: 17 feet
- Ground: 2 feet
- Remote turn-on: 2 feet
- Signal input: 8 feet
- Note: For speaker-level input, splice directly into the harness wires. For line-level input, an adapter (sold separately) is needed. The provided in-line fuse holder should be added to the power wire near the battery.
- Remote Bass: A 3.5mm mini-jack for the included wired remote control.
- Fuse: One 10-amp ATO fuse installed in the chassis.
- UPC: 713034045441
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
