Alpine  S2-A36F-Bundle2

Full Amplified Alpine Speaker System with S2-A36F S Series 90W RMS x 4 @2Ohms Hi-Res 4-Channel Class D Amplifier + 2 Sets of S2-S68 S-Series 6x8" 230W Peak Power Handling 4 Ohms 2-way Car Speakers (pair)

Item #94048

Condition:   Brand New

Product Highlights

  • Full Amplified Alpine Speaker System
  • S2-A36F S Series Amplifier: 90W RMS x 4 @2Ohms, Hi-Res, 4-Channel, Class D
  • 2 Sets of S2-S68 S-Series Speakers: 6x8", 230W Peak Power, 4 Ohms, 2-way

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$469.85

Reg. Price $669.95  Save $200.10
In Stock
In Stock

Only 3 left
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Alpine Authorized Dealer

Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

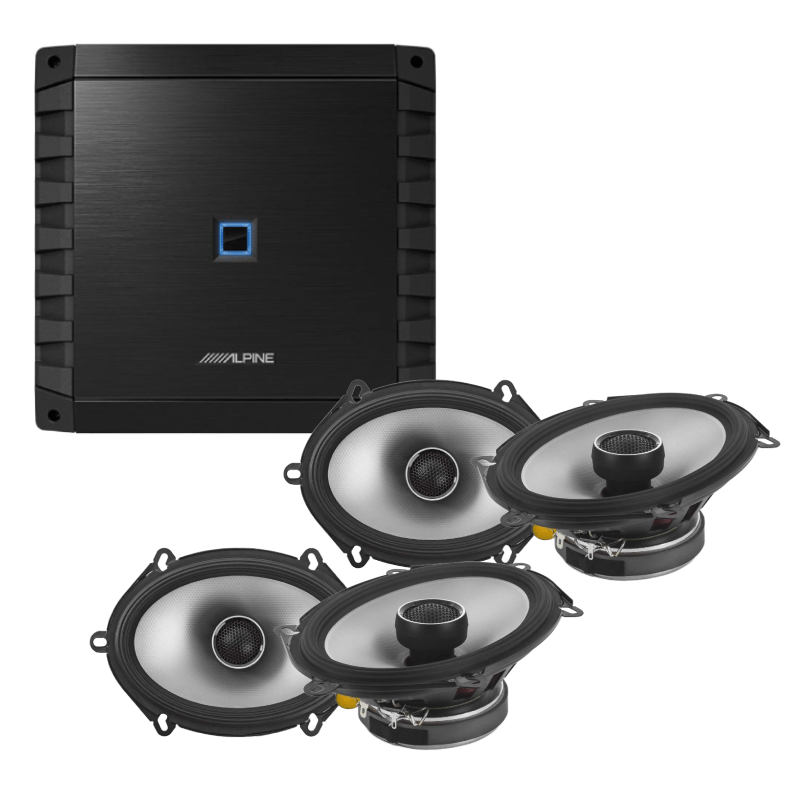

Full Amplified Alpine Speaker System S2-A36F S Series 90W RMS x 4 @2Ohms Hi-Res 4-Channel Class D Amplifier + 2 Sets of S-Series 6x8" 230W Peak Power Handling 4 Ohms 2-way Car Speakers (pair)


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • S2-A36F 4-Channel amplifier (40A ATO fuse installed)
  • • S2-A36F 2 End caps
  • • S2-A36F Four 3/4" screws
  • • S2-A36F Four 1/4" screws
  • • S2-A36F 2mm Allen key
  • • S2-A36F Owner's Manual
  • • S2-S68 (4) 6"x8" 2-Way Coaxial Car Speakers
  • • S2-S68 Owner's Manual





High-fidelity Signal

Alpine's Next Generation S-Series S2-A36F 4-channel amplifier delivers 60 watts RMS of pristine high-fidelity signal to each of your car's front and rear speakers, adding sweet, clear sound to your ride. The amp's extended high-frequency response brings your music to life, with its precise details and emotional power clearly revealed.

RMS From the Bridged Rear Channels

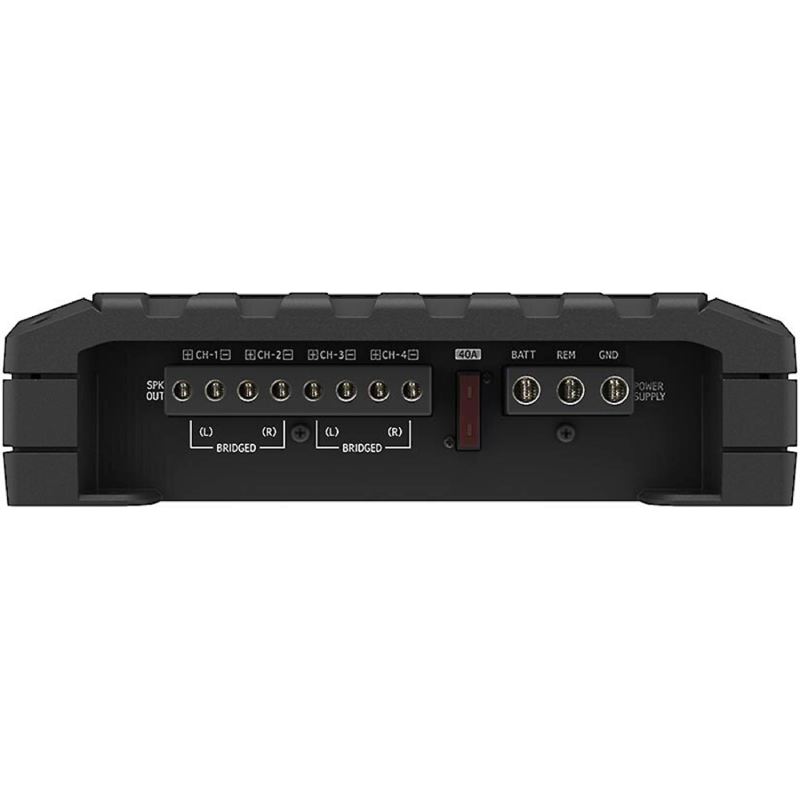

For a 3-channel 2-way system, you could also use the amp to drive a pair of front speakers with 60 watts RMS each, while powering a subwoofer with 180 Watts RMS from the bridged rear channels. A variable mid-bass boost on those rear channels allows you to dial in some extra kick and impact to your system's low-frequency sound.

Optional Wired Remote

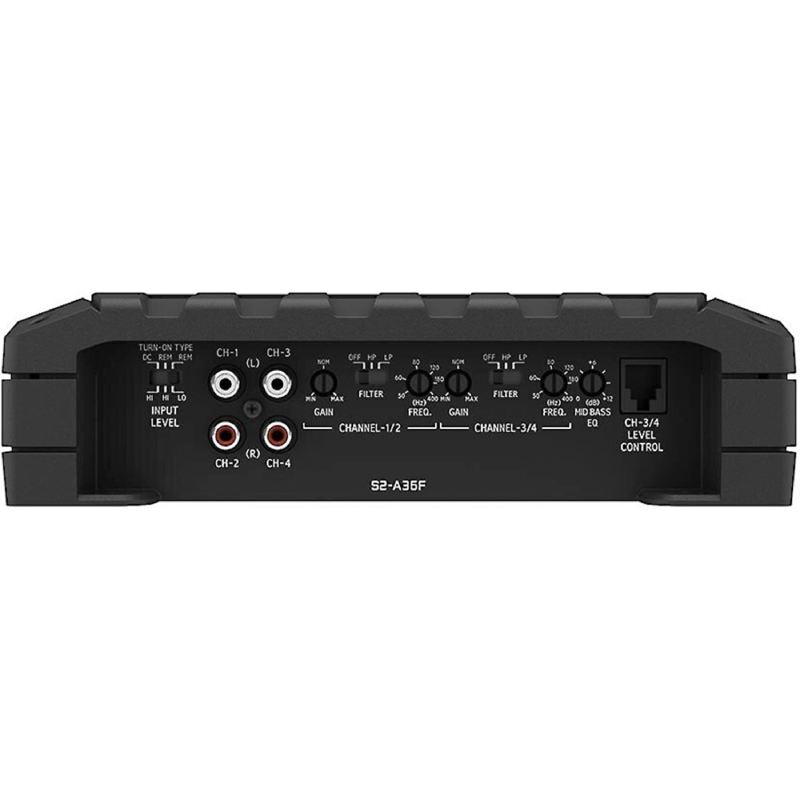

You can even add an optional wired remote to control the level of the rear channels from your front seat. High- and low-pass filters put you in command of the frequency spectrum that reaches your speakers and subs. The amp includes preamp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker -level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a seperate turn-on wire to the receiver or fuse box.







Highly Effective Materials

Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The woofer's High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 1" dome tweeter serves up all the high-frequency detail you've been missing with your factory speakers.

High-res Audio in the Car

We're big fans of Alpine's push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine's Next Generation S-Series car speakers provide access to all the wonderous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.

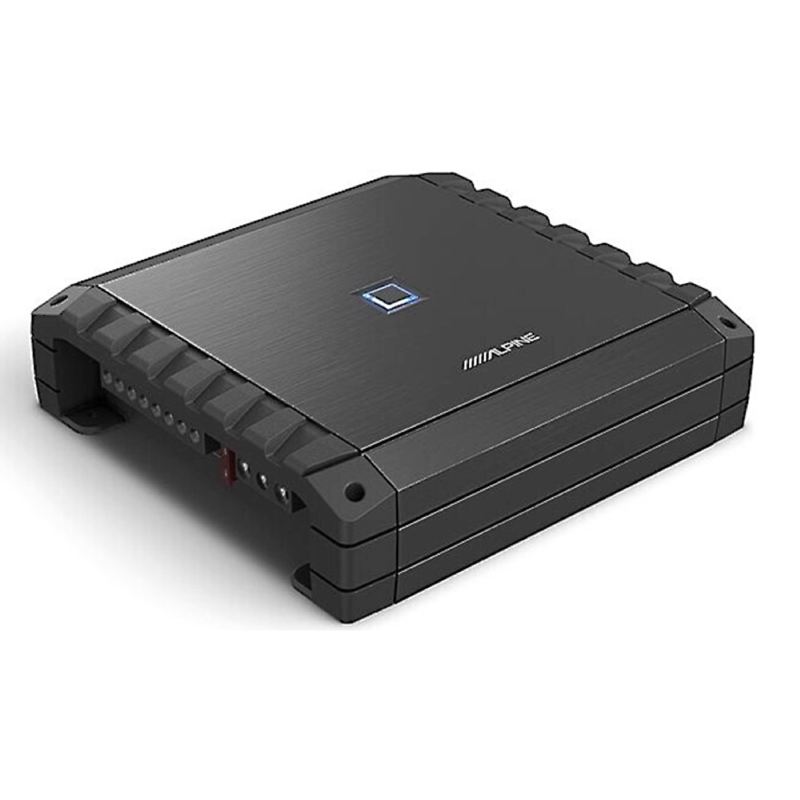

S2-A36F S Series 90W RMS x 4 @2Ohms Hi-Res 4-Channel Class D  Amplifier


Features:

  •  4-channel car amplifier:
  • 60 watts RMS x 4 at 4 ohms
  • 90 watts RMS x 4 at 2 ohms
  • 180 watts RMS x 2 bridged at 4 ohms
  • Hi-Res Audio Certified (frequency response: 20-40k Hz)
  • variable high- and low-pass filters (50-400 Hz, 12 dB/octave)
  • variable mid-bass boost (0-12 dB at 100 Hz) on Ch 3/4
  • optional wired remote available for Ch 3/4
  • preamp and speaker-level inputs
  • speaker-level inputs handle up to 10V
  • RCA adapters required for speaker-level input
  • signal-sensing turn-on with speaker-level inputs
  • wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended



Specifications:

  • RMS Power Output (Watts x Channels): 60 x 4
  • Peak Power Output (Watts x Channels): ---
  • Power at 2 Ohms (Watts x Channels): 90 x 4
  • Bridged Power (Watts x Channels): 180 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 10-40k Hz
  • THD at Rated RMS Power: ---
  • Signal to Noise Ratio: ---
  • Input Voltage: ---
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • High-Pass Crossover Frequency: 50-400 Hz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: ---
  • Fan Cooled: ---
  • Fuse Rating: 40
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Width (inches): 8-3/4
  • Height (inches): 2-1/4
  • Depth (inches): 8-1/4

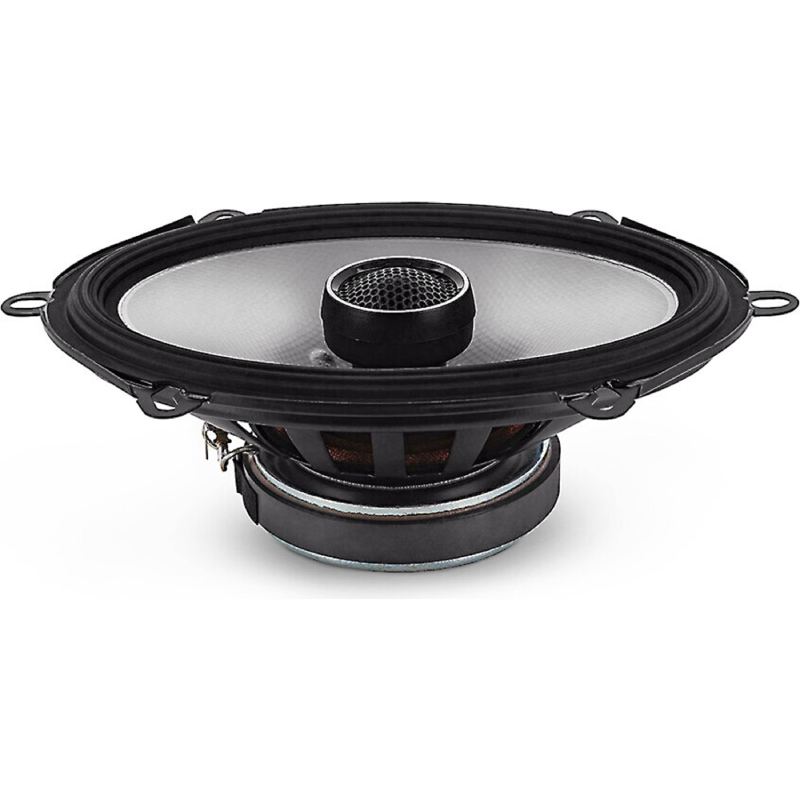

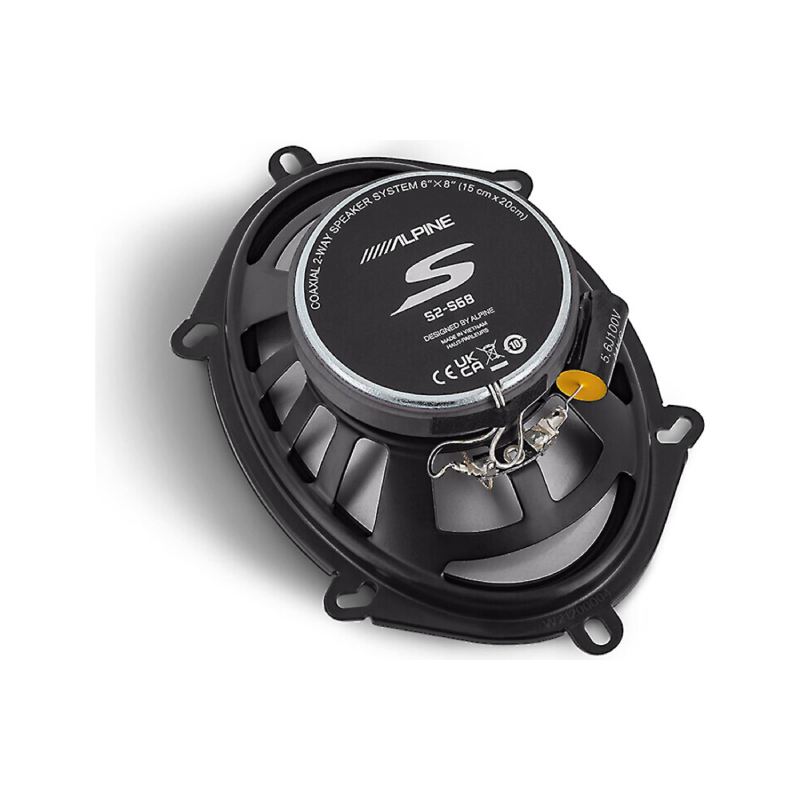

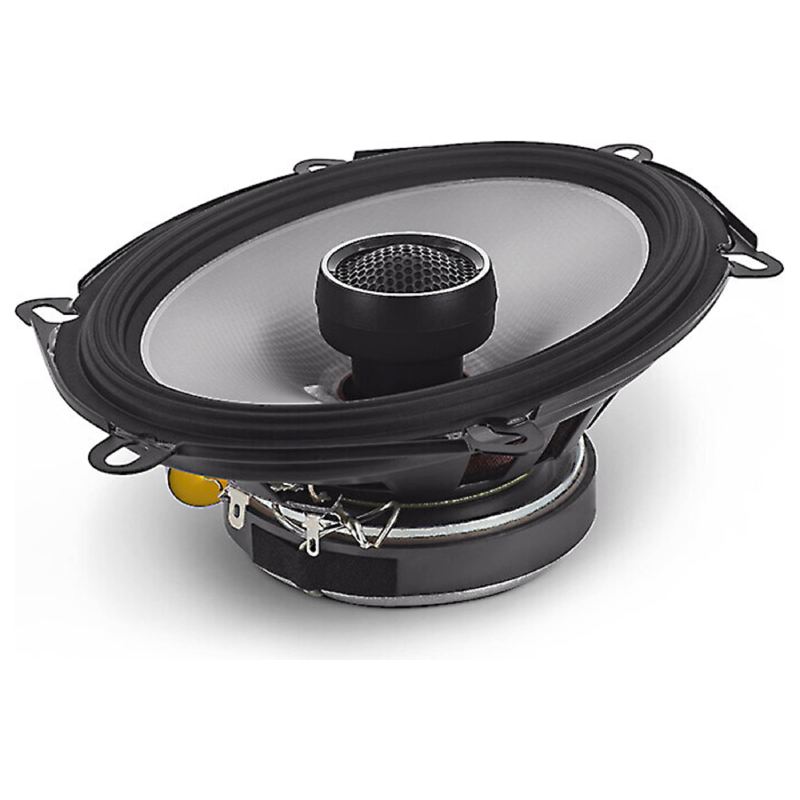

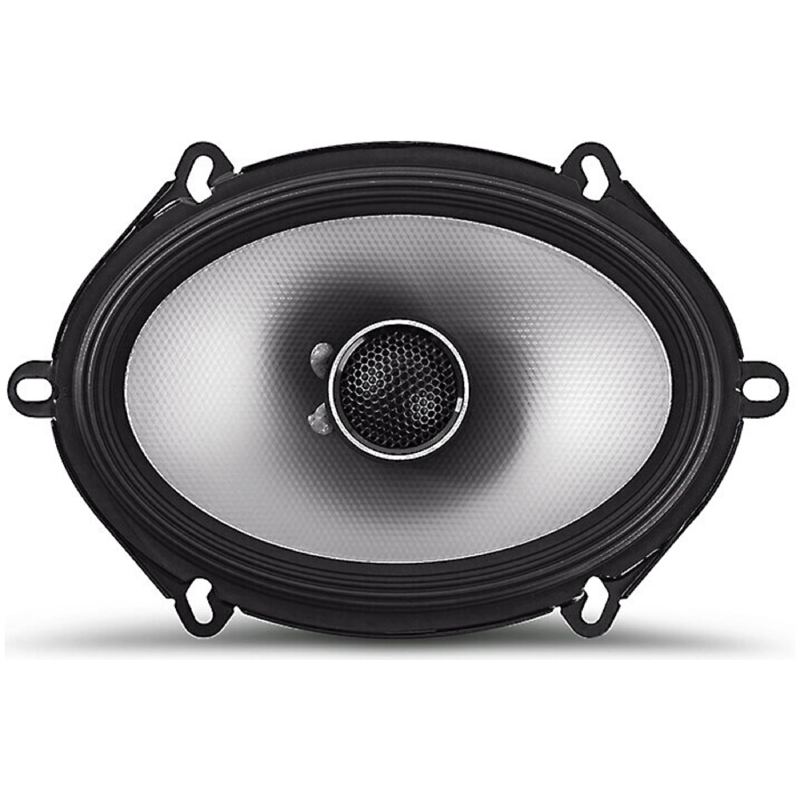

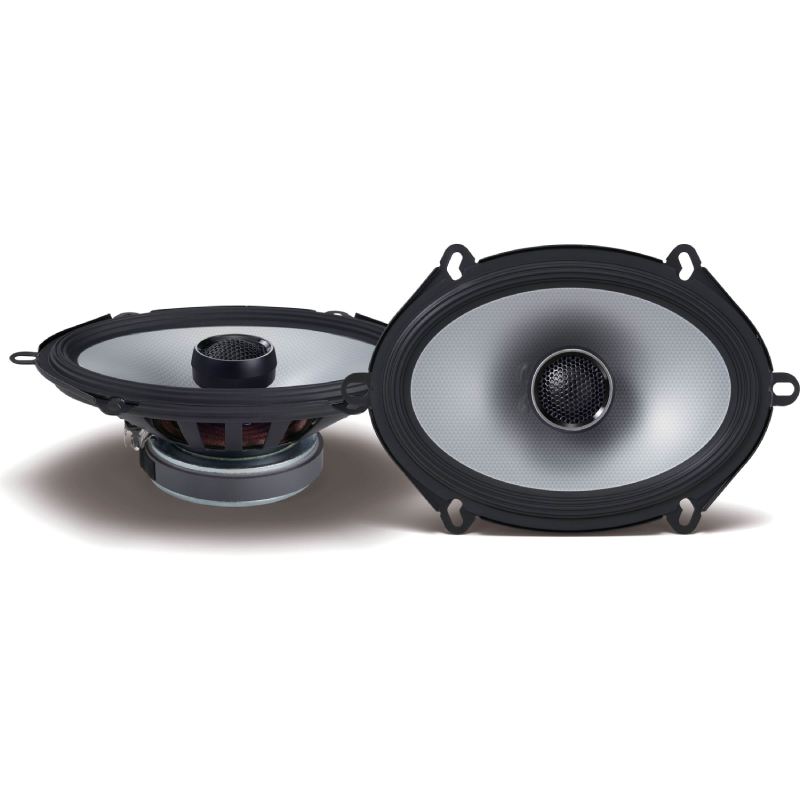

2 Sets of S-Series 6x8" 230W Peak Power Handling 4 Ohms 2-way Car Speakers (pair)



Features:

  • 6"x8" 2-way speakers
  • polypropylene/glass fiber/mica woofer cone with specialized rubber surround
  • 1" dome tweeter
  • handles up to 75 watts RMS (230 watts peak power)
  • frequency response: 73-40,000 Hz
  • grilles not included
  • warranty: 1 year



Specifications:

  • Speaker Size: 6X8
  • Design: 2-way
  • Tweeter Design: Dome
  • Impedance (Ohms): 4 Ohms
  • Tweeter Composition: ---
  • Woofer Composition: Poly, glass fiber, mica
  • Woofer Surround: ---
  • Sensitivity (1W at 1 meter): N/A
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 73 - 40k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 75
  • Peak Power Handling (Watts): 230
  • Top-mount Depth (Inches): N/A
  • Bottom-mount Depth (Inches): N/A
  • UPC:
  • Weight: 21
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
