Alpine  KTP-445U-Bundle3

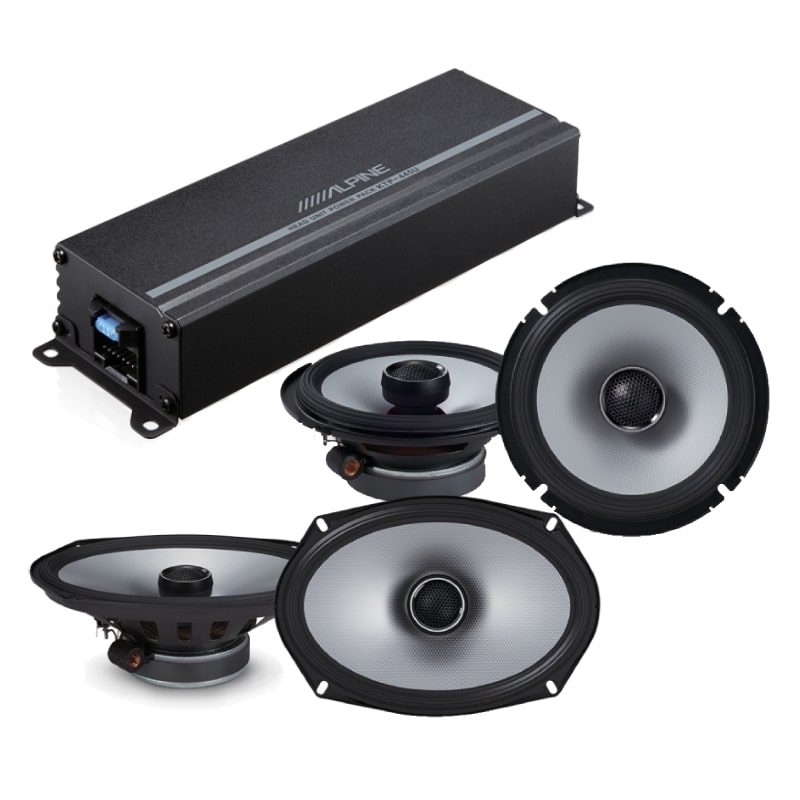

Harley Street Glide Package with KTP-445U Power Pack Series 4-Channel 45W x 4 RMS @2Ohms Class D Universal Compact Amplifier + S2-S65 S-Series 6.5" 240W Peak Power Handling 4 Ohms 2-way Car Speakers (Pair) + S2-S69 Next-Generation S-Series 6"x9" 260W Peak Power Handling 4 Ohms 2-way Car Speakers (pair)

Item #94051

Condition:   Brand New

Product Highlights

  • Harley Street Glide Package
  • KTP-445U Power Pack Series 4-Channel 45W x 4 RMS @2Ohms Class D Amplifier
  • S2-S65 S-Series 6.5" 240W Peak Power 4 Ohms 2-way Car Speakers (Pair)
  • S2-S69 S-Series 6"x9" 260W Peak Power 4 Ohms 2-way Car Speakers (Pair)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$517.85

Reg. Price $718.95  Save $201.10
In Stock
In Stock

  Free 2-Years Warranty Included!

No Credit needed for Learn More


Alpine Authorized Dealer

Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Harley Street Glide Package with Alpine KTP-445U Power Pack Series 4-Channel 45W x 4 RMS @2Ohms Class D Universal Compact Amplifier + Alpine S2-S65 S-Series 6.5" 240W Peak Power Handling 4 Ohms 2-way Car Speakers (Pair) + Alpine S2-S69 Next-Generation S-Series 6"x9" 260W Peak Power Handling 4 Ohms 2-way Car Speakers (pair)


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • KTP-445U Head Unit Power Pack
  • • KTP-445U 15-amp ATM mini-blade fuse (installed)
  • • KTP-445U 30" Power/speaker-output harness
  • • KTP-445U 5.5" Speaker-level/low-level input harness (Turn-on lead is 40" long)
  • • KTP-445U (2) Metal brackets
  • • KTP-445U (4) Phillips/Hex-head mounting screws
  • • KTP-445U (4) Wire-ties
  • • KTP-445U Owner's Manual (English/ French/ Spanish)
  • • S2-S65 (2) 2-way speakers
  • • S2-S65 (2) Adapter rings
  • • S2-S65 (2) 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
  • • S2-S65 (8) 1-1/8" Screws
  • • S2-S65 (8)M4 Nuts
  • • S2-S65 (6) Flat washers
  • • S2-S65 (8) Speed clips
  • • S2-S65 Owner's Manual
  • • S2-S69 (2) 2-way speakers
  • • S2-S69 (2) Bottom mount brackets
  • • S2-S69 (2) 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
  • • S2-S69 (8) 1-1/8" Screws
  • • S2-S69 (8) M4x60mm Machine screws (each screw has a lock washer attached)
  • • S2-S69 (8) M4 Nuts
  • • S2-S69 (8) Speed clips
  • • S2-S69 (16) Flat washers
  • • S2-S69 (8) Spacers
  • • S2-S69 Warranty information
  • • S2-S69 On-line product registration information
  • • S2-S69 Important Notice sheet
  • • S2-S69 Declaration of conformity
  • • S2-S69 Template and specs on box
  • • S2-S69 Owner's Manual
Power Pack Series Car Amplifier

With Alpine's Power Pack car amplifiers, you get a louder audio output compared to what built-in amplifiers from car receivers can offer you, and a great example of that is the KTP-445U. This compact amplifier can give you more power than you'd ever expect.

Class D Amplifier

Thanks to its Class-D amplifier design, the Alpine KTP-445U can deliver 45 Watts of RMS Power at 4 or 2 ohms and 90 Watts of continuous power output at 4 ohms when setting the amplifier on a bridge mode. It has a signal-to-noise ratio rate of 82 dB, which means that it has minimal noise when you use the amplifier at high volume levels.

Variable High-Pass Filter

It has a variable high-pass filter to filter out unwanted frequencies that can affect the quality of your audio output. Whether you set the Alpine KTP-445U at full-range or want to cut all frequencies below 60, 80, or 120 Hz, you get a more defined audio quality performance from the amplifier. You can also set it in a two or four-channel mode, depending on what your car's speaker system needs.





Unmatched Sound Quality

Unleash Exceptional Sound with 6-1/2" 2-Way Speakers! These speakers feature a polypropylene/glass fiber/mica woofer cone with a specialized rubber surround for crisp, dynamic sound. The 1" dome tweeter adds clarity to your music. With a power handling of up to 80 watts RMS (240 watts peak power) and a broad frequency response from 70 to 40,000 Hz, these speakers deliver a premium audio experience. Please note that grilles are not included. Backed by a 1-year warranty for your peace of mind.

Delivers High-quality Sound

The Alpine S2-S69 is a 6x9-inch coaxial speaker system that delivers high-quality sound and performance in car audio applications. Alpine, a reputable brand known for its audio expertise, has equipped the S2-S69 with advanced features and quality components to enhance the audio experience.

Detailed High Frequencies

The S2-S69 features a cone made from a mix of polypropylene, glass fiber, and mica, and a rubber surround, providing durability and accurate cone movement for clear and balanced sound reproduction. The speaker system includes a 1-inch silk dome tweeter that delivers smooth and detailed high frequencies, enhancing clarity and imaging.

Power Handling Capability

With a power handling capability of up to 85 watts RMS and a frequency response range of 65 Hz to 40 kHz, the S2-S69 can handle ample power and reproduce a wide range of frequencies for immersive and dynamic sound.

Compact and Shallow-mount Design

Alpine has designed the S2-S69 with a compact and shallow-mount design, making it easier to fit into various vehicle locations. The speaker system's tweeter can also be adjusted and angled, allowing for better soundstage customization and optimal listening positions. The S2-S69 is engineered with Alpine's expertise in sound reproduction and built with high-quality materials, ensuring long-lasting performance and audio excellence.

  • Vehicle Make : Harley Davidson
  • Vehicle Model : Street Glide

KTP-445U Power Pack Series 4-Channel 45W x 4 RMS @2Ohms Class D Universal Compact Amplifier



Features:

  • For aftermarket and factory installed systems
  • Compact size
  • 4-channel Amplifier
  • 45 Watts x 4 @ 4Ω/2Ω
  • 90 Watts x 2 @ 4Ω Bridged
  • Fuse: 15A



Specifications:

  • Power Output
    • Per Channel, Ref: 14.4V, 4ohms, @ < 1% THD+N: 45W RMS x 4
    • Per Channel, Ref: 14.4V, 2ohms, @ < 1% THD+N: 45W RMS x 4
  • S/N Ratio
    • IHF A-wtd + AES-17, Ref: 1 W into 4 ohms: 82dB
    • IHF A-wtd + AES-17, Ref: Rated Power into 4 ohms: 98dB
  • Frequency Response
    • +0 / -3 dB, Ref: 1 W into 4 ohms 15Hz – 45kHz
  • Input Impedance
    • > 10k ohms
  • Input Sensitivity
    • Ref: Rated Power into 4 ohms, RCA Inputs: 0,2 – 4,0 V
    • Ref: Rated Power into 4 ohms, Speaker Level Inputs: 0,5 – 10,0 V
  • Crossover
    • Ch 1 / 2: Selectable HPF (-12 dB/oct.), defeatable: Off/60/80/120Hz
    • Ch 3 / 4: Selectable HPF (-12 dB/oct.), defeatable: Off/60/80/120Hz
  • Dimensions
    • Width: 189.0mm (7-7/16”)
    • Height: 38.2mm (1-1/2”)
    • Depth: 64.5mm (2-1/2”)



S2-S65 S-Series 6.5" 240W Peak Power Handling 4 Ohms 2-way Car Speakers (Pair)



Features:

  • 6-1/2" 2-way speakers
  • polypropylene/glass fiber/mica woofer cone with specialized rubber surround
  • 1" dome tweeter
  • handles up to 80 watts RMS (240 watts peak power)
  • frequency response: 70-40,000 Hz
  • grilles not included
  • warranty: 1 year



Specifications:

  • Speaker Size: 6 1/2
  • Design: 2-way
  • Tweeter Design: Dome
  • Impedance (Ohms): 4 Ohms
  • Tweeter Composition:  ---
  • Woofer Composition: Poly, glass fiber, mica
  • Woofer Surround: HAMR
  • Sensitivity (1W at 1 meter): N/A
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 70 - 40k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 80
  • Peak Power Handling (Watts): 240
  • Top-mount Depth (Inches): N/A
  • Bottom-mount Depth (Inches): N/A



S2-S69 Next-Generation S-Series 6"x9" 260W Peak Power Handling 4 Ohms 2-way Car Speakers (pair)



Features:

Woofer:

  • 6×9″ (160cm x 240cm) Lightweight Glass Fiber Coaxial Speaker
  • HAMR (High Amplitude Multi-Roll) Surround
  • Large Voice Coil
  • Magnet Material: Strontium Ferrite
  • Grill sold separately: KTE-S69G



Tweeter:

  • 1″  Extended-Range Soft Dome Tweeter
  • Magnet Material: Ferrite
  • Tweeter Grill: Perforated Net



Crossover Network:

  • Woofer: Copper Air-Coiled Wound Inductor
  • Tweeter: High Grade Audio Poly Capacitor



Specifications:

Power Handling:

  • Peak Power: 260 Watts
  • RMS Power: 85 Watts (CTA-2031 Compliant)



Dimensions:

  • Frame 237 mm x 161mm
  • Cutout Diameter: 242mm x 152mm
  • Mounting Depth: 74.5 mm
  • Mounting Height: 7.3 mm
  • Magnet: 100.0 mm



General:

  • Frequency Range: 55 Hz – 40 kHz
  • Impedance: 4 Ohms (DCR 3.7 ohms)
  • Sensitivity: 90 dB SPL (1W @1m)
  • Recommended Amplification: up to 85W RMS per channel
  • UPC:
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
