- Vehicle Make : Harley Davidson
Hertz SPL Show Kit Specifications

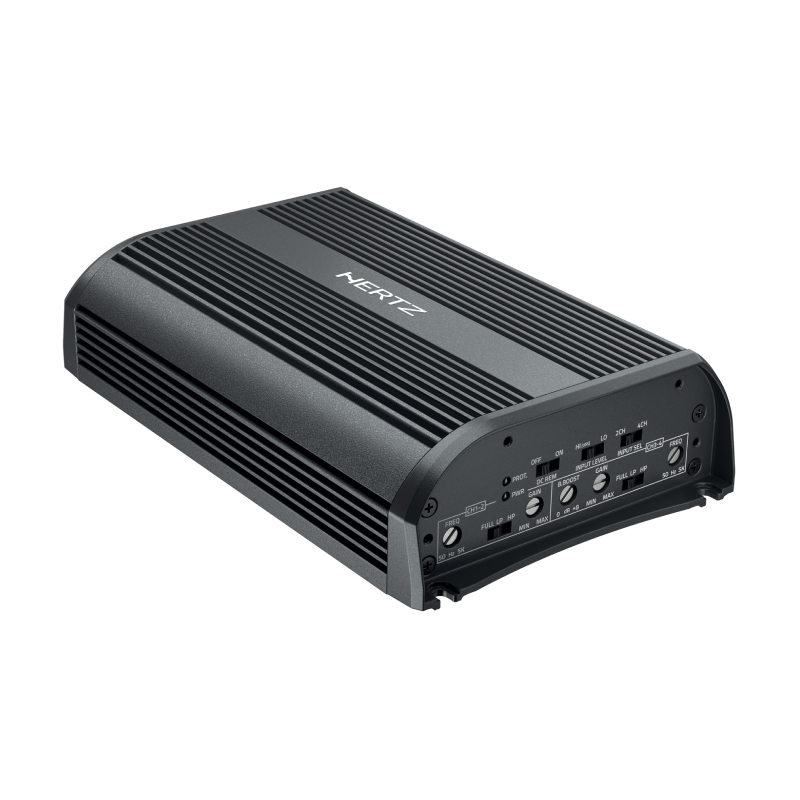

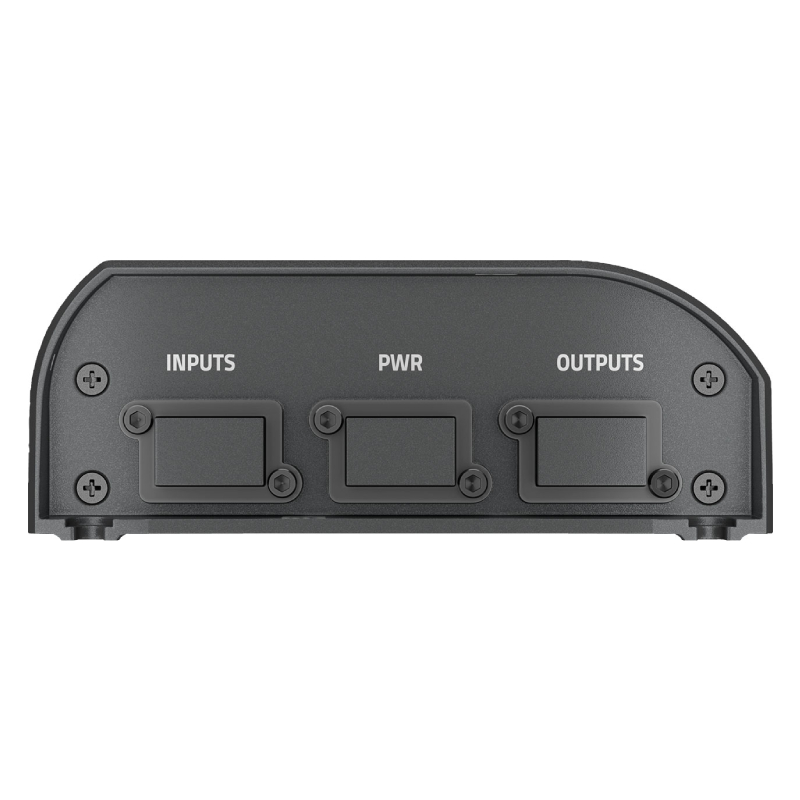

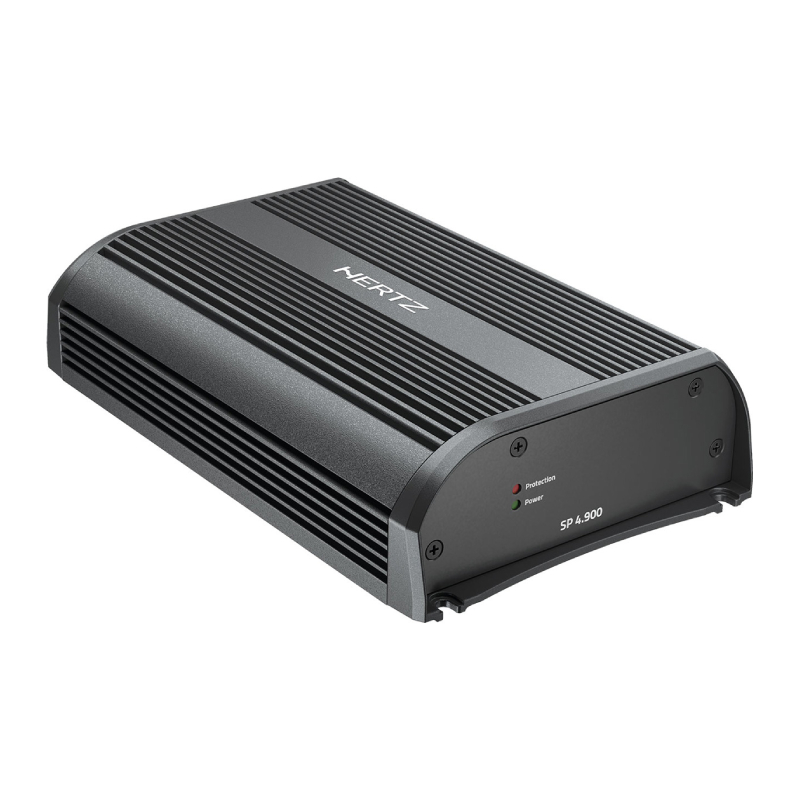

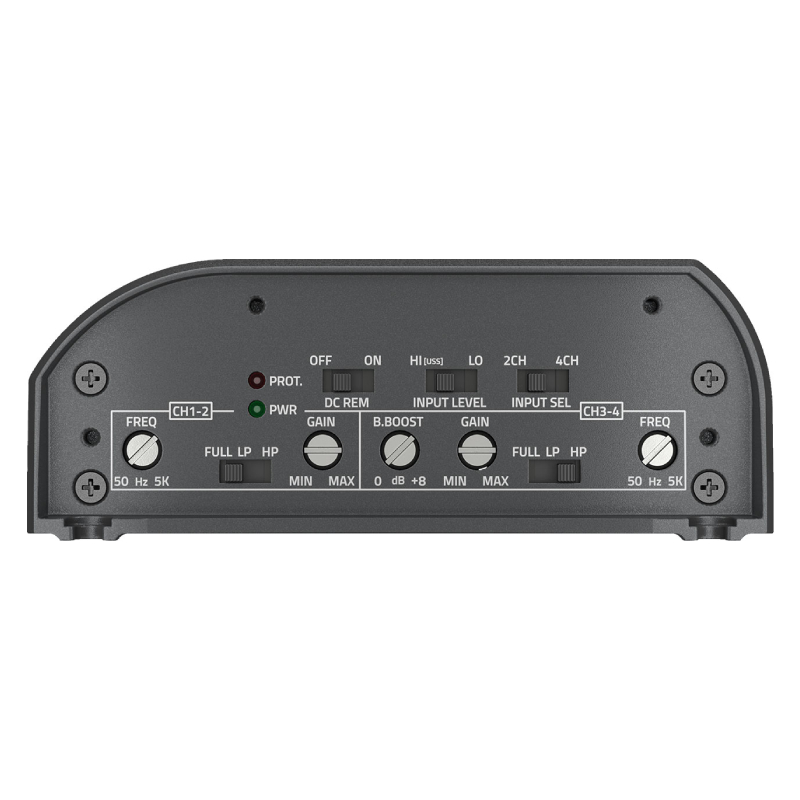

Hertz SPL Show SP 4.900 D-Class 4-Channel Amplifier
- Power Output: 250W RMS x 4 @ 2Ω (IP55-rated for durability and weather resistance)
- Channel Configuration: Supports 4, 3, or 2-channel setups
- Nominal Operating Voltage: 11–15 VDC; pulse voltage: 6–16 VDC
- Idle Current: 1.1 A
- Remote Input Voltage: 6–15 VDC (9 mA)
- Total Harmonic Distortion (THD): 0.02% @ 1 kHz, 4Ω, 70% rated power
- Damping Factor: 200 @ 1 kHz, 4Ω, 2 VRMS
- Frequency Response: 10 Hz – 35 kHz

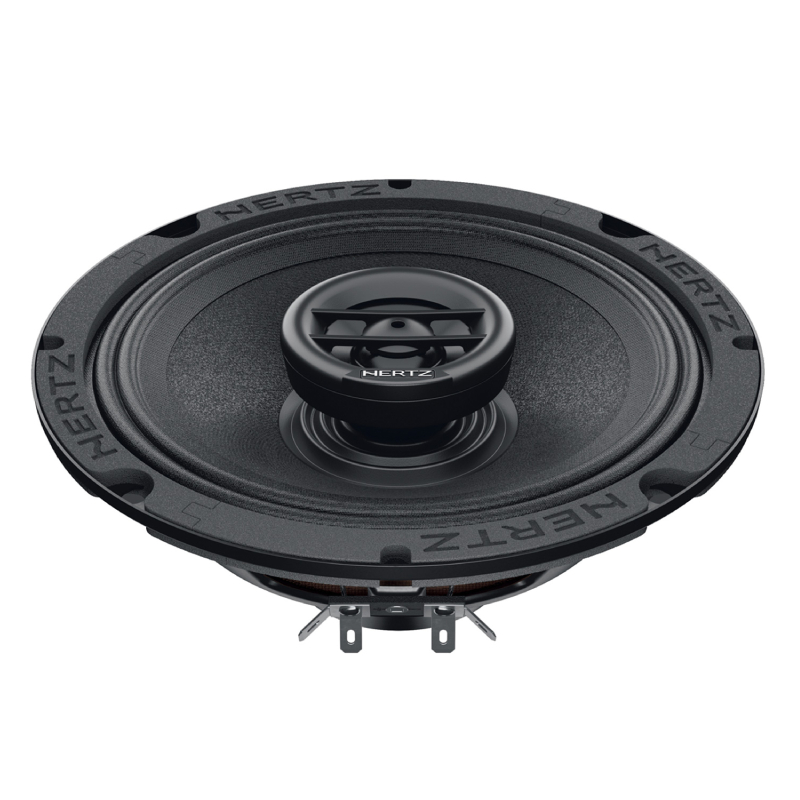

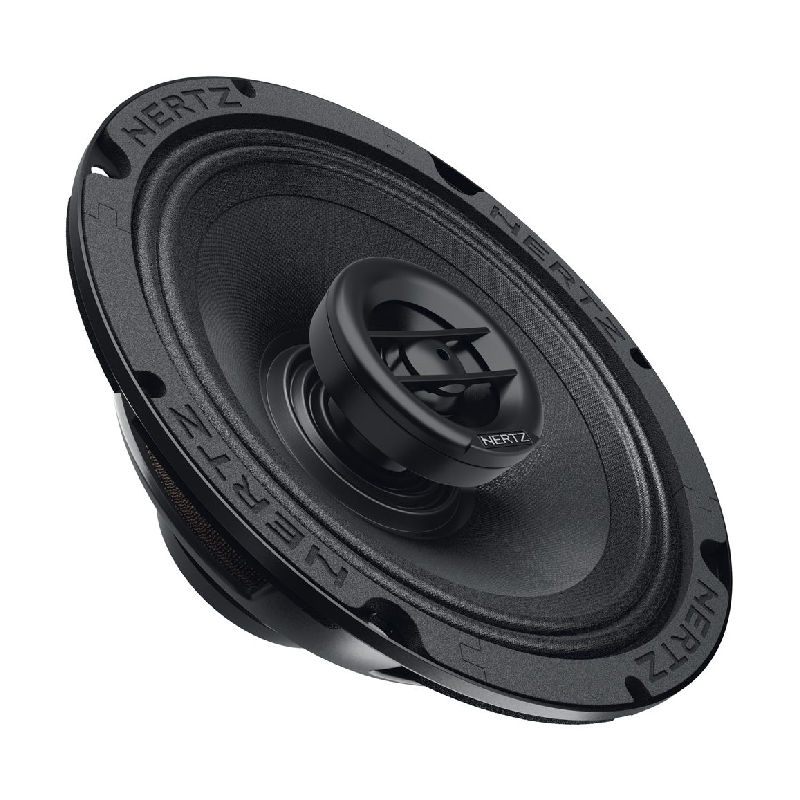

Hertz SPL Show SX-165-NEO 6.5" Two-Way Coaxial Speakers
- Peak Power Handling: 200W
- Continuous Power Handling: 100W RMS
- Impedance: 4Ω
- Frequency Response: 100 Hz – 20 kHz
- Sensitivity: 96.5 dB SPL
- Woofer Dimensions: 165mm (6.5")
- Construction: Neodymium magnets with UV and waterproof protection

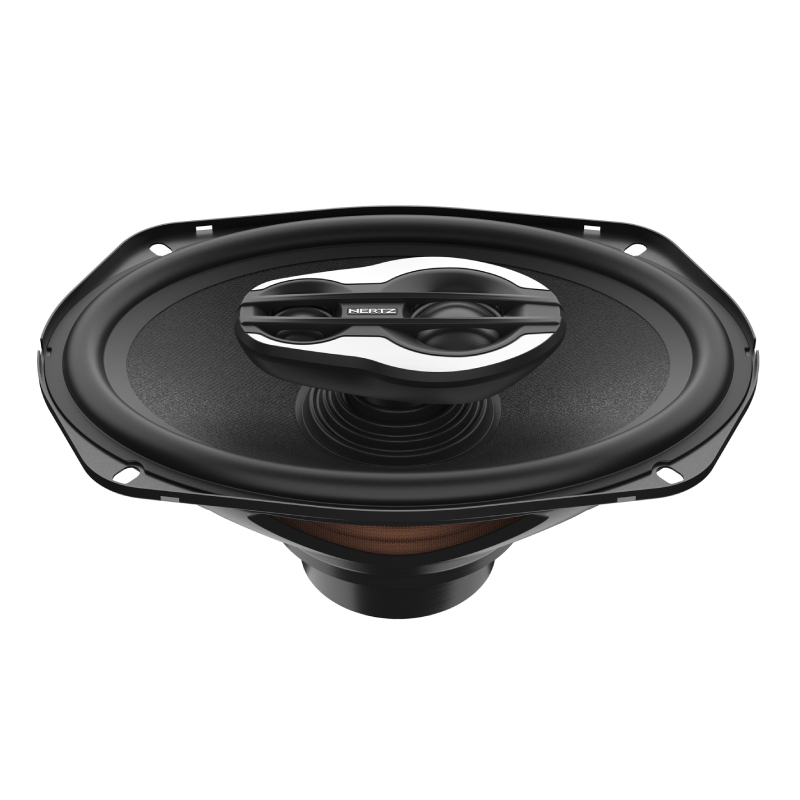

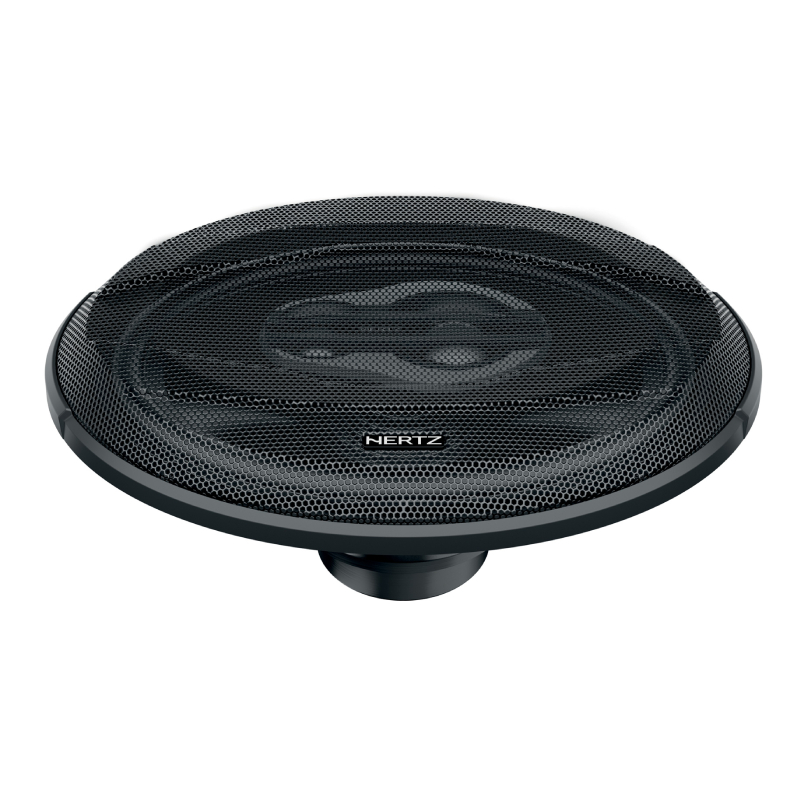

Hertz SPL Show SX-690-NEO 6x9" Three-Way Coaxial Speakers
- Peak Power Handling: 260W
- Continuous Power Handling: 130W RMS
- Impedance: 4Ω
- Frequency Response: 65 Hz – 24 kHz
- Sensitivity: 94 dB SPL
- Woofer Dimensions: 6x9 inches
- Tweeter Dimensions: 29mm (1.14")
- Construction: Neodymium magnets with UV and waterproof protection
Included Components
- Hertz HD14H Saddlebag Lid Kit: Includes HD14 saddlebag lid and HBH14 speaker harness for seamless integration
- Hertz HTHP14 T-Power Harness: Ensures efficient power distribution

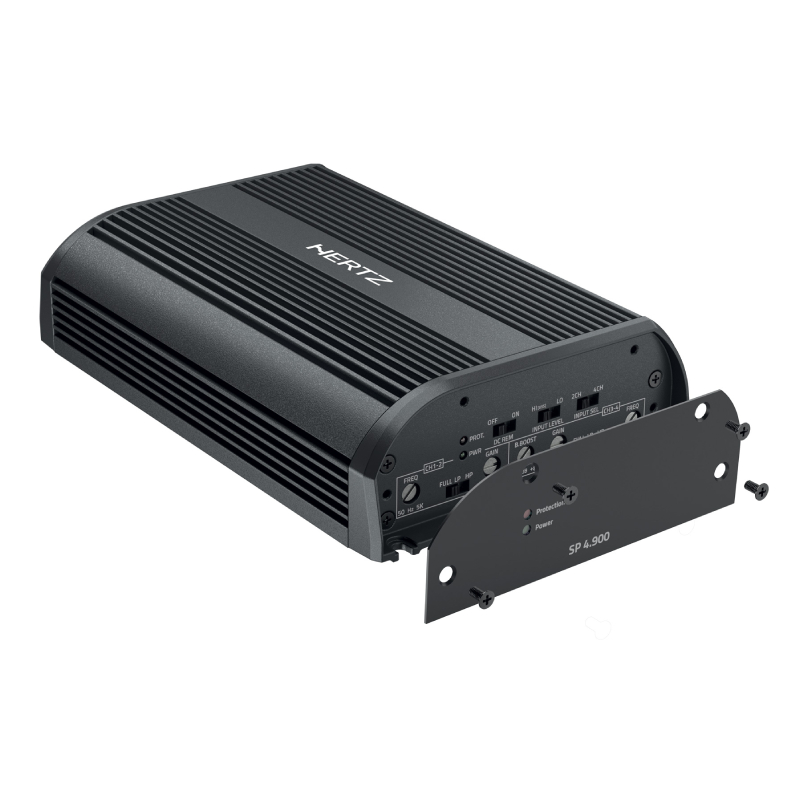

- Amplifier Mounting Kit: For secure and reliable installation
This kit is engineered for premium sound performance with robust, weather-resistant components, delivering exceptional audio clarity and durability across various applications.
- UPC:
- Weight: 40
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
