Hertz SPL Show System Specifications
Hertz SPL Show SP 4.900 D-Class 4-Channel Amplifier
- Power Output: 250W RMS x 4 @ 2Ω (IP55-rated for water and dust resistance)
- Channel Configurations: Supports 4, 3, or 2 channels
- Voltage Requirements:
- Nominal Supply Voltage: 11–15 VDC
- Pulse Operating Voltage: 6–16 VDC
- Current Consumption:
- Idling: 1.1 A
- Idling (Off): 0.03 mA
- Max Musical Power @ 14.4 VDC: 50 A
- Remote Activation:
- Remote IN: 6–15 VDC (9 mA)
- DC-REM Turn-On via Speaker Output (BTL): 3.5–7 VDC
- Performance Specifications:
- Total Harmonic Distortion (THD): 0.02% @ 1 kHz, 4Ω, 70% Rated Power
- Damping Factor: 200 @ 1 kHz, 4Ω, 2 VRMS
- Bandwidth: 10 Hz – 35 kHz (-3 dB)
- Signal-to-Noise Ratio (S/N): 105 dBA (A-weighted @ 1V Input)
- Input Sensitivity:
- Pre-In: 0.6–6 VRMS
- Speaker-In: 2.2–22 VRMS
Hertz SPL Show SX-165-NEO 6.5" Two-Way Coaxial Speakers
- Power Handling:
- Peak Power: 200W
- Continuous Power: 100W RMS
- Impedance: 4Ω
- Frequency Response: 100 Hz – 20 kHz
- Sensitivity: 96.5 dB SPL
- Dimensions:
- Woofer Size: 165mm (6.5") with a 38mm (1.5") voice coil
- Tweeter Size: 35mm (1.4") with a 28mm (1.1") voice coil
- Durability: Features neodymium magnets, UV protection, and waterproof construction
Included Components

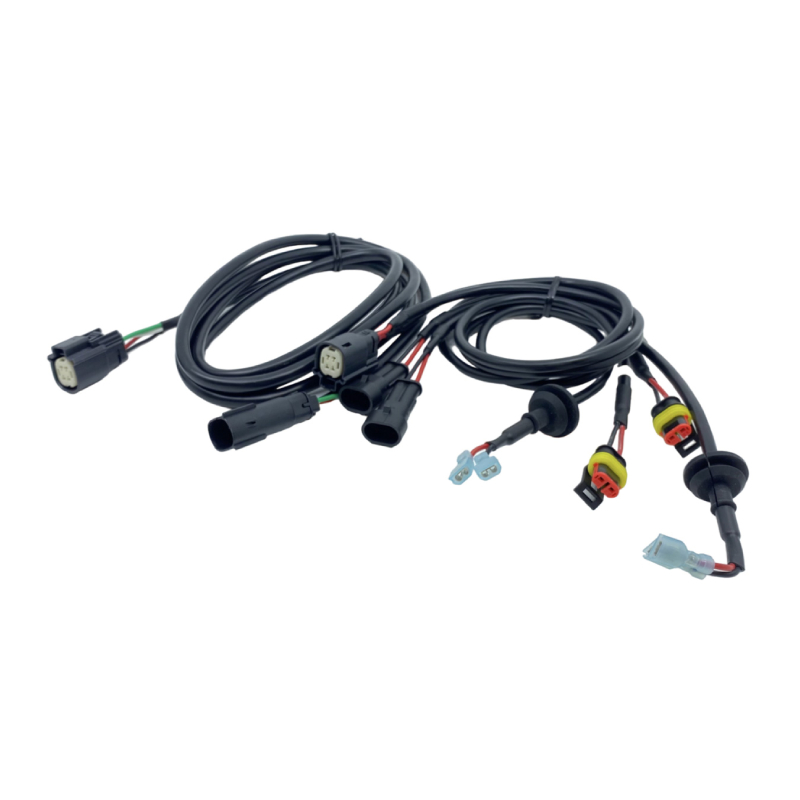

- Hertz HTHP14 T-Power Harness: Ensures efficient and reliable power delivery
- HD13AP Amplifier Mounting Bracket: Simplifies the installation process
This system combines robust power output, precise sound reproduction, and durable construction, making it ideal for enthusiasts seeking high-performance audio in demanding environments.
- UPC:
- Weight: 30
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
