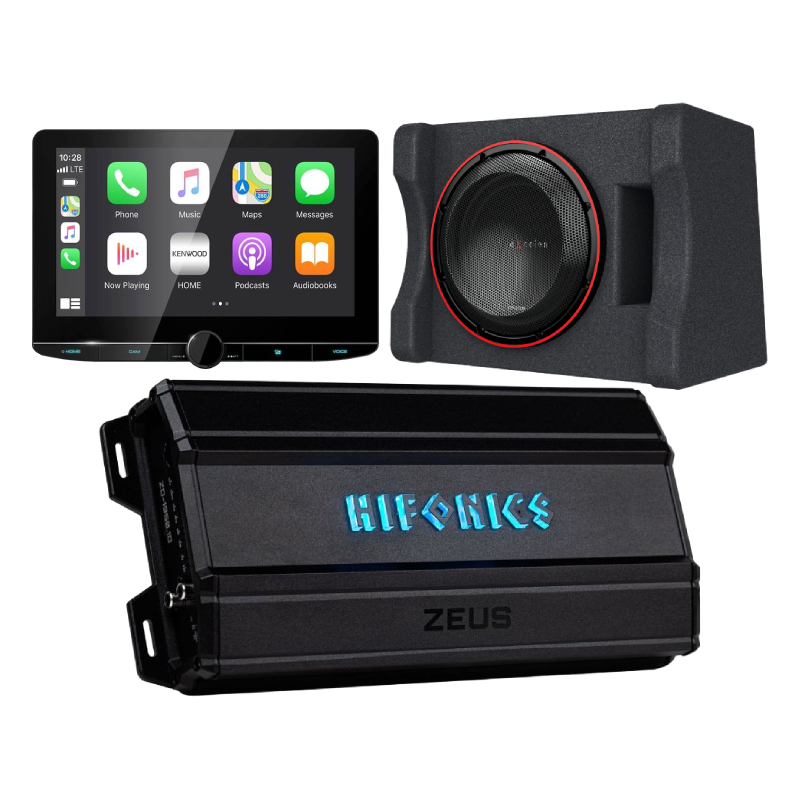

Kenwood Excelon  DMX1057XR-Bundle4 New

DMX1057XR 2-DIN 10.1" Digital Navigation Receiver with HD Capacitive Touch Screen, Apple CarPlay, Android Auto, SiriusXM Ready, iDatalink Maestro RR + P-XW1221SHP Excelon Series 12” 2000W Peak Power Handling 2-Ohms Pre-loaded High-Power Enclosed Car Subwoofer + ZD-2550.1D Zeus Delta Series 2550W Max Power, Class-D Mono Subwoofer Car Amplifier with Bass Remote Included

Item #94678

Condition:   Brand New

Product Highlights

  • DMX1057XR 2-DIN 10.1" Digital Navigation Receiver
  • HD Capacitive Touch Screen
  • Apple CarPlay & Android Auto
  • SiriusXM Ready & iDatalink Maestro RR
  • P-XW1221SHP 12” 2000W Subwoofer
  • ZD-2550.1D 2550W Class-D Mono Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$1,449.99

Reg. Price $2,189.99  Save $740.00

Out of Stock Check out other products listed below
Kenwood Excelon Authorized Dealer


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Kenwood Excelon DMX1057XR 2-DIN 10.1" Digital Navigation Receiver with HD Capacitive Touch Screen, Apple CarPlay, Android Auto, SiriusXM Ready, iDatalink Maestro RR + Kenwood Excelon P-XW1221SHP Excelon Series 12” 2000W Peak Power Handling 2-Ohms Pre-loaded High-Power Enclosed Car Subwoofer + Hifonics ZD-2550.1D Zeus Delta Series 2550W Max Power, Class-D Mono Subwoofer Car Amplifier with Bass Remote Included


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • DMX1057XR 10.1" Touchscreen monitor
  • • DMX1057XR Source unit (15A fuse)
  • • DMX1057XR Wiring harness
  • • DMX1057XR 39" USB extension cable
  • • DMX1057XR GPS antenna (attached 11.5' cable terminated by a proprietary connector)
  • • DMX1057XR Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
  • • DMX1057XR Self-adhesive mounting pad
  • • DMX1057XR Large plastic bracket
  • • DMX1057XR 2 Small plastic brackets
  • • DMX1057XR 2 Metal brackets
  • • DMX1057XR 2 Machine screws
  • • DMX1057XR 6 Hex-head screws
  • • DMX1057XR 6 Pan-head ISO-mount screws
  • • DMX1057XR 6 Flat-head ISO-mount screws
  • • DMX1057XR Quick Start Guide
  • • DMX1057XR "CAUTION" note
  • • DMX1057XR Warranty Card
  • • P-XW1221SHP Ported enclosure loaded with one 12" Excelon subwoofer (2 ohm)
  • • P-XW1221SHP 2 Mounting brackets
  • • P-XW1221SHP Eight 1" screws
  • • P-XW1221SHP Owner's Manual
  • • ZD-2550.1D Class-D Mono Subwoofer Car Amplifier
  • • ZD-2550.1D Owner's Manual
Premium Multimedia Receiver

When it comes to premium and flagship multimedia receivers, the Kenwood Excelon Reference DMX1057XR has always been a go-to option for those who are looking for the best technological features that receivers can offer these days and can produce high-quality audio without any regard to its hefty price tag.

Android Auto and Apple CarPlay Compatible

Compatible with Android Auto and Apple CarPlay, whether in wired or wireless mode, the Kenwood Excelon Reference DMX1057XR can let you comfortably read and send text messages, make and take phone calls, listen to voicemails, play music, and ask for directions using voice commands with the help of Google Assistant and Siri. Its Bluetooth feature also lets you answer your phone calls hands-free and stream music wirelessly.

Built-in HD Radio Tuner

If you are using an Android phone, you can mirror your phone's display to the Kenwood Excelon Reference DMX1057XR receiver's massive 10.1-inch touchscreen display using Miracast for wireless mode or an HDMI cable for wired mode. Aside from its built-in HD radio tuner, you can also connect a SiriusXM radio tuner so you can listen to your beloved stations and shows while on the road. Losing your car's factory features won't be an issue, thanks to its compatibility with iDatalink's Maestro module.

Built-in Amplifier

The DMX1057XR comes with a built-in amplifier with a six-channel preamp output that can handle a power output of 22 Watts RMS and a peak power of 50 Watts per channel. It has a 13-band parametric EQ feature that allows you to shape the amplifier's frequency response that would suit your preference.

3-Way Crossover

The Kenwood Excelon Reference DMX1057XR has a three-way crossover to filter out unnecessary frequencies that could damage your speakers. It also has a Stage EQ feature to compensate for speakers that are positioned very low inside your vehicle. Lastly, it comes with a Drive EQ feature as well, which boosts some frequencies to cancel out road noise.

Feature Their Highest Level of Technology

Kenwood's Excelon Series mobile audio components feature their highest level of technology in advanced designs that give you the great sound and quality you expect from Kenwood. Their subwoofer enclosures are built to last, with solid enclosures and subs made to kick out the jams.

Features a Diamond Array Pattern

The P-XW1221SHP comes loaded with one 2-ohm 12" Excelon Series subwoofer. The sub's polypropylene cone features a diamond array pattern to minimize distortion, while the rubber surround and computer-optimized stress-controlled spider keep things on track. The speaker is designed to dissipate heat generated by extended high-powered use, with internal works that direct airflow to avoid overheating.

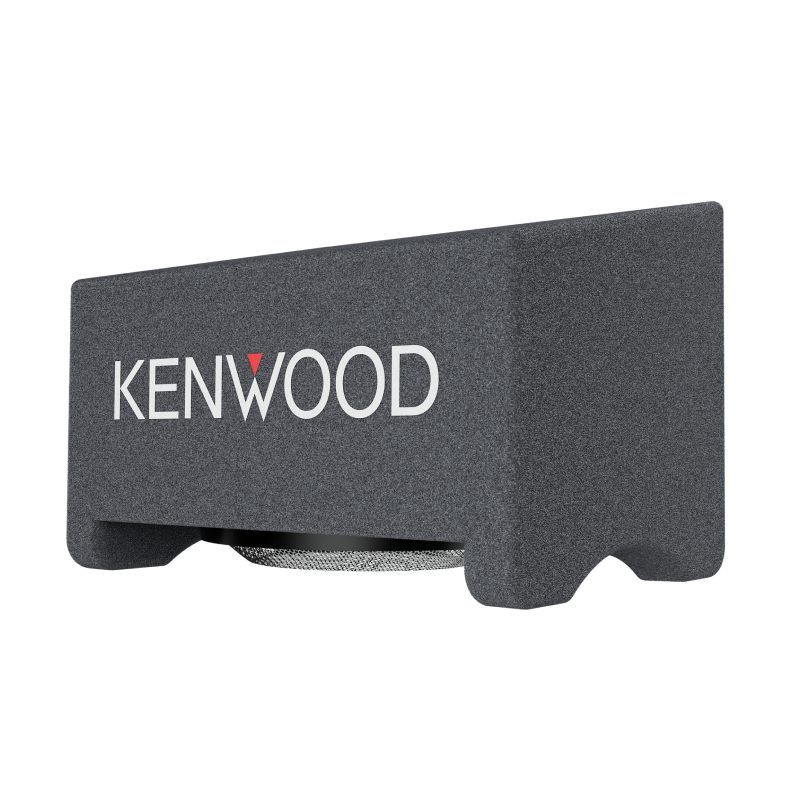

Give the Sub Solid Support

The rugged enclosure is built from 5/8" MDF with a 3/4" thick internal baffle to give the subs solid support. The box's slant-back design suppresses standing waves which can interfere with bass response, and allows it to fit neatly behind the rear seat of an SUV. Rounded port corners reduce port noise and airflow resistance. The P-XW1221D can be used in front-facing, rear-facing, or down-firing applications. Steel-mesh grilles protect the speakers from accidental damage.

This box handles up to 600 watts RMS, so you'll want an amplifier with the power to get the best from this enclosure. The P-XW1221D is performance-matched to Kenwood's Excelon XR601-1 amp (sold separately). Whatever power source you choose, you'll get huge bass with the performance and quality you need.



Superior Sound Quality And Reliability

Introducing the Hifonics ZEUS DELTA amplifier, a powerful Class D unit designed for mobile audio systems, boasting a maximum power of 2550 watts and compatibility with universal vehicles. With features such as variable electronic crossover, built-in bass control, and LED system protection circuitry diagnostics, this amplifier ensures superior sound quality and reliability. Complete with a sleek black design, 1-year warranty, and convenient bass remote included, elevate your car audio experience today.for audiophiles and enthusiasts alike.

Superior Heat Dissipation

Enhance your audio setup with advanced features including stable PWM MOSFET power supply, superior heat dissipation from the modern aluminum heat sink, constant voltage maintenance via the dual coil Pulse Width Modulated power supply, secure molded connection terminals for effortless installation, LED system protection circuitry diagnostics for monitoring overload and speaker short protection, inclusion of a bass remote for customized bass control, and the convenience of auto turn-on with DC SIGNAL SENSE, eliminating the need for an amplifier remote turn-on wire.

Class-D Amplification

Experience unparalleled performance with our Class D amplifier, renowned for its high efficiency and powerful output packed into a compact footprint. Ideal for maximizing power while minimizing space requirements, this advanced topology ensures your audio system delivers crisp, clear sound without compromise. Whether you're looking to upgrade your car audio or enhance your mobile entertainment setup, our Class D amplifier offers the perfect combination of efficiency and performance, making it the preferred choice for audiophiles and enthusiasts alike.



  • Satellite Radio Ready : Yes
  • DIN : 2

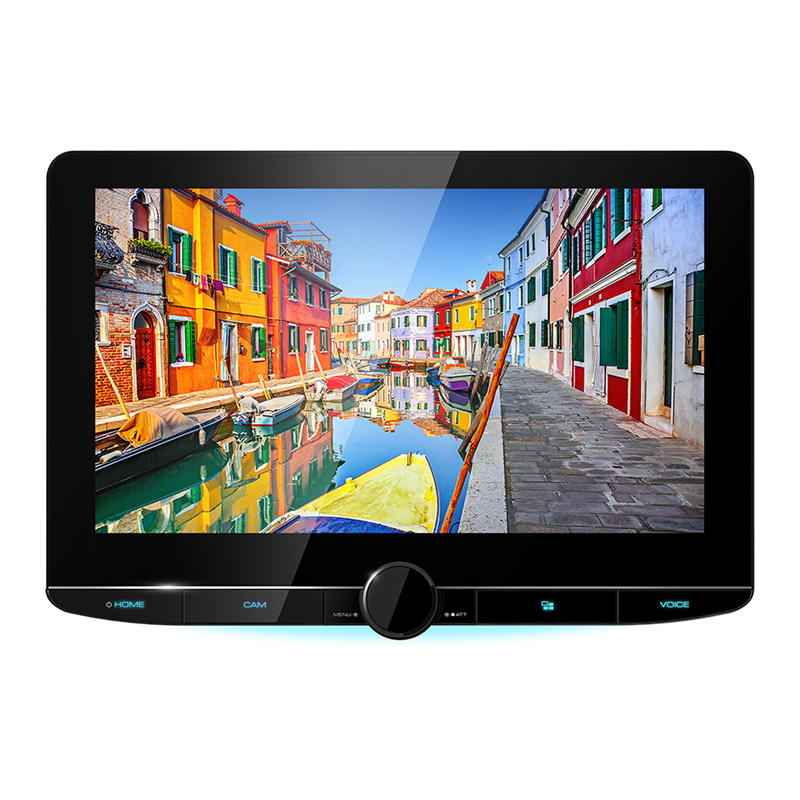

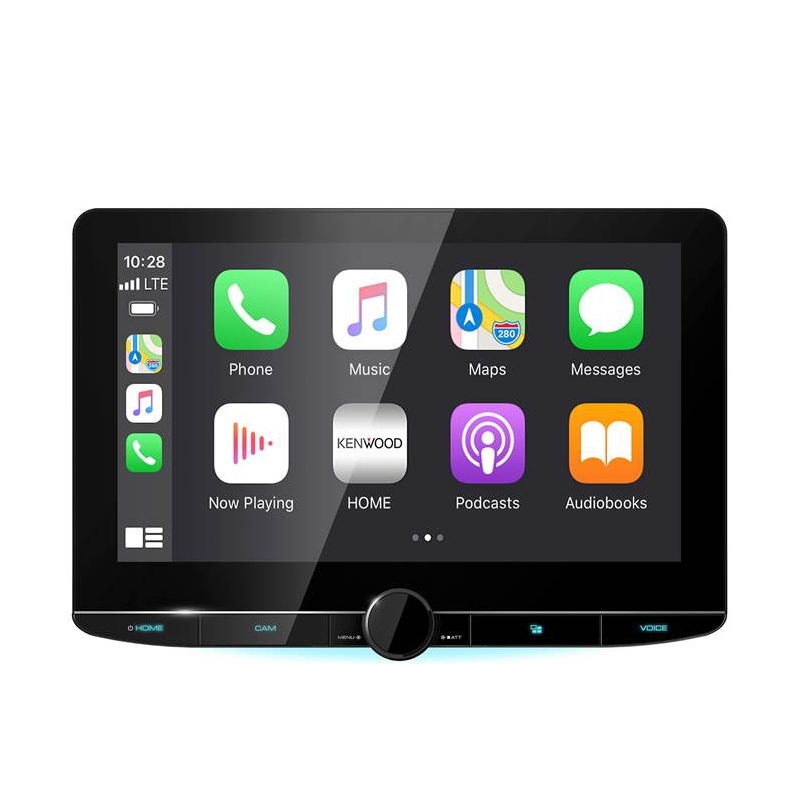

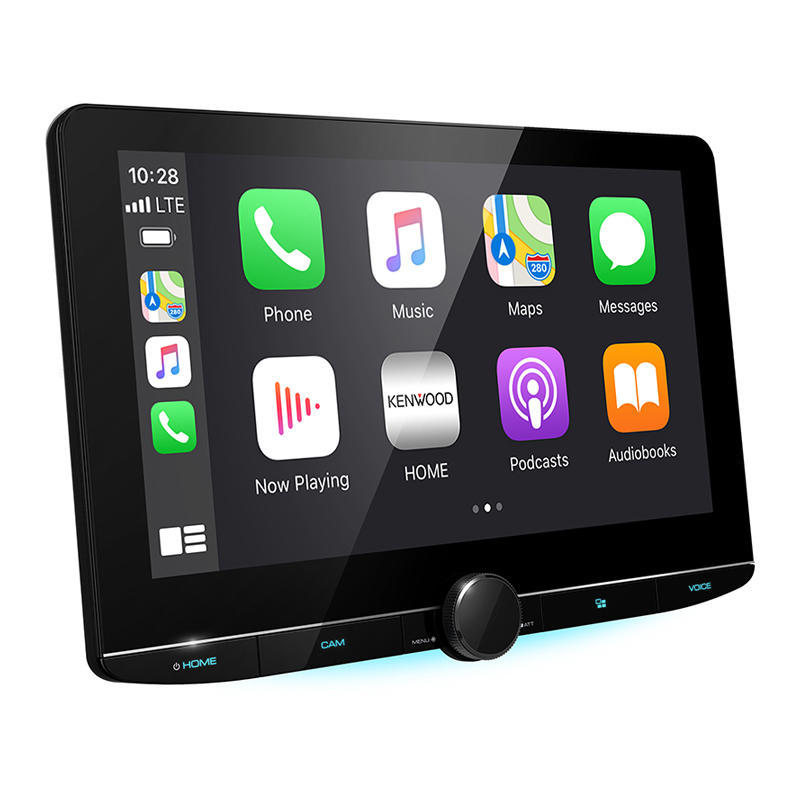

DMX1057XR 2-DIN 10.1" Digital Navigation Receiver with HD Capacitive Touch Screen, Apple CarPlay, Android Auto, SiriusXM Ready, iDatalink Maestro RR

Features:

  • digital multimedia receiver with AM/FM tuner
  • 10.1" HD capacitive touchscreen display
  • AAS display technology for wider viewing angle
  • before final installation, depth and height of the display can be adjusted to provide dash vent and control access
  • Wi-Fi certified
  • Waze-ready with Apple CarPlay or Android Auto
  • customizable display background and widget controls
  • ambient lighting and multi-function volume knob controls
  • plays high-res FLAC, WAV, and DSD files on USB drives
  • built-in HD Radio tuner
  • included INRIX weather app with free 5-year subscription
  • fits double-DIN dash openings
  • Bluetooth built-in for hands-free calling and audio streaming
  • built-in LDAC for high-res wireless audio streaming with select Android phones



Smartphone Features:

  • compatible with wireless or wired Apple CarPlay or Android Auto
  • wireless (Miracast) and wired (HDMI) mirroring for Android
  • Audio/Video Features:
  • plays USB memory devices
  • 13-band parametric equalizer with digital time alignment
  • 3-way crossover mode (runs highs, mids, and lows)
  • Supreme setting improves the digital sound for all music sources
  • Stage EQ compensates for low speaker positions
  • DriveEQ boosts specific frequencies to compensate for road noise
  • subwoofer level and phase controls



Expandability:

  • compatible with SiriusXM satellite radio tuner
  • direct connection and control with Kenwood's DRV-N520 Drive Recorder dash cam

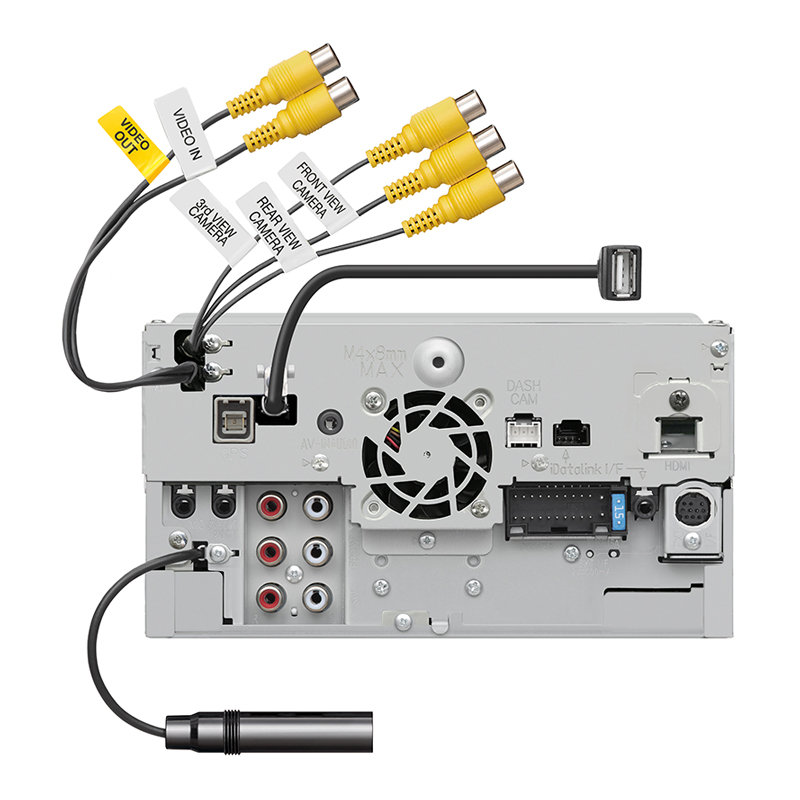

  • inputs: rear USB input, HDMI input, rear A/V input (composite RCA video and 3.5mm audio), four camera inputs (including 2 high-def inputs and DRV-N520 input)
  • outputs: rear A/V output, 6-channel preamp outputs (5-volt front, rear, subwoofer)



Other Info:

  • wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
  • built-in internal amp (22 watts RMS/50 peak x 4 channels)
  • works with iDataLink Maestro modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
  • K40/Escort radar detector-ready
  • compatible with most factory steering wheel audio controls (adapter required)
  • warranty: 2 years
  • Our 60-day money-back guarantee



Specification:

  • 10.1” HD Capacitive Touch Screen
  • Bonded Optical Display
  • 3-Way Adjustable Display
  • New GUI w/Driving & Source Control Widgets
  • Volume Knob/Multi-Controller
  • Ambient Lighting
  • Photo Slideshow via Smartphone
  • Bluetooth Phone Book Photo Display
  • 5 Years Free INRIX Weather Widget
  • Wireless/Wired Apple CarPlay Ready
  • Wireless/Wired Android Auto Ready
  • Wireless Android Mirroring
  • LDAC Hi-Res Audio Bluetooth
  • Hi-Res Audio 192K/24bit FLAC/WAV/DSD
  • Parametric Equalizer
  • 3-Way Crossover
  • X Cover (Cross-Shaped Panel Structure)
  • Tuned Audiophile Grade Components
  • HD Radio
  • iDatalink Maestro ADAS Widget & Accessory/Custom Control Ready
  • KENWOOD Remote App S Ready
  • Source Setup ON/OFF Control
  • 4 Camera Inputs
  • HD Front/Rear Camera Compatible
  • CMOS-320 Control
  • Front Camera Interruption
  • Front & 3rd Camera Mirroring
  • HDMI Input
  • 1 AV Input / 1 AV Output - Dual Zone
  • Single USB Input - Includes 1M Extension
  • DRV-N520 Dash Cam Ready
  • 3 Pre-outs @ 5 Volt
  • DSP - 13 Band EQ/Time Alignment

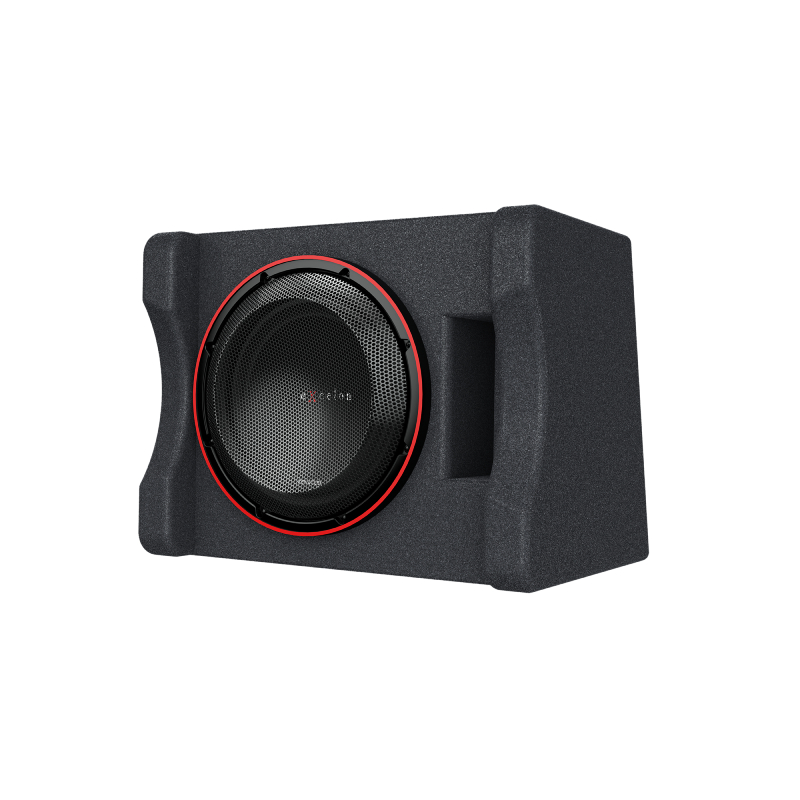

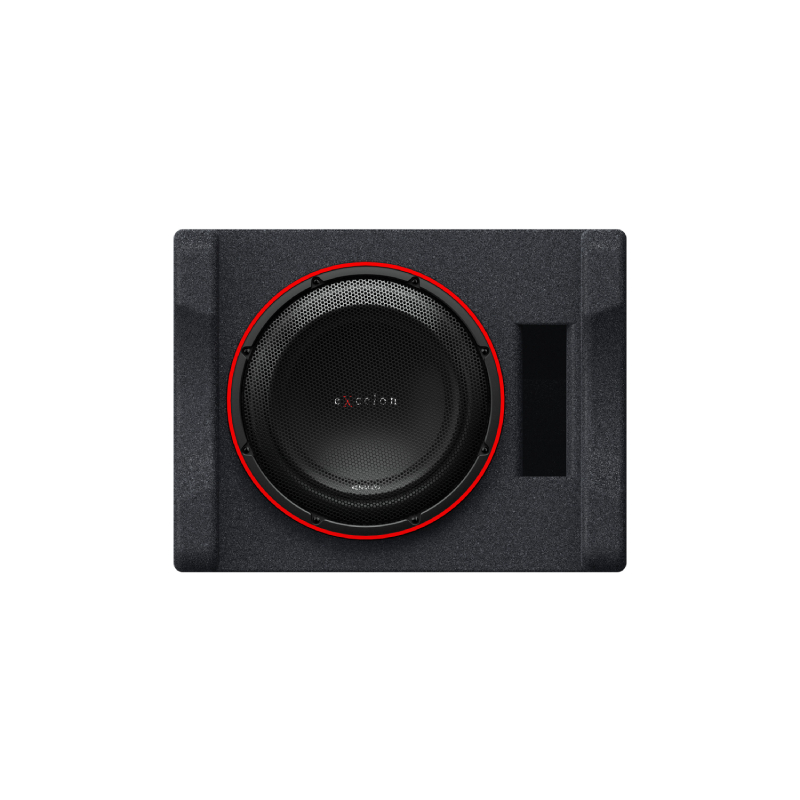

P-XW1221SHP Excelon Series 12” 2000W Peak Power Handling 2-Ohms Pre-loaded High-Power Enclosed Car Subwoofer

Features:

  • Polypropylene Cone with Dual Area Cap Woofers
  • 500W RMS, 1000W MAX Input Power
  • Freq. Response:  30Hz-300Hz
  • 2Ω Impedance
  • 20-7/8” W x 15-13/16” H x 14-5/8” Bottom  Depth / 11-3/8” Top Depth



Specification:

  • Woofer Size (inches): 12
  • Speakers Per Box: 1
  • Woofer Material: Polypropylene
  • Enclosure Type: Ported
  • Color: Black
  • Pieces in System: 1
  • Width (inches): 20-7/8
  • Height (inches): 15-3/4
  • Depth (inches): 14-5/8
  • Connector Type: Spring posts
  • Frequency Response: 30-300 Hz
  • Power Range (Watts RMS): 500
  • Maximum Wattage: 2000

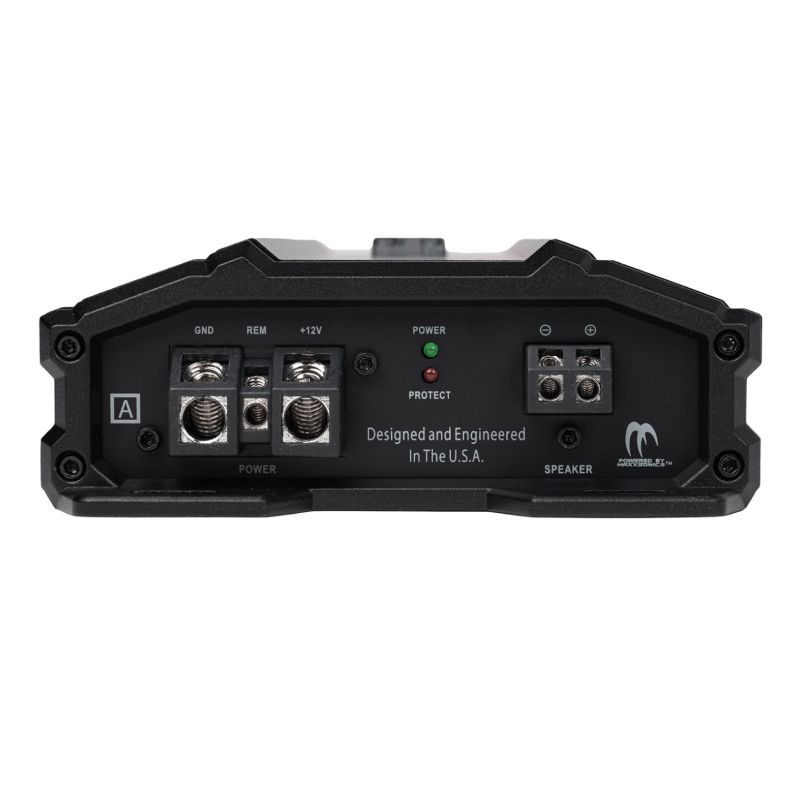

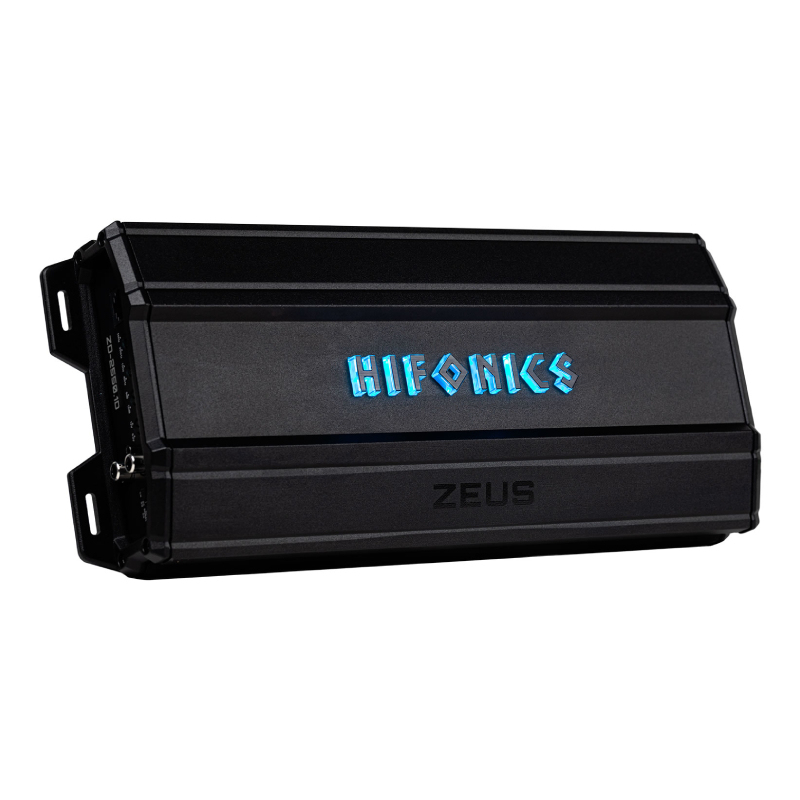

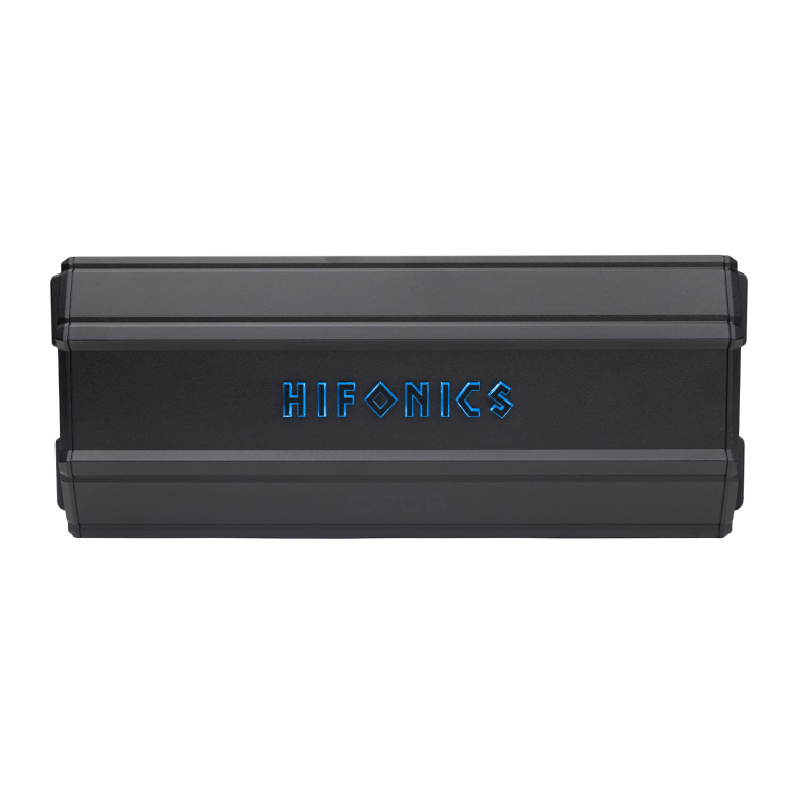

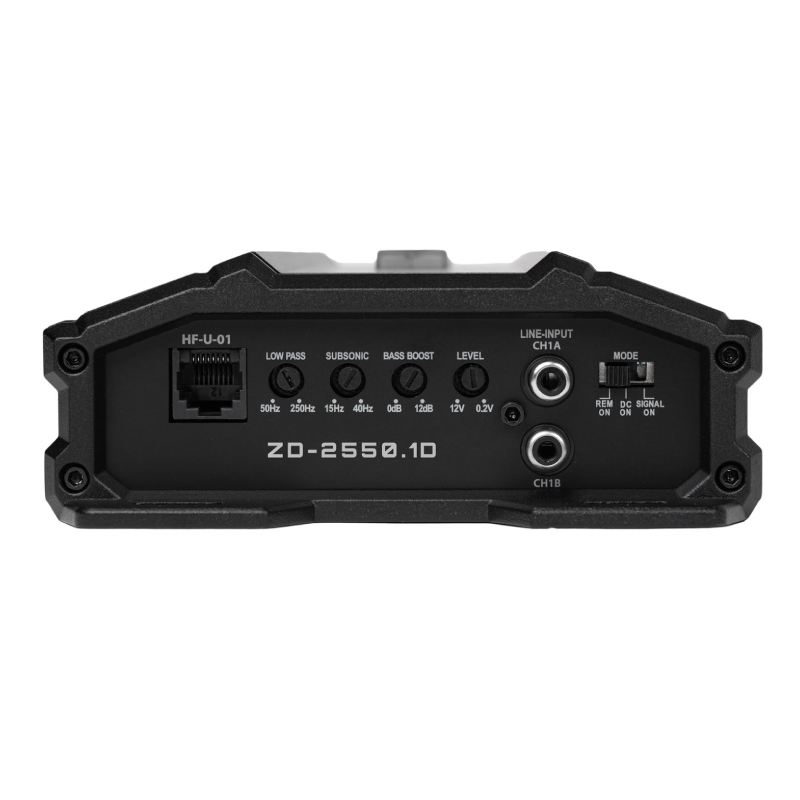

ZD-2550.1D Zeus Delta Series 2550W Max Power, Class-D Mono Subwoofer Car Amplifier with Bass Remote Included

Features:

  • Compatible Vehicle Fitment: Universal, suitable for installation in various vehicles.
  • Low Noise Preamplifier Circuit: Maximizes low voltage signal transmission with minimal distortion from the source unit to the amplifier circuit.
  • RCA Inputs: High-temperature impact-resistant nickel-plated connectors ensure secure and erosion-resistant connections.
  • Operation Mode: Mono only, optimized for single-channel applications.
  • Crossover Type: Onboard electronic crossover for precise frequency management.
  • Electronic Equalizer: Allows control of amplifier output with onboard electronic crossover, enabling tailored frequency response for speakers and subwoofers.
  • Class / Topology: Class D topology, offering high efficiency and substantial power output in a compact design.
  • Output Device Technology: Utilizes PWM MOSFET Power Supply for stable power delivery with minimal heat generation.
  • Heat Sink: Features a modern aluminum heat sink design from Hifonics for superior heat dissipation.
  • Power Supply: Incorporates Simpatico Coil Design, maintaining constant voltage through dual coil Pulse Width Modulated power supply for Ultra-Fi output devices.
  • Connection Type: Secure molded connection terminals for Power, Ground, and Speaker connections, angled for easy access and clean wire management.
  • LED System Protection Circuitry Diagnostics: Monitors overload and speaker short protection with illuminated indicators on the amplifier end panel.
  • Bass Remote Included: Includes a bass remote for convenient adjustment of bass levels.
  • Auto Turn-On (DC Signal Sense): Equipped with DC Signal Sense feature, automatically powering on the amplifier upon receiving a signal on the RCA inputs. Can be toggled on or off as per user preference.



Details and Specifications:

  • Type: Amplifier
  • Brand: Hifonics
  • Series: ZEUS DELTA
  • Category: Mobile
  • Condition: New
  • Color: Black
  • Warranty: 1 Year
  • Compatible Vehicles: Universal
  • Class: Class D
  • Total Channels: 1
  • Max Power (watts): 2550
  • Power @ 1 Ohm: 1 x 2550 watts
  • Power @ 2 Ohms: 1 x 1275 watts
  • Power @ 4 Ohms: 1 x 650 watts
  • Crossover: Variable Electronic 12dB Per Octave
  • Variable Low Pass Crossover: 50Hz-250Hz, 12dB per Octave
  • Tone Control / Parametric EQ: Built-in Bass Control
  • Bass Boost: 0-12dB
  • Subsonic Filter: 15Hz-40Hz
  • Variable Voltage: 0.2-6V
  • Frequency Response: 15Hz-250Hz
  • Total Harmonic Distortion (THD): < 0.1%
  • Speaker Level Audio Inputs: Yes
  • Power Terminal 12v/GND: 4 AWG
  • Speaker Terminal Wire Gauge: 12 AWG
  • Fusing: External 125A
  • UPC:
  • Weight: 156
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
