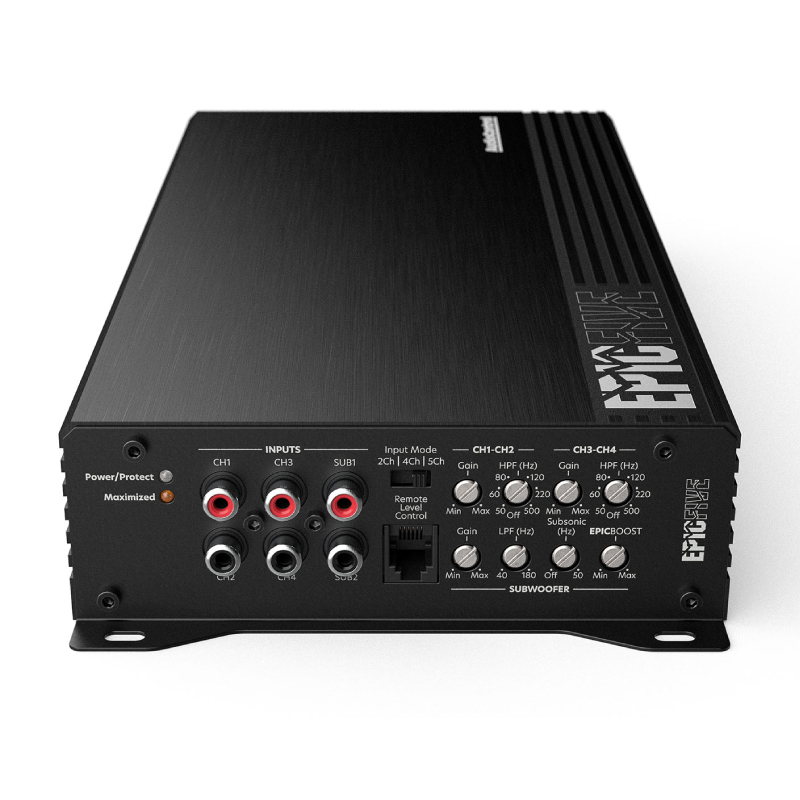

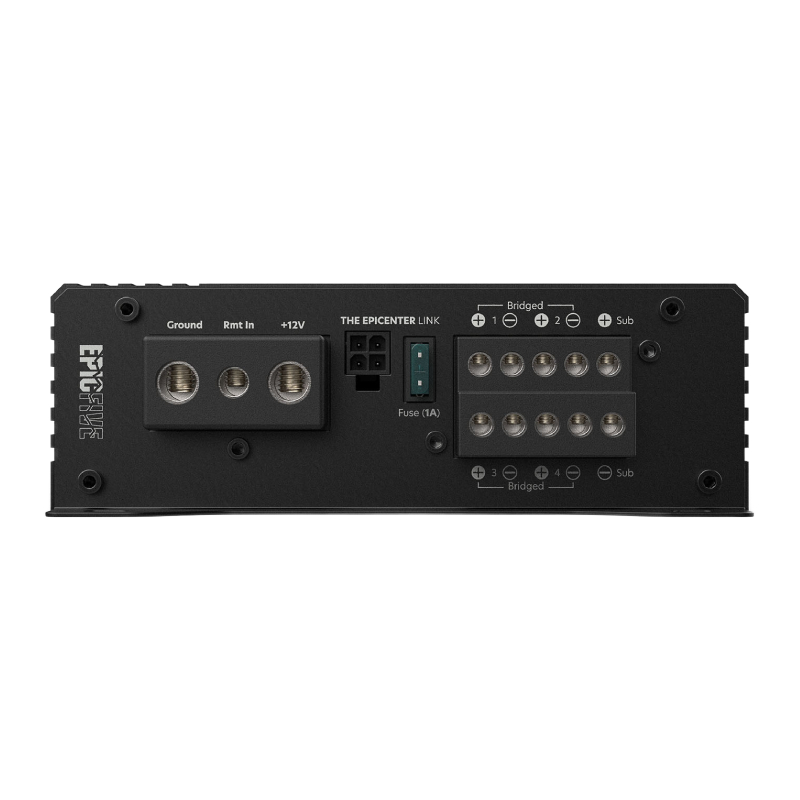

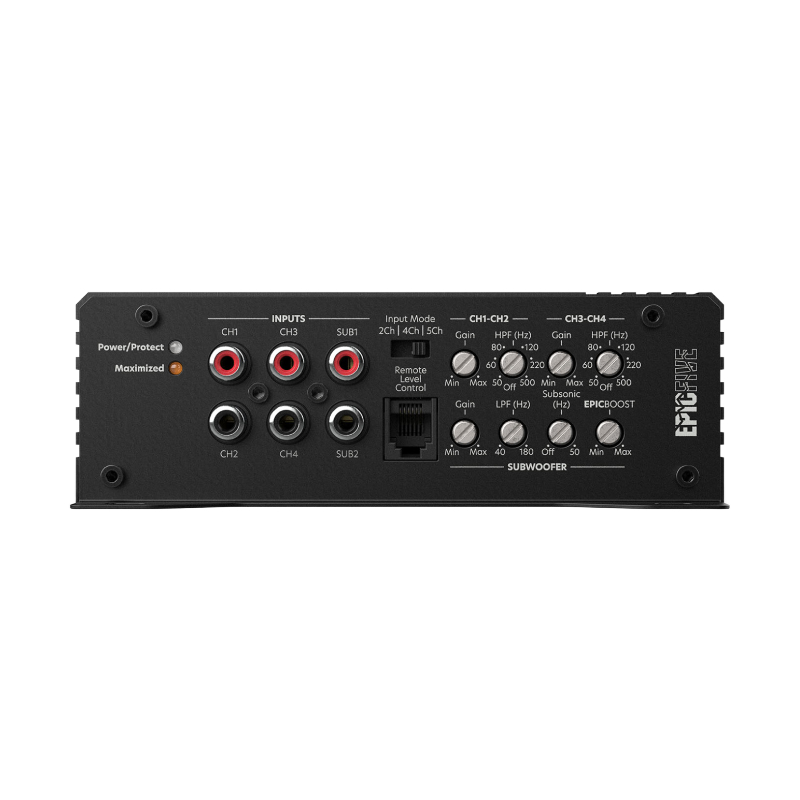

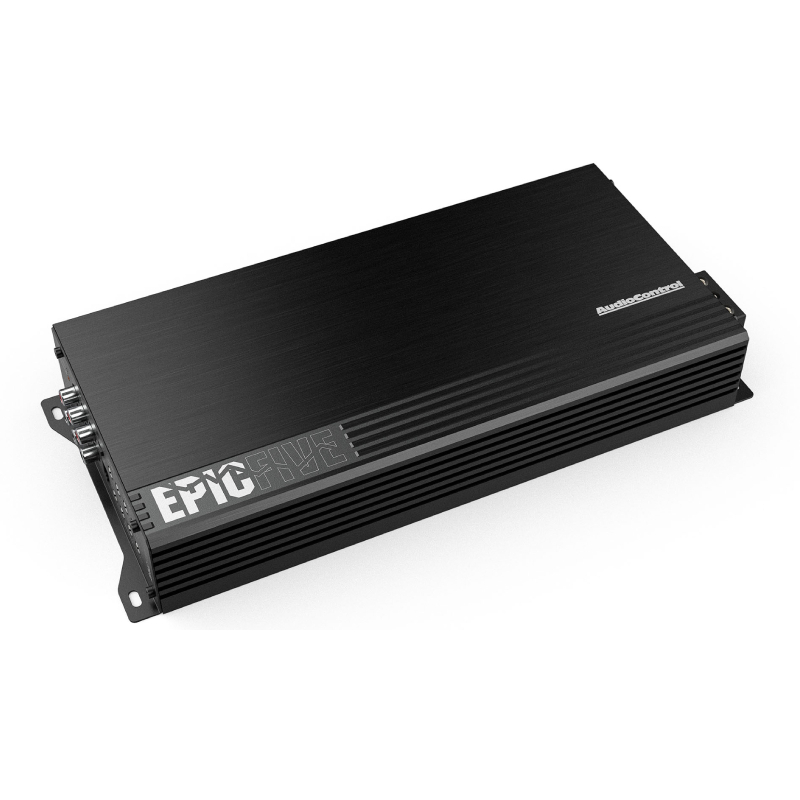

AudioControl  EPICFIVE New

Epic Series 5-Channel 75W RMS x 4 at 4 Ohms and 5th Channel 700W RMS x 1 at 1 Ohm, Class-D Car Amplifier with Remote Level Control Included

Item #95024

Condition:   Brand New

Product Highlights

  • Epic Series
  • 5-Channel Car Amplifier
  • 150W RMS x 4 + 500W RMS x 1 @ 2 Ohms
  • Class-D
  • Remote Level Control Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$249.00

Reg. Price $349.00  Save $100.00
In Stock
In Stock

Only 2 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


AudioControl Authorized Dealer

Huge Saving on Other items:


AudioControl EPICFIVE Epic Series 5-Channel 75W RMS x 4 at 4 Ohms and 5th Channel 700W RMS x 1 at 1 Ohm, Class-D Car Amplifier with Remote Level Control Included


We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  •
    • • 5-Channel Class-D Amplifier (installed 1A mini fuse for Link output)
    • • ACR-E Remote level control
    • • 16' Remote level control cable (RJ-12 connectors on both ends)
    • • 39" Epicenter link cable (4-pin connector on one end/ 3-pin Epicenter power & ground connector on other end)
    • • (4) 5/8" screws
    • • (4) 3/8" screws
    • • (3) Allen keys (3mm/ 2.5mm/ 2mm)
    • • Spare 1A mini fuse
    • Owner's Manual
AudioControl_MatrixPlus
Unleash Power and Precision

Experience unbeatable power and efficiency with this Compact High-Power Class D Amplifier, designed for maximum performance and stability. Delivering 4 x 75W + 1 x 300W @ 4 Ohms for crystal-clear sound and 4 x 150W + 1 x 500W @ 2 Ohms for deep, rich bass, this amplifier ensures your audio system hits harder and sounds better than ever.

The Ultimate Amplifier for Your System

Unleash extreme power with 1 x 700W @ 1 Ohm for high-output systems, enjoy flexible bridging with 2 x 300W @ 4 Ohms Bridged for easy installation, and stay safe with Smart Auto-Reset Protection Circuit that keeps your equipment protected from damage.



AudioControl_MatrixPlus
AudioControl_MatrixPlus
Optimized for Ultimate Sound Experience

Take control of your sound with 12 dB/Octave Linkwitz-Riley Variable HP/LP Filters for precise tuning, optimize deep bass with a 12 dB/Octave Variable Subsonic Filter, enjoy premium build quality with Solid Power/Speaker Terminals and Hex Screws, and experience ultimate performance with a design specially engineered for THE EPICENTER® to maximize bass restoration.

  • Low Frequency Response : 40-180 Hz
  • High Frequency Response : 50-500 Hz
  • Number of Channels : 5
  • Frequency Response : 10-22000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 75x4+1x700 Watts
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 150 A

Features:

  • Compact & Powerful: Experience high performance with a Compact High-Power Class D Amplifier.
  • High-Current Design: Built for maximum efficiency and power stability.
  • Versatile Power Output: Delivers 4 x 75W + 1 x 300W @ 4 Ohms for clear, detailed sound.
  • Enhanced Performance: Pumps out 4 x 150W + 1 x 500W @ 2 Ohms for deep, rich bass.
  • Extreme Power: Unleash 1 x 700W @ 1 Ohm for high-output systems.
  • Flexible Bridging: Get 2 x 300W @ 4 Ohms Bridged for more installation options.
  • Smart Protection: Features a Smart Auto-Reset Protection Circuit to prevent damage.
  • Advanced Sound Control: Includes 12 dB/Octave Linkwitz-Riley Variable HP/LP Filters for precise tuning.
  • Deep Bass Optimization: Equipped with a 12 dB/Octave Variable Subsonic Filter for enhanced low frequencies.
  • Premium Build Quality: Built with Solid Power/Speaker Terminals with Hex Screws for secure connections.
  • Designed for THE EPICENTER®: Specially engineered to maximize bass restoration and performance.



Specifications:

  • RMS Power Output (Watts x Channels): 75 x 4, 700 x 1
  • Peak Power Output (Watts x Channels): ---
  • Power at 2 Ohms (Watts x Channels): 150 x 4
  • Power at 1 Ohm (Watts x Channels): 700 x 1
  • Bridged Power (Watts x Channels): 400 x 2
  • Minimum Impedance Bridged: 4 Ohms
  • Minimum Impedance Unbridged: 2 Ohms
  • Best Frequency Response: 10Hz - 22kHz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 92 dB
  • Input Voltage: 14.4V
  • Amplifier Class: D
  • Built-in DSP: No
  • Remote Control: Yes
  • Low-Pass Crossover Frequency: 40-180 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • High-Pass Crossover Frequency: 50-500 Hz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 45 Hz
  • Fan Cooled: No
  • Fuse Rating: 150A
  • Speaker Level Inputs: No
  • Preamp Outputs: No
  • Width: 13-11/16 inches
  • Height: 2-1/16 inches
  • Depth: 6-1/8 inches
  • UPC: 850038647803
  • Weight: 9
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
