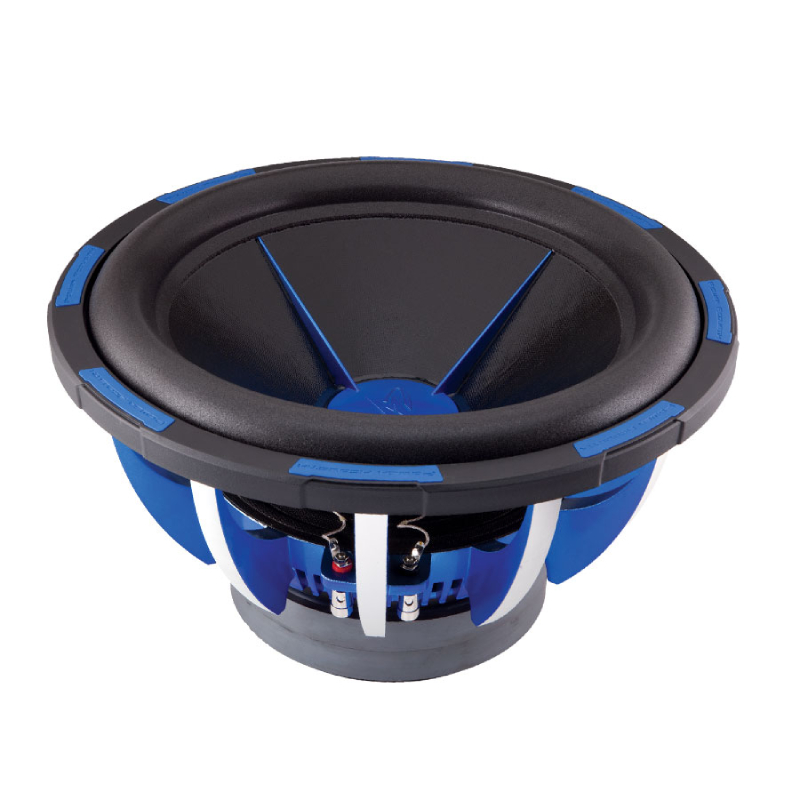

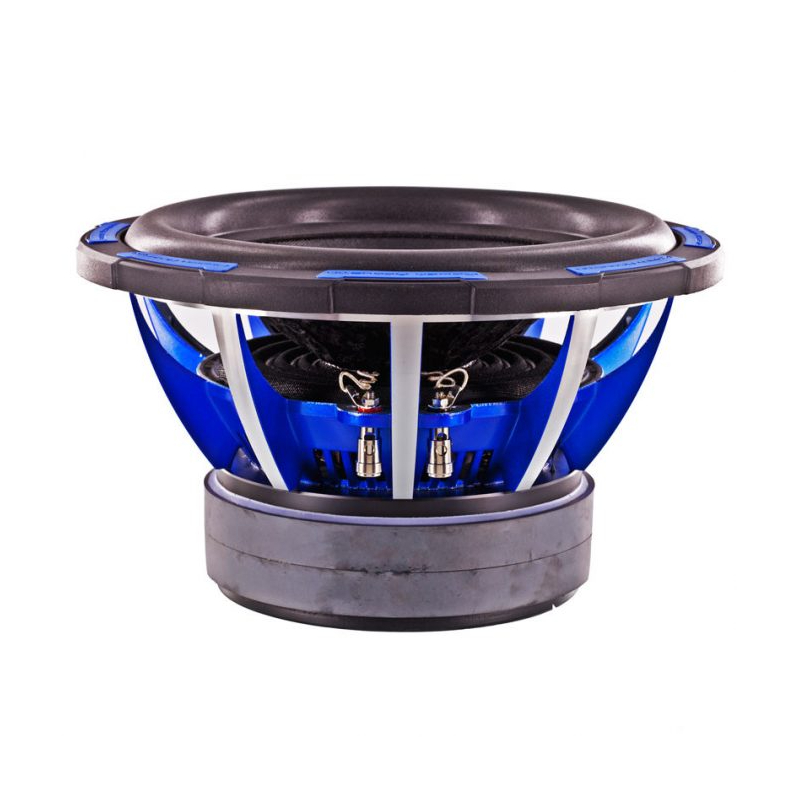

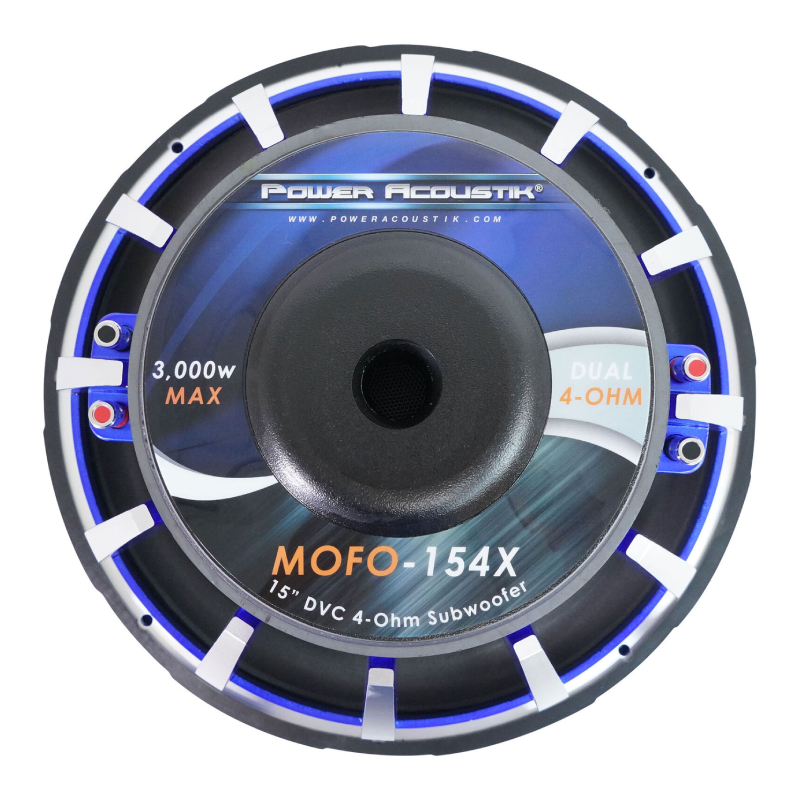

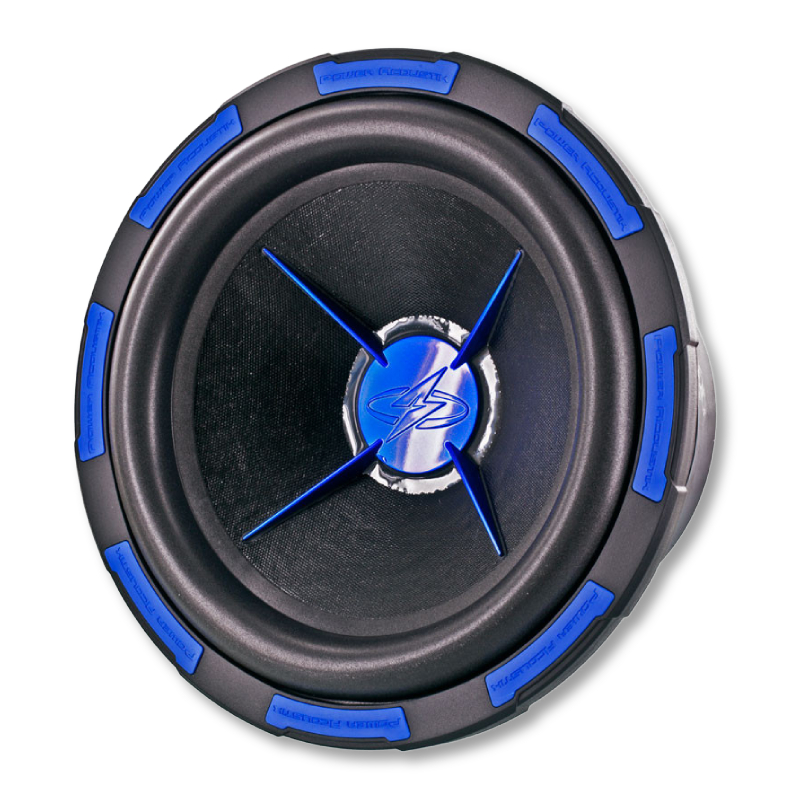

Power Acoustik MOFO-154X MOFO Type X Series 15" 3000W Peak Power Handling 4 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" 3000W 4 Ohm, Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Unmatched Versatility
Introducing the MOFO-154X: a powerhouse subwoofer boasting 3,000 Watts max power handling and 1,700 Watts RMS power handling, ensuring thunderous bass. With an efficiency rating of 86.90 dB at 1 watt/1 meter, this subwoofer delivers loud and clear sound. Featuring a 2.50" dual 4Ω voice coil configuration and a massive 373oz motor volume, it's built for high-performance audio setups. Whether in a sealed or ported enclosure, the MOFO-154X offers unmatched versatility and power, making it the ideal choice for audio enthusiasts.
Immersive Audio Experience
Our subwoofers boast an overcompensating motor structure, 12mm T-Yoke & Top Plate for optimized low-frequency dynamics, vented T-Yoke & Frame to reduce voice coil heat build-up, die-cast aluminum heat sink dust cap to absorb heat, aluminum dust cap fins for heat dissipation and cone reinforcement, non-magnetic, non-resonate die-cast aluminum frame, and a 2.5” 4-layer voice coil with large gauge wire for increased power.
Experience Smooth Performance
Featuring high-temperature tolerance adhesives for thermal resilience, nickel-plated 8ga spring-loaded compression wire terminals for secure connections, a non-transfer spruce pulp cone with UV & chemical protection, and a high-density polyether foam surround with UV & chemical protection. Experience smooth performance with dual poly-cotton suspension that dampens violent accelerations, while stitched voice coil leads prevent potential damage. Plus, each subwoofer comes with a 1-piece gasket/trim ring with concealed mounting holes for easy installation.
- Diameter : 15 Inch
- Sensitivity : 87 dB
- Impedance : 4 Ohm
- Peak Power Handling : 3000 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 2 Cubic ft.
- Suggested Ported Box Volume : 4 Cubic ft.
- Mounting Depth : 8.125 Inches
- RMS Power Handling : 1700 Watts
Features:
- Overcompensating Motor Structure for Increased Magnetic Strength
- 12mm T-Yoke & Top Plate Improve Low-Frequency Dynamics
- Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
- Die-Cast Aluminum Heat Sink Dust Cap Absorbs Voice Coil Heat
- Aluminum Dust Cap Fins Dissipate Heat & Strengthen Cone
- Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
- 2.5” 4-Layer Voice Coil w/ Large Gauge Wire Increases Power
- High-Temperature Tolerance Adhesives Resist Thermal Failure
- Nickel Plated 8ga Spring-Loaded Compression Wire Terminals
- Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
- High-Density Polyether Foam Surround w/ UV & Chemical Protection
- Dual Poly-Cotton Suspension Dampens Violent Accelerations
- Stitched Voice Coil Leads Prevent Potential Damage
- 1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
Specifications:
- Model: MOFO-154X
- Max Power Handling: 3,000 Watts
- RMS Power Handling: 1,700 Watts
- Efficiency (1w/1m): 86.90 dB
- Voice Coil Configuration: 2.50" Dual 4Ω
- Motor Volume: 373oz
- Mounting Depth: 8.125"
- Optimum Sealed Enclosure ft^3: 2.00
- Optimum Ported Enclosure ft^3: 4.00
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented or Sealed
- Minimum Sealed Box Volume: 2.00 cubic feet
- Maximum Sealed Box Volume: 2.00 cubic feet
- Minimum Ported Box Volume: 4.00 cubic feet
- Maximum Ported Box Volume: 4.00 cubic feet
- Top-Mount Depth (Mounting Depth): 8-1/4"
- Cutout Diameter: 14-1/8"
- Shallow Mount Installation: No
Electromechanical Parameters:
- Free-Air Resonance (Fs): 24.4 Hz
- Equivalent Compliance (Vas): 4.077 liters
- Total Speaker Q Value (Qts): 0.47
- Electrical Q Value (Qes): 0.51
- Electrical Resistance of Voice Coil (Re): 7.23 ohms
- Mechanical Q Value (Qms): 5.95
- UPC: 709483037243
- Weight: 32
