What's Included:
- Pulse Width Modulated MOSFET power supply
- Soft Start Turn-on
- Mono channel operation
- Wired remote bass level control included
- Heavy duty aluminum alloy heatsink for extreme heat dissipation
- Gold-plated RCA level inputs
- Owner's Manual
- Variable Bass Boost (0 to +18 dB)
- Product Information Inside Box
- LED power (green) and protect (red) indicators
- Double sided Epoxy PCB circuit board
- 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
- Custom Terminal Block for speaker connections
Product Highlights:
- Subsonic filter (15-40 Hz, 24 dB/octave)
- Frequency response: 15-150 Hz
- Dimensions: 15-3/4"L x 10-11/16"W x 2-1/8"H
- Variable low-pass filter (50-250 Hz, 24 dB/octave)
- Phase Shift: 0-180°
- Damping factor: >400 @ 20Hz/4 ohms
- Number of Channels : 1
- Frequency Response : 10-250 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 300-2000 Watts
- Amplifier Class : D

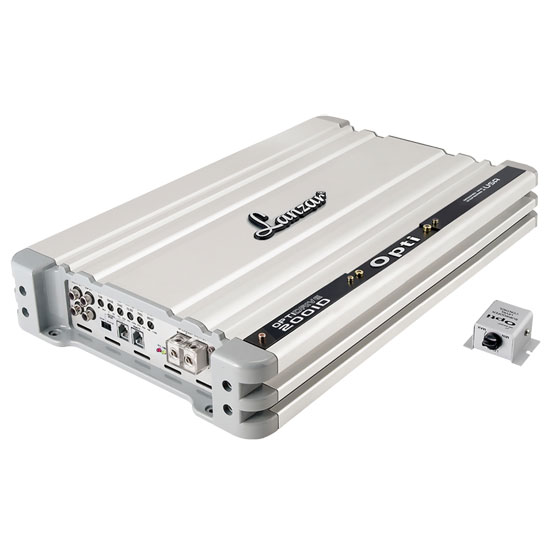

The OPTI2001D pushes up to 2000 watts RMS power at 0.5 ohms. It's equipped with several variable filters and boosting options, including a low-pass filter, subsonic filter, bass boost, and bass frequency. OPTI amps are bridgeable for increased power. Nickel plated screw terminals provide low-noise connections between the amplifier and your speakers. Remote subwoofer level control lets you easily adjust the bass. And this amp is equipped with thermal, overload, and short circuit protection, so you know your equipment is safe and secure.
| Specifications |
| Maximum Input Gauge Size |
1/0 AWG |
| Minimum Impedance Unbridged |
0.5 ohms |
| Fan Cooled |
No |
| Preamp Outputs |
1 pair |
| Speaker Level Inputs |
No |
| @ 4 ohms |
300 watts x 1 channels |
| Signal-to-Noise Ratio |
90 dB |
| Bass Boost |
0 - 18 dB |
| Fuse Rating |
40A x 3 |
| Subsonic Filter |
15 - 40 Hz |
| Number of Channels |
1 - Mono |
| THD at Rated RMS Power |
0.1% |
| @ 2 ohms |
750 watts x 1 channels |
| @ 1 ohm |
1250 watts x 1 channels |
| Amplifier Class |
D |
| Total RMS Power Output |
2000 watts |
| Built-in Crossover |
Low-Pass (LP) |
| Low-Pass Crossover Frequency |
50 - 250 Hz |
| CEA-2006 Compliant |
Yes |
- UPC: 068889014563
- Weight: 16.83
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
