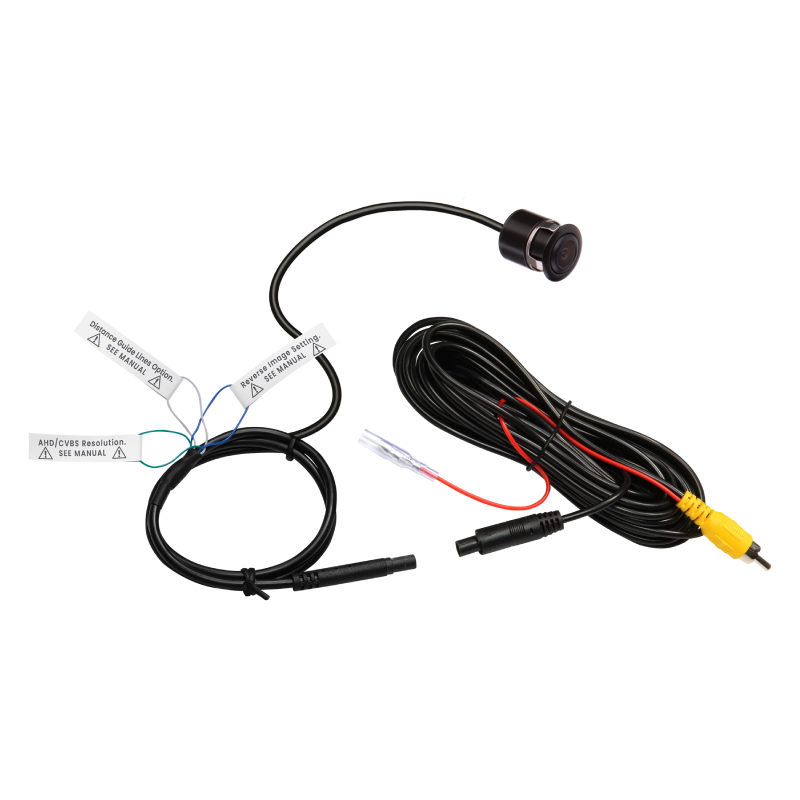

Wire Connection
Complete all of the required connections in the way that make all the lines hided in the car
Installation
- The camera can be installed in the following way:
- Flush-mount: Install by drilling a hole on the rear bumper.
- Attention: The camera switch is controlled by the reverse gear shift.
Product Features:
- Wide-angle View with Video output
- Activates when Vehicle is put in Reverse
- Flush-mount Install by drilling a hole on the rear bumper.
Specifications
- Power Supply: DC9V – 15V
- Lens Angle (degrees) : 170º
- TV System: PAL/NTSC
- Video Output: 1.0vp-p, 75 ohm
- Signal To Noise Ratio: ≥48 dB
- IP Rating: IP68
- Operating Temperature (degrees/Celsius) : -30 C ~ +70 C (RH95%MAX)
- - White Balance: Auto
- - Minimum Illumination: 0.5Lux
- - AGC: Auto
- - Resolution (TV lines) : 480
- - Electronic Shutter: 1/60(NTSC) 1/50(PAL) 1/10,000 second
- - Effective Pixels: 656 x 492
- UPC: 791489310178
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
