Soundstream  PN4.1000D

Picasso Nano 1000W Class D 4-CH Amplifier

Item #41698

Condition:   Brand New

Product Highlights

  • Model: Picasso Nano 1000W
  • Type: Class D Amplifier
  • Channels: 4
  • Power: 1000W

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$161.02

Reg. Price $238.57  Save $77.55
In Stock
In Stock

Only 3 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Soundstream Authorized Dealer

Huge Saving on Other items:


Soundstream Banner

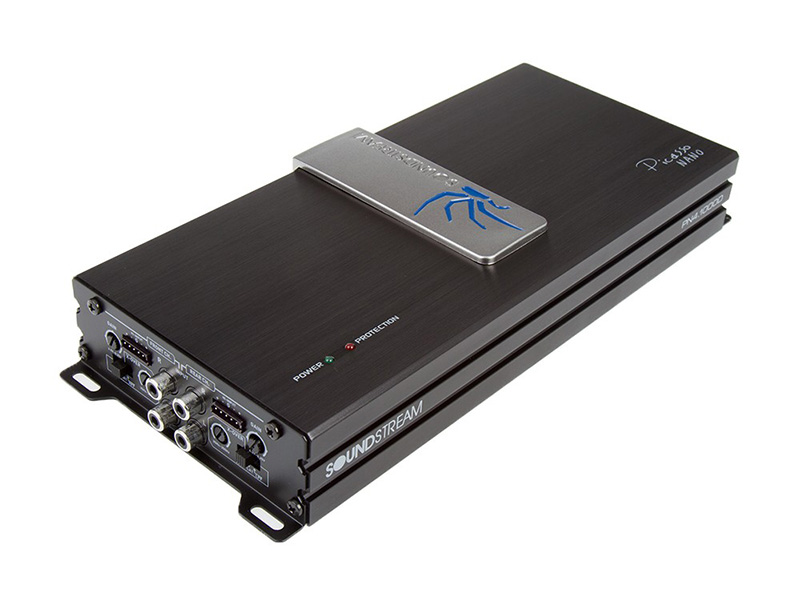

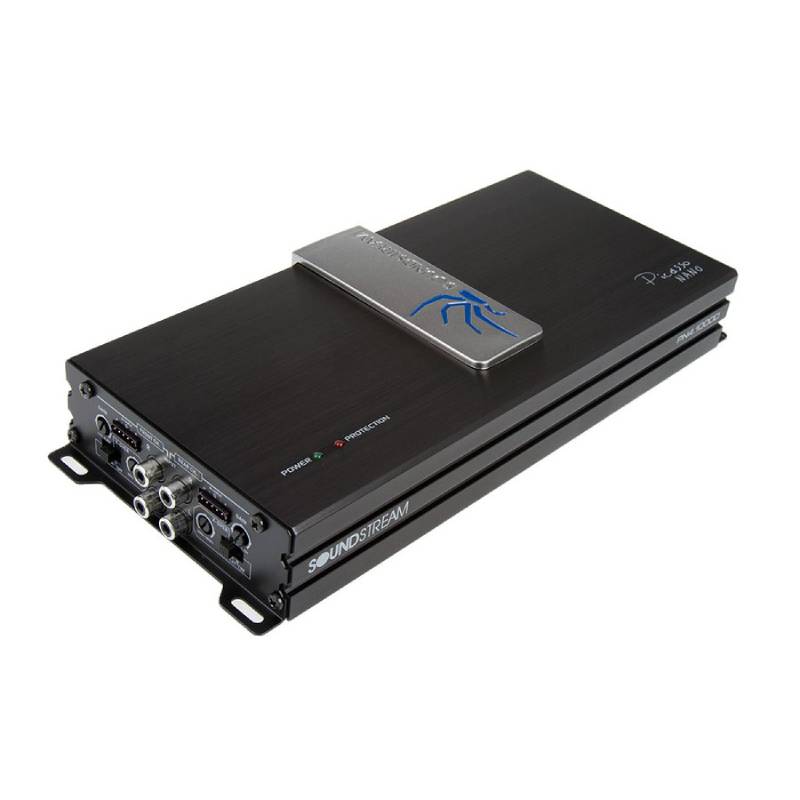

Soundstream PN4.1000D Picasso Nano 1000W Class D 4-CH Amplifier


We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Picasso Nano Series 4Ch Amplifier
  • •Owner's Manual
Snugly Fits Into the Biggest or Smallest of Cars

When you get your first look at Picasso Nano Amplifiers, you will realize that size really does not matter too much at all. It is amazing and quite unbelievable that such a small piece of music amplifying equipment can have such an amazing output.

What’s more, is in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears.

Does Not Get Heated Up

You can install the amplifier under the front seat or the back seat, and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more, is the amplifier does not get heated up after a half-hour of continuous music playing at high volume.

Thanks to the full range crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. Other sport compact amplifiers use bizarre technologies with pseudo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.)

Automatically Detect the Sound Signal

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

  • Maximum Power : 2000 Watts
  • Low Frequency Response : 35-250 Hz
  • High Frequency Response : 35-250 Hz
  • Number of Channels : 4
  • Frequency Response : 10-300 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 250x4 Watts
  • Amplifier Class : D
Features:
  • Max Power 2,000 Watts
  • RMS Power @ 4Ω 140W x 4
  • RMS Power @ 2Ω 250W x 4
  • RMS Bridged @ 4Ω 500W x 2
  • Remote Gain Control N/A
  • Low Pass Filter 35Hz-250Hz
  • High Pass Filter 35Hz-250Hz
  • Bass Boost N/A
  • Bass Boost Frequency N/A
  • Subsonic Filter N/A
  • Frequency Response 10-300Hz
  • S/N 104dB
  • Input Sensitivity 200Mv-6V
  • THD <0.1%
  • Operation Voltage 9V-16V DC
  • Fuse Rating N/A



Specification:
  • Max Power 2,000 Watts
  • RMS Power @ 4Ω 140W x 4
  • RMS Power @ 2Ω 250W x 4
  • RMS Bridged @ 4Ω 500W x 2
  • Remote Gain Control N/A
  • Low Pass Filter 35Hz-250Hz
  • High Pass Filter 35Hz-250Hz
  • Bass Boost N/A
  • Bass Boost Frequency N/A
  • Subsonic Filter N/A
  • Frequency Response 10-300Hz
  • S/N 104dB
  • Input Sensitivity 200Mv-6V
  • THD <0.1%
  • Operation Voltage 9V-16V DC
  • Fuse Rating N/A
  • Dimensions
  • (8.25″W x 2.75″H) 10.25″ L
  • UPC: 709483050198
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Probably not the best amplifier for "high end" systems, but absolutely the best performance, and sound quality for the money! I am using 2 of these so far in a 2019 wrangler JLU and the sound quality is excellent (measured while standing still). I am using one of these to drive 2 6.5 subs (custom boxes) dual voice coil in parallel, amp in bridged mode (2 channel). Roughly 250 watts per voice coil, and WOW the bass hit is fantastic compared to the stock Alpine sub. All of this is with one of the lowest thd ratings, and highest signal to noise ratio. I can attest to the signal to noise ratio being real at 107db. Volume low provides very little audible noise

    Madmax71470
    1/7/2025

  • For the price, this amp has the most power, cleanest THD, and best signal-to-noise ratio. This will be my 3rd one, with the oldest being about 4 years old and still going. These are class 'D,' which are very efficient, easy on the electrical system, and don't get too hot. Ideal for tucking in tight spaces.

    madmax
    1/19/2025
