With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels. Purpose-engineered and built for real marine duty, the MX-Series infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.
The MX10IB3 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a subwoofer driver that operates in a small sealed enclosure, select our M10W5, instead. Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Matching Amplifiers: JL Audio MHX300/1 - Ultra-compact Class D Marine Monoblock Amplifier
JL Audio M500/3 - Class D Marine 3-Channel Amplifier
JL Audio M700/5 - Class D Marine 5-Channel Amplifier
General Features:

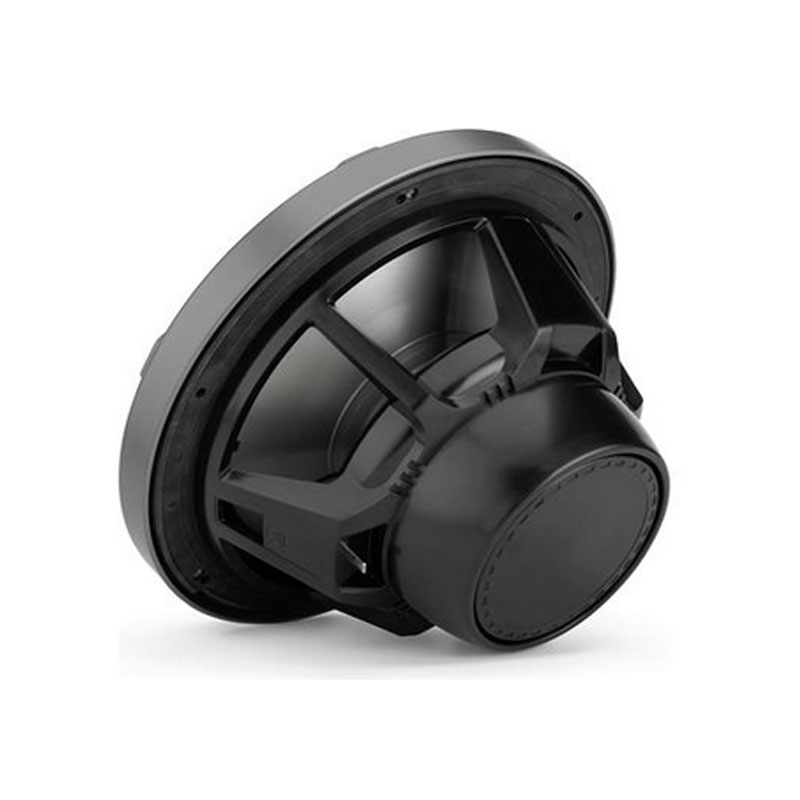

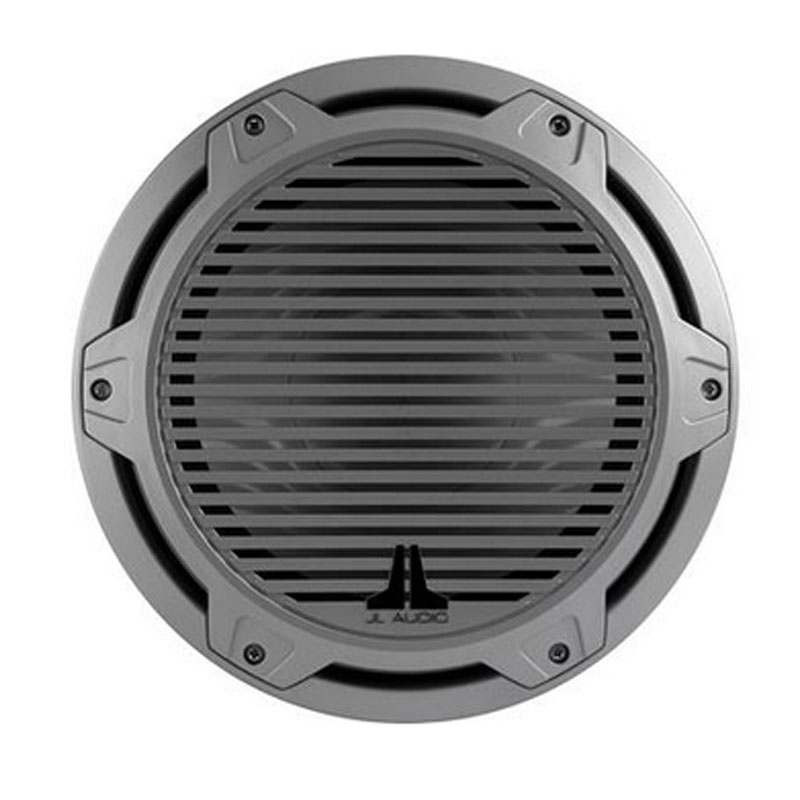

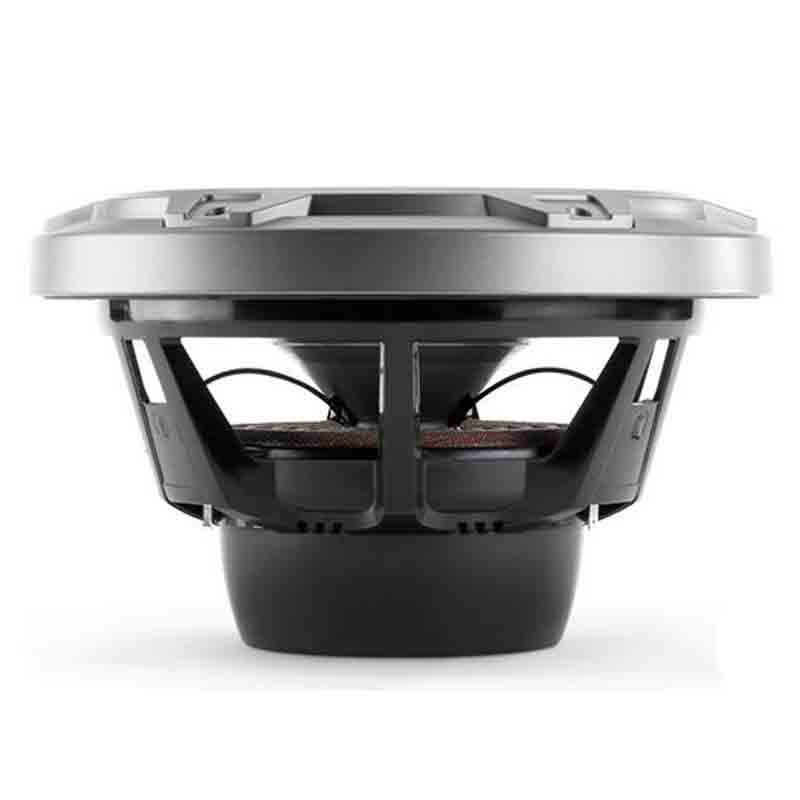

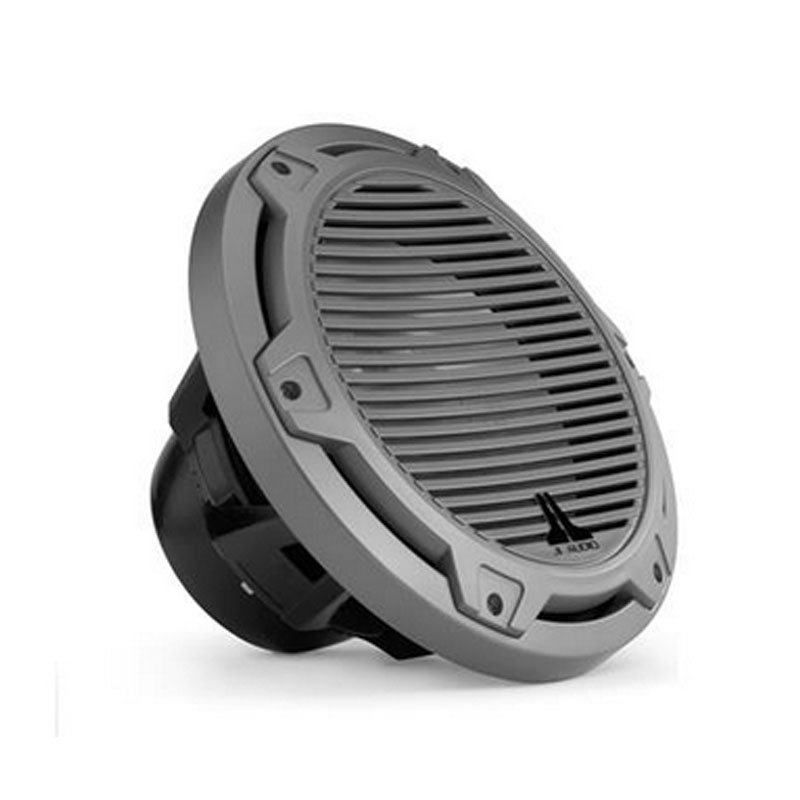

- 10" MX Series Infinite Baffle Marine Subwoofer
- Power Handling:
- RMS: 175 watts
- Mounting Depth: 5.12"
- Cutout Diameter: 8.875 "
- Minimum Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
- Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
- Infinite Baffle Use: Yes
- Impedance: 4 ohm
- Recommended power range: 50 - 175 watts RMS
- Injection-Molded mica-filled polypropylene cone bodies
- Synthetic rubber surround specifically formulated with UV inhibitors
- Marine grade progressive roll synthetic fiber spider
- Gold-Plated marine-grade brass connection terminals
- Proprietary Dynamic Motor Analysis (DMA) technology
- Long linear excursion for enhanced output and reduced distortion
- Vented motor design with marine-grade, stainless steel rear diffuser plate
- Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
- Stainless steel mounting hardware included
- Efficiency: 87.23 dB
- Xmax: 11 mm
- Color: Titanium/Black
- Diameter : 10 Inch
- Maximum Power : 350 Watts
- Sensitivity : 87.23 dB
- Impedance : 4 Ohm
- RMS Power Range : 175 Watts
- Color : Black
- Shallow Mount : No Inch
- Number of Voice Coils : Single
Product Highlights:
- 10" MX Series Infinite Baffle Marine Subwoofer
- RMS: 175 watts
- Mounting Depth: 5.12"
- Cutout Diameter: 8.875 "
- Minimum Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
- Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
- Infinite Baffle Use: Yes
- Color: Titanium/Black
- Impedance: 4 ohm
- Recommended power range: 50 - 175 watts RMS
- Injection-Molded mica-filled polypropylene cone bodies
- Synthetic rubber surround specifically formulated with UV inhibitors
- Marine grade progressive roll synthetic fiber spider
- Gold-Plated marine-grade brass connection terminals
- Proprietary Dynamic Motor Analysis (DMA) technology
- Long linear excursion for enhanced output and reduced distortion
- Vented motor design with marine-grade, stainless steel rear diffuser plate
- Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
- Stainless steel mounting hardware included
- Efficiency: 87.23 dB
- Xmax: 11 mm
- UPC: 699440919319
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
