JL Audio  TwK-88

8-Channel Analog and Digital Input/ 8-Channel. Analog Output

Item #45960

Condition:   Brand New

Product Highlights

  • 8-Channel Analog Input
  • 8-Channel Digital Input
  • 8-Channel Analog Output

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$549.99

Reg. Price $559.99  Save 2%
In Stock
In Stock

Only 3 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $50/mo with . Check your purchasing power

No Credit needed for Learn More


JL Audio Authorized Dealer

Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio TwK-88 8-Channel Analog and Digital Input/ 8-Channel. Analog Output


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Processor
  • • 5-Pin Euroblock (Phoenix) connector
  • • 15' USB cable (Type-A on one end
  • • Type-B on other end
  • • 18' Control cable w/ RJ-45 connectors on both ends
  • • DRC-200 Level Control Knob w/ 46" attached cord terminating in a female RJ-45 socket and attached status LED w/ 38" cord
  • • LED mounting collar
  • • (2) locking nuts
  • • (2) flat washers
  • Owner's Manual





Fine-Tune Your Vehicle's Audio to Perfection!

If you're a sound tweaker like me, you'll love JL Audio's TwK 88 System Tuning Processor for all the powerful and detailed adjustments it can apply to your vehicle's sound system. With JL Audio's TwK-TüN app on your laptop or tablet, you'll gain access to real-time tuning that can really dial in your system, including 10-band equalization, variable high- and low-pass filtering, and time delay/alignment on every channel.

Three Project Levels for Every Sound Enthusiast, from Novice to Maestro!

JL Audio has given the TwK 88 three Project Levels of tuning complexity (Basic, Advanced, and Expert) so you'll get fantastic sound no matter how much experience you've had tuning an audio system. The Basic Level guides you through the setups, options, and simple adjustments to achieve great sound in about 10 minutes. The Advanced Level adds extra crossover features, limited-parametric equalization, and delay/time alignment — for a tune-up that takes about 30 to 60 minutes. The Expert Project Level gives you free rein with fully manual adjustments and assignments, fully-parametric EQs, and advanced signal diagnostics, so you can take as much time as you like to play around with the sound.





Elevate Your Audio Experience with JL Audio's TwK 88 and High-Definition Digital Connectivity!

Digital inputs and outputs ensure the cleanest, highest-quality signal connections for your TwK 88 processor in a high-definition audio system. You'll use the wired dash-mount remote to control master and subwoofer volume, select user presets, and check on the operational status of the TwK 88 so you'll know what's going on from the driver's seat.

Features:

  • Advanced DSP Processor: Equipped with a powerful 24-bit DSP processor.

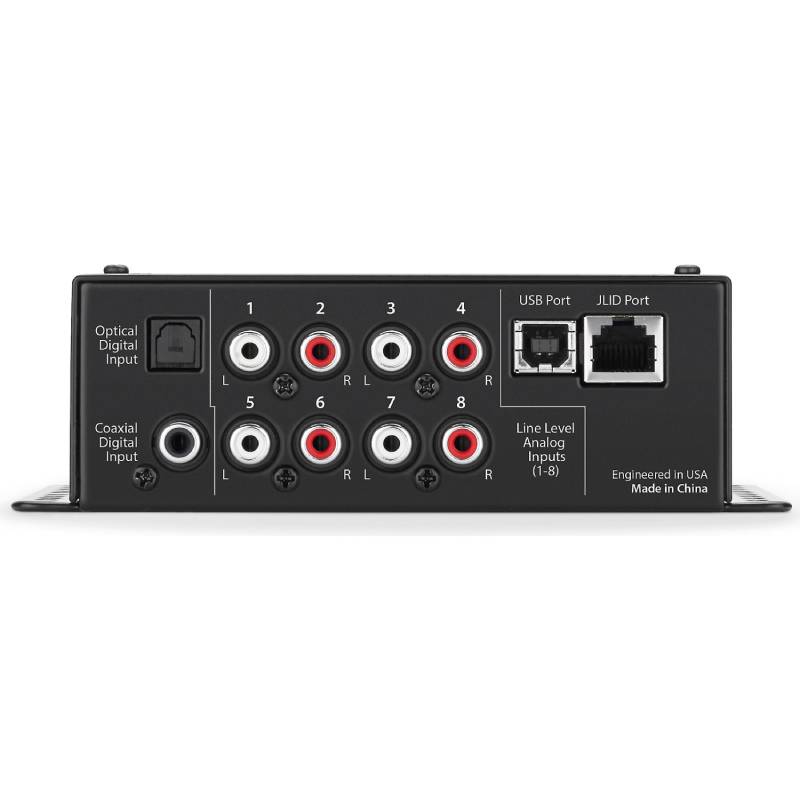

  • Flexible Input Design: 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS).
  • Digital Inputs: Separate optical (Toslink) and coaxial digital inputs for S/PDIF sources.
  • Input Mixer: Allows combining input channels with full control over level and polarity.
  • Equalization: 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment.
  • Crossover Section: Fully variable high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments).
  • Polarity and Delay Settings: Configurable settings for speaker distance and offset control, with linkage options for other channels.
  • Output Level Controls: Precise level adjustment in 0.5 or 0.1 dB increments, with full linkage options.

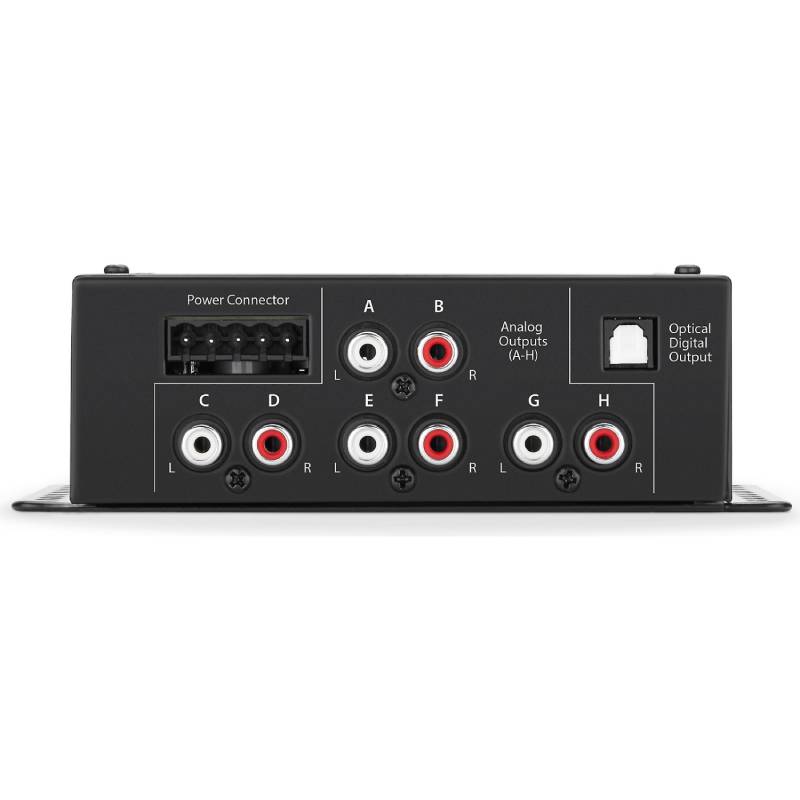

  • Analog Outputs: 8 analog line-level RCA output jacks (4V RMS).
  • Digital Optical Output: Pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
  • Remote Turn-On Output: +12VDC output for activating aftermarket audio equipment.
  • DRC-200 Digital Remote Controller: Provides dual configurable level controls, preset selection, and LED status reporting. Connected via JLid™ Port.
  • PC Connectivity: DSP adjustments and settings made via Windows PC running JL Audio's TwK-TuN app.



Specifications:

  • Power Supply Type: Regulated DC-DC SMPS
  • Input Operating Voltage: 10 - 16 VDC
  • Standby Current Draw: <1.5 mA
  • Operating Current Draw: 0.7 A
  • Recommended Fuse Value: 1 A
  • Input Channels: Eight
  • Input Type: Line-level, Differential-Balanced
  • Input Voltage Range: 250 mV - 7.1 V RMS
  • Minimum Input Voltage: 10 mV RMS
  • Input Level Setting: Eleven discrete selections from 250 mV - 7.1V RMS
  • Output Channels: Eight
  • Analog Output: Unbalanced, stereo RCA jacks
  • Digital Output: Optical (Toslink) output (S/PDIF)
  • Output Impedance: 450 ohms
  • Latency:
    • Analog - Analog: 5.425 mS
    • Analog - Optical: 5.470 mS
    • Optical - Optical: 4.860 mS
    • Optical - Analog: 4.805 mS
  • S/N Ratio: 98 dB (A-Weighted, referred to 4V RMS Output)
  • THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
  • UPC: 699440981019
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Tried some DSP before like dayton audio dsp and dm608 from audio control and jlttwk 88 best one when i put this one on i dont have to do any settings its all up with good sounding

    RABI
    1/19/2022

  • Good if it works. Had it professionally installed a one night the temperature dropped and battery was low. Apparently these have a known issue that if battery goes low, processor wont hold programming. Only had it for few months, and drove the car a few times. I wanted a refund for item, but apparently its only a factory warranty. Waste of money. Had to have professionally uninstalled and replaced with another brand from another company. Wasnt going to drive the car around for weeks waiting for repaired junk. Who wants something that doesnt work that good. I was a repeat customer, and not pleased with decision,

    Edward
    3/20/2024

  • made my sound cleaner. it's easy to use. unfortunately, no mobile app, and it feels like a little bit expensive for it what it can do.

    Bart
    3/18/2025
