JL Audio TwK-D8 8 Channel Digital Sound Processor + 1 Digital Optical Output
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Processor
- • 5-Pin Euroblock (Phoenix) connector
- • 15' USB cable (Type-A on one end)
- • Type-B on other end
- • 18' Control cable w/ RJ-45 connectors on both ends
- • DRC-200 Level Control Knob w/ 46" attached cord terminating in a female RJ-45 socket and attached status LED w/ 38" cord
- • LED mounting collar
- • (2) Locking nuts
- • (2) Flat washers
- • Owner's Manual
High-performance Digital Sound Processor
The JL Audio TwK-D8 is a high-performance digital sound processor designed to optimize vehicle audio systems. With its advanced features and functionality, the TwK-D8 allows users to achieve precise control over their sound system for an enhanced listening experience.
Offers Extensive Tuning Capabilities
The TwK-D8 offers extensive tuning capabilities, featuring eight high-resolution digital signal processing channels. It enables precise equalization, time alignment, crossover settings, and signal routing, allowing users to tailor the audio output to their preferences. The processor supports various input and output configurations, making it compatible with multiple audio systems.
Intuitive User Interface
Equipped with powerful DSP software, the TwK-D8 allows for real-time adjustments and customization. Users can connect the processor to their computer or mobile device to access the intuitive user interface for easy setup and configuration. The software provides detailed graphical displays and advanced control options, making fine-tuning the sound system convenient.
Digital Sound Processor
The JL Audio TwK-D8 digital sound processor offers unparalleled flexibility and control, empowering audio enthusiasts to optimize their vehicle's sound system precisely and achieve exceptional audio quality.
Features:
- Advanced DSP Processor: Equipped with a 24-bit DSP processor.
- Digital Optical Input: Connects directly to digital (S/PDIF) outputs to maintain an all-digital signal path.
- Flexible Output Options: 8-ch. stereo RCA outputs and 1 digital optical (Toslink) output.
- Input Mixer: Allows combining left and right input channels with full control over level and polarity.
- Equalization: 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment.
- Crossover Section: Fully variable high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments).
- Polarity and Delay Settings: Configurable settings for speaker distance and offset control, with linkage options for other channels.
- Output Level Controls: Adjustable in 0.5 or 0.1 dB increments, with full linkage options.
- Analog Outputs: 8 analog line-level RCA output jacks (4V RMS).
- Digital Optical Output: Pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
- DRC-200 Digital Remote Controller: Includes dual level controls, preset toggles, and LED indicator.
- PC Connectivity: Control the TwK® D8’s features via Windows PC using the TüN® Software interface.

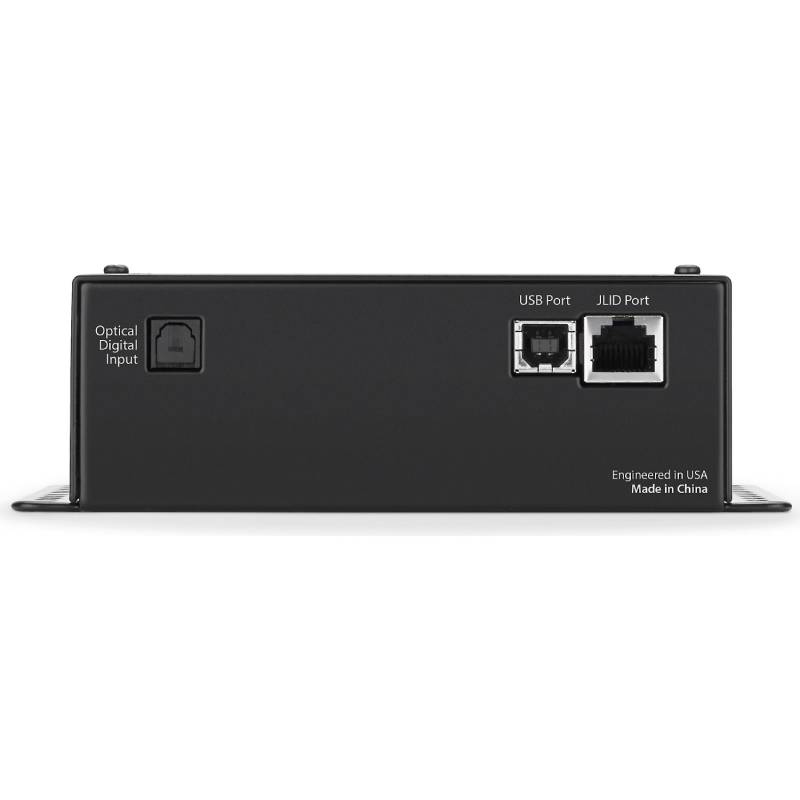

Inputs: The input side of the TwK88 has the following jacks:
- Optical Digital: The only input on the TwKD8, this can accept a 2-channel PCM signal from a device with an optical digital output.
- USB Port: A Type-B, 2.0 USB port is used for connection to the TuN 2.0 software and for firmware updates.
- JLID Port: This RJ-45 port is used for the DRC-200 Digital Remote Control.

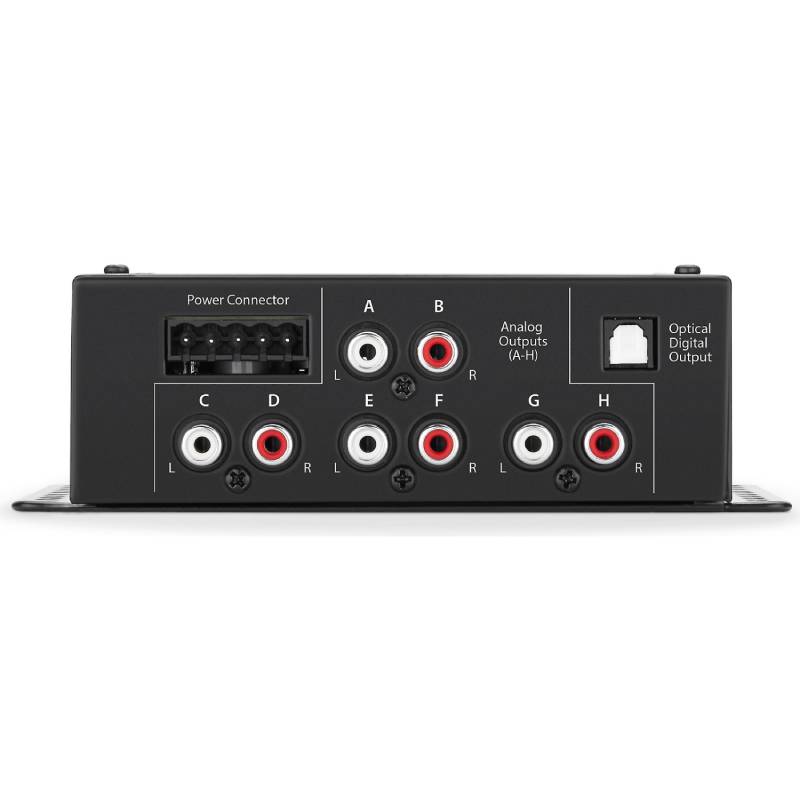

Outputs:
- RCAs: 8 RCA jacks comprise the main outputs of the TwKD8 and are completely assignable. The output channels will get run to an outboard amplifier.
- Optical Digital: This jack can pass an un-processed signal from the Optical Digital input.
- Power/Ground Connector: A 5-pin Euroblock connector provides the inputs for +12 VDC Battery, +12 VDC Switched (remote input), Ground, Remote Out (provides a +12 V, 100 mA remote signal to trigger aftermarket amplifiers), and a Valet In. This is provided to switch the processor to the Valet Preset when it sees a ground on this terminal.

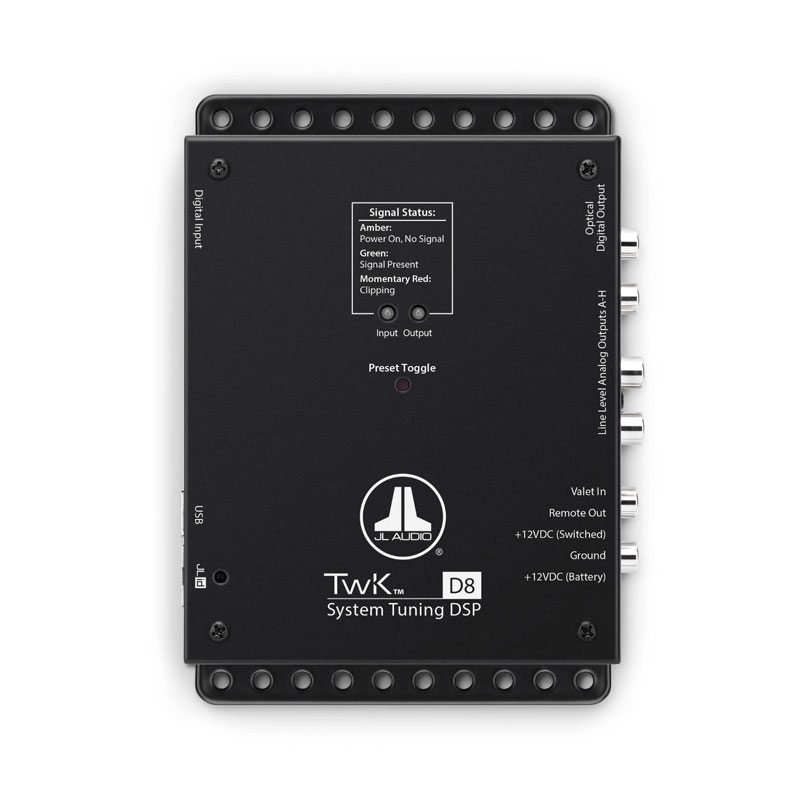

Top Panel:
- Preset Toggle: A small push-button allows you to toggle through the Presets.
- Status LEDs: Two Signal Status LEDs are provided, one for Input signals and one for Output signals.
- Amber: Unit is powered on, but no signal is present.
- Green: Signal is present.
- Momentary Red: Signal is clipping.
Specifications:
- Power Supply Type: Regulated DC-DC SMPS
- Input Operating Voltage: 10 - 16 VDC
- Operating Current Draw: 0.7 A
- Standby Current Draw: < 1.5 mA
- Recommended Fuse: 1 A
- Input Channels: 1 Optical Digital
- Output Channels: 8
- Analog Output: Unbalanced, stereo RCA jacks
- Digital Output: Optical
- Output Impedance: 450 ?
- Latency:
- Optical - Optical: 4.860 mS
- Optical - Analog: 4.805 mS
- S/N Ratio: 98 dB (A-weighted, referred to 4V RMS output)
- THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
- Audio Resolution: 24 bit/ 48 kHz
- Number of EQ bands: 10 x 8 Channels
- Remote Level Control: DRC-200 (included)
- Remote Level Functions: Master Volume Control + Trim, Master Volume Control + Fader, Zone Control, LED Status reporting
- Dimensions: Width - 4.56", Height - 1.88", Dept - 6.15"
- Weight: 2.58 lbs.
- UPC: 699440981026
- Weight: 2.58
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
