The MTX MUD100.4 features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 4 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive an entire speaker system on your UTV, bike, or boat.

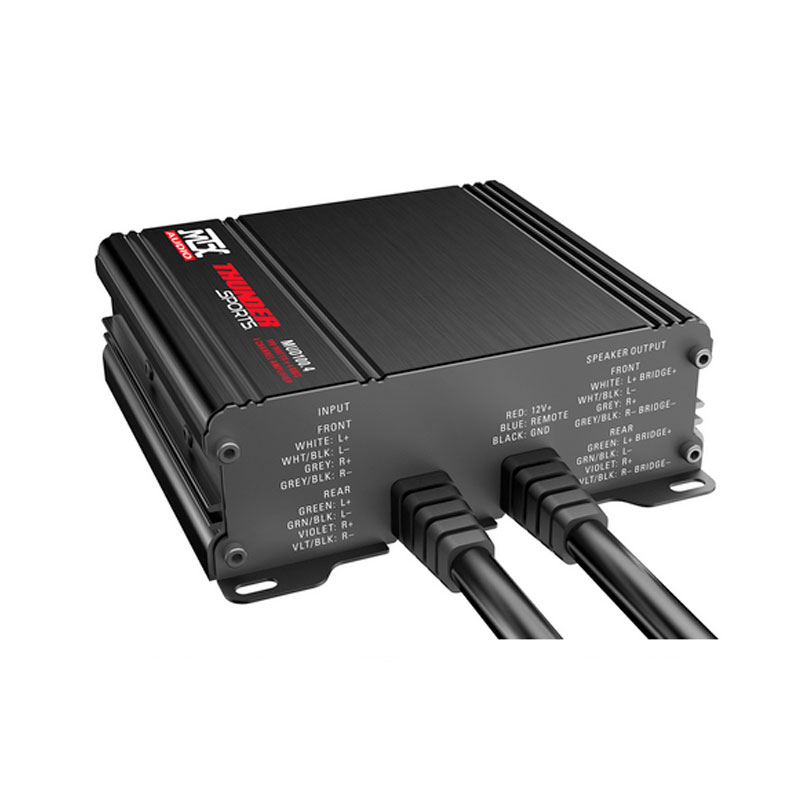

The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.
General Features:
- Compact Design Enables Installation Anywhere
- Conformal Coated Printed Circuit Board that Resists Moisture
- Fixed Crossovers, High and Low Pass Allow Use with Full Range Speakers or Subwoofers
- High and Low Level Inputs
- 800W Peak Power
- Maximum Power : 800 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 32000 Hz
- Number of Channels : 4
- Frequency Response : 10-32000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 200 Watts
- Amplifier Class : D
- Product Highlights:
- Class D Full Range 2-Ohm Stable 4-Channel Amplifier
- IP66 Weather Resistant Rating
- RMS Power Rating:
- 4 ohms: 50 watts x 4 chan.
- 2 ohms: 100 watts x 4 chan.
- Rear low-pass filter: 80 Hz fixed
- Rear high-pass filter: 80 Hz fixed
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 5.51"W x 6.52"L x 1.86"H
- Total power output: 400 watts
- Pulse Width Modulated MOSFET power supply
- Speaker-level (high-level) inputs
- Frequency Response: 10 - 32,000 Hz
- Total Harmonic Distortion (THD): 0.2%
- Signal to Noise Ration: >75 dB
- Selectable Front high-pass filter: 80 / 200 Hz
- UPC: 715442241934
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
