What's Included:
- 5 Channel Amplifier Class A/B
- Owner's Manual
Product Highlights:
- High Speed MosFET Power Supply
- Copper Rail PCB Architecture
- BiPolar Professional Audio Grade Output Transistors

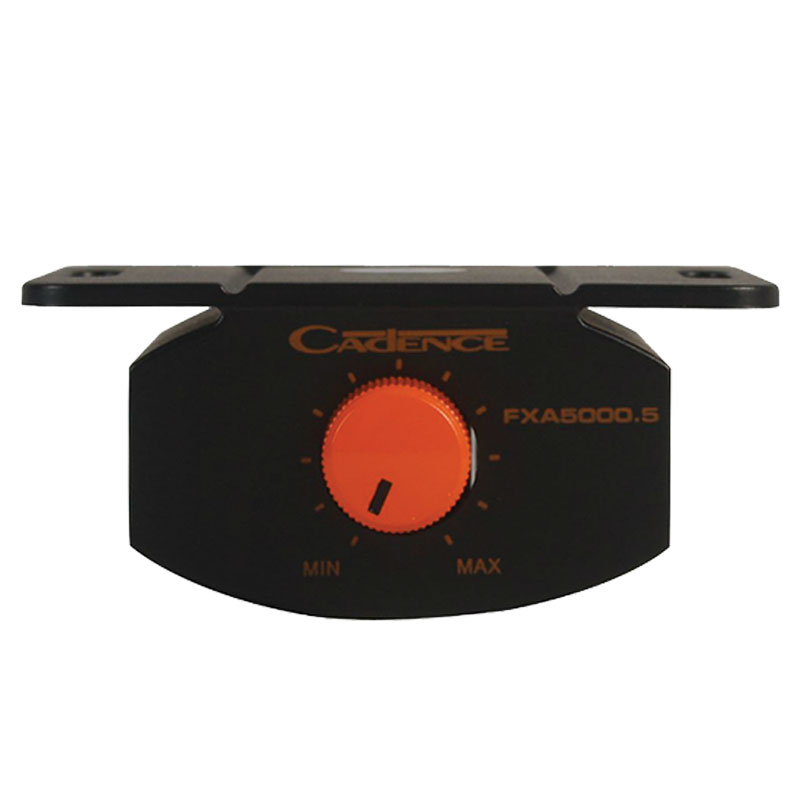

- Remote Bass Control via RJ45 Jack
- High Pass Frequency: 40Hz - 3KHz
- Power & Diagnostics LED Indicators
- Bass EQ: 0dB - +12dB
- Adjustable Subsonic Filter
- Accepts 4 Gauge Power & Ground Wire // 14 Gauge Speaker Wire
- Smart Turn On: Music Sense / DC Sense (High Level Inputs)
- High Level Inputs
- Line In / Line Out
- 12dB Crossover Circuitry
- Low Pass Frequency: 40Hz - 250Hz
- Subsonic Filter: 15Hz - 55Hz
- Phase: 0º / 180º
- Maximum Power : 5000 Watts
- Number of Channels : 5
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 50 A

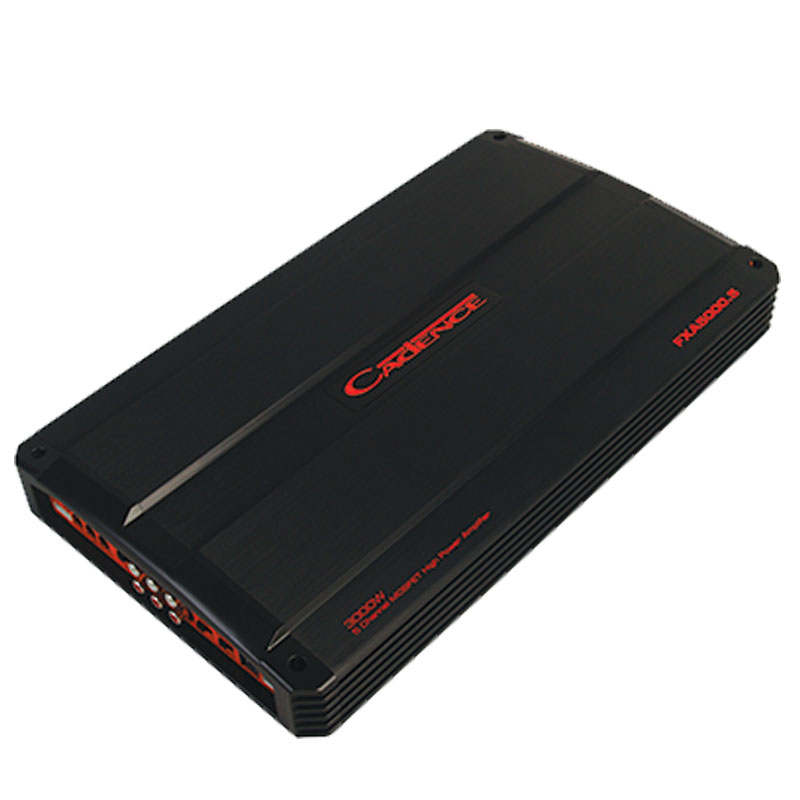

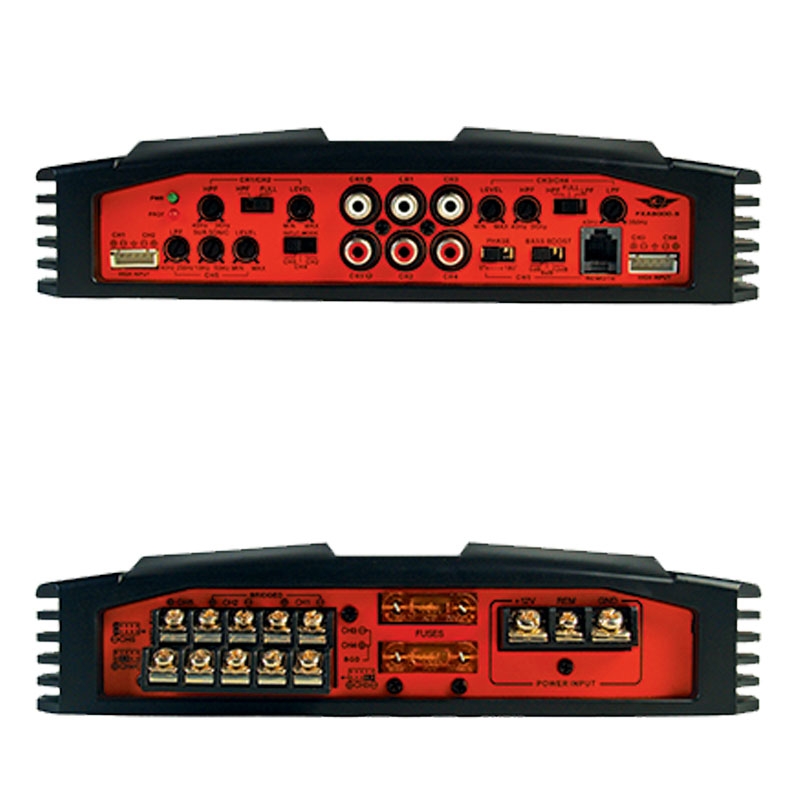

The FXA50005 is a 5 Channel Amplifier Class A/B. This product is part of the Mobile Audio category. It falls within the Flash series. The 5 Channel Amplifier features a High Speed MosFET Power Supply. Also included are BiPolar Professional Audio Grade Output Transistors. Copper Rail PCB make up the architecture of the amplifier. The Smart Turn On feature that comes standard takes the Music Sense / DC Sense (High Level Inputs) into account. High Level Inputs are also available. An Adjustable Subsonic Filter is built into the unit. The Subsonic Filter pushes 15Hz-55Hz. The amplifier has inputs for Line In / Line Out. It also has a 12dB Crossover Circuitry. The High Pass Frequency registers between 40Hz - 3KHz while the Low Pass Frequency registers between 40Hz - 250Hz. In addition, the Bass EQ pushes 0dB - +12dB. Remote Bass Control can be accessed via the RJ45 Jack. Power & Diagnostics LED Indicators assure that everything is functioning properly. The amplifier accepts 4 Gauge Power & Ground Wire/14 Gauge Speaker Wire. The 4 Ohm RMS Power registers 65 Watts x 1 + 150, 2 Ohm RMS Power registers 90 Watts x 4 + 300 and 4 Ohm Bridge Power registers 180 Watts X 2. It has a Peak Power of 1300 Watts. The Minimum THD is <0.1%. Frequency Response pushes 20Hz - 20KHz and has a Sensitivity of > 96dB. Also included is a Damping Factor of > 100 @ 100Hz. The amplifier has a Mono Channel Separation. The Preamp Input Voltage is 200mV - 6V while the Fuse Rating is 50 amps x 1. Dimensions (L x W x H) are as follows: 15.6" x 9.1" x 2.1
Specifications |
Preamp Input Voltage |
200mV - 6V |
S/N Ratio |
> 96dB |
4 Ohm RMS Power |
65 Watts x 1 + 150 |
2 Ohm RMS Power |
90 Watts x 4 + 300 |
Dimensions (L x W x H) |
15.6" x 9.1" x 2.1" |
Damping Factor |
> 100 @ 100Hz |
4 Ohm Bridge Power |
180 Watts X 2 |
Channel Separation |
mono |
PEAK Power |
1300 Watts |
Minimum THD |
< 0.1% |
Frequency Response |
20Hz - 20KHz |
Fuse Rating |
50 amps x 1 |
- UPC: 760488895887
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
