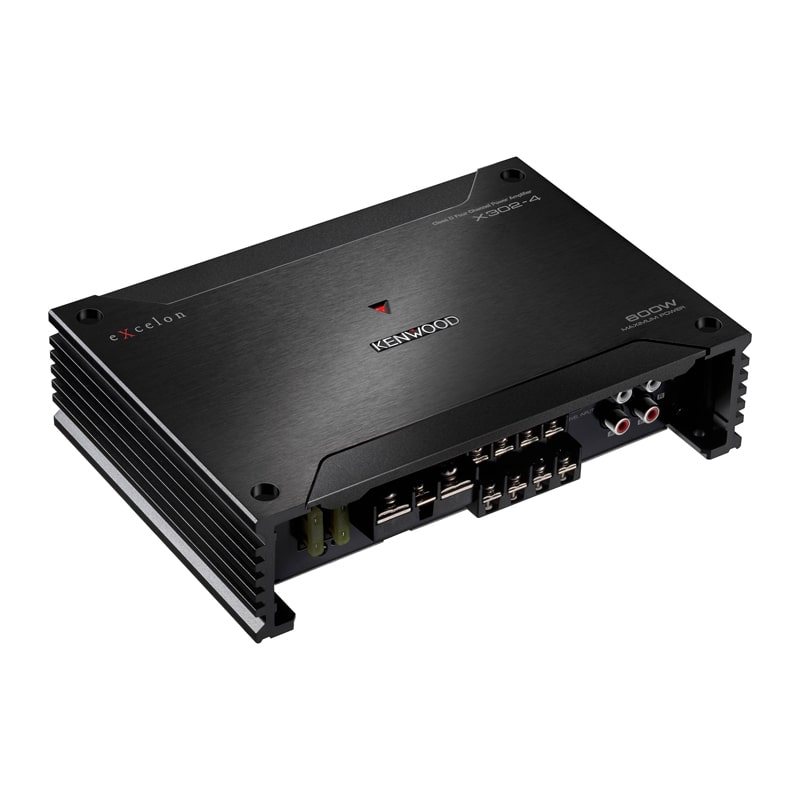

Kenwood Excelon X302-4 X Series 600 Watts Max Power Class D 4 Channel Amplifier
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •4-Channel amplifier
- •Two 20-amp ATC fuses (installed)
- •Terminal cover (installed)
- •8" Speaker level input harness
- •Four 5/8" Screws
- •Owner's Manual
Ultra-high Grade Range Amplifiers
Ultra-high grade range amplifiers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience
Easier Installation
Detachable sliding terminal cover offers a sleek design and easier installation. Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
- Maximum Power : 600 Watts
- Low Frequency Response : 50-200 Hz
- High Frequency Response : 50-200 Hz
- Number of Channels : 4
- Frequency Response : 20-50000 Hz
- RMS Power Output : 4x50 Watts
- Amplifier Class : D
- Fuse Rating : 40 A
Features:
- Power Output: 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
- MAX POWER: 600W
Rated Power Output at 14.4V
- A/B (4 Ohms): 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
- A/B (2 Ohms): 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
- SUB (4 Ohms): -
- SUB (2 Ohms): -
- A/B (Bridged 4Ohms): 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications:
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-50kHz (+0dB, -3dB)
- Frequency Response: -
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: 4Ω to 8Ω allowable

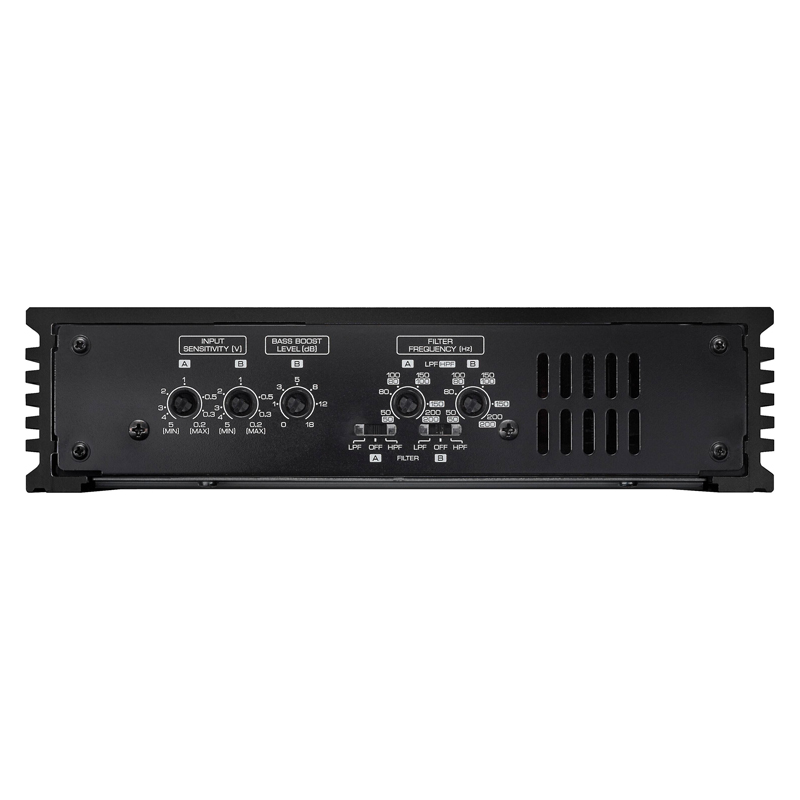

Audio Section
- Low-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- High-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- Bass Boost: 40Hz, 0dB - +18dB (Bch)
- Infrasonic Filter: -
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

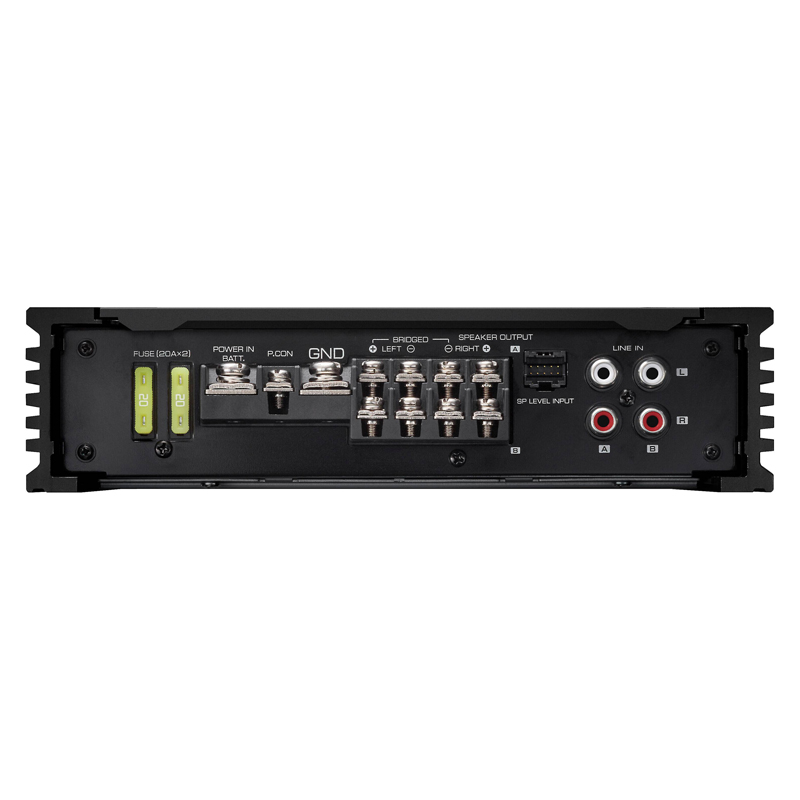

Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
- Weight: 3.1 lbs ( 1.4 kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 20[A]
Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
Accessorries
- Signal Sensing Turn-On
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
- UPC: 019048226242
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
amp is 5 stars. perfect amount of watts for average speakers. very compact and slim. plenty of clean power, works for many types of setup and applications. great power for my 6x9 speakers. clean sound.
-
Compatible with different speakers within the market today. Had the amp paired up with all the 50Watts per channel with my front and rear speaker. Its low and high pass filters are so easy to tune and get the best sound from the amp and your speakers.
