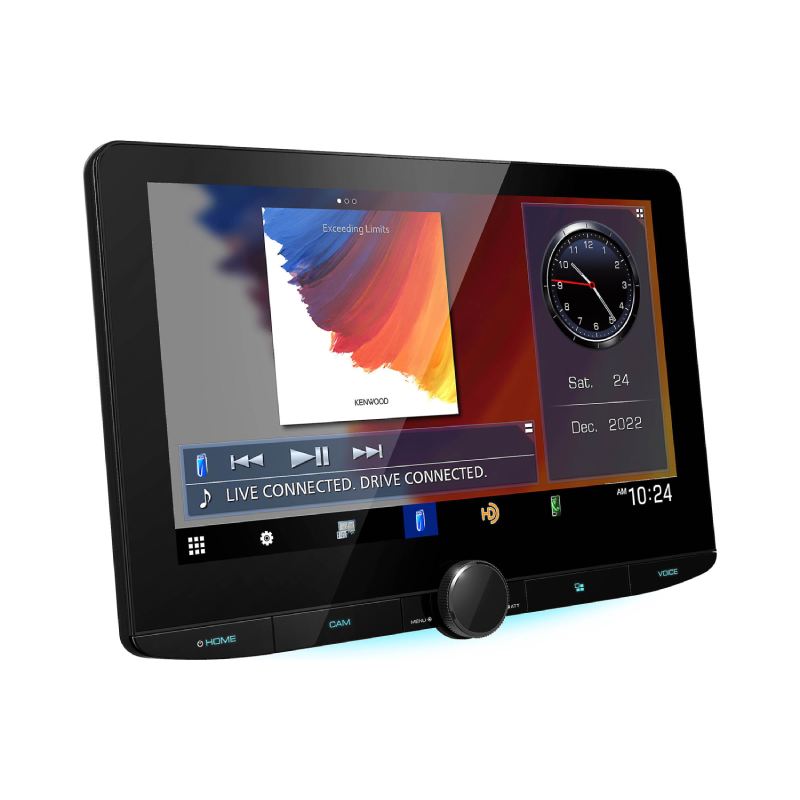

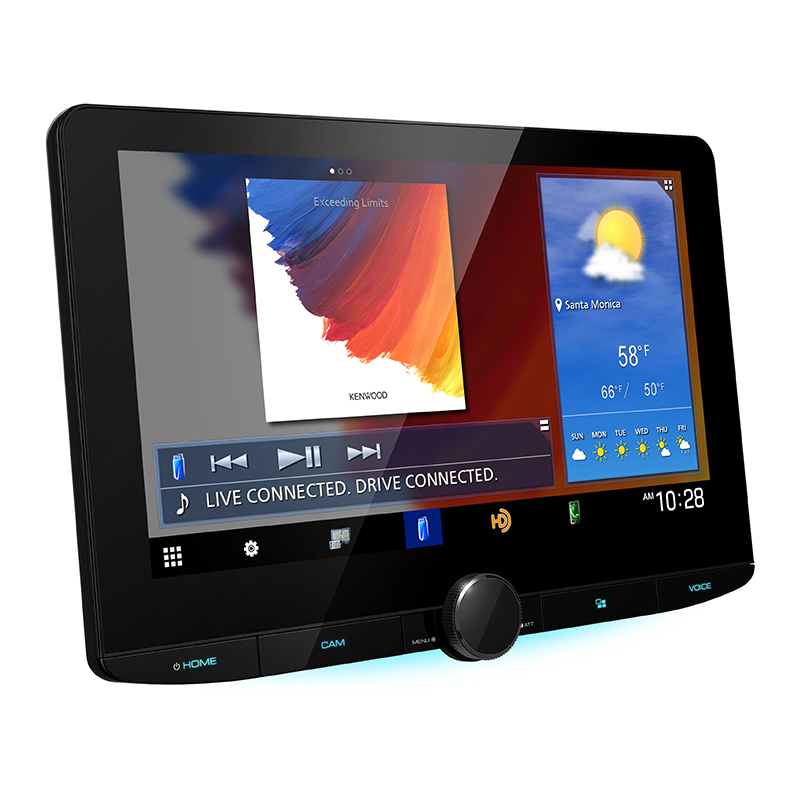

Kenwood DMX1037S 2-DIN 10.1" Digital Multimedia Receiver with HD Capacitive Touch Screen, Apple CarPlay, Android Auto, SiriusXM Ready, iDatalink Maestro RR
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

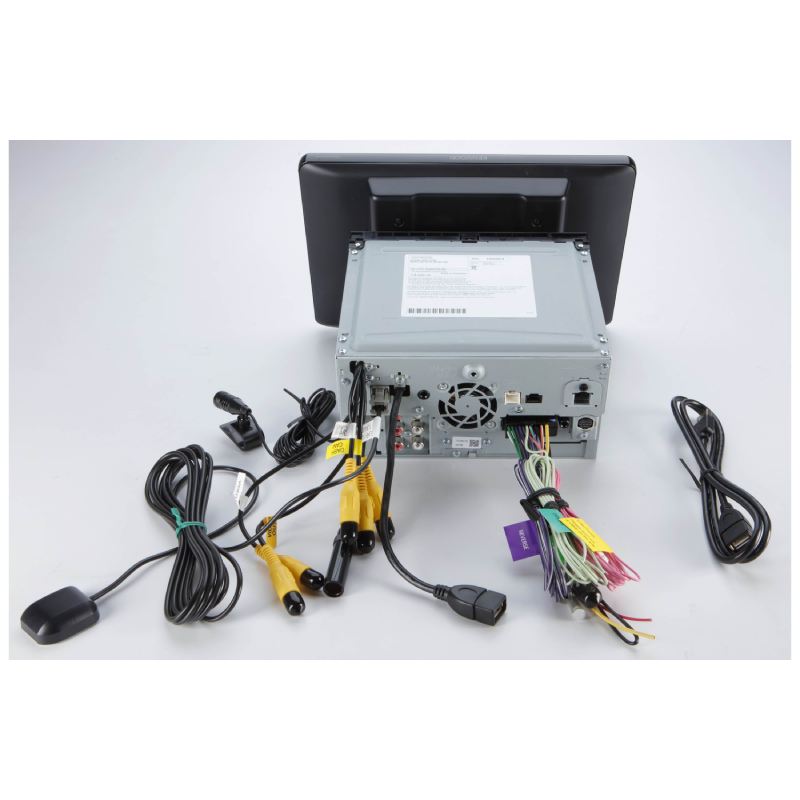

What's Inside?
- • 10.1" Touchscreen monitor
- • Source unit (15A fuse)
- • Wiring harness
- • 39" USB extension cable
- • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • Self-adhesive mounting pad
- • Large plastic bracket
- • (2) Small plastic brackets
- • (2) Metal brackets
- • (2) Machine screws
- • (6) Hex-head screws
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual
Equipped with Many Modern Features
If you have the desire to upgrade to a premium multimedia receiver with a massive display, the Kenwood DMX1037S might be the one you are looking for. Equipped with many modern features, such as fantastic wireless connectivity options and a giant 10.1-inch touchscreen display, the Kenwood DMX1037S would give you the comfort and convenience you may have never experienced before while on the road.

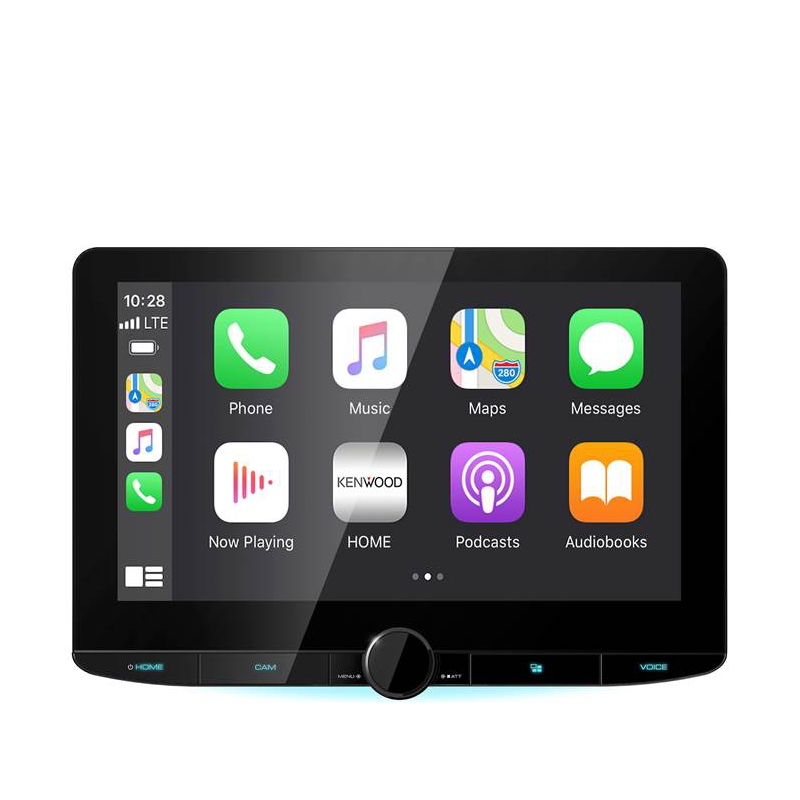

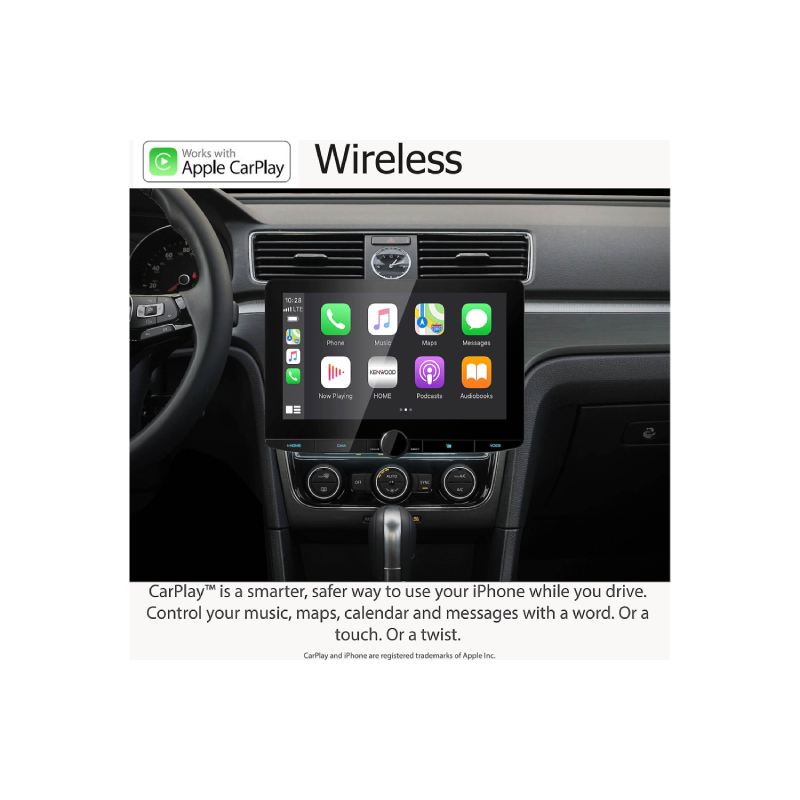

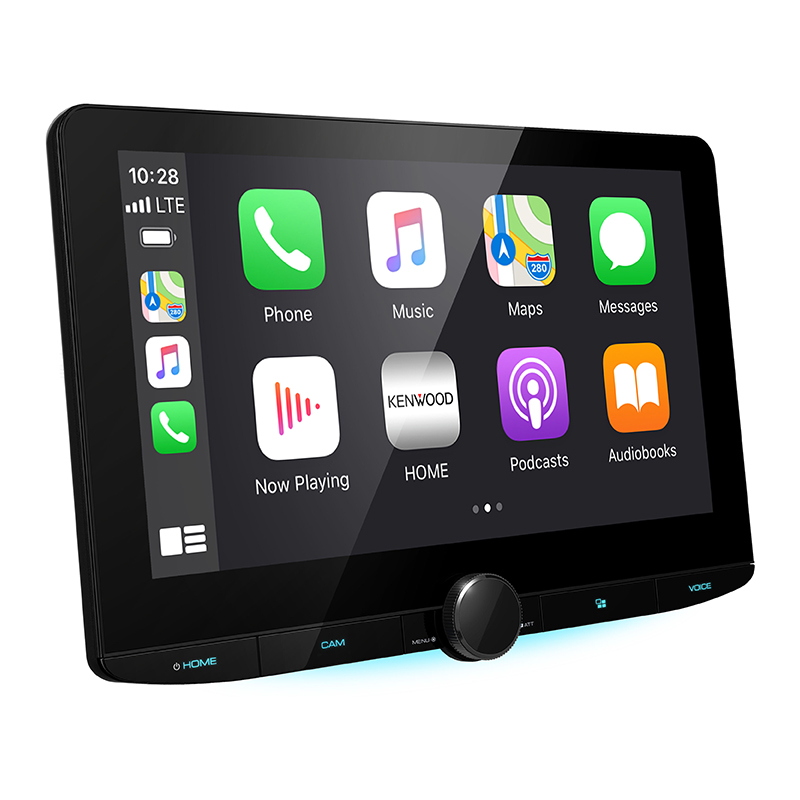

Safe, Smart and Comprehensive Control with Apple CarPlay™
Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported. New KENWOOD Wi-Fi receivers now support Apple CarPlay™ wirelessly (compatible phone required).

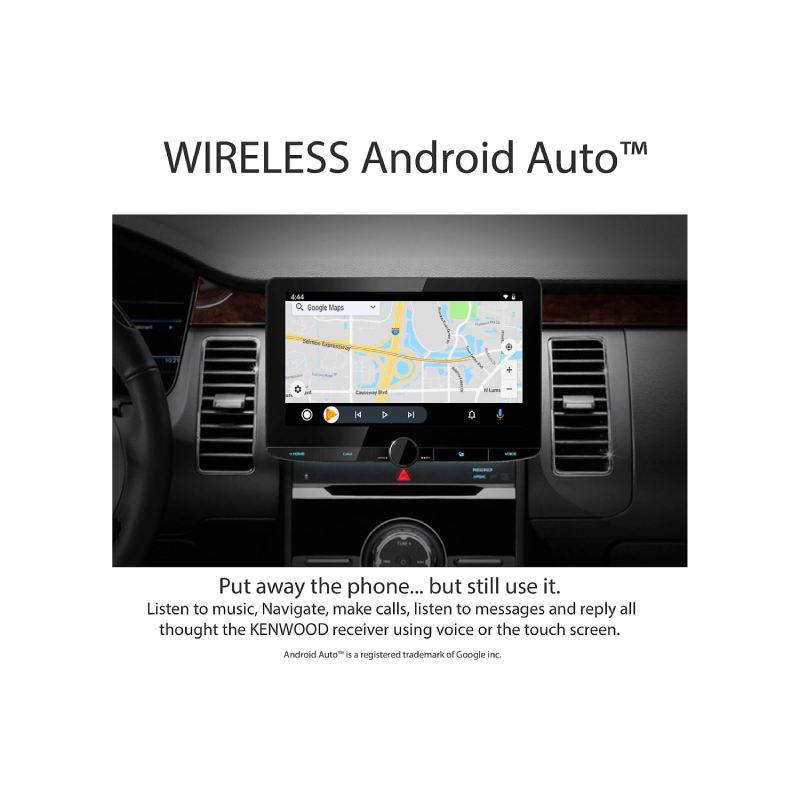

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required). To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.
4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
- Satellite Radio Ready : Yes
- Built In Crossovers : No
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 10.1 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear USB Input : 1
- Preamp Outputs : 6
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:

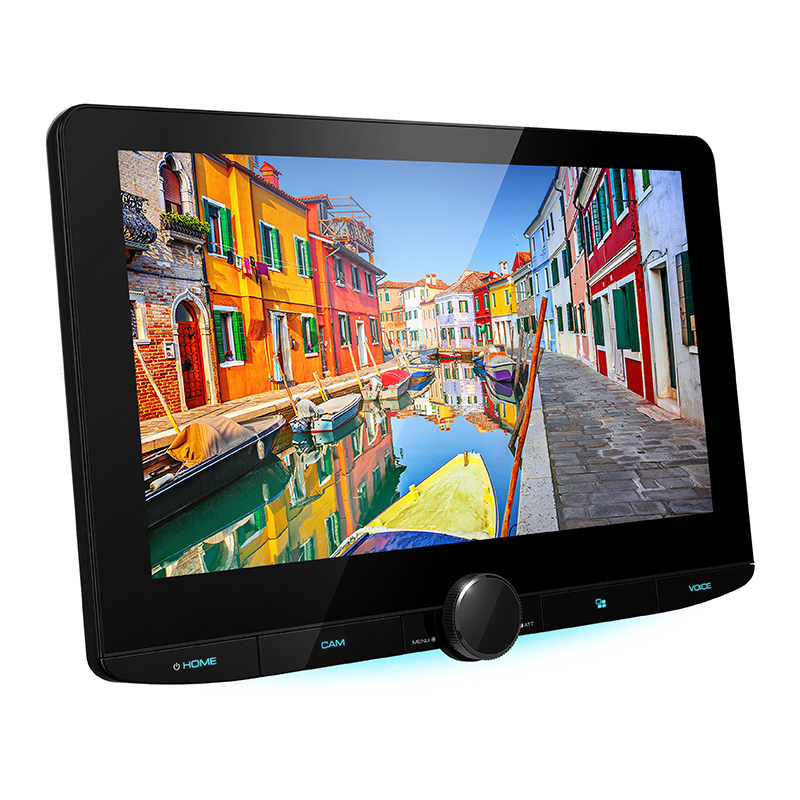

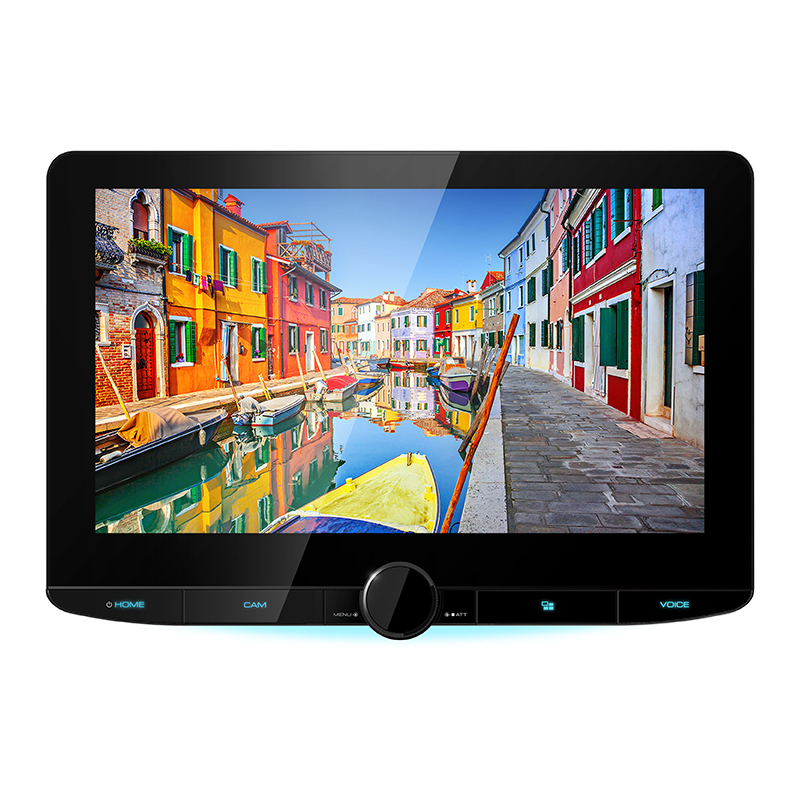

- Capacitive Touch Panel: Clear glass display with swipe functionality that provides superior picture and touch panel control.
- Wireless Mirroring for Android: Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
- 4 Camera Inputs: Optional camera connection method for up to 4 cameras in various configurations.
- HD Front/Rear Camera Input: HD Front/Rear Camera (CMOS-740HD) can be connected for High Definition viewing.
- Parking Guide Lines: Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
- Dash Cam Link: Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
- Dual Phone Connection: While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Smartphone features:
- compatible with Apple CarPlay and Android Auto (wireless or wired)
- wireless (Miracast) and wired (HDMI) mirroring for Android
Audio/video features:
- plays USB memory devices
- 13-band equalizer with digital time alignment
- subwoofer level, phase, and low-pass crossover controls
Expandability:
- compatible with SiriusXM satellite radio tuner
- direct connection and control with Kenwood's DRV-N520 Drive Recorder dash cam

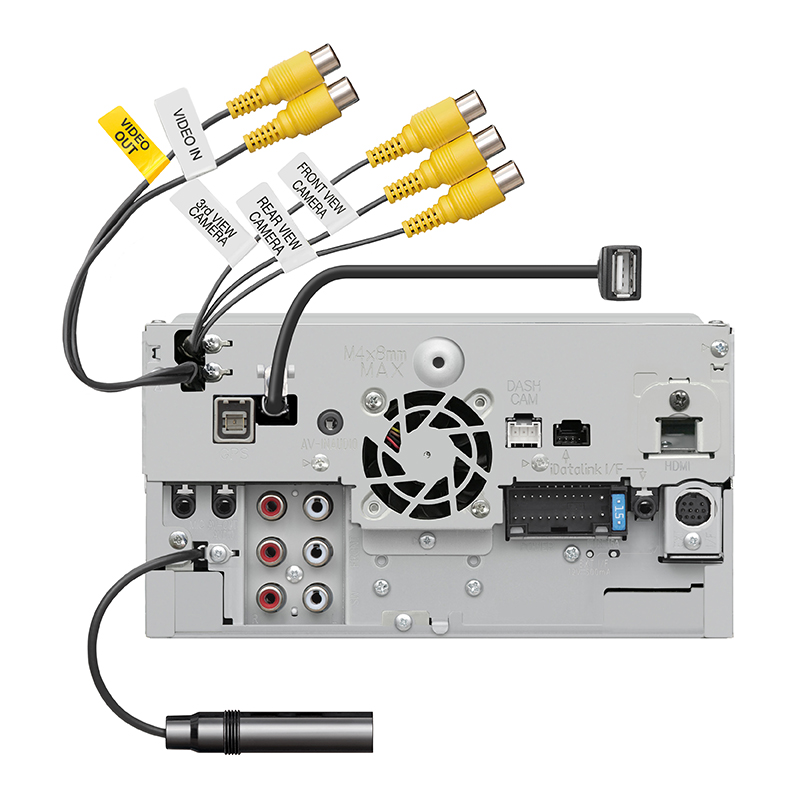

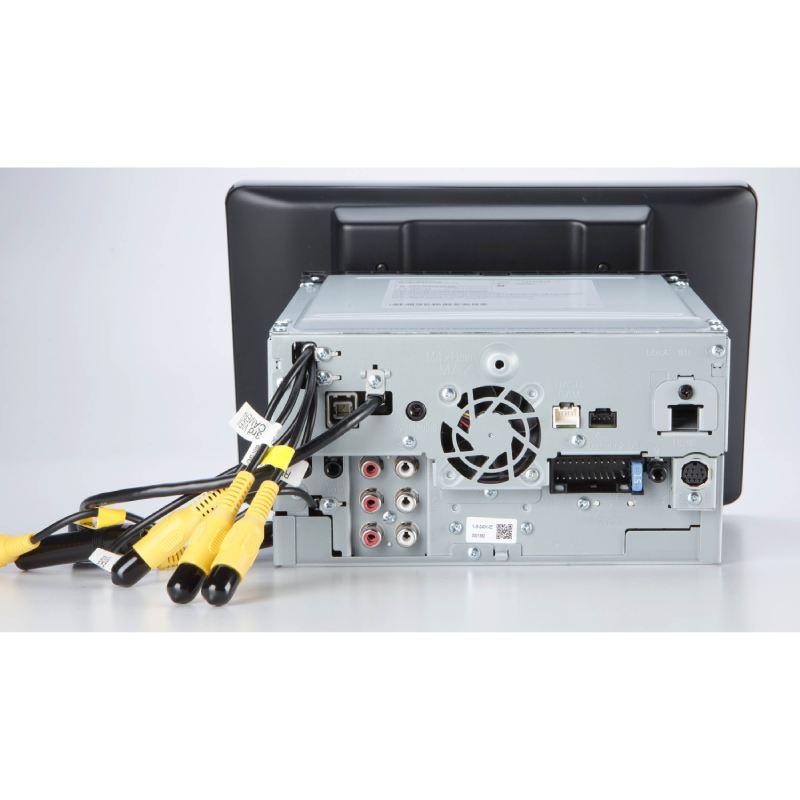

- inputs: rear USB input, HDMI input, rear A/V input (mini), four camera inputs (including 2 high-def inputs and DRV-N520 input)
- outputs: rear A/V output, 6-channel preamp outputs (4-volt front, rear, subwoofer)
Other info:

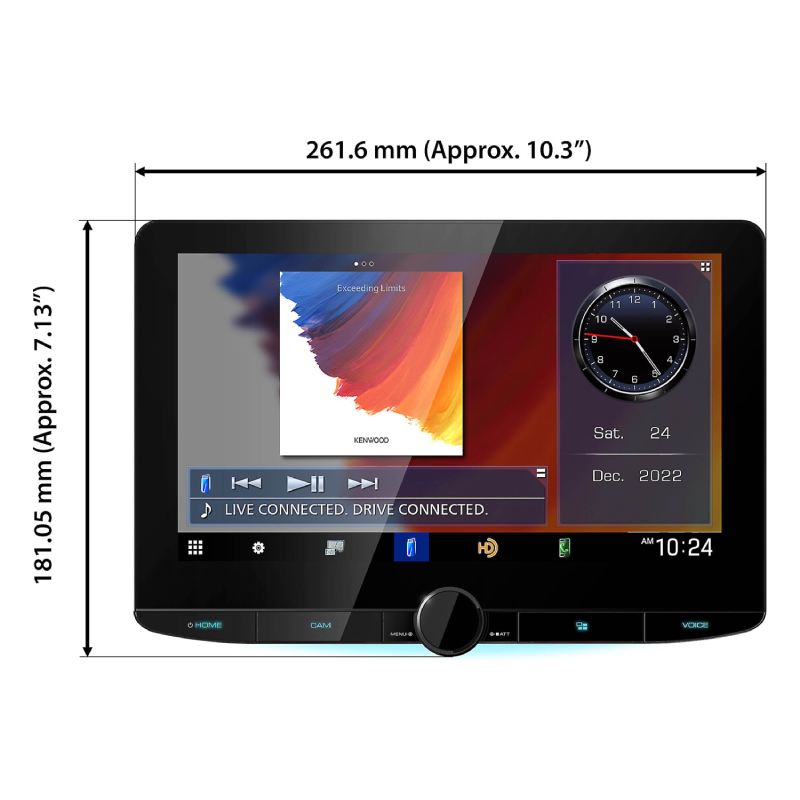

- Important note — Monitor dimensions are 10.313" x 7.125". Before ordering, check for possible interference with your dash.
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (22 watts RMS/50 peak x 4 channels)
- works with iDataLink Maestro modules
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- K40/Escort radar detector-ready
- compatible with most factory steering wheel audio controls (adapter required)
- warranty: 1 year
Specifications:
- AUX Input: Mini (rear)
- Audio/video Input: Composite+Mini (rear)
- USB Input; Rear
- USB Port Power: 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: CarPlay only
- Alexa Voice Control: NO
- Android Control: Yes
- Memory Card Slot: USB
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM 3.0
- HD Radio: Y
- Navigation: Optional
- Full size: No
- Nano: No
- Touch: 7Gen
- iPhone: 6S and newer
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 22 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Preamp Voltage: 4 volts
- Screen Size: 10.1
- Screen Type: Swipeable (Capacitive)
- Display Color
- Key Button Color: Variable
- EQ Bands: 13
- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- FM Sensitivity: 7.3 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3,WMA,AAC,FLAC,WAV,DSD
- High-res Playback: WAV/FLAC (24-bit/192kHz)
- UPC: 019048230898
- Weight: 13
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
