Hertz  HCP 4D

Compact Power Series 4-Channel 70Wx4 RMS Class-D Car Audio Amplifier

Item #54237

Condition:   Brand New

Product Highlights

  • Compact design
  • 4-channel output
  • 70W x 4 RMS power
  • Class-D amplifier
  • Car audio application

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$399.99

Reg. Price $435.00  Save $35.01
In Stock
In Stock

Only 1 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $37/mo with . Check your purchasing power

No Credit needed for Learn More


Hertz Authorized Dealer

Huge Saving on Other items:


Brand Banner

Hertz HCP 4D 70Wx4 RMS, Class D 4-Channel Car Audio Amplifier


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •4-Channel amplifier
  • •(4) 20-amp ATO fuses (2 installed)
  • •(2) 7" Speaker level input harnesses
  • •4mm Allen wrench
  • •2mm Allen wrench
  • •(4) M4 x 20mm mounting screws
  • •(4) Flat washers
  • •Quick Start Guide
  • •Warranty Card
Designed to Deliver High-quality Sound

The Hertz HCP 4D is a four-channel car amplifier designed to deliver high-quality sound for car audio systems. It is part of the Hertz Compact Power (HCP) series, known for its advanced features and exceptional performance. The HCP 4D is a Class D amplifier with a compact and lightweight design, making it easy to install in many vehicles. It has a continuous power output of 130 watts per channel and can handle a load impedance of 2 or 4 ohms, making it suitable for use with various speakers.

Built-in Crossover

The amplifier features a range of advanced features, including a built-in crossover that allows for precise frequency control and high-level input capability that allows for easy integration with factory car audio systems. In terms of sound quality, the HCP 4D delivers powerful and dynamic sound that is well-suited for all types of music genres. It has a signal-to-noise ratio of 100 dB, ensuring that music is delivered with exceptional clarity and minimal distortion. The amplifier's frequency response ranges from 10 Hz to 60 kHz, ensuring that all frequencies are accurately covered.

Built With High-quality Materials

The HCP 4D is built with high-quality materials and is designed to be durable and long-lasting. It has a sleek and modern design that can complement any car audio system. The amplifier's installation is easy with its compact size and flexible wiring options, making it suitable for novice and experienced car audio enthusiasts. Overall, the Hertz HCP 4D is an excellent choice for anyone upgrading their car audio system with a high-quality and powerful amplifier. Its advanced features, exceptional performance, and sleek design make it popular among music enthusiasts and audiophiles.

  • Low Frequency Response : 50-3200 Hz
  • High Frequency Response : 50-3200 Hz
  • Number of Channels : 4
  • Frequency Response : 10-60000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 130x4 Watts
  • Amplifier Class : D
  • Fuse Rating : 20x2 A
  • XP750-SE OFFER : Yes

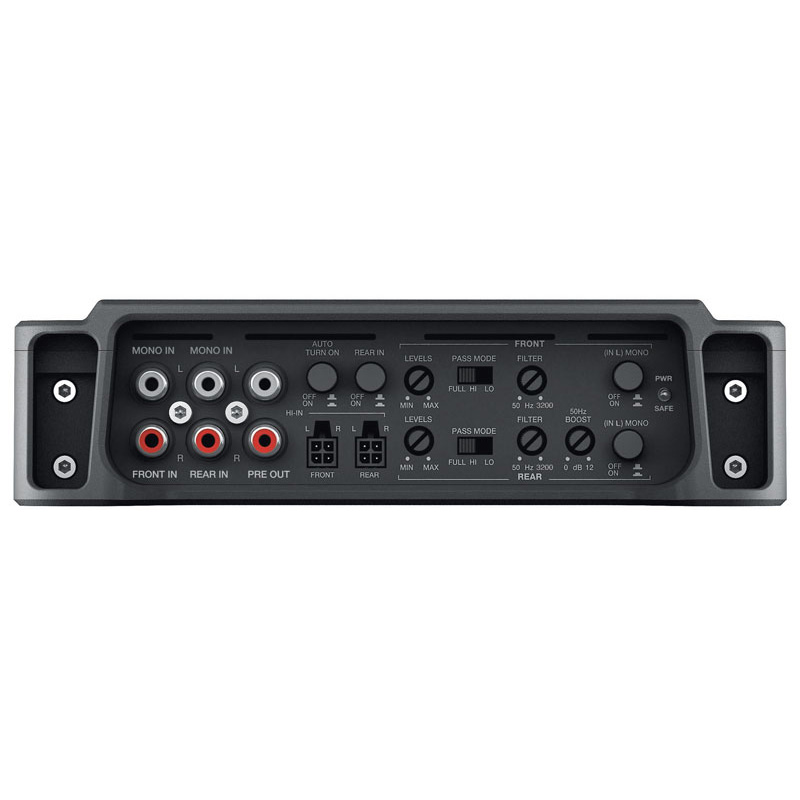

Features:

  • Compact design built from extruded aluminum heatsink with the top side ensuring effective transfer of the heat.
  • Special balanced high-noise rejection input circuitry on the Pre-In or Speaker-In inputs.
  • Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units) inputs.
  • Selectable ART, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (can be enabled/disabled, with only Speaker-In inputs).
  • Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 ohms stable output stage.
  • Pre-outs, also available when using Speaker-In level inputs.
  • Mono operation mode (selectable) to create a sub + front three-channel system, or a powerful two-channel system.
  • Bass Boost (50 Hz) selectable to 12 dB, to increase the subwoofer punch.
  • Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to build a front + rear system, a multichannel woofer + tweeter system or a powerful sub + front system.
  • Selectable full range power outputs.



Specifications:

  • Channel mode: 4-3-2
  • Output Power (RMS) @ 14.4 VDC
    • 4 Ch: 85 W x 4 (4 )
    • 4 Ch: 145 W x 4 (2 )
    • 3 Ch: 85 W x 2 (4 ) + 290 W x 1 (4 )
    • 3 Ch: 145 W x 2 (2 ) + 290 W x 1 (4 )
    • 2 Ch: 290 W x 2 (4 )
  • Filters
    • Bypass: Yes
    • Hi-Pass: A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
    • Lo-Pass: A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
    • Band-Pass: ---
  • Distortion - THD (100Hz @ 4 ohms): 0.02 %
  • S/N Ratio (A weighted @ 1V): 100 dB
  • Damping factor (100Hz @ 4 ohms): 200
  • Size W x D x H mm (in.): 215 x 190 x 50 (8.46 x 7.48 x 1.97)
  • UPC: 8018823110587
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • got this great product, best sound I've ever heard. it's pricey, but you get what you paid for. pushed it hard, never distorts or clips. best multi-channel amp i've ever had. easy to install anywhere for its size, and great sound quality. paired up kicker speakers with it, and they sounded better than my old amp.

    Franklin
    1/4/2024

  • Been using it a 2-speaker and 1-sub setup. Good power for a class D amp. I love the controls that comes with the amp, especially the 50Hz bass boost. It really makes a difference when activated. You’ll really feel the lows better when its boosted. Haven’t tried to push it up to 12dB yet as close to 5dB is enough for me

    Donny
    3/19/2024
