Audison  AP4

PRIMA Series 4" 120W Peak Power Handling, 4-Ohms, Midrange Speakers

Item #54254

Condition:   Brand New

Product Highlights

  • PRIMA Series
  • 4" Midrange Speakers
  • 120W Peak Power Handling
  • 4-Ohms Impedance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$199.99

Reg. Price $225.00  Save $25.01
In Stock
In Stock

Only 4 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $19/mo with . Check your purchasing power

No Credit needed for Learn More


Audison Authorized Dealer

Huge Saving on Other items:


Audison Banner

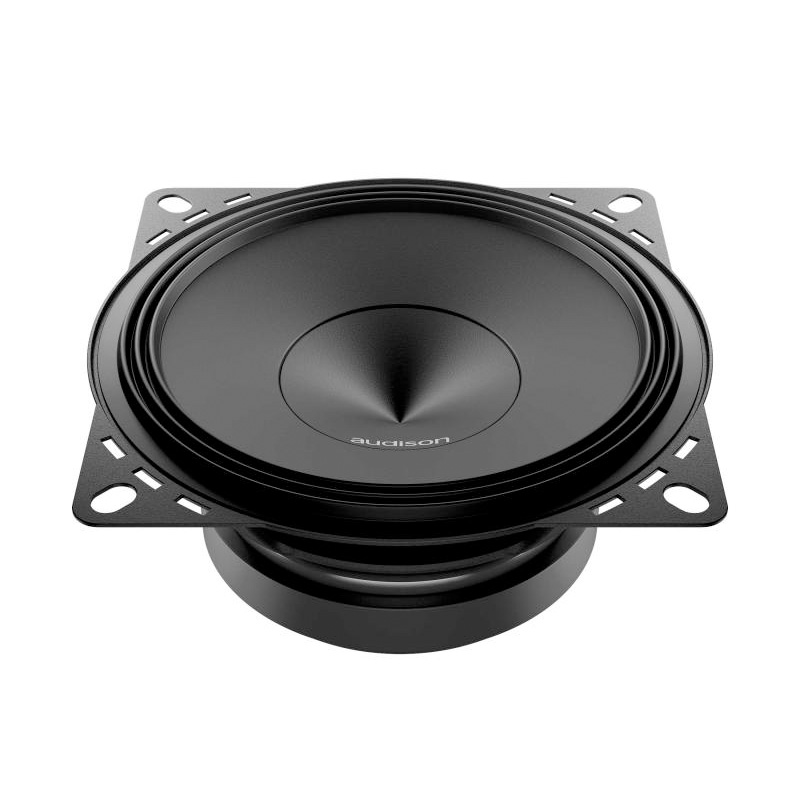

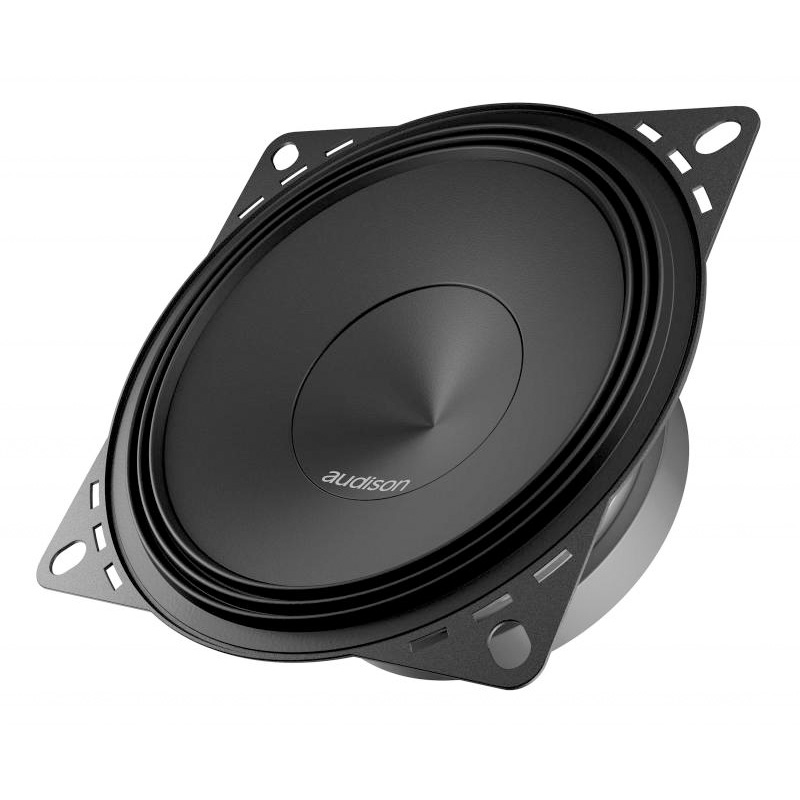

Audison AP4 - PRIMA Series 4" 120W Peak Power Handling, 4-Ohms, Midrange Speakers


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4" Midbass Driver
  • • Pair of 165mm speaker protective grilles
  • • Cables
  • • Owner's Manual
Audison_AP4
Ensure More Balance in Mid-High Frequency Ranges

The Audison AP4 midbass driver is a powerful and versatile audio component designed to deliver exceptional low to midrange frequencies with precision and impact. Its advanced construction and high-quality materials provide an immersive audio experience in car audio systems or other applications.

Delivering Tight and Punchy Performance

The AP4 midbass driver features a cone made of a proprietary material engineered for optimal rigidity and damping. This allows it to accurately reproduce bass and midrange frequencies, delivering tight and punchy performance. The driver's motor assembly is designed for efficient power handling, ensuring high output levels and minimal distortion.

Maintains Optimal Operating Temperatures

Equipped with advanced cooling technology, the AP4 driver maintains optimal operating temperatures even during intense use, ensuring long-term reliability. Its robust construction and durable components make it suitable for demanding installations.

Offers Exceptional Performance

The midbass driver's compact size and flexible mounting options make integrating into various speaker setups easy. Whether used as part of a component system or standalone, the Audison AP4 midbass driver offers exceptional performance, precise bass reproduction, and durability for audio enthusiasts seeking powerful and accurate sound.

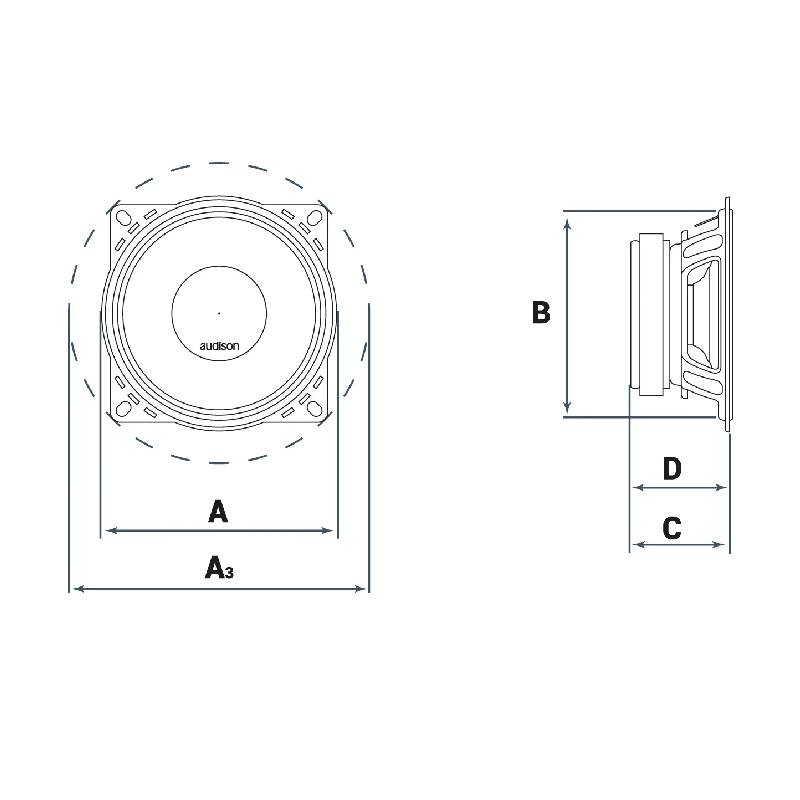

DIMENSIONS

Physical Specifications
  • • Dimension A: 103 mm
  • • Dimension B: 93 mm
  • • Dimension C: 43 mm
  • • Dimension D: 41 mm
  • Diameter : 4 Inch
  • Sensitivity : 91 dB
  • Impedance : 4 Ohm
  • Frequency Response : 80-7500 Hz
  • Peak Power Handling : 120 Watts
  • RMS Power Handling : 40 Watts

Product Highlights:

  • Very extended frequency response, in both high and low frequencies, combined with high efficiency.

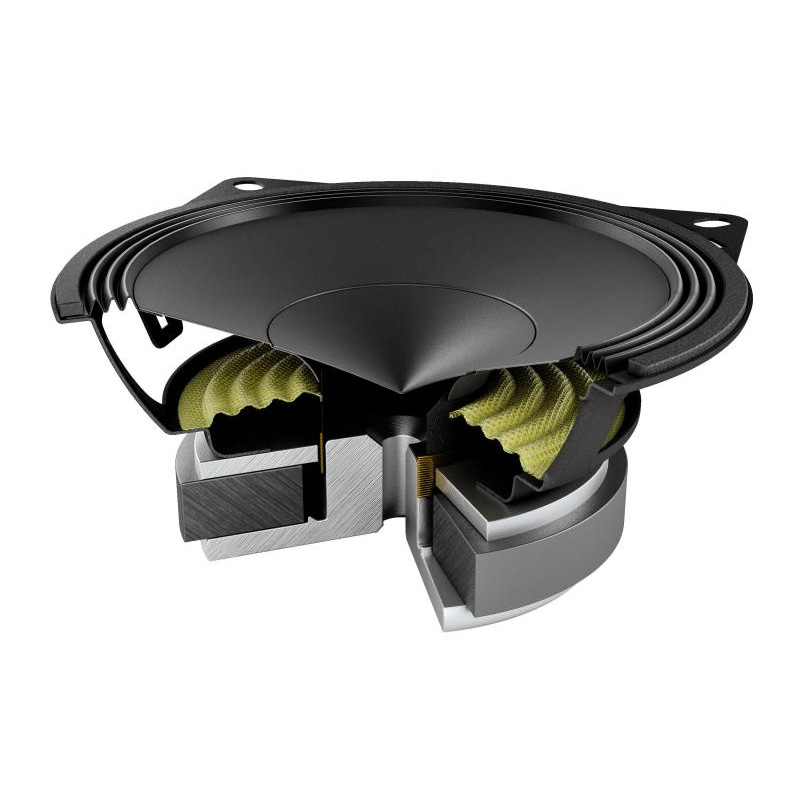

  • No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • Reduced mounting depth, providing ease of installation in OEM placements.
  • TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
  • 25 mm pure copper voice coil; ensuring precise balance in the mid-high frequency range.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating.
  • Developed with the KLIPPEL suite.



Specifications:

  • Comp: Midbass
  • Size:
    • 100 mm (4″)
  • Power Handling:
    • 40 W Continuous Power
    • 120 W Peak Power
  • Impedance: 4 ohms
  • Frequency Response: 80 ÷ 7.5k Hz
  • Sensitivity: 91 dB/Spl
  • Magnet: High density flux ferrite
  • Dome: Water-repellent pressed paper



  • UPC: 8018823111645
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
