Hertz DCX165.3 Dieci Series 6.5" 120W Peak Power Handling 4 Ohms 2-Way Coaxial Car Speakers (Pair)
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6.5" 4 Ohms 2-Way Car Speakers
- • (8) 3/4" Screws
- • (8) Speed clips
- • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 20 Others)
- • Template on box
Built-in Crossover
To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 160.3 Dieci series car audio coaxial is designed with maniacal care to provide linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.
Meticulously Crafted
In order to address various installation requirements while maintaining the renowned quality and performance associated with Hertz, the Hertz DCX 165.3 car audio coaxial speaker has been meticulously crafted to deliver a consistent frequency response and guarantee exceptional reliability.

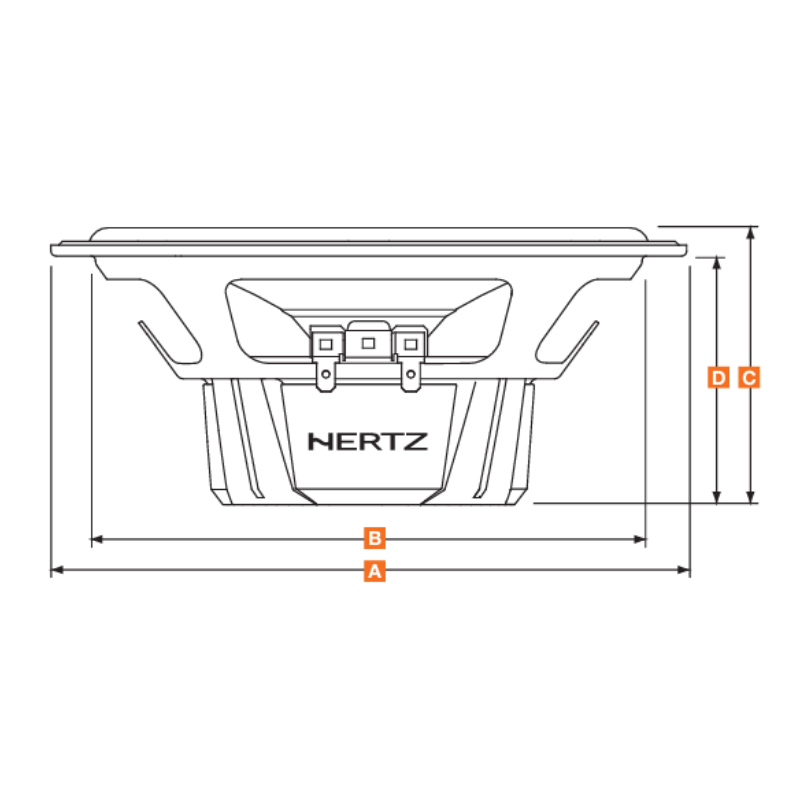

Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 144 mm (5.7 in.)
- • C: 72 mm (2.8 in.)
- • D: 64 mm (2.5 in.)
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 60-21000 Hz
- Peak Power Handling : 120 Watts
- Design : 2 Way
- RMS Power Handling : 60 Watts
Features:
- Large motor assembly for mobile voice coil control.
- Pure copper voice coil, wound on conex former, for maximum lightness.
- Water-repellent treated paper cone.
- TPU surround, for wide excursion and resonance damping.
- Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
- DIN size basket protected by abrasion-proof dust paint.
- Tin-plated, high current terminals.
- Silver-plated lead wires for maximum reliability and conductivity.
- Butyl rubber protective cover, against crashes and abrasions.
- Epoxy glue for basket and motor system provides perfect coupling.
- Low carbon content plates for maximum magnetic permeability and high heat dissipation.
Specifications:
- Power Handling - Peak W: 120
- Power Handling - Continuous W: 60
- Impedance: 4 ohms
- Frequency response Hz: 60 ÷ 21k
- Sensitivity dB SPL: 93
- Woofer size mm (in.): 165 (6.5)
- Tweeter size mm (in.): 15 (0.6)
- Woofer Voice Coil Ø mm (in.): 25 (1.0)
- Woofer magnet: High density flux ferri
- Tweeter magnet: Neodymium
- Woofer cone: Water-repellent pressed paper
- Tweeter dome: PEI
Electro-acoustic Specs:
- Diameter (D): 135 mm
- DC Resistance (Re): 3.3 Ohms
- Resonant Frequency (Fs): 68 Hz
- Equivalent Volume of Compliance (Vas): 14.3 liters
- Mechanical Mass (Mms): 11.0 grams
- Mechanical Compliance (Cms): 0.49 mm per Newton
- Force Factor (BL): 4.0 Tesla meters
- Total Q Factor (Qts): 0.85
- Electrical Q Factor (Qes): 0.96
- Mechanical Q Factor (Qms): 7.54
- Sound Pressure Level (SPL): 93 dB
- UPC: 8018823104180
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
