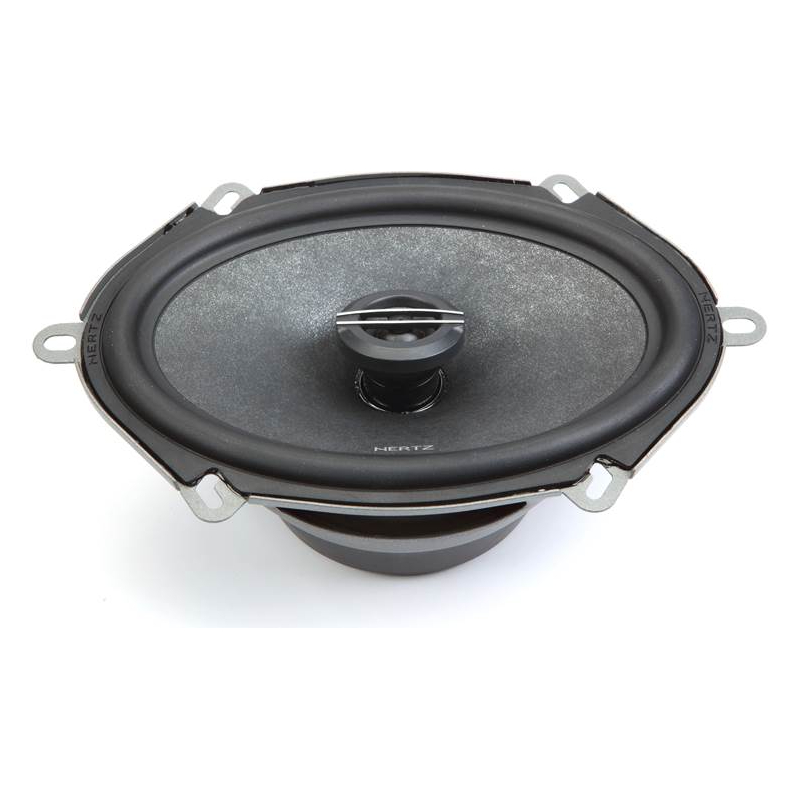

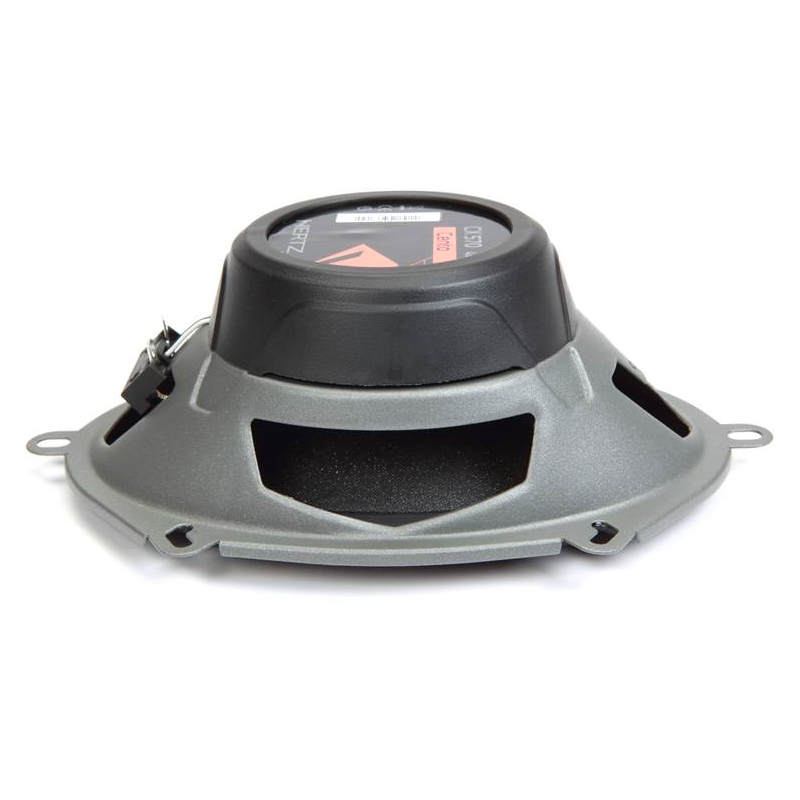

Hertz CX570 Cento Series 5x7" 70W RMS (210W Peak Power Handling) 2-Way Coaxial Car Speakers
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

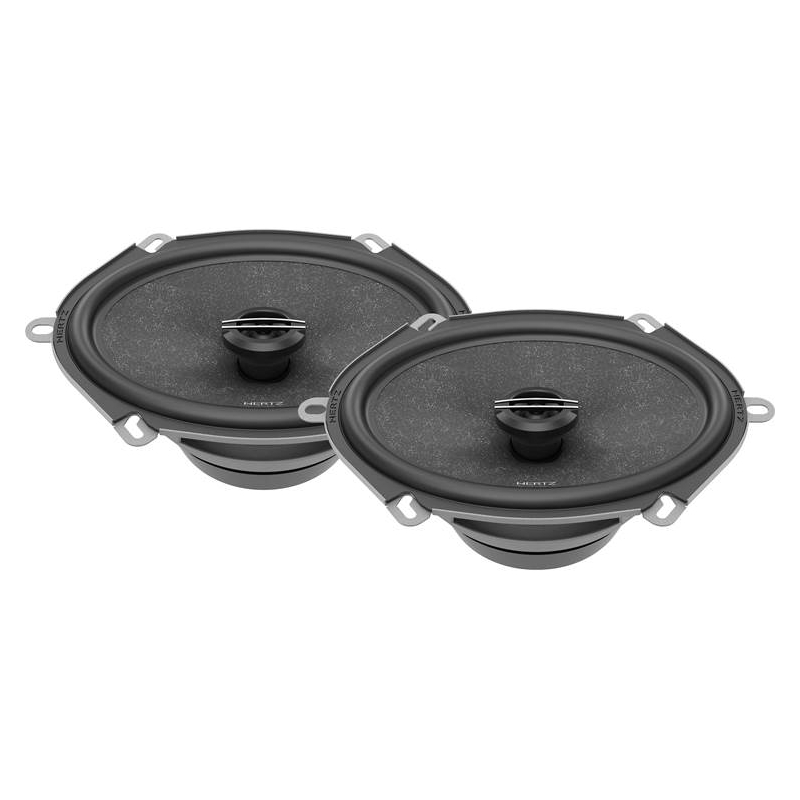

- •(2) Hertz CX570 Cento Series 5x7" 2-way Car Speakers
- •(8) 3/4" Screws
- •(8) Speed clips
- •Template on box
- •Owner's Manual
Optimized using FEM simulations (Finite Element Modeling)
The tweeter's faceplate geometry is meticulously optimized using FEM simulations (Finite Element Modeling), ensuring an exceptionally linear frequency response even in off-axis installations, while the 25 mm (1 in.) woofer voice coil, featuring an aluminum former, ensures high excursion and power handling. Additionally, the 5×7 in. semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica), enhanced with Mica powder, strikes an excellent balance between lightness and damping, complemented by a high-density flux ferrite magnet combined with low-carbon polar plates to reduce distortion at high power levels. Finally, a compact and transparent four-spoke basket, acoustically combined with a rubber magnet cover, provides total damping of spurious vibrations.
Frequency Response
The Hertz CX 570 coaxial speaker boasts an extensive frequency response range spanning from 55 Hz to 22 kHz, ensuring exceptional fidelity across the entire audible spectrum, from deep, resonant bass to crisp, detailed highs, delivering an immersive and dynamic listening experience for music enthusiasts and audiophiles alike.
Physical Specifications
- A – 102.5 mm (4.04 in.)
- B – 93 mm (3.66 in.)
- C – 57.5 mm (2.26 in.)
- D – 43.5 mm (1.71 in.)
- Diameter : 5x7/6x8 Inch
- Sensitivity : 93.5 dB
- Impedance : 4 Ohm
- Frequency Response : 55-22000 Hz
- Peak Power Handling : 210 Watts
- Design : 2 Way
- RMS Power Handling : 70 Watts
Features:
- Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.
- RHFC ™ (Rotary High Frequency Contour) directable tweeter for optimal off-axis frequency response and dispersion on the listening point.
- Adjustable high frequency system for perfect frequency response to any listening point.
- Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
- 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.
- 5×7 in. semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- Compact and transparent four-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
Specifications:
- Power Handling - Peak W: 210
- Power Handling - Continuous W: 70
- Impedance: 4 ohms
- Frequency response Hz: 55 ÷ 22k
- Sensitivity dB SPL: 93.5
- Woofer size mm (in.): 5 x 7
- Tweeter size mm (in.): 24 (0.9)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Semi Pressed Paper-Mica
- Tweeter dome: Tetolon®
Electro-acoustic Specifications:
- Diameter (D): 139 mm
- Voice Coil Resistance (Re): 3.3 Ohms
- Resonant Frequency (Fs): 70 Hz
- Inductance (Le): 0.2 mH
- Equivalent Air Volume (Vas): 11.1 liters
- Moving Mass (Mms): 13 grams
- Mechanical Compliance (Cms): 0.34 mm/N
- Force Factor (BL): 4.9 T*m
- Total Q Factor (Qts): 0.67
- Electrical Q Factor (Qes): 0.83
- Mechanical Q Factor (Qms): 3.3
- Sound Pressure Level (SPL): 93.5 dB
- UPC: 8018823126892
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
