Audison  APBX 10S4S

PRIMA Series 10" 800W Peak Power Handling, 4 Ohms Sealed Subwoofer Enclosure

Item #54293

Condition:   Brand New

Product Highlights

  • PRIMA Series
  • 10" Subwoofer
  • 800W Peak Power
  • 4 Ohms
  • Sealed Enclosure

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$455.99

Reg. Price $530.00  Save $74.01
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $42/mo with . Check your purchasing power

No Credit needed for Learn More


Audison Authorized Dealer

Audison Banner

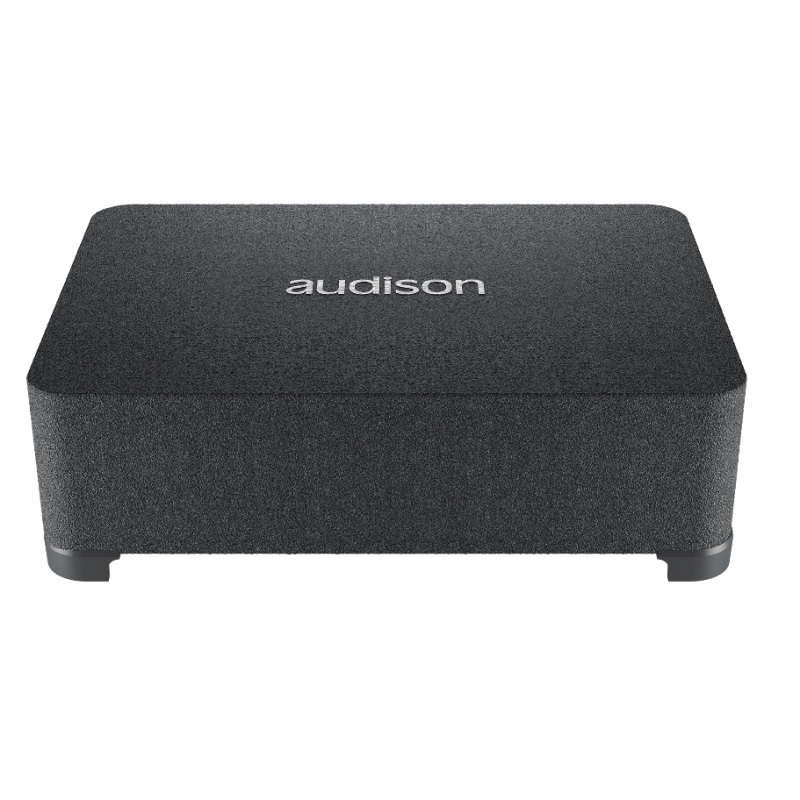

Audison APBX 10S4S PRIMA Series - 10" 800W Peak Power Handling, 4 Ohms Sealed Subwoofer Enclosure


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" Subwoofer Enclosure
  • • Metal grid
  • • Owner's Manual
Audison_APBX10S4S
Plug & Play Solution

The APBX 10 S4S sealed enclosure is the ideal choice to be driven by the new AP F8.9 bit using two channels bridged. Designed to house the single 4Ω voice coil APS 10 S4S subwoofer, it offers an ultra-performing Plug & Play solution boasting all the features that make the Prima boxes unique such as the SSP (Sub Smart Plug) terminal block for a quick connection leaving no room for errors.

Compact Power, Versatile Performance

The APS 10 D subwoofer: ultra-low profile (5.6 inches), sealed design, and 2 Sides/2 Sounds versatility. Choose Down-Firing for extended lows or Up-Firing for added punch. With leveling feet and Velcro inserts for carpet grip, the SSP allows easy impedance setup. Rounded corners aid trunk positioning, minimizing resonance. Specially designed cone-dustcap-basket ensures an 11 mm linear excursion, paired with a 10-inch water-repellent cone. Seamless pairing with the AP F8.9 bit amp, utilizing built-in DSP for bass boost. Complete with a sturdy metal grid for subwoofer protection.

Image 2
Physical Specifications
  • • Dimension A: 470 mm
  • • Dimension B: 334 mm
  • • Dimension C: 120 mm
  • • Dimension D: 142 mm
  • Diameter : 10 Inch
  • Impedance : 4 Ohm
  • Peak Power Handling : 800 Watts
  • Number Of Subwoofers : 1
  • Enclosure Type : Sealed
  • RMS Power Handling : 400 Watts

Product Highlights:

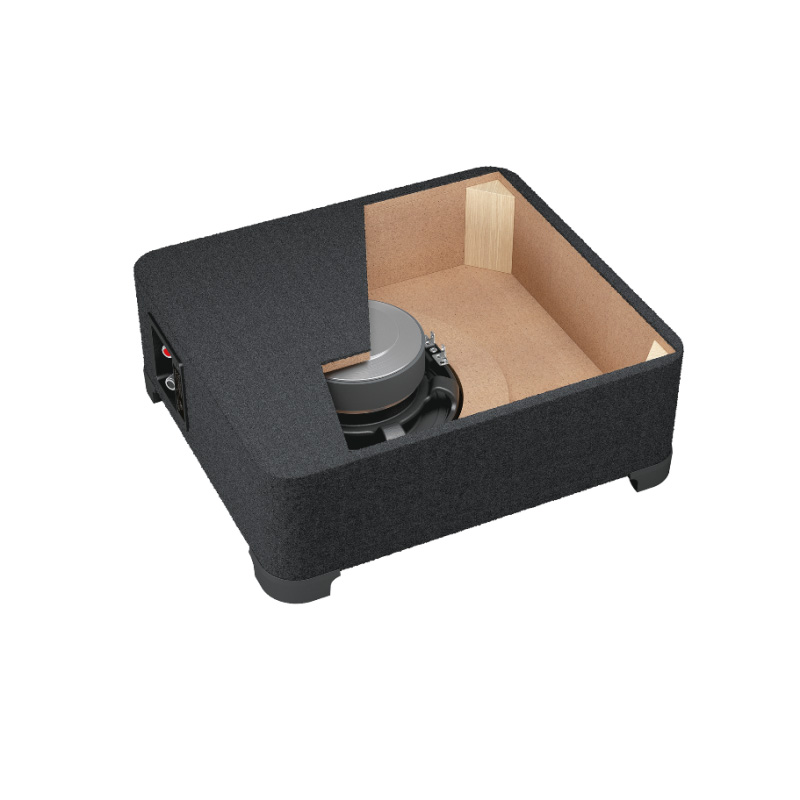

  • Ultra-low profile (5.6 in. / 142 mm) box with sealed design perfectly tuned to fully exploit the APS 10 D driver.
  • 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
  • Leveling feet with Velcro inserts included for a secure grip with the carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
  • Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
  • Specifically developed to be combined with AP F8.9 bit (2 CH bridged - 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
  • Sturdy metal grid included for a total protection of the subwoofer driver



Specifications:

  • Passive subwoofer: Sealed box
  • Size: 250 mm (10”)
  • Power Handling
    • 400 W Continuous Power
    • 800 W Peak Power
  • Impedance: 4 ohms
  • Sub box size mm (in.): 472 (18.58) x 334 (13.15) x 120 (4.72)
  • Magnet: High density flux ferrite
  • Cone: Cotton-Fibre pressed paper
  • Weight of one component kg (lb): 8,63 (19.03)
  • UPC: 8018823130349
  • Weight: 15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
