Hertz MPK163.3 Mille Series 6-1/2" 150W RMS (300W Peak Power Handling) 4-Ohm Impedance Component System
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2 MP 165.3 Woofers
- • 2 MP 70.3 Midrange

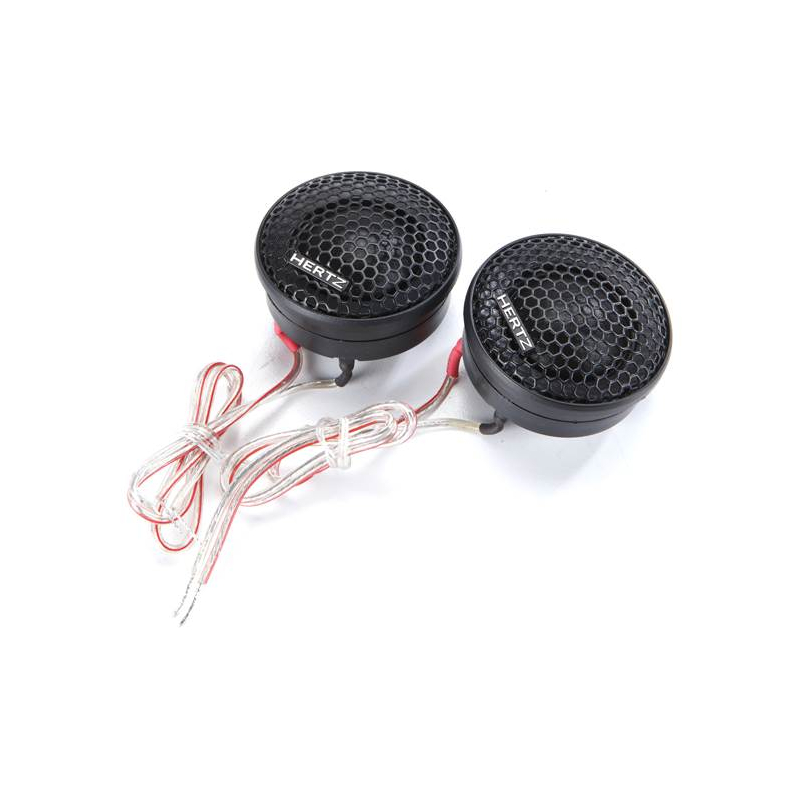

- • 2 MP 25.3 Dome tweeters (with attached 10" length of speaker wire)
- • 2 MPCX 3.3 Crossover networks
- • 2 Tweeter flush mount trim rings
- • 2 Tweeter flush mount clamps
- • 2 Angled surface mount housings
- • 2 OEM tweeter mounting brackets
- • Grille putty
- • Sixteen 3/4" Screws (large head)
- • Four 3/4" Screws (small head)
- • Eight 3/4" Screws (fine thread)
- • Four 1/2" Flat head screws
- • 8 Large speed clips
- • 12 Small speed clips
- • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 21 Others)
- • Templates on box
- • Car Audio Speakers System
- • Tweeter gasket
- • Watchband
Boundary Free Surround Technologies
The MPK 165P.3 car audio speakers system energy in the mid-low range ensures a unique listening experience, creating the ideal set up alongside a powerful subwoofer section. The MP 165P.3 woofer electroacoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The MPK 165P.3 timbre balance is entrusted to the MPCX 2P.3 crossover featuring a copper inductor with a 1 mm diameter wire to filter the MP 165P.3, which, with its nominal 3 Ω requires high impulse currents.
Provides the Ability to Adapt the System
The tweeter MP 25.3 12dB/Octave crossover is built with extremely high quality 160V bi-metallized polyester film capacitor and an air coil inductor. The tweeter (MP 25.3) level control (0/+2.5dB) provides the ability to adapt the system response to the listener preferences and considering the components installation position.
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Frequency Response : 40-22500 Hz
- Peak Power Handling : 300 Watts
- RMS Power Handling : 150 Watts
Product highlights:

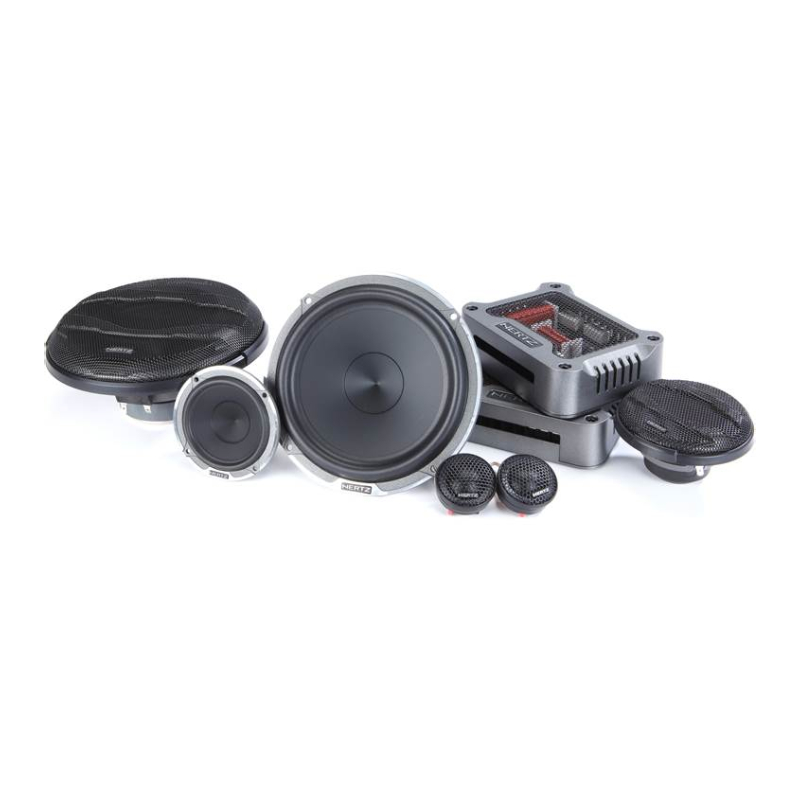

- component system includes 2 woofers, 2 midrange speakers, 2 tweeters, and 2 external crossovers

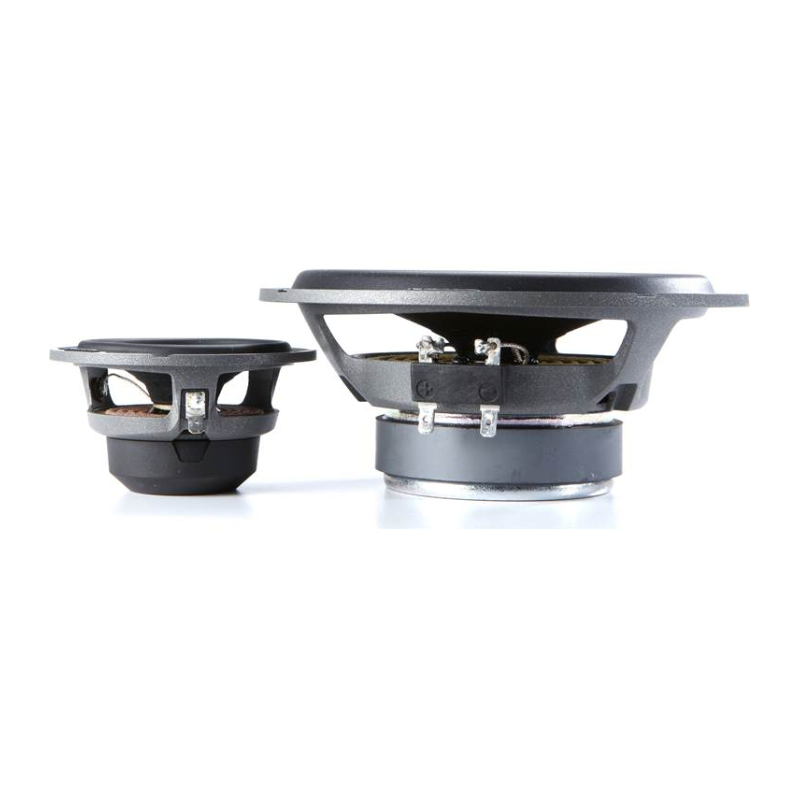

- 6-1/2" pressed pulp woofer with Boundary Free rubber surround
- 3" pressed pulp midrange speaker with Boundary Free rubber surround
- 1-3/16" Tetolon dome tweeter

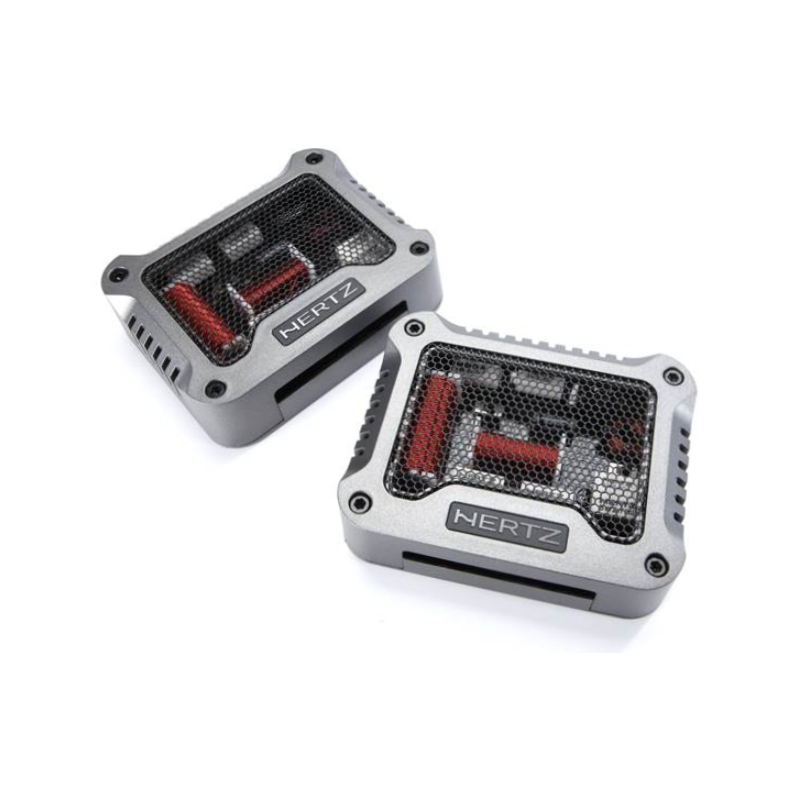

- compact MPCX 3.3 outboard crossover
- 2-position (0, +2) switches for tweeter and midrange
- handles up to 150 watts RMS (300 watts peak power)
- frequency range: 40-22,500 Hz
- sensitivity: 92 dB
- woofer top-mount depth: 2-1/2"
- grilles included
Features:
- Size Classification Note: Some manufacturers, such as Hertz, designate this size woofer as a 6-1/2". However, due to its larger cutout requirement compared to standard 6-1/2" speakers, Crutchfield typically refers to it as a 6-3/4". Please provide your vehicle information to confirm compatibility.
- Boundary Free Surround: This innovative technology provides the woofer with greater cone surface area compared to other speakers of similar size, allowing it to move more air. The surrounds, made of rubber, ensure both thermal and mechanical linearity.
- Klippel Verified: Utilizing the Klippel distortion analyzer, Hertz conducts extensive analysis of the drivers in motion. This process, involving laser technology and sophisticated computer software, enables Hertz to optimize the speaker's motor structure, voice coil alignment, and suspension for optimal performance.
- Grilles: The speaker comes with three-piece woofer and midrange grilles, offering versatile installation options. These include mounting all three pieces together (black plastic frame, gray plastic inner grill, and black steel mesh), mounting the frame and mesh without the inner grille, mounting the frame and inner grille without the mesh, or mounting the inner grille alone.
- Tweeter Mounting: The speaker includes brackets for various tweeter mounting options, including flush mounting, angled surface mounting (at 60° or 30° angles), and mounting behind the factory grille.
Technical Specifications :
- Size (mm/inches): 165 (6.5)
- Power Handling - Continuous (W): 150
- Power Handling - Peak (W): 300
- Impedance (Ohm): 4
- Tweeter Diaphragm Size (mm/inches): 29 (1.14)
- Woofer Voice Coil Diameter (mm/inches): 25 (1)
- Tweeter Voice Coil Diameter (mm/inches): 25 (1)
- Sensitivity (dB SPL): 92
- Frequency Response (Hz): 40 to 22,500
- Crossover Cut off: 450Hz - 5.5kHz
- Crossover Type: 3 Way Passive Crossover
- UPC: 8018823114042
- Weight: 2.36
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
