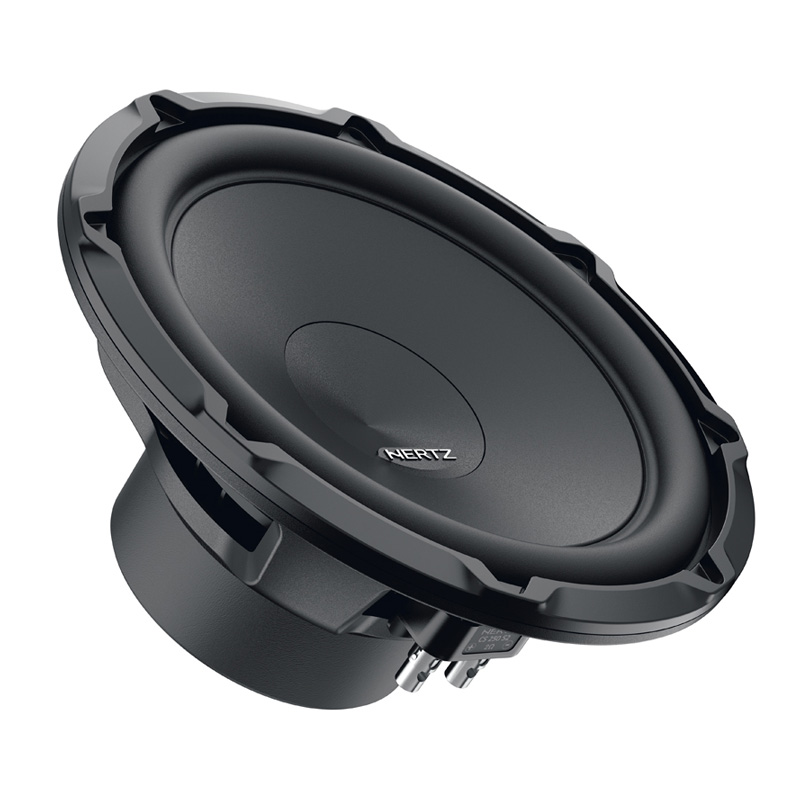

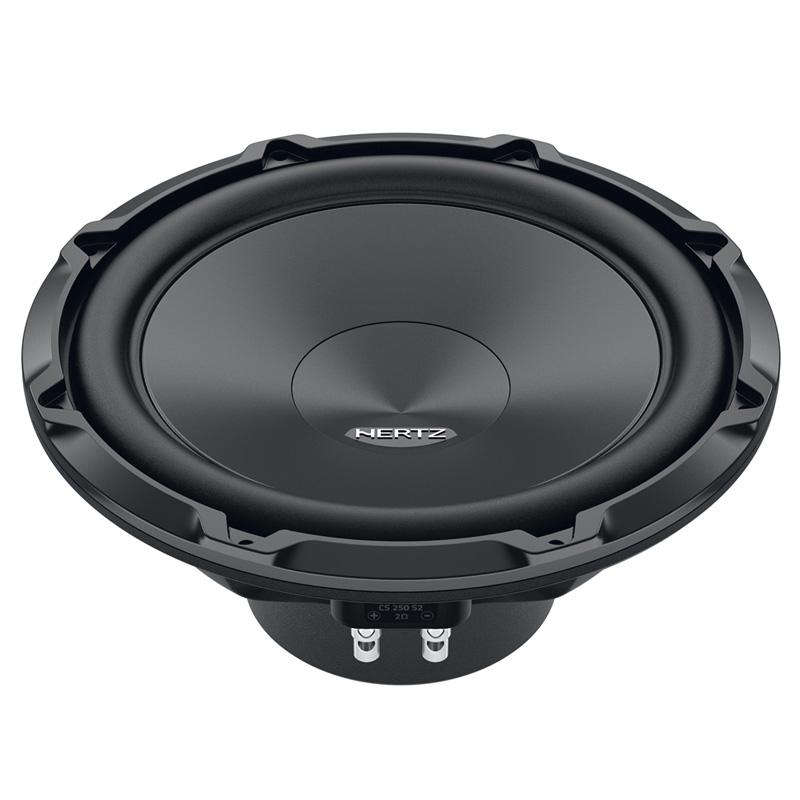

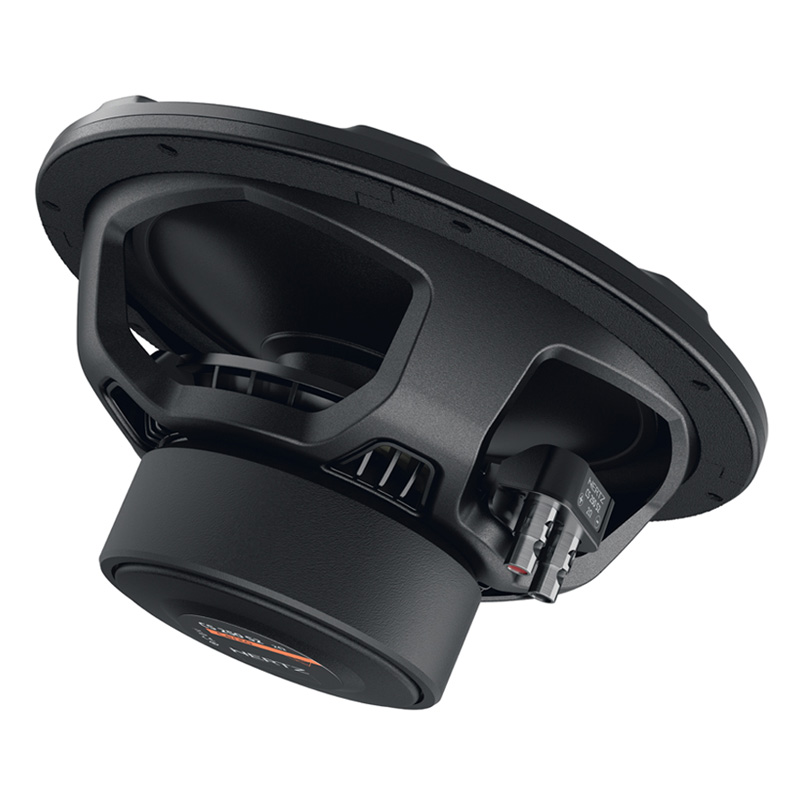

Hertz CS 250 S2 Cento Series 10" 600W Peak Power Handling 2 Ohms Component Car Subwoofer
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 10" Single 2-ohm voice coil car subwoofer
- •Trim ring
- •Eight 1-1/2" Screws
- •8 Speed clips
- •Owner's manual
Authentic Hertz Sound Experience
The new CS 250 S2 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience!
The R & D team, always at the forefront in the search for innovative solutions, with unfailing effort, succeeded in obtaining very powerful bass frequencies from ultra-compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 16 l. for the 25 cm (10 in.) CS 250 model.
Voice Coil Configuration Offers Maximum Compatibility
The 2Ω single voice coil configuration offers maximum compatibility with any type of amplification and an enclosure that houses more than one subwoofer.

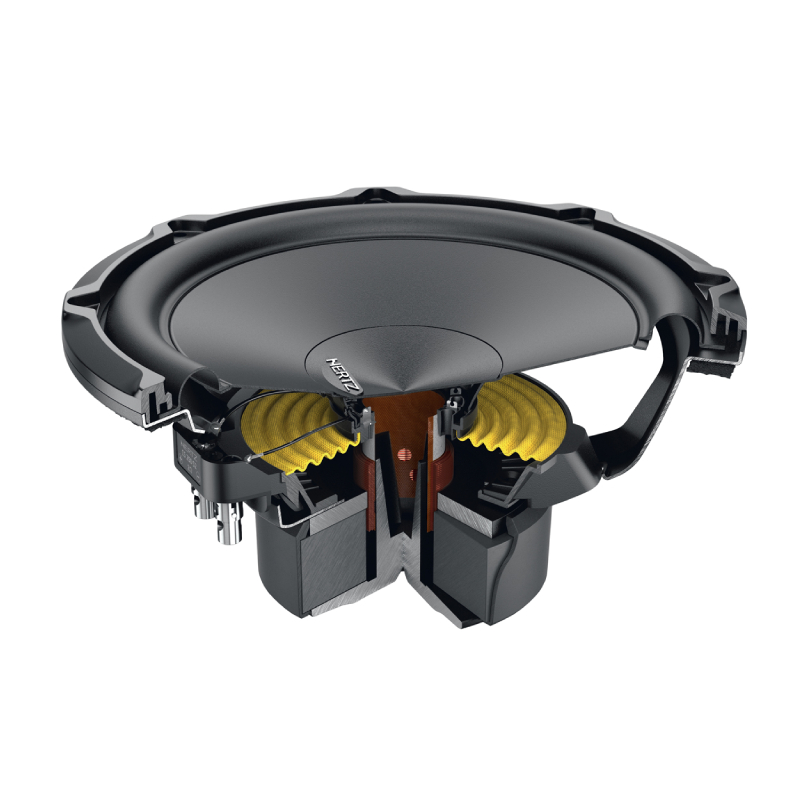

The reduced depth, the compact magnetic group and the lack of rear decompression hole allow the box to be shaped around the subwoofer obtaining a depth close to the one of a speaker for maximum freedom of installation on any type of car. The special cooling system of the six-layer voice coil keeps the operating temperature within an optimal range even in case of extended listening sessions at high acoustic pressure.
Guarantees Control and Low Distortions
The cone geometry, the suspension and the spider have been designed using FEM (Finite Element Method) simulations to obtain the best performance configuration that guarantees control and low distortions even at high mechanical excursions of the mobile group.

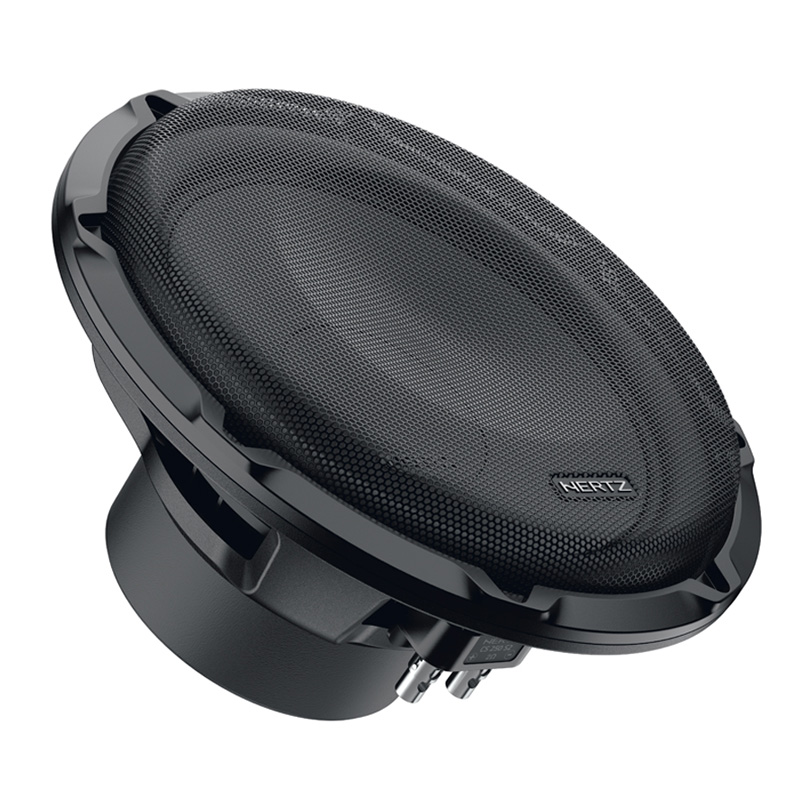

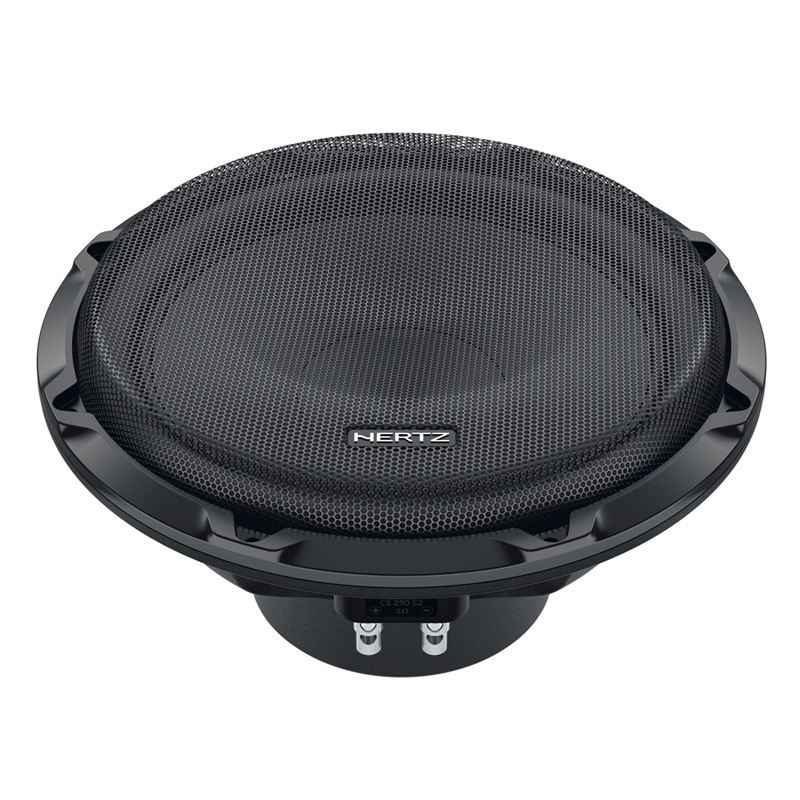

The terminal block uses solid push connectors that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers. The subwoofer is also provided with an elegant high resistance ABS plastic gasket that allows the grille to be fixed to finish the installation.

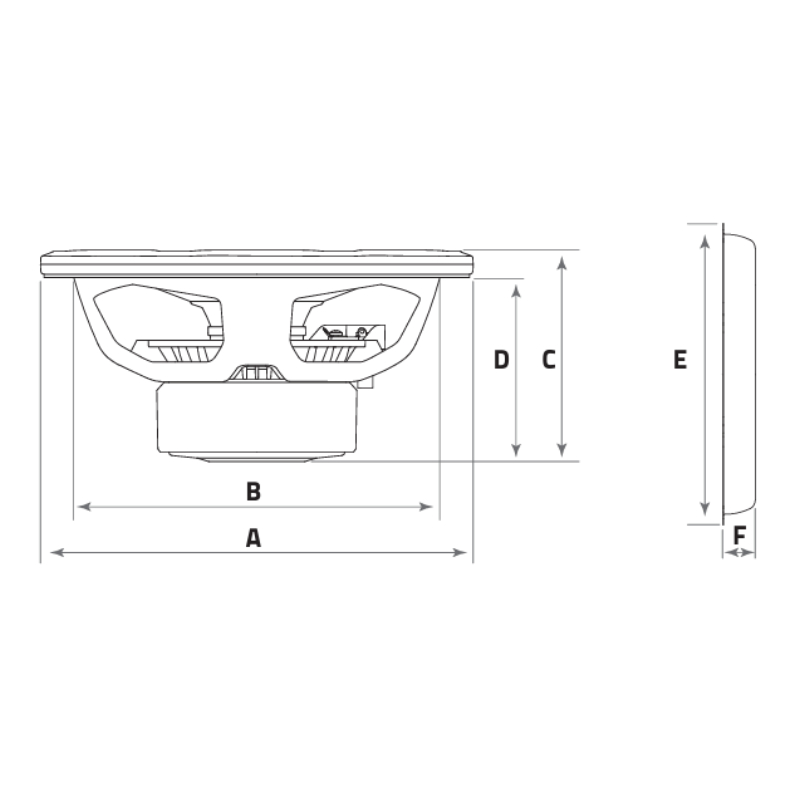

Physical Specifications
- • A: 270 mm (10.63 in.)
- • B: 231 mm (9.09 in.)
- • C: 132 mm (5.2 in.)
- • D: 115 mm (4.53 in.)
- • E: 260 mm (10.24 in.)
- • F: 28.3 mm (1.11 in.)
ENCLOSURES
*Enclosures is not included in this product
BOX TECH DATA - SEALED BOX
-
- • Panel A (A): 385 x 385 mm (15.16 x 15.16 inches) - Quantity: 2
- • Panel B (B): 385 x 142 mm (15.16 x 5.59 inches) - Quantity: 2
- • Panel C (C): 347 x 142 mm (13.66 x 5.59 inches) - Quantity: 2
Volume of Enclosure (Vb): 16 cu.ft. (0.57 cu.m)
•Tuning Frequency (Fb): 50 Hz
•Total Q Factor (Qtc): 0.87
•Width (W): 385 mm (15.16 inches)
•Height (H): 385 mm (15.16 inches)
•Depth (D): 180 mm (7.09 inches)
•Mounting Hole (M): 231 mm (9.09 inches)
•Wood Thickness: 19 mm (0.75 inches)
PANELS CUT LIST - SEALED BOX
- Diameter : 10 Inch
- Sensitivity : 84 dB
- Impedance : 2 Ohm
- Peak Power Handling : 600 Watts
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : .76 Cubic ft.
- RMS Power Handling : 300 Watts
Features:
- Electroacoustic design optimized for enclosures starting from 16 liters.
- Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
- Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
- 35 mm 2 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
- Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
- Ideal for use in custom boxes that can be shaped around the subwoofer thanks to its compact size and lack of the decompression hole.
- Terminal block featuring solid push contacts that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.
- Rubber protection of the magnetic assembly and high-strength ABS plastic gasket allowing the application of the optional grille for an elegant finish.
Specifications:
- Size: 250 mm (10 inches)
- Power Handling - Continuous: 300 W
- Power Handling - Peak: 600 W
- Impedance: 2 Ohms
- No Filter Component: Subwoofer
- Voice Coil Diameter: 35 mm (1.38 inches)
- Magnet Size (D x d x h): 120 x 45 x 34 mm (4.72 x 1.77 x 1.34 inches)
- Weight of One Component: 3.795 kg (8.37 lbs)
- Magnet Type: High density flux ferrite
- Cone Material: Polypropylene
- Xmech (Maximum Mechanical Excursion): 16.5 mm (0.65 inches)

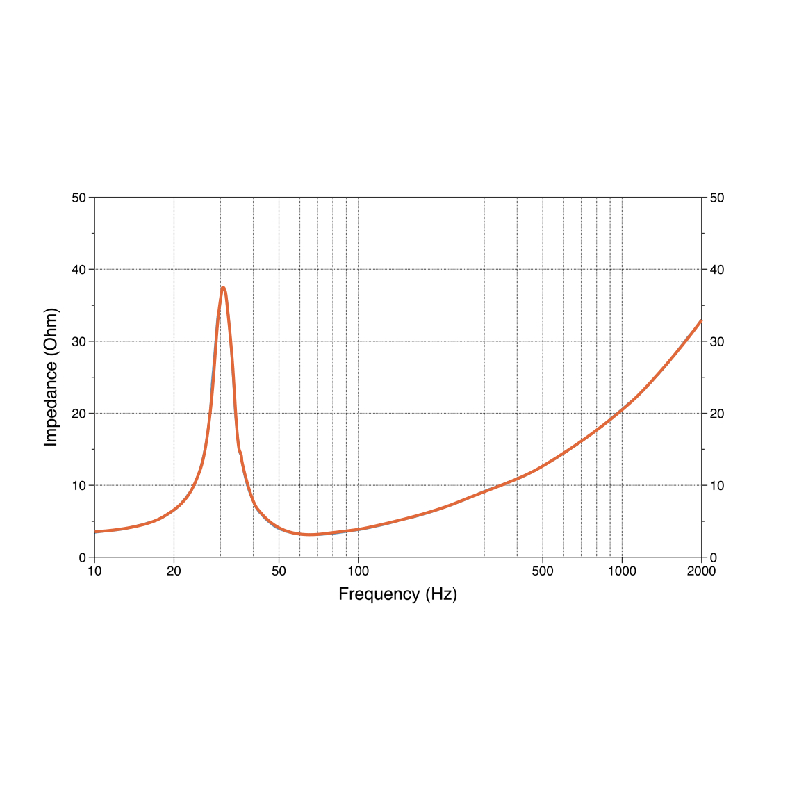

Electro-Acoustic Specifications:
- Diameter (D): 216 mm
- Maximum Mechanical Excursion (Xmax): 12.5 mm
- DC Resistance (Re): 2.2 Ohms
- Resonant Frequency (Fs): 30 Hz
- Inductance (Le): 2.38 mH
- Equivalent Air Volume (Vas): 32 liters
- Moving Mass (Mms): 166 grams
- Mechanical Compliance (Cms): 0.17 mm/N
- Force Factor (BL): 11.5 T*m
- Total Q Factor (Qts): 0.49
- Electrical Q Factor (Qes): 0.52
- Mechanical Q Factor (Qms): 9.4
- Sound Pressure Level (SPL): 84 dB
- UPC: 8018823130356
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
