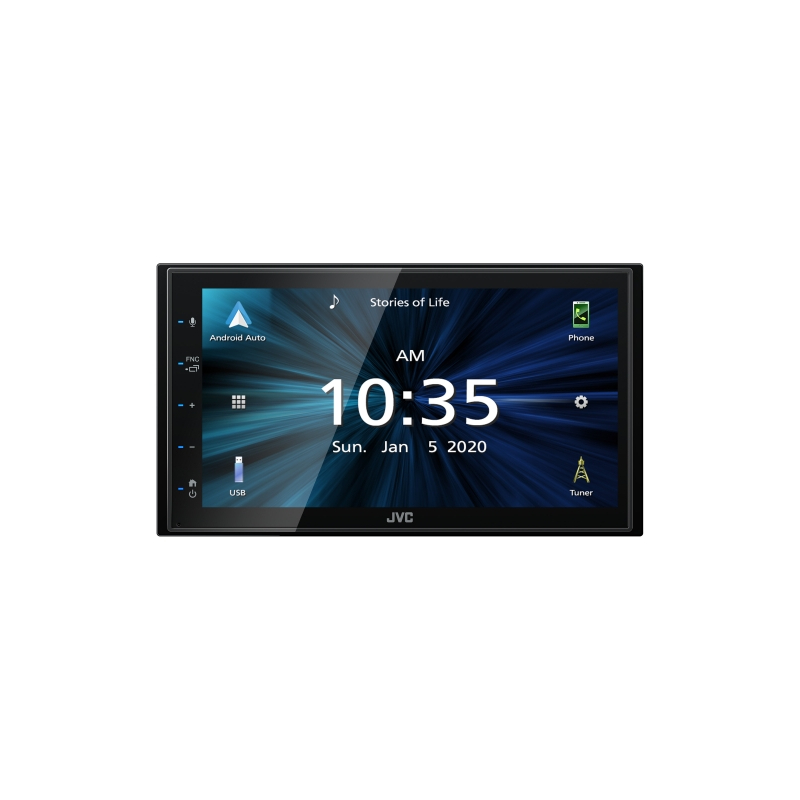

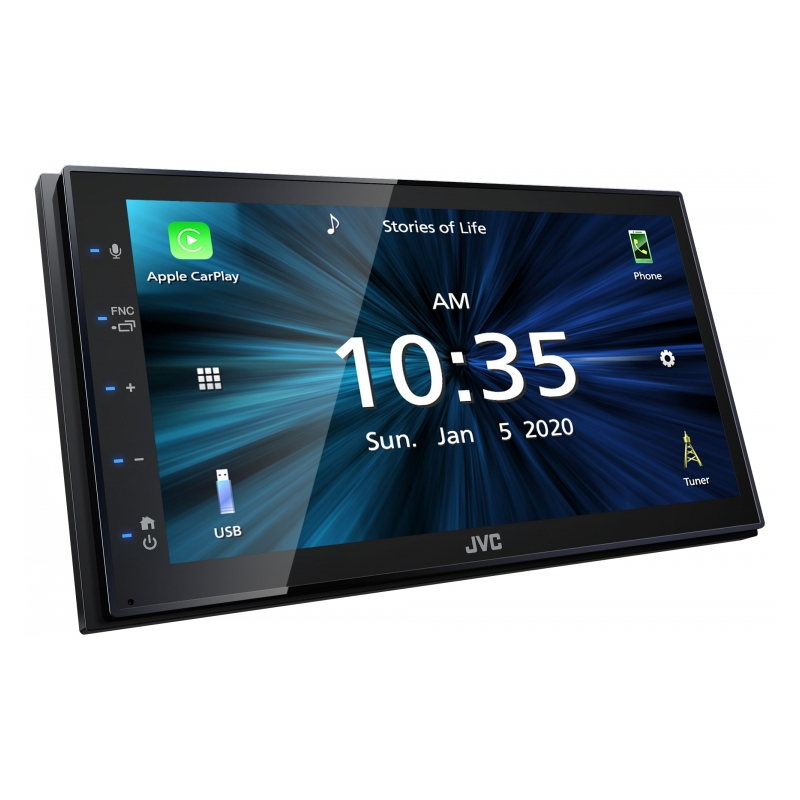

JVC  KW-M560BT

2-DIN 6.8" Digital Media Receiver with Capacitive Touch Monitor

Item #59617

Condition:   Brand New

Product Highlights

  • 2-DIN size
  • 6.8" display
  • Digital media receiver
  • Capacitive touch monitor

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$299.00

Reg. Price $349.95  Save $50.95
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


JVC Authorized Dealer

Huge Saving on Other items:


JVC Banner

KW-M560BT Digital Media Receiver featuring 6.8" Capacitive Touch Monitor


We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

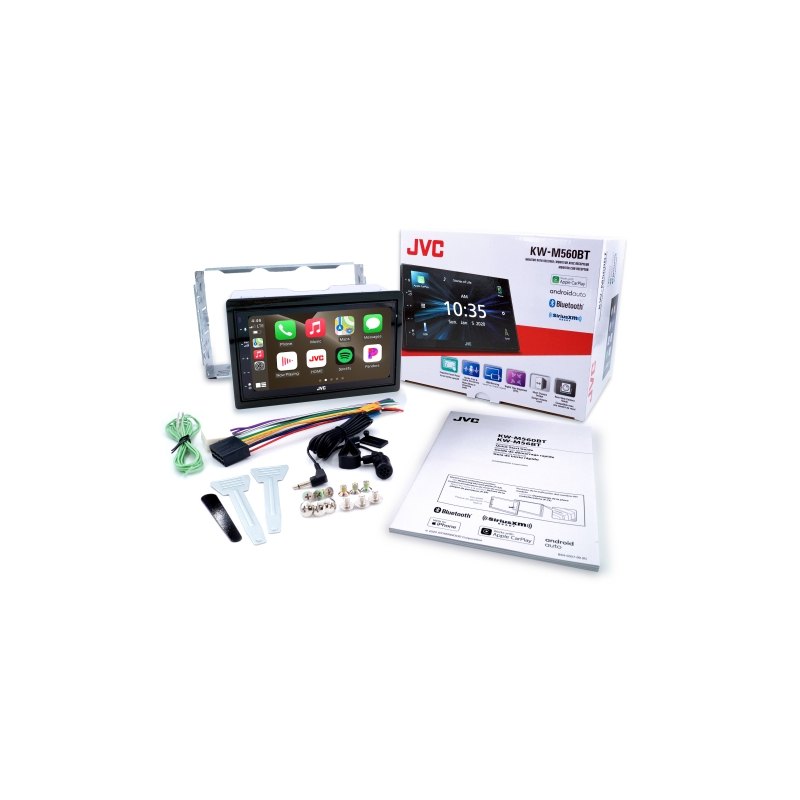

What's Inside?
  • •Digital media receiver w/ fixed 6.75" touchscreen monitor (15A fuse)
  • •Sleeve (attached)
  • •Trim ring
  • •Power harness
  • •Speaker harness
  • •6.5' Light-green parking brake wire (pre-installed)
  • •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
  • •2 Radio removal tools
  • •Trim-ring removal tool
  • •6 Pan-head ISO-mount screws
  • •6 Flat-head ISO-mount screws
  • •Quick Start Guide
  • • Owner's Manual
JVC_KW-M560BT
Smartphone Integration

The JVC KW-M560BT is a versatile in-dash multimedia receiver designed to provide a convenient and feature-rich audiovisual experience in your vehicle. With its advanced functionality and user-friendly interface, it is an excellent choice for upgrading your car's entertainment system.

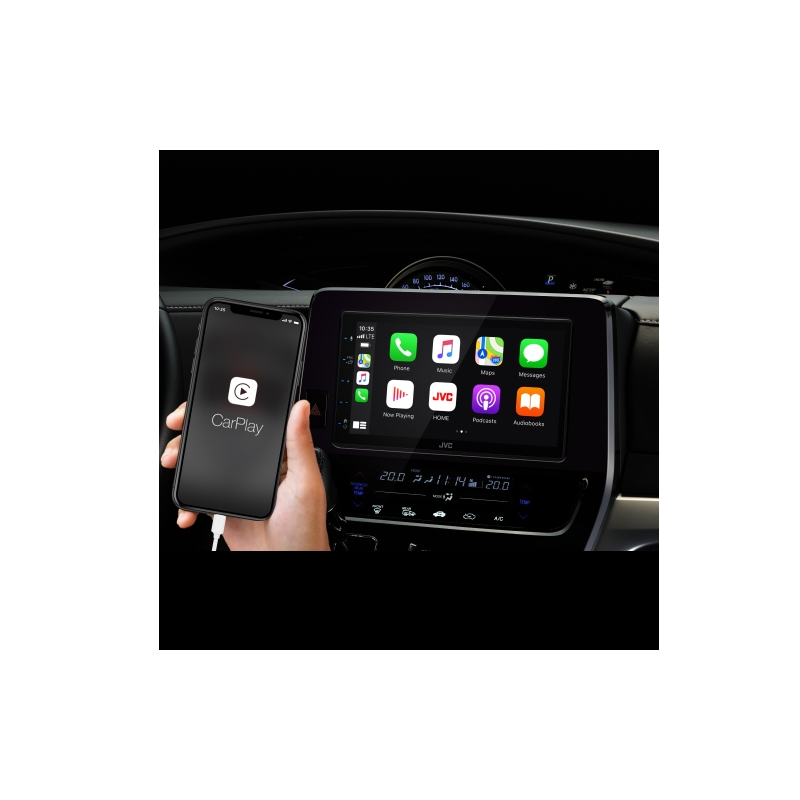

Apple CarPlay™ – Connect via USB

The KW-M560BT features a 6.75-inch clear resistive touchscreen display, offering a vibrant and responsive interface for easy control and navigation. It supports Apple CarPlay and Android Auto, allowing seamless integration with your smartphone for hands-free calling, messaging, music streaming, and access to various apps.

JVC_KW-M560BT
JVC_KW-M560BT

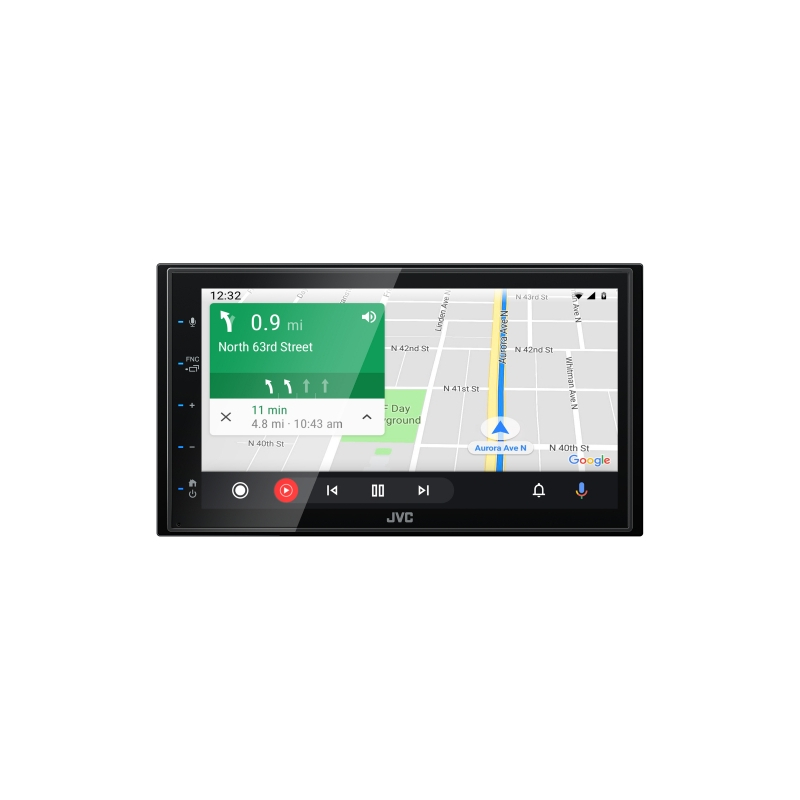

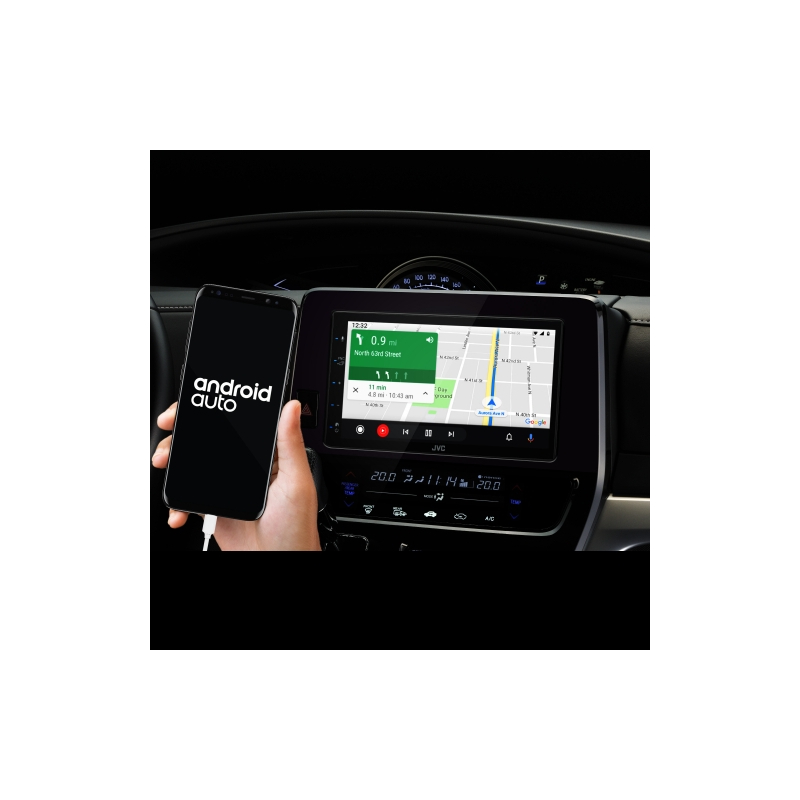

Android Auto™ – Connect via USB

Equipped with Bluetooth connectivity, the KW-M560BT enables wireless audio streaming and hands-free calling, ensuring a safe and convenient driving experience. It also supports dual phone connection, allowing you to connect and switch between two phones simultaneously.

Mirroring for Android Phone – Connect via USB

The receiver includes a built-in AM/FM tuner and is SiriusXM-ready, providing access to a wide range of radio stations and premium satellite radio channels for endless entertainment options. It also supports various audio and video formats, including FLAC and high-resolution audio playback. With its rear USB input, AV input, and more, the KW-M560BT offers versatile connectivity options for connecting external devices and expanding your multimedia capabilities.

JVC_KW-M560BT
  • Maximum Power : 4x50 Watts
  • Satellite Radio Ready : Yes
  • Subwoofer Preamp Outputs : Yes
  • Built-in EQ : Yes
  • DIN : 2
  • Preamp Voltage : 2 volts
  • Display Size : 6.8 Inch
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • Rear USB Input : 1
  • Preamp Outputs : 2
  • SD Card Slot : Yes
  • Apple CarPlay : Yes
  • Android Auto : Yes
  • USB Mirroring : Yes

Monitor

  • Screen Size: 6.8"W VGA Screen
  • Touch Panel: Capacitive
  • Monitor Touch Control : Yes
  • Customizable GUI: Yes
  • Key Illumination Color: Blue
  • Dimmer: Yes
  • Multilingual Display: Yes[4]



Media Playback

  • MP3 Compatible with Tag: USB
  • WMA Compatible with Tag: USB
  • WAV Compatible with Tag: USB
  • AAC Compatible with Tag: USB
  • FLAC Compatible with Tag: USB
  • H.264 Compatible: USB
  • WMV Compatible: USB
  • MPEG 1/2 Compatible: USB
  • MPEG 4 Compatible: USB
  • AVI/MKV Compatible: USB



Bluetooth Control

  • Built-in Bluetooth[1]: Yes (Wired-Mic included)
  • Hands Free Call: Yes (HFP1.6 Wideband Speech)
  • Audio Streaming & Control (A2DP, AVRCP): Yes
  • Supported Audio Formats: AAC / SBC
  • Voice Dialing (voice recognition compatible mobile phone required): Yes
  • Phone Book Access Profile (PBAP): Yes
  • Alphabetical Search for Phone Book: Yes
  • Auto Pairing for iPhone/Android: Yes (Android only)



Android Control

  • Android Auto[2]: Yes (via USB)
  • Mirroring for Android: Yes (via USB) *Need mirroring App
  • Android Music Playback: Yes (via Bluetooth(R))



iPod/iPhone Control

  • CarPlay[3]: Yes (via USB)



USB

  • USB Port: x 1 (High Speed)
  • Position: Rear
  • USB Power Supply: Yes (1.5A High Current Charging)



Radio Tuner

  • SiriusXM Ready: Yes
  • Radio Broadcast Data System (RBDS): Yes
  • Preset Stations 20(FM:15ch, AM:5ch)
  • Automatic Presetting (Strong Station Sequential Memory): Yes
  • FM
    • Frequency Range: 87.9 - 107.9MHz
  • AM
    • Frequency Range: 530-1,700kHz

Audio

  • Maximum Power Output (Front & Rear): 50Wx4
  • Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
  • EQ: Yes (13-Band Graphic EQ)
  • Preset EQ: Yes (7Preset + 3user)
  • Bass Boost: Yes
  • High-Pass Filter/Low-Pass Filter: Yes/Yes
  • Time Alignment: Yes

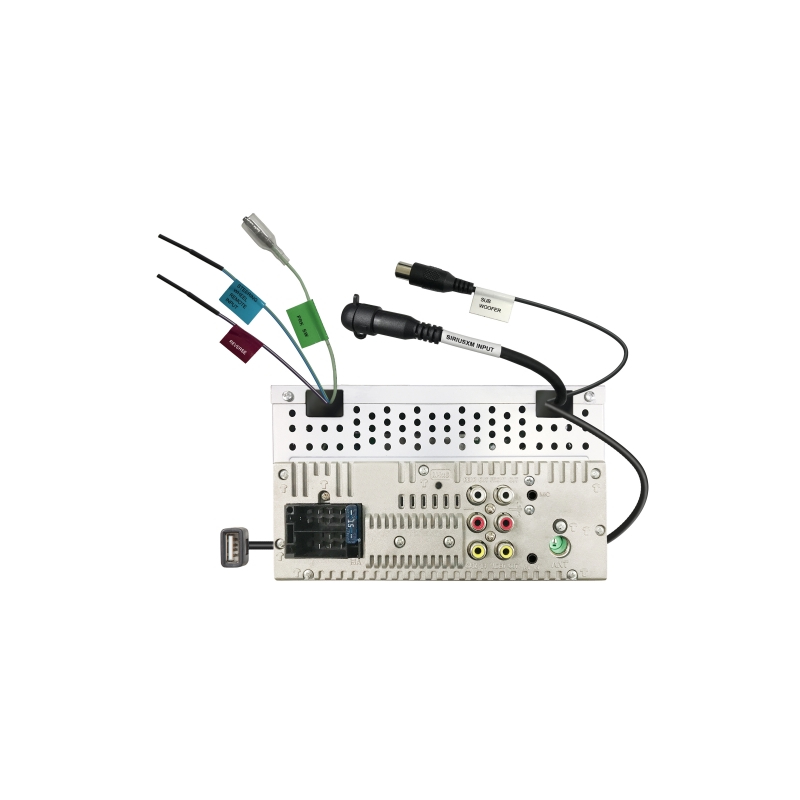

Inputs and Outputs

  • AV Input: mini jack (AV-IN or Camera switchable)
  • Video Out: RCA
  • Rear view camera Input: Yes
  • Line Output Terminals:  2Preouts (Terminal) + Sub WF (Cable)
  • Pre-output Level/Impedance: 2.0V / 10k ohms
  • Subwoofer Output with Level/Frequency Control: Yes



General

  • Back Up Memory: Yes
  • Wireless Remote Control: Ready (RM-RK258 required)
  • Steering Remote Control Ready: Yes
  • ISO Connector: Yes



Dimensions (W x H x D)

  • Installation Size : 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)
  • Weight: 2.8 lbs. (1.3kg) Including Sleeve and Trim plate
  • Unit weight in individual package: 1.8kg



  • UPC: 046838082016
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
