Sony XAV-AX150 1-DIN 6.95" Digital Multimedia Receiver with Wired Apple CarPlay™ & Android Auto™, Back-Up Camera Ready™ and Bluetooth®
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

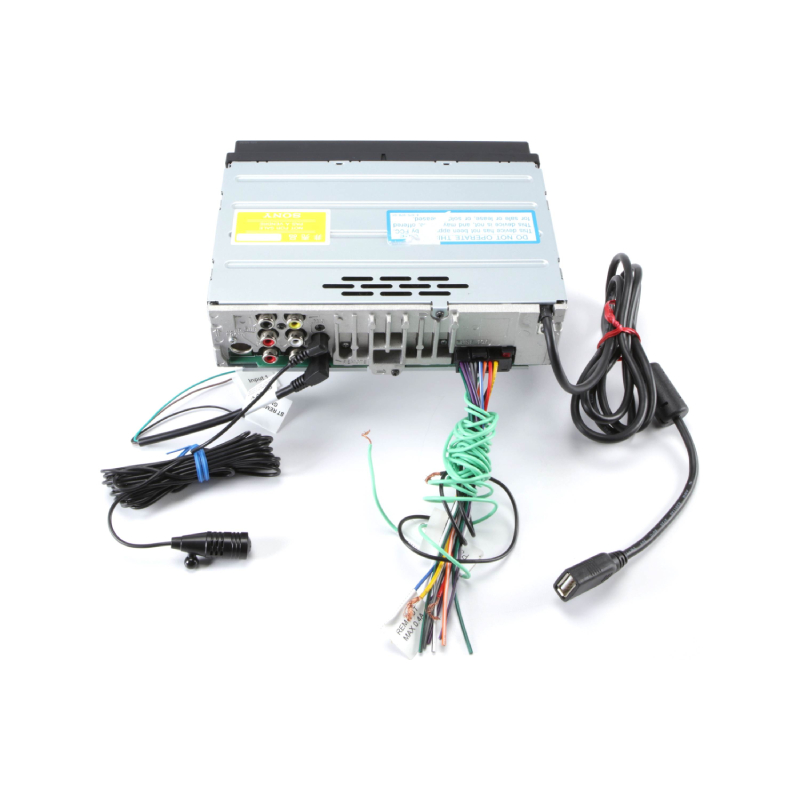

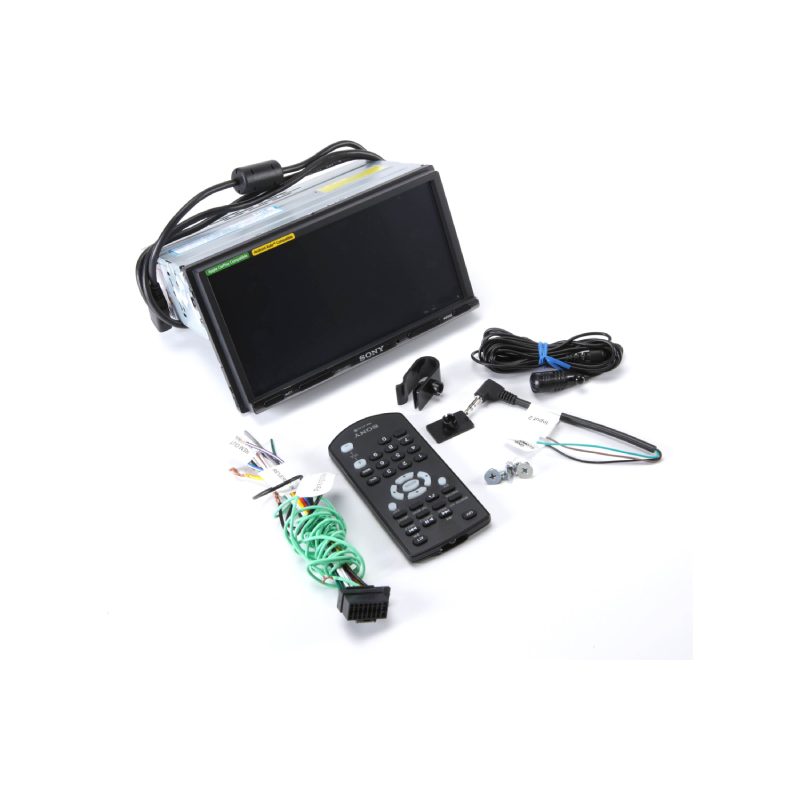

What's Inside?
- • Digital multimedia receiver (10A fuse)
- • Wiring harness (6.5' parking brake wire)
- • Remote control (RM-X170)
- • CR2025 3V battery (installed in remote)
- • Microphone w/ bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- • SWC cable
- • Two-sided tape
- • (4) ISO-screws
- • Operating Instructions
- • Warranty Sheet
More screen, more useable
Enjoy smooth and simple control for every journey, with a responsive 6.95 inch diagonal touchscreen display that wakes up two and a half times faster than previous models, and support for leading smartphone interfaces.

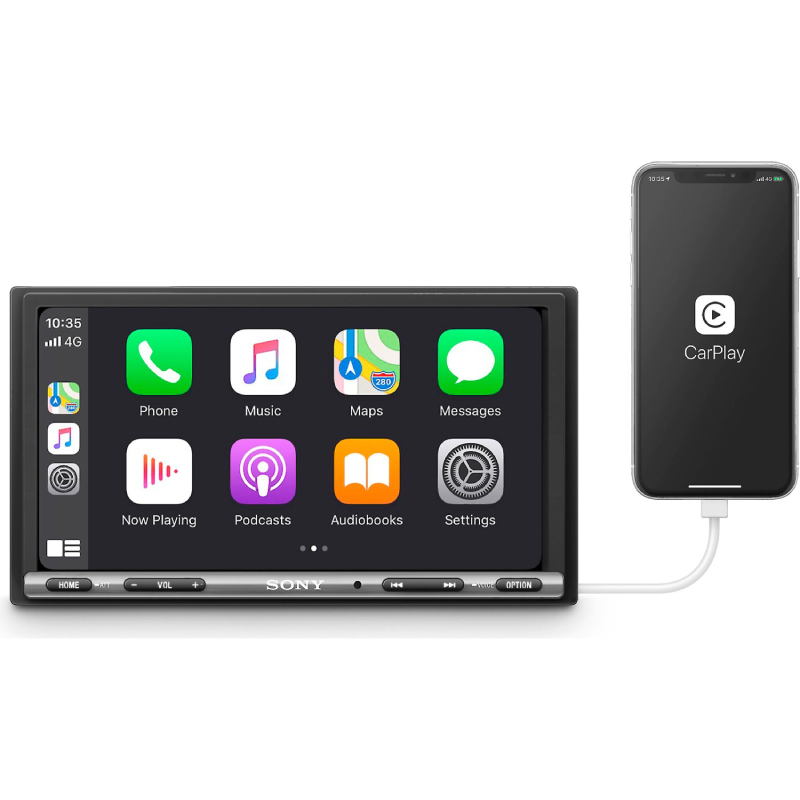

Siri with Apple CarPlay
Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

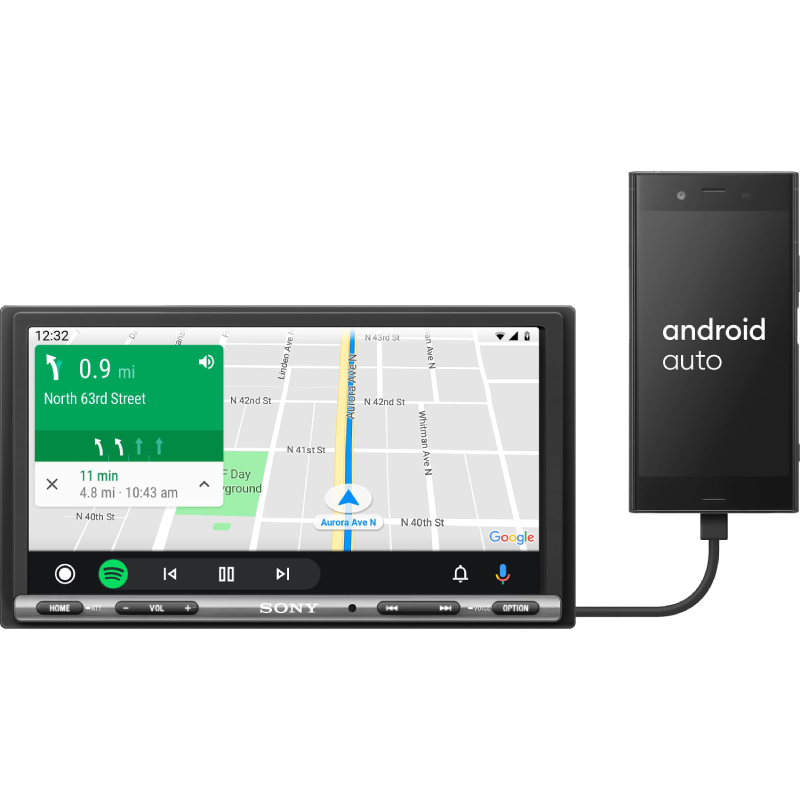

Voice Control with Android Auto
Use voice commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback, just by talking.
Navigating with Apple CarPlay & Android Auto
Tell Siri where you're going, and it will give you real-time directions as you drive. Use Google Maps to get directions and traffic updates whenever you need them.

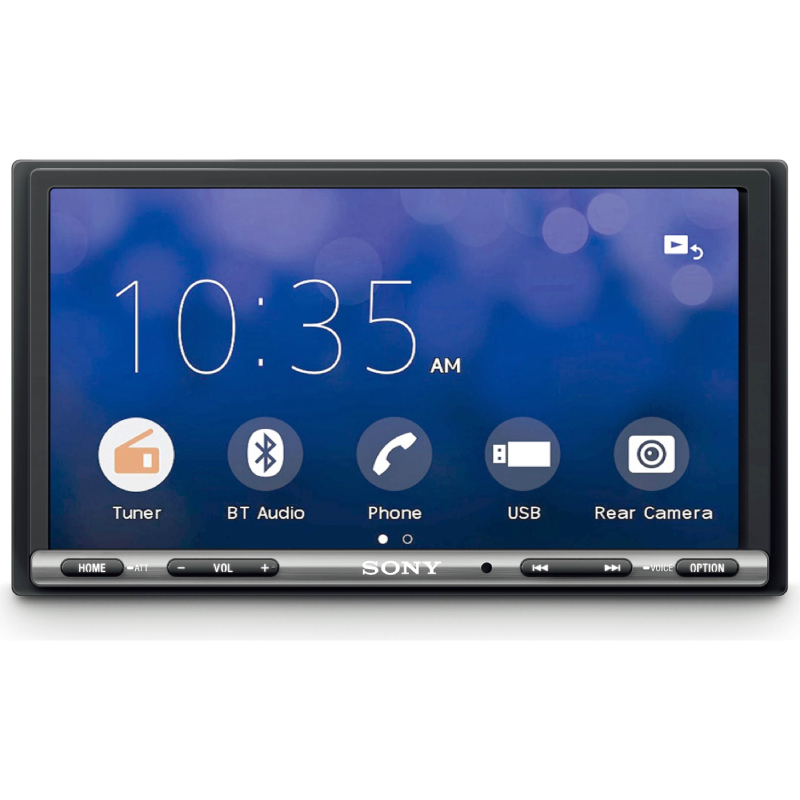

Sleek, responsive touchscreen
Bring up maps, sort through playlists, and make phone calls — all from a sleek 17.6 cm diagonal (6.95 inch) screen. It ensures everything is easy to use, and wakes up two and a half times faster than previous models, so you can get on the road in no time.
Simple button controls
Get instant access to commonly-used features such as volume, source, sound settings and voice control for safe and easy operation on the road.
Powerful, clear amplification
Advanced signal processing from the 4 x 55W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed. Even when you crank up the volume.
Music that jumps from your dashboard
Sound waves are directional, so if your speakers are in your doors or under your dash, the audio may seem muddy or unclear. Dynamic Stage Organiser adjusts the signal, improving the stereo positioning so music sounds like it's coming from the dashboard.
Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customisable guidelines that help you back in safely.
BLUETOOTH® wireless technology
Make hands-free calls and stream wireless audio from your smartphone, with Bluetooth®.
FLAC compatible
FLAC compatibility lets you play lossless audio files, so you can enjoy every detail of the music
- Satellite Radio Ready : No
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 2 volts
- Display Size : 6.95 Inch
- Bluetooth : Yes
- Aux Input : No
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 5
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- Apple CarPlay
- Android Auto
- Bluetooth
- Easy installation
- Rear view camera ready
- FLAC compatible
- Quick wake up
- Extra BASS
Specifications:
- Output Power: 55 W x4
- Pre out: 3 Pre (Front/Rear/Sub x 1)
- Rear View Camera In: Yes
- USB: Yes (Rear x1)
- Navigation:Apple CarPlay, Android Auto™
- FIRMWARE UPGRADABILITY: Yes
- DSO (Dynamic Stage Organizer): Yes
- Equalizer: 10-band Graphic Equalizer
- Extra BASS: Yes (Off/1/2)
- Album Artwork Indication: Yes
Tuner Features
- PRESET: FM18 / AM12
- AUTO MEMORY: BTM
- RDS / EON: Yes (RBDS)
Bluetooth Profile
- HFP 1.5: Yes (1.6)
- A2DP: Yes (1.3)
- AVRCP: Yes (1.3)
- PBAP: Yes (1.1)
Bluetooth Features
- SPEED DIAL: Yes (6 memories)
- RECENT CALLS (# OF): Yes
- LAST DIALED CALL: YES (select from the dialed call history)
- PHONEBOOK ACCESS VIA PBAP: Yes
- ALPHABETICAL PHONEBOOK SORTING: Yes
- RING VOLUME LEVEL CONTROL: Yes
- CALL VOLUME LEVEL CONTROL: Yes
- EXTERNAL MICROPHONE: Supplied
- PHONE BATTERY LEVEL REMINDER: Yes
- SIGNAL STRENGTH INDICATION: Yes
Bluetooth Audio Features
- AUDIO CODEC (BLUETOOTH AUDIO): SBC / AAC
- PAUSE (BLUETOOTH AUDIO): Yes
- CUE / REV: Yes
- TRACK +/-: Yes
- GROUP (FOLDER) +/-: Yes
- AUDIO LEVEL ADJUSTMENT: Yes (-8 dB to +18 dB)
- REPEAT CONTROL (AUDIO DEVICE SIDE): Yes
- SHUFFLE CONTROL (AUDIO DEVICE SIDE): Yes
- META DATA INDICATION: Yes
Panel Design
- PANEL SURFACE FINISH COLOR: Black
- KEY ILLUMINATION: Yes (White)
Monitor(AVC)
- LCD TYPE: TFT Active Matrix
- SCREEN ASPECT: 17: 9
- SCREEN DIAGONAL (INCH / MM): 6.95 inches
- SCREEN SIZE (W X H MM): 156.6 x 81.6 (mm)
- RESOLUTION (DOT): 800 x 480
- DIMMER: Yes
- CONTRAST RATIO: 600
- BRIGHTNESS: 500 cd/m2
Display Panel
- KEY ILLUMINATION: Yes (White)
- DIMMER ADJUST: Yes
User Interface
- Touch Panel: Yes / Resistive
- Gesture Command: Yes
- Remote Commander: RM-X170
- Parking Control: Yes
- Aspect Ratio Select: Yes
- Rear View Camera-in marker settings: Yes
USB Mass Storage Device Control Feature
- USB DEVICE CONTROL (REPEAT): TRACK / FOLDER / DRIVE
- USB DEVICE CONTROL (SHUFFLE): OFF / FOLDER / DEVICE
- USB DEVICE CONTROL (PAUSE): Yes
- USB DEVICE CONTROL (RESUME PLAY): Yes
- USB DEVICE CONTROL (AUDIO CODEC): PCM/MP3/WMA/AAC/FLAC
- USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION): .wav/.mp3/.wma/.m4a/.flac
- USB DEVICE CONTROL (VIDEO CODEC): MPEG4-SP / AVC (H.264 Baseline) / WMV / FLV / MKV / XviD
- USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION): .mp4 / .wmv / .mkv
Multi-Language
- MENU: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic
- CAUTION: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic
- ID3 TAG: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic
- UPC: 0027242917378
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
