Sony  XAV-AX3200 On Sale

6.95" Resistive Touchscreen Digital Media Receiver with Wired Apple CarPlay™ & Android Auto™, Bluetooth, SiriusXM™ and WebLink™ Cast

Item #82537

Condition:   Brand New

Product Highlights

  • 6.95" Resistive Touchscreen
  • Wired Apple CarPlay™ & Android Auto™
  • Bluetooth Connectivity
  • SiriusXM™ Support
  • WebLink™ Cast

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$298.00

Discount Already Applied!
Reg. Price $369.99  Save $71.99
In Stock
In Stock

Only 4 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Sony Authorized Dealer

Sony Banner

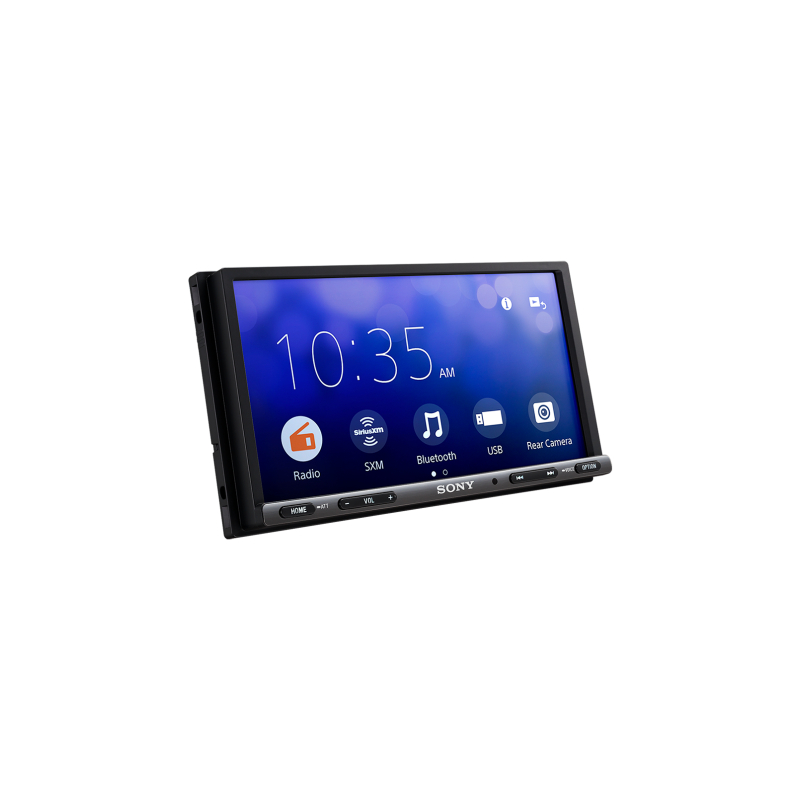

SONY XAV-AX3200 1-DIN 6.95" Resistive Touchscreen Digital Media Receiver with Wired Siri and Apple CarPlay™, Voice Control Android Auto™, Bluetooth and SiriusXM™, Back-Up Camera Ready™ and WebLink™ Cast


We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 1-DIN 6.95" Digital multimedia receiver (10A fuse)

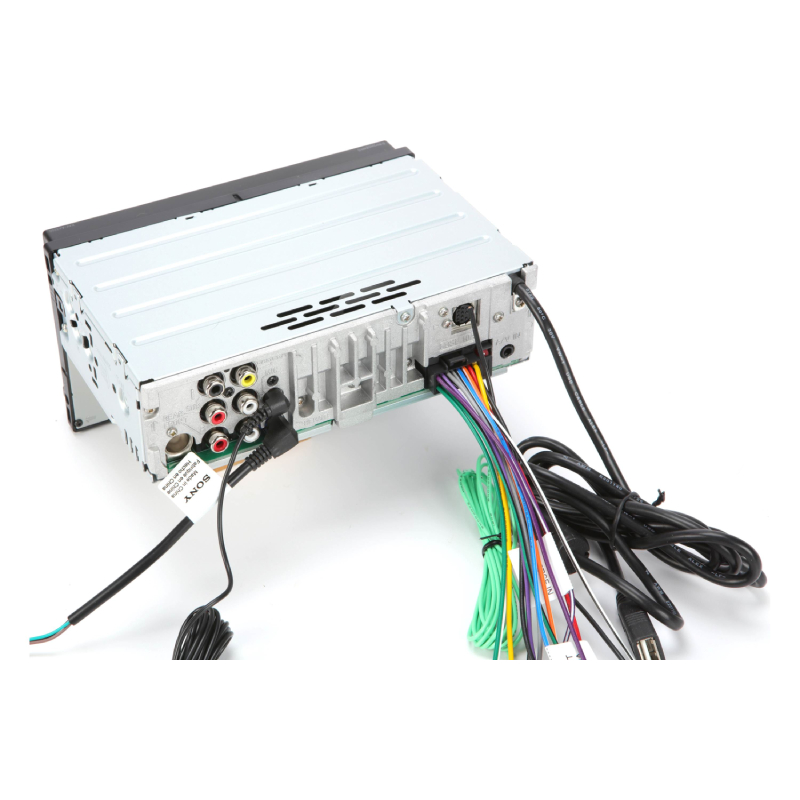

  • • Wiring harness (6.5' parking brake wire)
  • • Remote control (RM-X170)
  • • CR2025 3V battery (installed in remote)
  • • Microphone w/ bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
  • • 3-Wire SWC cable
  • • Two-sided tape
  • • (4) ISO-screws
  • • Warranty Sheet
  • Owner's Manual
Mid-level Media Receiver With Modern Features

Sony has been a staple brand in the market when it comes to electronic products, and now that Sony has entered the in-car receiver industry, it is now offering a mid-level media receiver with modern features at a more affordable price

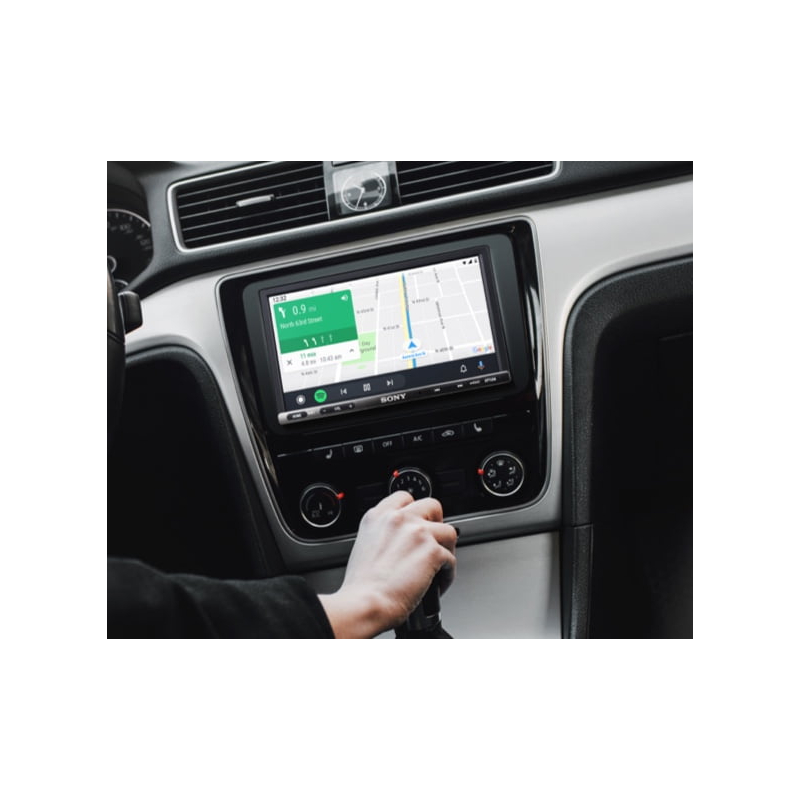

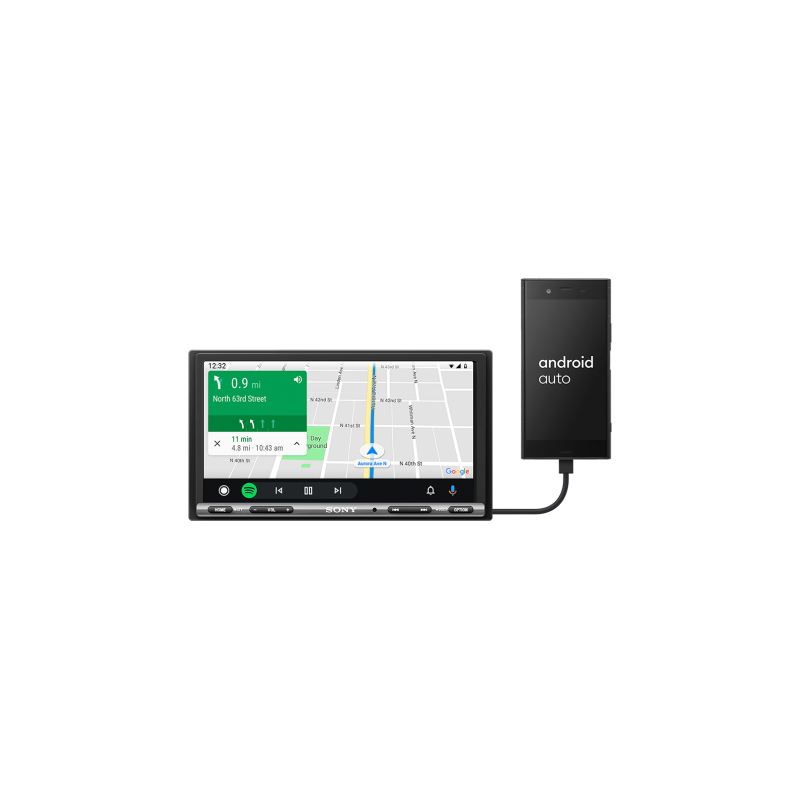

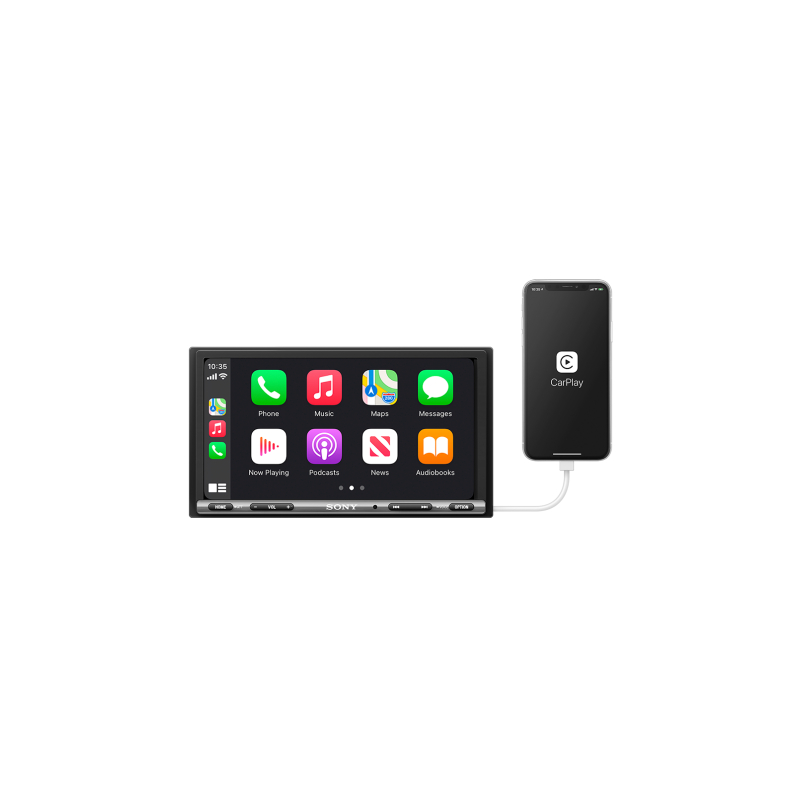

Android Auto and Apple CarPlay

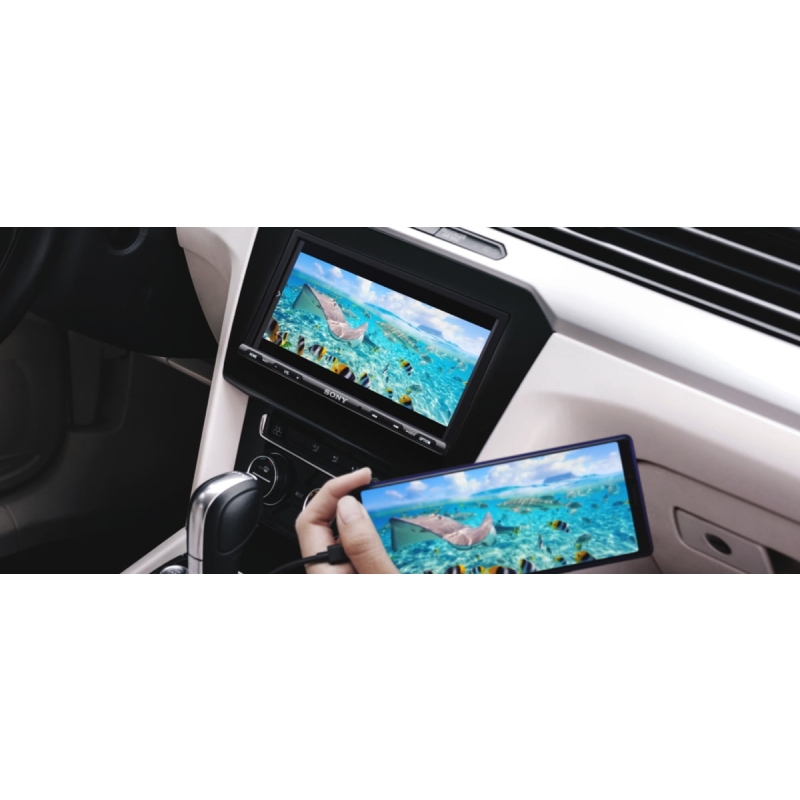

The Sony XAV-AX3200 is compatible with Android Auto and Apple CarPlay, which allows you to play music, ask for directions, read and send messages, make and take calls, and listen to voicemails using voice commands. It is also compatible with WebLink Cast, which now you can mirror your phone to the receiver's display, whether it is an Android or an iPhone.



Bluetooth Connectivity Option

It has a Bluetooth connectivity option for wireless music streaming and taking calls hands-free. It is also SiriusXM-ready, which is an additional entertainment feature so that you can listen to your favorite stations and shows while you are on the road.

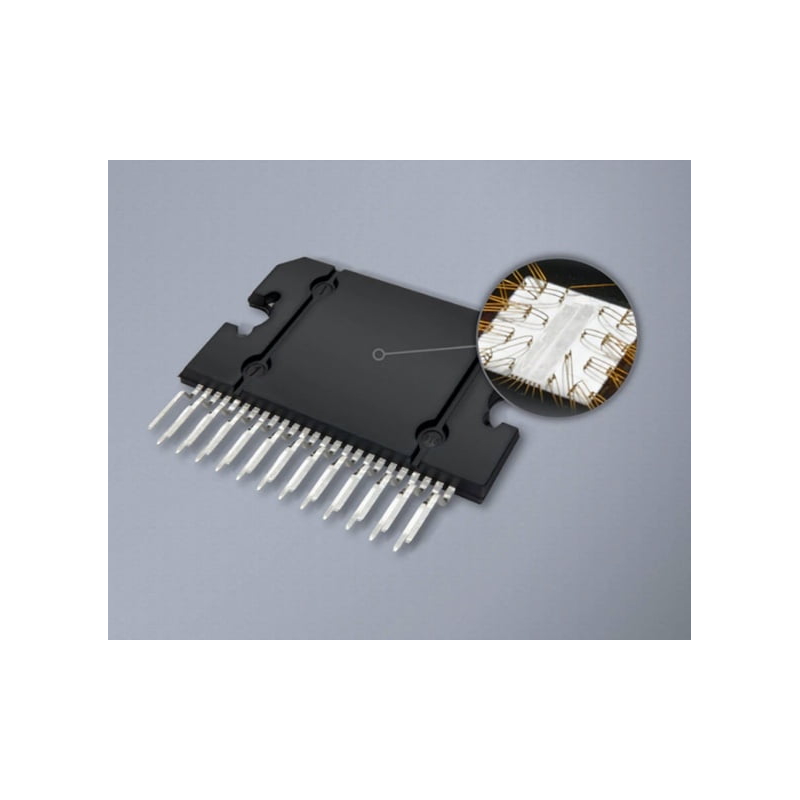

Has a Built-in Amplifier

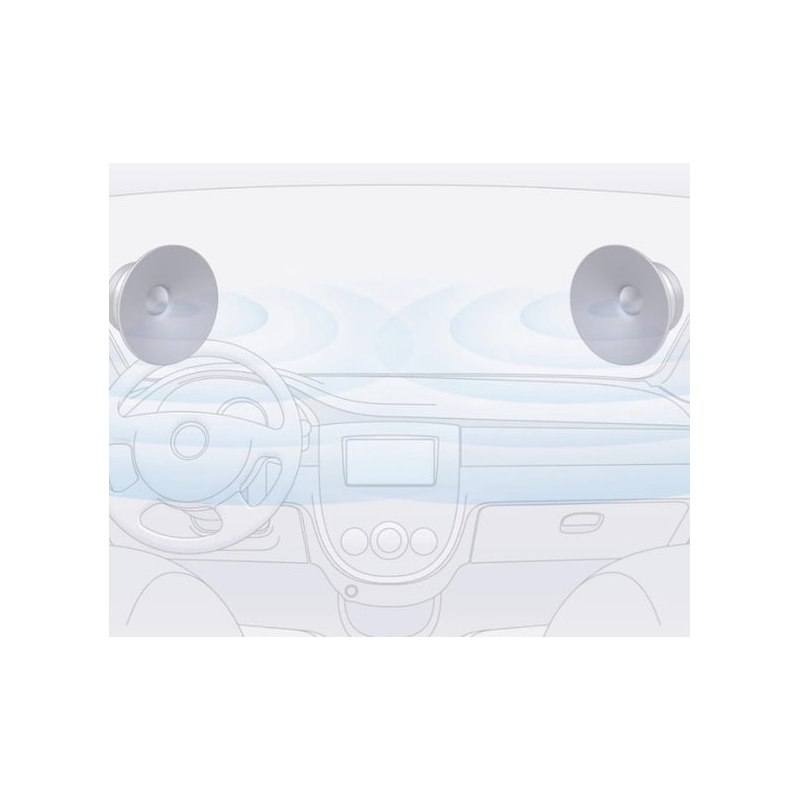

The receiver has a built-in amplifier with a 5-channel preamp output and a power output of 20 Watts RMS per channel and can reach up to 55 Watts of peak power. It also has a 10-band EQ for shaping the amplifier's frequency response, a bass enhancement option, and lastly, it comes with Sony's dynamic stage organizer technology, which compensates for the audio quality you hear with your speakers that are positioned lower than usual.



  • Satellite Radio Ready : Yes
  • Subwoofer Preamp Outputs : Yes
  • Built-in EQ : Yes
  • DIN : 1
  • Preamp Voltage : 2 volts
  • Display Size : 6.95 Inch
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • HD Radio : No
  • Rear USB Input : 1
  • Preamp Outputs : 2

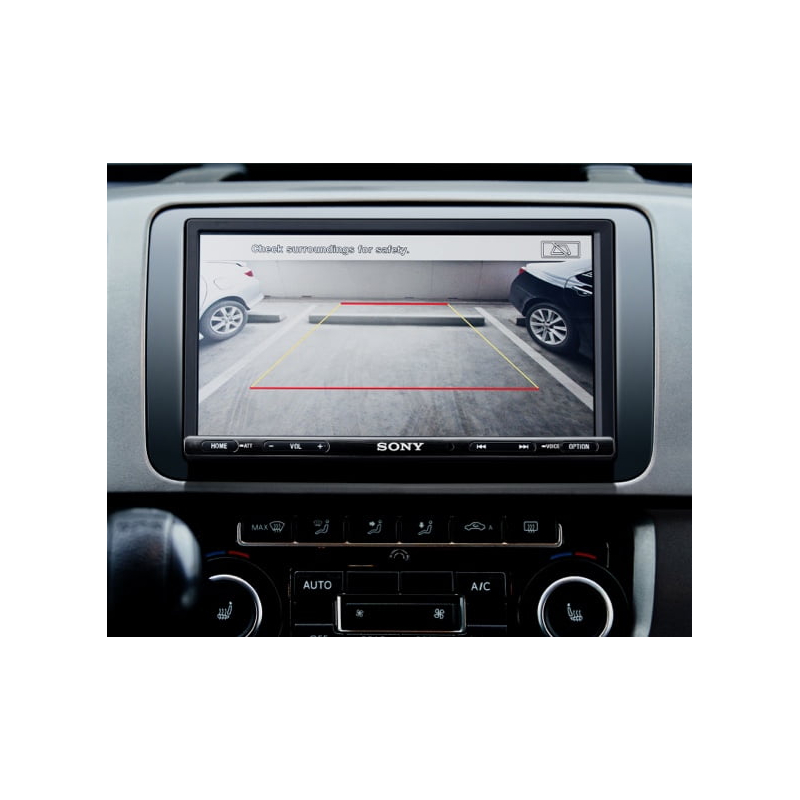

  • Rear View Camera Input : Yes
  • Apple CarPlay : Yes
  • Android Auto : Yes
  • USB Mirroring : Yes

Features:

  • Dimensions (W X H X D): 178x100x139mm
  • Weight: 1.0kg
  • Output Power: 55w X 4
  • Pre Out: 3 Pre (Front / Rear / Sub X 1)
  • Rear View Camera In: Yes
  • USB: Yes (Rear X1)
  • Firmware Upgradability: Yes
  • DSO (Dynamic Stage Organizer): Yes
  • Equalizer: 10-band Graphic Equalizer
  • Extra Bass: Yes (Off / 1 / 2)
  • Bluetooth®: Yes



Tuner Features:

  • PRESET: FM18 / AM12
  • AUTO MEMORY: BTM
  • RDS / EON: Yes (RDS)



Bluetooth Profile:

  • HFP: Yes (1.6)
  • A2DP: Yes (1.3)
  • AVRCP: Yes (1.3)
  • PBAP: Yes (1.1)



Bluetooth Features:

  • Speed Dial: Yes (6 Memories)
  • Recent Calls (# Of): Yes
  • Last Dialed Call: Yes (Select From The Dialed Call History)
  • Phonebook Access Via Pbap: Yes
  • Alphabetical Phonebook Sorting: Yes
  • Ring Volume Level Control: Yes
  • Call Volume Level Control: Yes
  • External Microphone: Supplied
  • Battery Reminder: Yes
  • Signal Strength Indication: Yes



Bluetooth Audio Features:

  • Audio Codec (Bluetooth Audio): Sbc / Aac
  • Pause (Bluetooth Audio): Yes
  • Cue / Rev: Yes
  • Track +/-: Yes
  • Group (Folder) +/-: Yes
  • Audio Level Adjustment: Yes (-6db To +6db)
  • Repeat Control (Audio Device Side): Yes
  • Shuffle Control (Audio Device Side): Yes
  • Meta Data Indication: Yes



Panel Design:

  • Panel Surface Finish Color: Black
  • Key Illumination: Yes (White)



Monitor(AVC):

  • Lcd Type: TFT Active Matrix
  • Screen Aspect: 17: 9
  • Screen Diagonal (Inch / Mm): 6.95 Inch
  • Screen Size (W X H Mm): 156.6 X 81.6 (Mm)
  • Resolution (Dot): 800 X 480
  • Dimmer: Yes
  • Contrast Ratio: 400
  • Brightness: 500cd / M2



Display Panel:

  • Key Illumination Initial: Yes (White)
  • Dimmer Adjust: Yes



User Interface:

  • Remote Commander: Rm-x170
  • Parking Control: Yes
  • Parking Line Adjust: Yes
  • Aspect Ratio Select: Yes
  • Rear View Camera-in Marker Setting: Yes
  • USB Mass Storage Device Control Feature
  • USB Device Control (Repeat): Track / Folder / Drive
  • USB Device Control (Shuffle): Off / Folder / Device
  • USB Device Control (Pause): Yes
  • USB Device Control (Resume Play): Yes
  • USB Device Control (Audio Codec): Pcm / Mp3 / Wma / Aac / Flac
  • USB Device Control (Audio Playable File Extension): .wav / .mp3 / .wma / .m4a / .flac
  • USB Device Control (Video Codec): Mpeg4-sp / Avc (H.264 Baseline) / Wmv / Mkv / Xvid
  • USB Device Control (Video Playable File Extension): .mp4 / .wmv / .mkv



Multi-Language:

  • MENU: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
  • CAUTION: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
  • ID3 TAG: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian

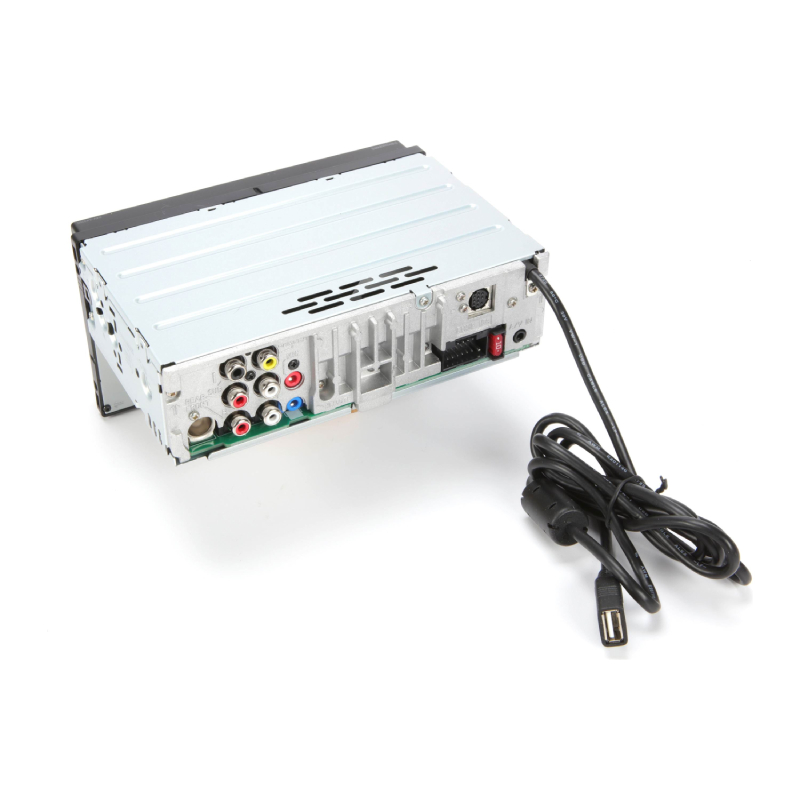

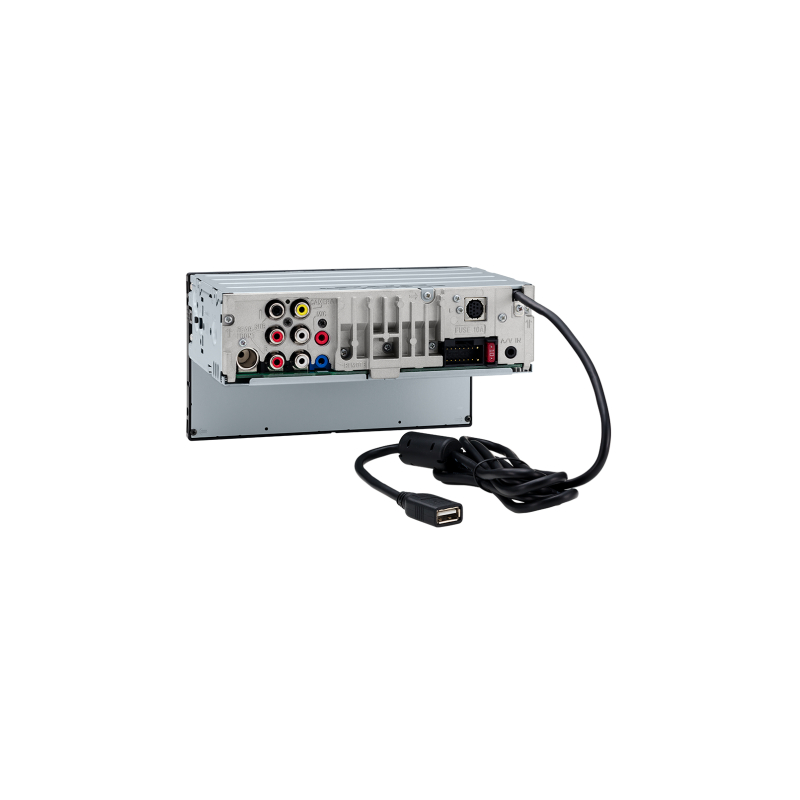

Specifications:

  • AUX Input: Mini (rear)
  • Audio/video Input: Mini (rear)
  • USB Input: Rear
  • USB Port Power: 1.5A
  • Backup Camera Input: Yes
  • Second Camera Input: No
  • CarPlay: Yes
  • Android Auto: Yes
  • Siri Control: CarPlay only
  • Alexa Voice Control: N
  • Android Control: Yes
  • Memory Card Slot: USB memory
  • Bluetooth Compatible: Built-in
  • Satellite Radio Ready: SiriusXM
  • HD Radio: No
  • Navigation: Optional
  • Full size: No
  • Nano: No
  • Touch: No
  • iPhone: 5S and newer
  • RMS Power (CTA-2006): 20 watts
  • RMS Power (Manufacturer): 20 watts
  • Peak Output: 55 watts
  • RMS Power Bandwidth: 20-20kHz
  • Preamp Outputs: 5-channel
  • Sub Preamp Outputs: Yes
  • Switchable Rear Preamp Outputs: No
  • Video Screen: Yes
  • Navigation App Compatible: (iOS) Apple, Google, Waze
  • Navigation App Compatible: (Android) Google, Waze
  • Preamp Voltage: 2 volts
  • Screen Size: 6.95
  • Screen Type: Basic (Resistive)
  • Key Button Color: White
  • EQ Bands: 10
  • Wireless Remote: Yes
  • Steering Wheel Control Compatible: Adapter required
  • FM Sensitivity: 7 dBf
  • European Tuning: No
  • Seek/Scan: Seek
  • Radio Data System: Yes
  • UPC: 0027242922327
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
