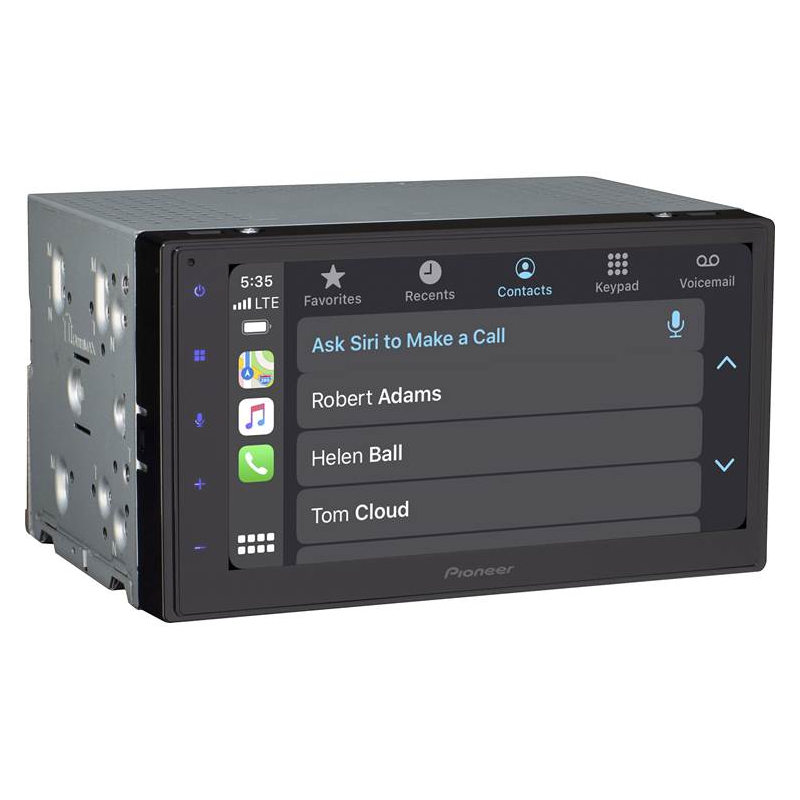

Pioneer  DMH-1770NEX On Sale

6.8" Touchscreen 2-DIN Digital Multimedia Receiver with Wired Apple CarPlay & Android Auto, Bluetooth, SiriusXM® and Back-up Camera Ready

Item #79753

Condition:   Brand New

Product Highlights

  • 6.8" Touchscreen
  • 2-DIN Digital Multimedia Receiver
  • Wired Apple CarPlay & Android Auto
  • Bluetooth
  • SiriusXM® Ready
  • Back-up Camera Ready

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$269.99

Discount Already Applied!
Reg. Price $410.00  Save $140.01
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $25/mo with . Check your purchasing power

No Credit needed for Learn More


Pioneer Authorized Dealer

Huge Saving on Other items:


Pioneer DMH-1770NEX 6.8" Touchscreen 2-DIN Digital Multimedia Receiver with Wired Apple CarPlay & Android Auto, Bluetooth, SiriusXM® and Back-up Camera Ready


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

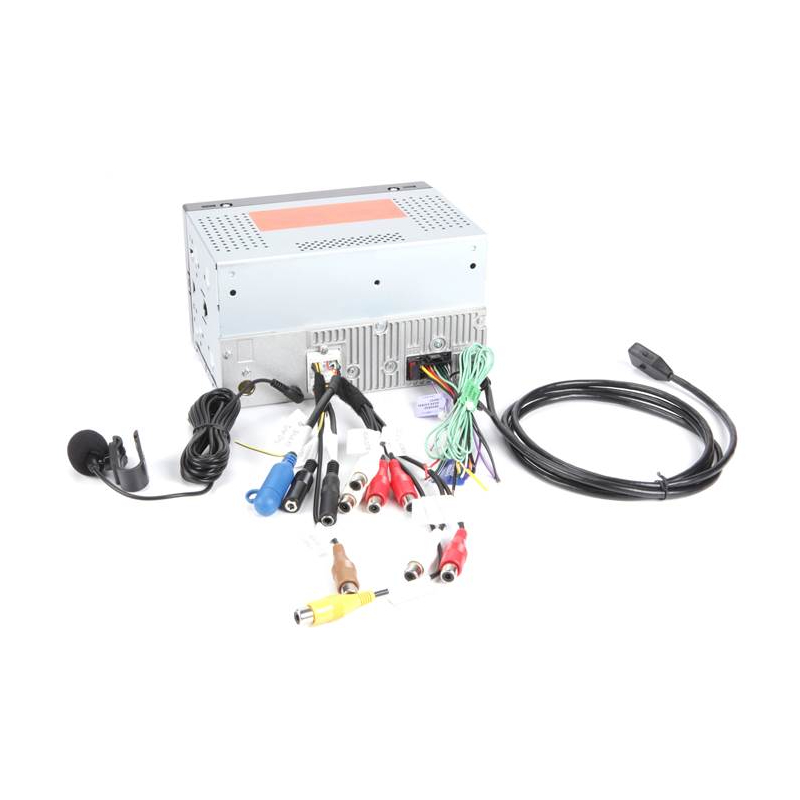

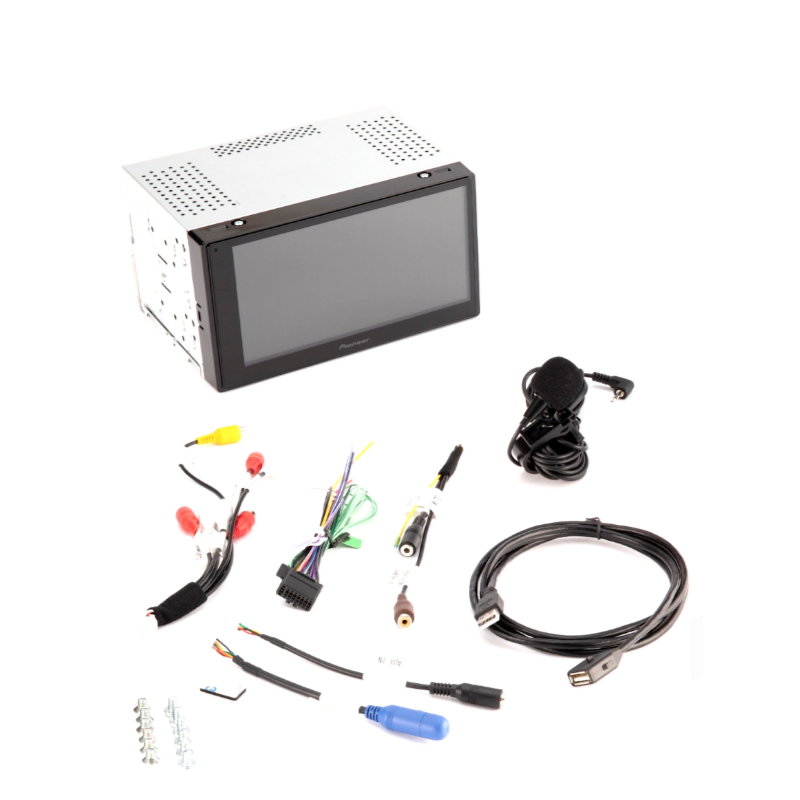

What's Inside?
  • • Digital multimedia receiver(10A fuse)
  • • Wiring harness
  • • Remote control (CXE5116)
  • • CR2025 3V lithium battery (installed in remote)
  • • AV/Preout harness
  • • Aux-in harness
  • • Camera/SWC harness
  • • SiriusXM harness
  • • 58" USB extension cable
  • • Microphone w/ bracket (attached 13' cable terminated by a right-angled 2.5mm connector)
  • • Two-sided tape
  • • (6) Pan-head ISO screws (M5 x 9mm)
  • • (6) Counter-sunk ISO screws (M5 x 9mm)
  • • Installation Manual
  • • Quick Start Guide
  • • Warranty Sheet
Equipped With the Latest Technologies

If you are searching for the next multimedia receiver upgrade for your vehicle's entertainment system, the Pioneer DMH-1770NEX is perhaps an excellent bet for you. Now, you do not have to break the bank to get a receiver that is equipped with the latest technologies the industry has to offer.

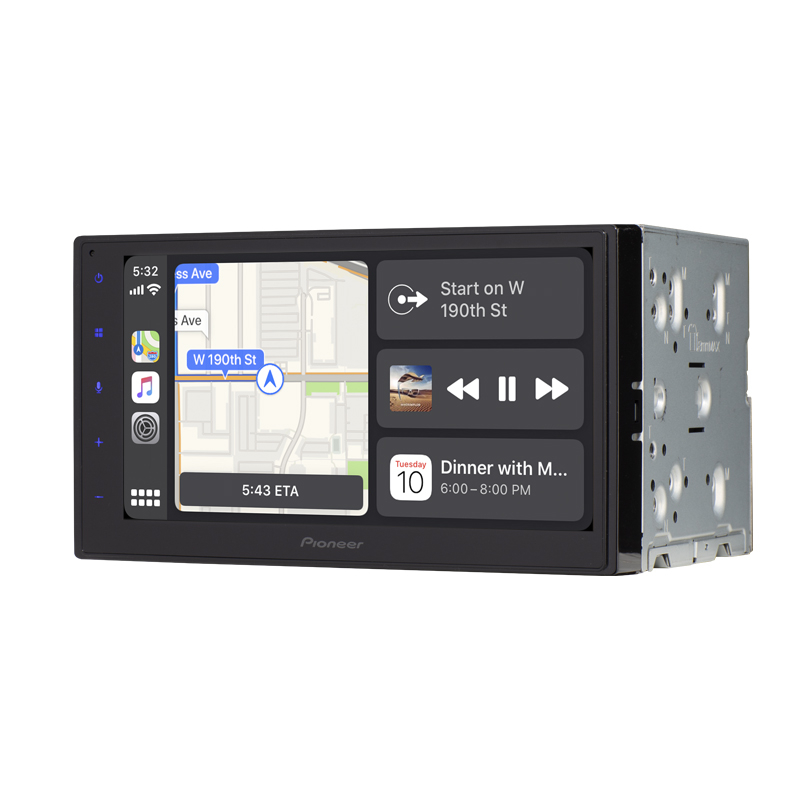

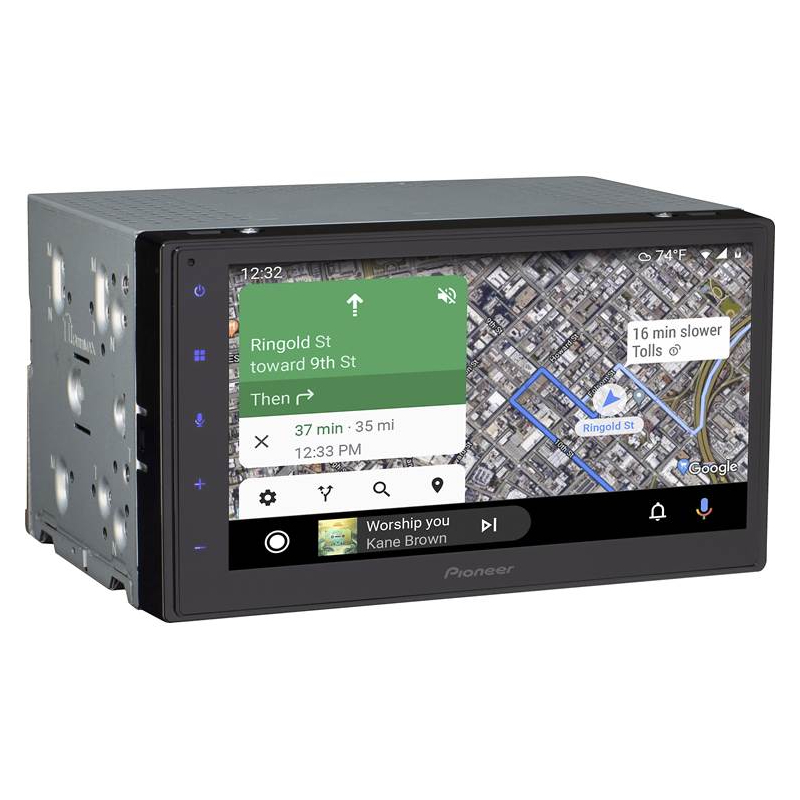

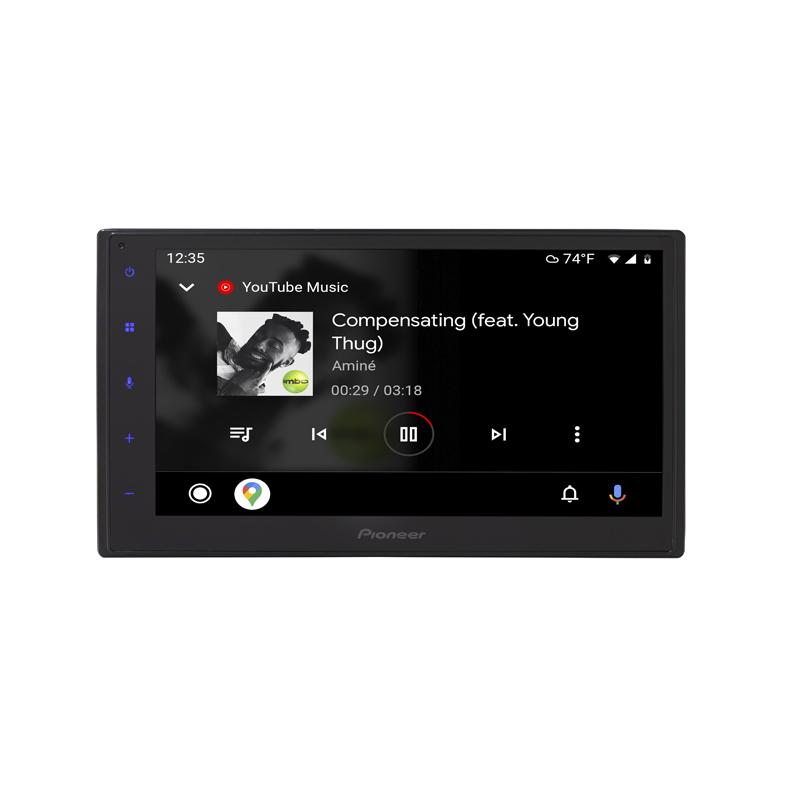

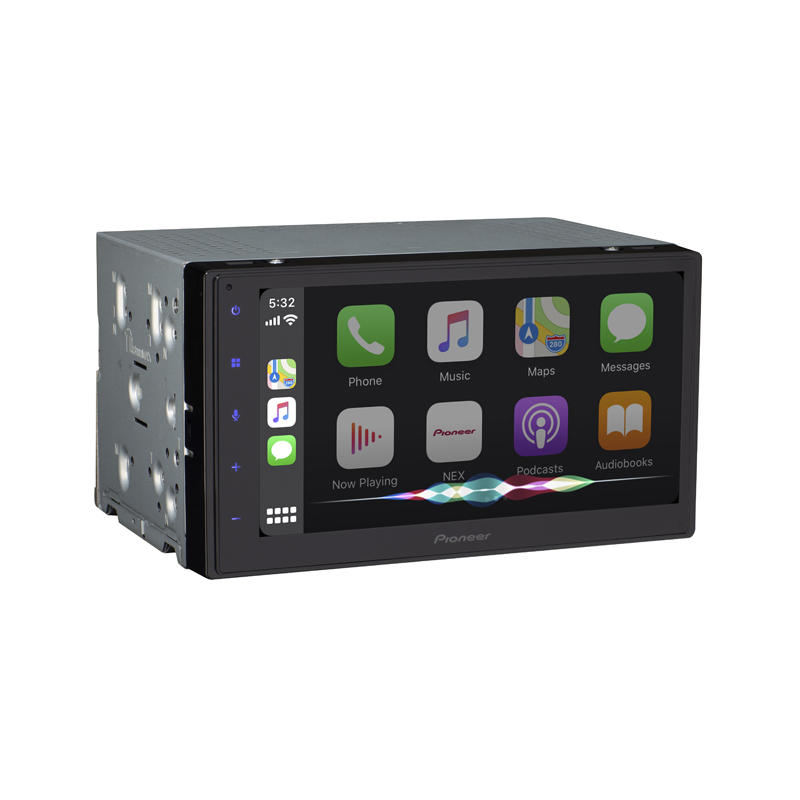

Android Auto and Apple CarPlay

Compatible with Android Auto and Apple CarPlay, you can now easily stream music, ask for directions, make calls, and listen to and send messages with just a single touch or voice command. You can also mirror your Android phone's display to the receiver using its USB port.



XM Sirius-ready

The Pioneer DMH-1770NEX has a built-in AM/FM tuner and is also SiriusXM-ready, so you can listen to and follow all your favorite stations and shows while you are on the road. You can also mirror your Android phone's display for a more comfortable watching experience.

Built-in Amplifier

The Pioneer DMH-1770NEX comes with a built-in amplifier that can handle a power output of 14 Watts per channel and has a peak power of 50 Watts per channel. It has a six-channel preamp output to plug in a pair of both front and rear speakers and a pair of subwoofers.



Audio Performance
Shape Up Your Amplifier's Frequency Response

Its 13-band graphic EQ allows you to shape up your amplifier's frequency response and audio quality, so you can boost or cut the frequencies to get the audio performance of your liking. The Pioneer DMH-1770NEX high and low-pass filters to filter out unwanted frequencies so you can have better audio production while protecting the speakers from blowing off.

  • Satellite Radio Ready : Yes
  • Subwoofer Preamp Outputs : Yes
  • Built-in EQ : Yes
  • DIN : 2
  • Preamp Voltage : 2 volts
  • Display Size : 6.8 Inch
  • Audio/Video Inputs : 1
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • HD Radio : Yes
  • Rear USB Input : 1
  • Preamp Outputs : 3
  • Audio/Video Outputs : 1
  • Rear View Camera Input : Yes
  • Apple CarPlay : Yes
  • Android Auto : Yes

Features:

  • 6.8" WVGA (Capacitive Touch)
  • Apple CarPlay® Compatible
  • Android Auto™ Compatible
  • SiriusXM-Ready™
  • Built-in Bluetooth®



Specifications:

STANDARDS

  • CTA-2006: Yes



PERFORMANCE

  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm
  • RCA Preamp Outputs: 6-ch
  • RCA Pre-out: 2V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm


DISPLAY

  • Back Light: LED
  • Brightness Control: Yes
  • Color Customization: 5 key colors
  • Device (Non-DIN/Modular Unit): 2-DIN
  • Dimmer: Automatic with vehicle illumination, Manual
  • Display Off Mode: Yes
  • Home Screen Customization: Yes
  • Monitor Mechanism: Fixed
  • Resolution: WVGA (800 x 480)
  • Screen Size/Aspect Ratio: 6.8"/16:9
  • Touch Screen: Capacitive



BLUETOOTH

  • Advanced Audio Distribution Profile (A2DP): Yes
  • AVRCP: 1.6
  • Built-in Bluetooth®: Yes
  • Dual Phone Connection: Yes
  • Hands-Free: Yes
  • Microphone Included: Included
  • Phone Registration: 3-phone
  • Secure Simple Pairing (SSP): Yes
  • Sound Retriever Air: Mode 1/Mode 2/Off



TUNER

  • Best Station Memory: Yes
  • Local Seek tuning: Yes
  • Presets: 18FM 12AM
  • RDS: Yes



INTEGRATION

  • Android Auto™: Wired USB Connection
  • Apple® CarPlay: Wired USB Connection
  • Mirroring: USB-Android Phone Only
  • Mobile Operating System: Android / Apple iOS
  • Pandora®: With Apple CarPlay or Android Auto
  • Siri® Eyes Free (VR) (Internet Required): iPhone Only
  • Spotify: With Apple CarPlay or Android Auto
  • Voice Control: Yes



DIGITAL MEDIA PLAYBACK

  • Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / WAV Audio Playback (Hi-Res) / FLAC Audio Playback (Hi-Res)
  • Audio Video Playback via USB: .avi / .mpg/mpeg /.mp4 / .3gp / .mkv / .mov / .flv / .wmv/.asf / .m4v / .ts / .m2ts / .mts
  • Image Display via USB: BMP / JPEG / PNG



AUDIO

  • Bass Boost: Yes
  • Balance: Yes
  • Built-in Amplifier: MOSFET 50 W x 4
  • Crossover Standard Mode: HPF/LPF
  • Customizable Graphic Equalizer: 13 Band
  • DA Converter: 24 Bit
  • Digital Signal Processor: Built In
  • Easy EQ (EEQ) Preset Equalizer: Yes
  • Fade: Yes
  • Loudness: High/Mid/Low/Off
  • Speaker Output: 4-ch
  • Subwoofer Control: Yes



EXPANDABILITY

  • Parking Assist Lines: Yes
  • RCA Video Output: Yes
  • USB: Single Rear Type-A (5V, 1.5 A)
  • USB Direct Control for iPhone®: 5s and newer



INPUTS

  • Input 1: AUX (Minijack)
  • Input 2: Backup Camera Dedicated



GENERAL

  • Detachable Face Security: Fixed
  • Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
  • Music Browser: USB
  • Remote Control: Included
  • Steering Wheel Control Ready (Adapter Sold Separately): Yes
  • UPC: 884938478946
  • Weight: 9
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • This radio is awesome. user friendly and smooth operating system. excellent sound quality.

    tim
    4/12/2023

  • always great products from Pioneer! been a fan since the old days. great sound and easy to use too

    Kayson Campbell
    10/17/2023

  • With the small face plates I got, this radio fits real nice in my Toyota. Lots of options to tweak and boost your audio, with crossover settings for front, rear, and subwoofer. Hooks up to Bluetooth without a hitch, and the Apple CarPlay and backup camera work smoothly.

    Gordon
    11/14/2023

  • This new radio's awesome, man! Works smoothly with Apple CarPlay. Enjoying it in my Tacoma. Bluetooth connects automatically, fits perfectly. Loving the user-friendly features, quick touch display, and amazing sound quality!

    Jackson
    2/5/2024

  • been a long time Pioneer fan for a long time now. using amps, speakers, and sub from the same company. got this receiver as a gift from my father almost a year ago, and since then I’m really enjoying its performance. sound quality is really exceptional and the Carplay works smoothly. awesome stereo!

    Benny
    3/5/2024

  • Pricing was great and sound quality is out of this world

    Kyle
    2/6/2025

  • Super easy to use, good looking design

    Brandon Cutlip
    2/23/2025
