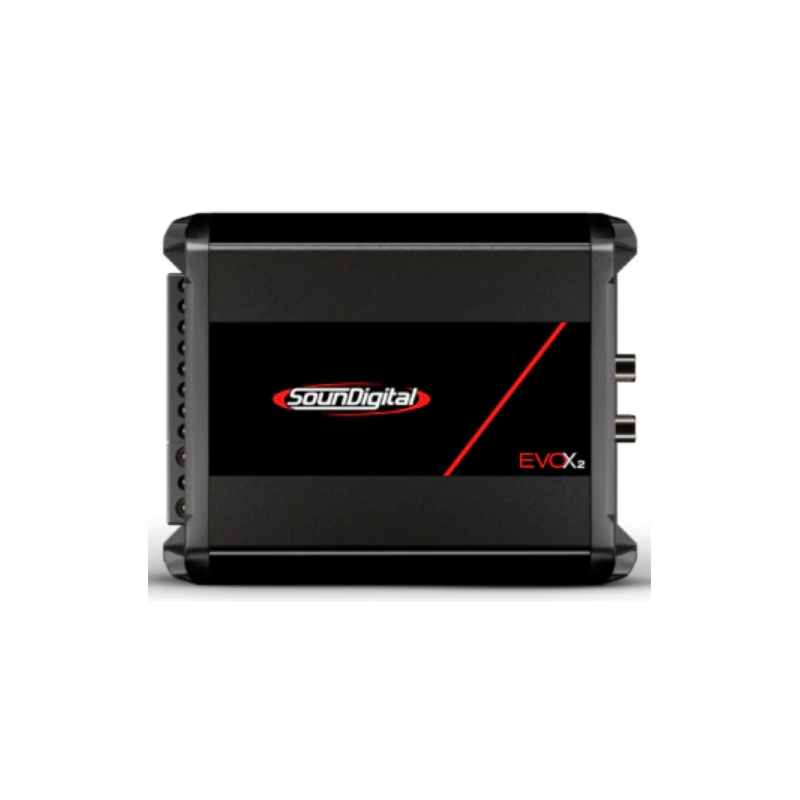

SounDigital EVOX2 Series 4-Channel 800W RMS 4 Ohms Class-D Vehicle Mini Amplifier
We are a SounDigital authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •4 Channel Class-D Mini Amplifier
- •Quick installation guide with warranty certificate
- •Allen wrench 2.0mm
- •(2) Cables for high level input
- •Soundigital promotional sticker
Amplify Your Power Sports Experience
Featuring exclusive and patented technologies, this amplifier enhances the sound quality by reducing distortion and noise, resulting in a cleaner and more faithful audio reproduction that elevates your listening experience.
Advanced Sound Enhancement
With 800W RMS of power distributed over 4 channels, the 800.4 EVOX2 delivers a robust and dynamic audio experience, ensuring every detail of your music is brought to life with clarity and precision.
Optimal Performance in Any Setting
The 800.4 EVOX2 boasts a sleek and compact design, making it perfect for installations where space is limited. Its modern aesthetic not only enhances the visual appeal but also reflects the cutting-edge technology packed inside, making it an ideal choice for any audio enthusiast.
PRODUCT HIGHLIGHTS
- • Resistant to moisture, water splash, and dust
- • Compact design
- • Conformal coated PCB
- • Crossover controls variable in Low pass, High pass, and Full range;
- • High efficiency Class D
- • Robust construction and resistant to vibrations and bumps
- • IP64 rating
- Maximum Power : 800 Watts
- Low Frequency Response : 45-850 Hz
- High Frequency Response : 45-850 Hz
- Number of Channels : 4
- Frequency Response : 5-22000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 132x4 Watts
- Amplifier Class : D
- Fuse Rating : 40 A
Features and Specifications:
- Resistant to moisture, water splash, and dust
- Compact design
- Conformal coated PCB
- Crossover controls variable in Low pass, High pass, and Full range
- High efficiency Class D<
- Robust construction and resistant to vibrations and bumps
- IP64 rating
Power Output:
- 2?: 4 x 200W
- 4?: 4 x 132W
- Bridge Power @ 4?: 2 x 400W
- Bridge Power @ 8?: 2 x 264W
- Frequency Response (-3dB): 5Hz to 22kHz
- Low Pass Filter (12dB/octave): 45Hz to 850Hz
- High Pass Filter (12dB/octave): 45Hz to 850Hz
- Operating Voltage: 8V to 16V
- Signal-to-Noise Ratio (SNR): 91dB
- Input Sensitivity (RCA): 0.2V to 2V
- Input Sensitivity (High Level input): 1.5V to 15V
- Current Draw (Music): 35A
- Current Draw With Resistive Load: 88A
- Total Efficiency: 80%
- Damping Factor (@100Hz nominal impedance): 200
- Power Cable: 10mm² (7 AWG)
- Audio Output Cable: 2 x 1.5mm (15AWG)
- Recommended Fuse (Music): 40A
- Recommended Minimum Battery Capacity: 60Ah
Dimensions:
- Width: 4.4 inches / 11.3 cm
- Length: 5.8 inches / 14.8 cm
- Height: 2 inches / 5.1 cm
- UPC: 7898644525989
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
