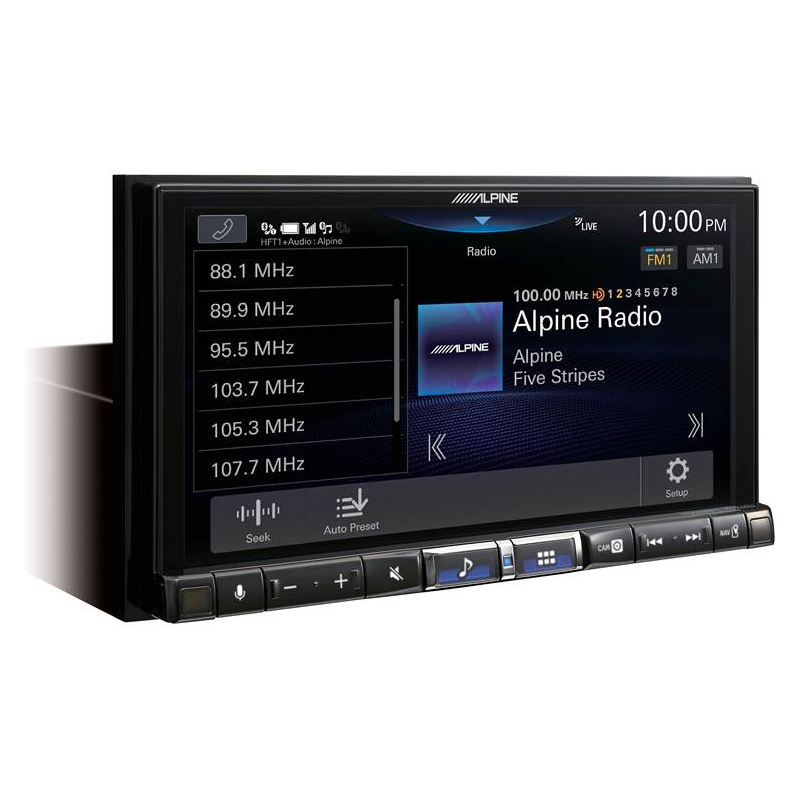

Alpine  iLX-507

2-DIN 7" WVGA Display High-Resolution Media Receiver, Built-in Bluetooth with Apple CarPlay & Android Auto Compatible

Item #84412

Condition:   Brand New

Product Highlights

  • 2-DIN 7" WVGA Display
  • High-Resolution Media Receiver
  • Built-in Bluetooth
  • Apple CarPlay Compatible
  • Android Auto Compatible

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
TAX REFUND SALE!

Get $60 OFF on this item! Use coupon code TAXRF60

$649.95

Reg. Price $850.00  Save $200.05
In Stock
In Stock

Only 1 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Alpine Authorized Dealer

Huge Saving on Other items:


Brand Banner

Alpine iLX-507 2-DIN 7" WVGA Display High-Resolution Media Receiver, Built-in Bluetooth with Apple CarPlay & Android Auto Compatible


Alpine Banner for OCS

We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

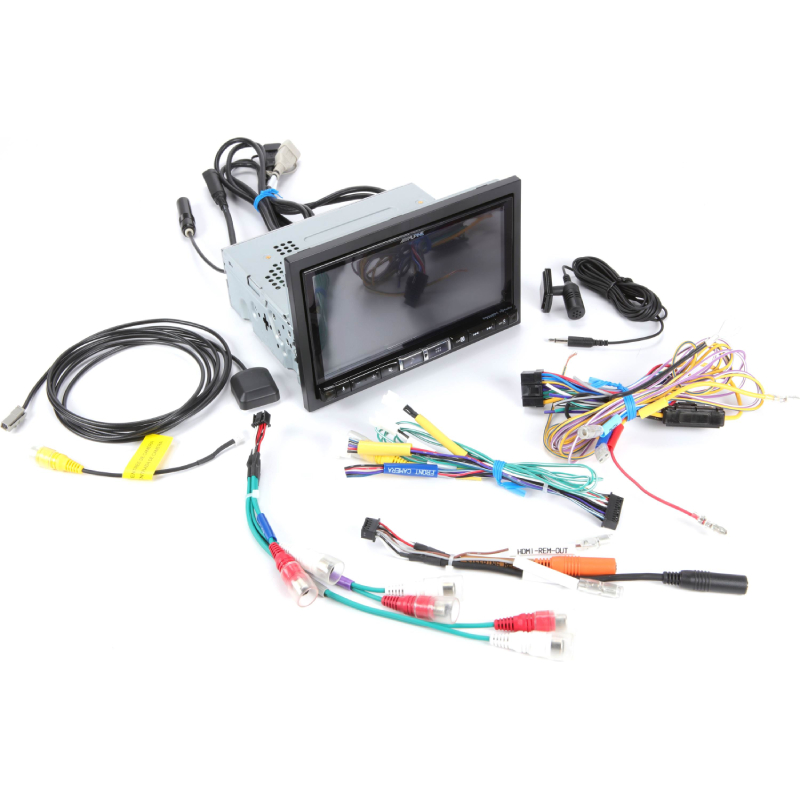

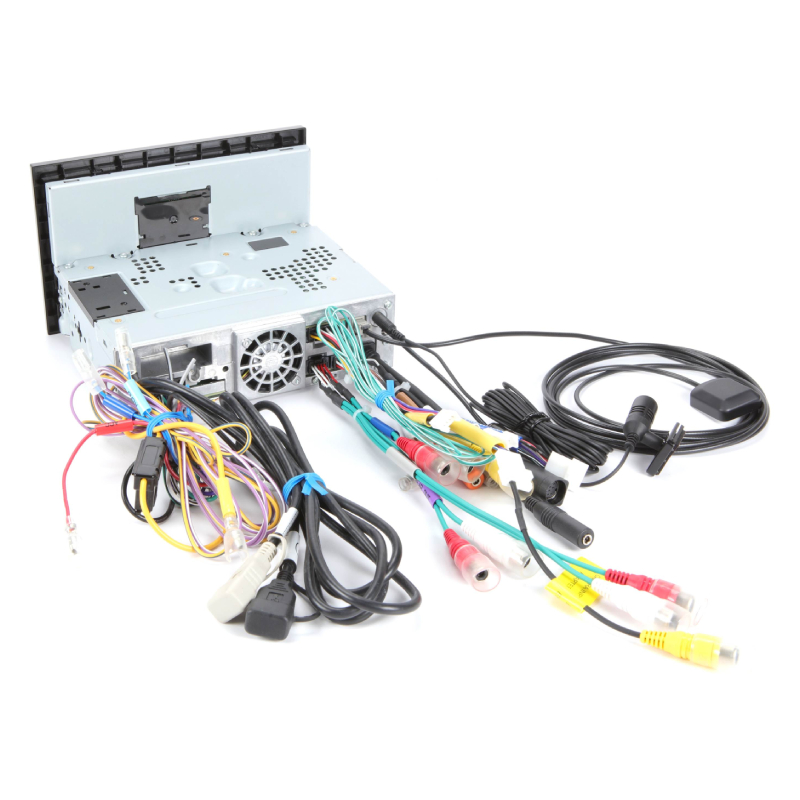

What's Inside?

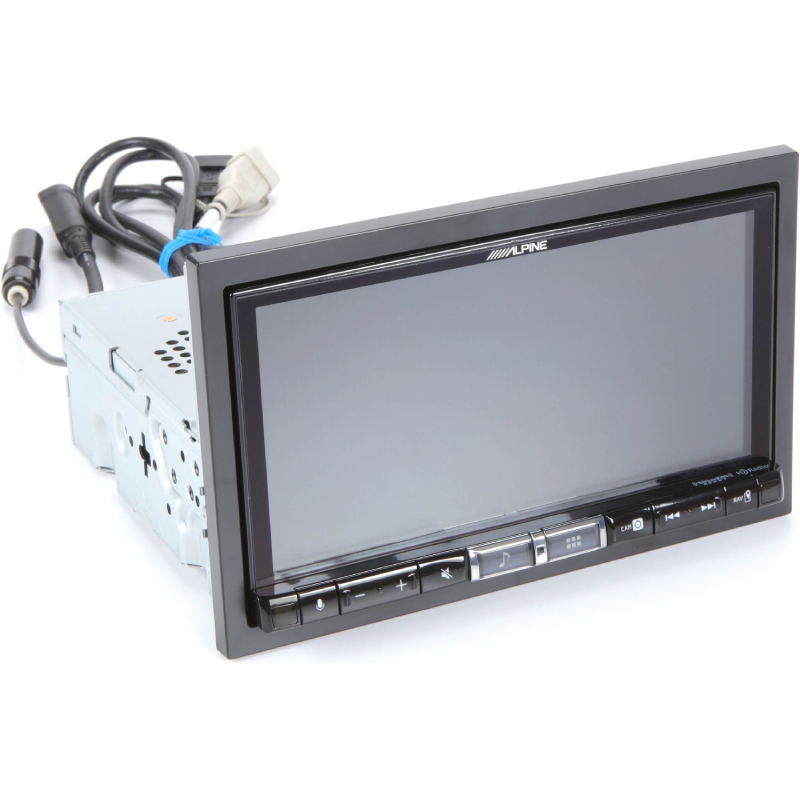

  • •Digital multimedia receiver
  • •Trim-ring

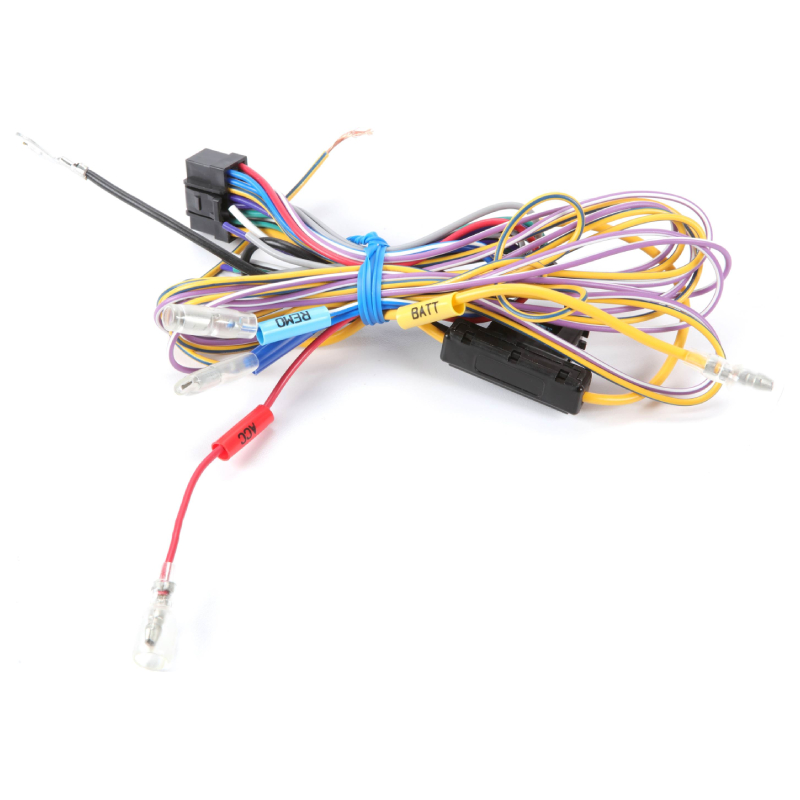

  • •Wiring harness (15A fuse)

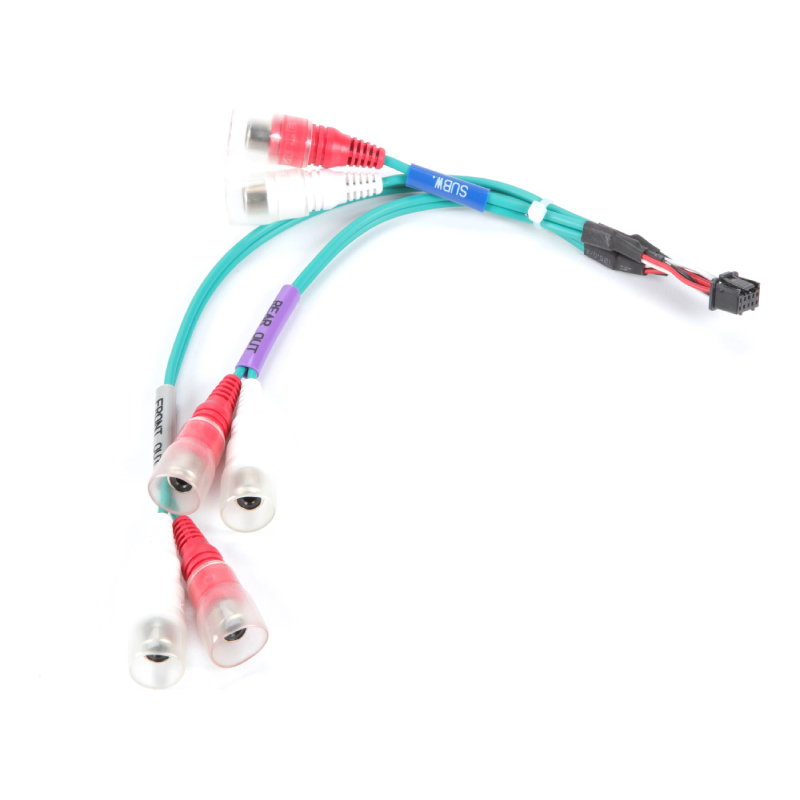

  • •Preout harness

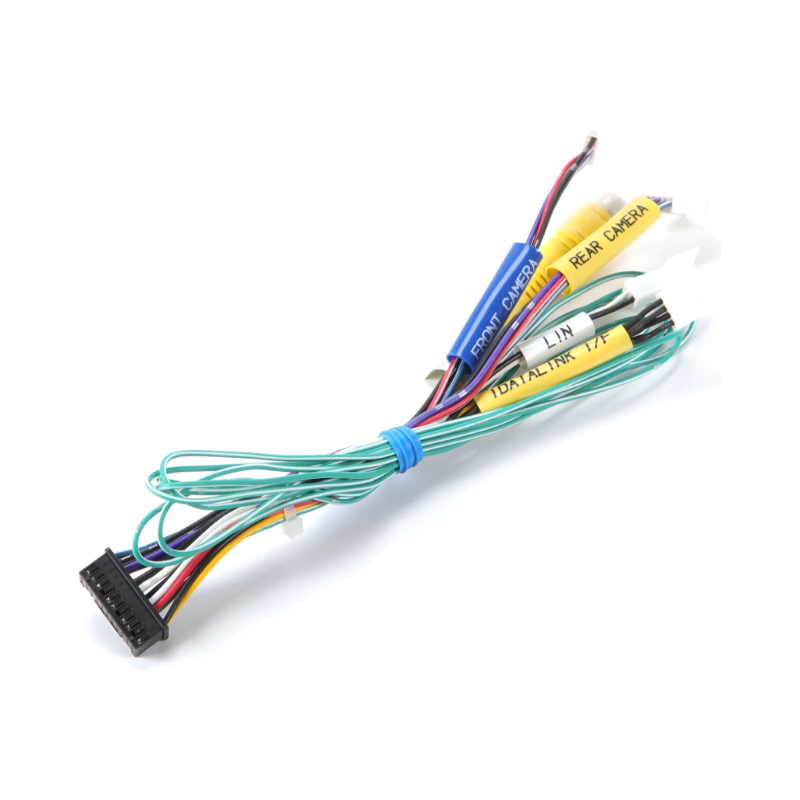

  • •iDatalink/Driver Recorder/Front Camera harness

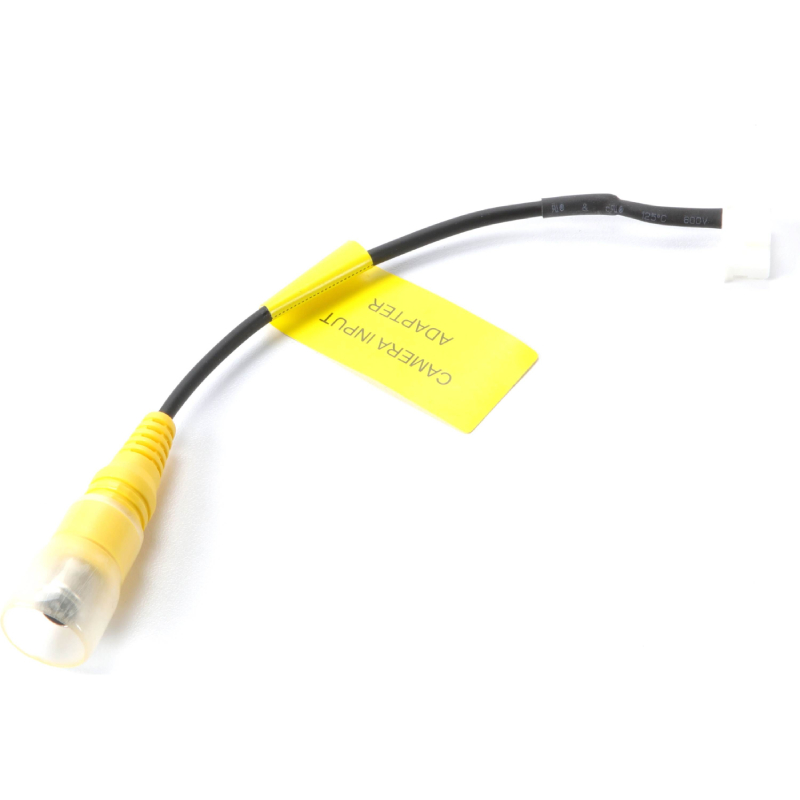

  • •Camera input adapter harness
  • •Mic/SWC harness

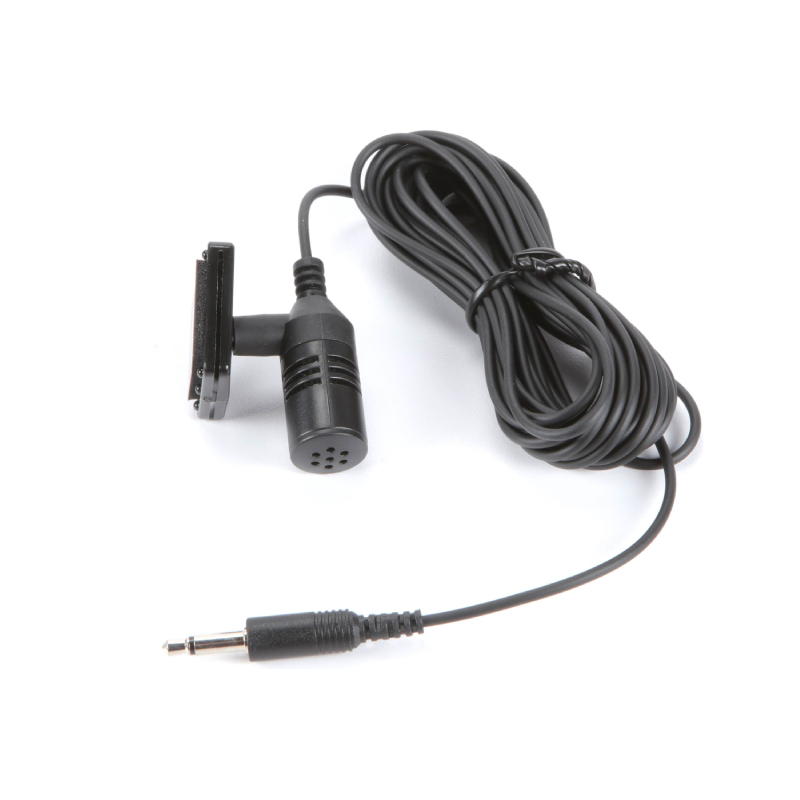

  • •Microphone (w/ attached 12.5' cable terminated by a mono-minijack connector)
  • •Surface-mount bracket
  • •Two-sided tape

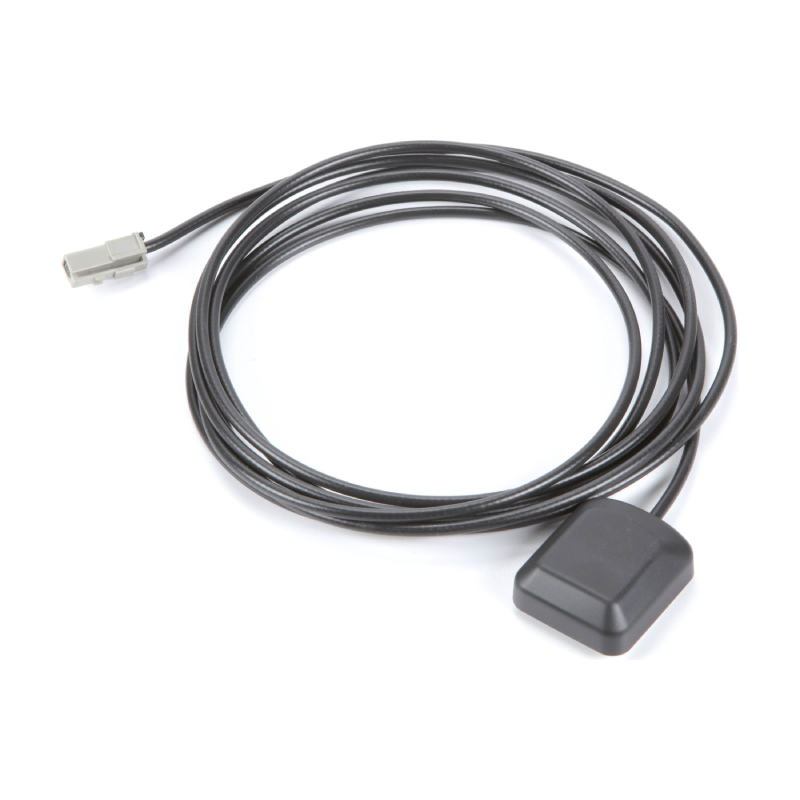

  • •GPS antenna (attached 8' cable with proprietary connector)
  • •Self-adhesive mounting pad
  • •(3) Self-adhesive cable clamps
  • •(4) Pan-head ISO-screws (M5x8mm)
  • •(4) Counter-sunk ISO-screws (M5x8mm)
  • •HDMI connector clamp
  • • Owner's Manual
Top-notch Multimedia Receiver

A top-notch multimedia receiver from one of the best brands in the aftermarket car entertainment industry, the Alpine iLX-507 is equipped with some of the best features you'd only get from a premium car stereo while having an 8K resolution display for a better viewing experience.

You Do Not Have to Miss Out on Your Favorite Stations

Aside from its HD-Radio tuner, it is also SiriusXM-ready, so you do not have to miss out on your favorite stations and shows while on the road. As it is compatible with the iDatalink Maestro module, you do not have to worry about losing your vehicle's factory features so that you can check out your engine's performance data in the receiver's 7-inch display.

High and Low-pass Filter

Although you can stack and connect an external amplifier, it has a built-in amplifier with a six-channel preamp output for full-range frequency production. It has a continuous power output of 16 Watts per channel and can go up to 50 Watts of peak power per channel. The Alpine iLX-507 has a built-in 13-band parametric EQ to tune the amplifier's frequency response. It also has a high and low-pass filter to filter out the unwanted frequencies that could damage your car's speakers. Lastly, it comes with Bass Engine SQ for a more legendary audio quality from the receiver.

  • Satellite Radio Ready : Yes
  • Built In Crossovers : Yes
  • Subwoofer Preamp Outputs : Yes
  • Built-in EQ : Yes
  • DIN : 2
  • Preamp Voltage : 4 volts
  • Display Size : 7 Inch
  • Audio/Video Inputs : 1
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • HD Radio : Yes
  • Rear USB Input : 2
  • Preamp Outputs : 6
  • Audio/Video Outputs : 1
  • Rear View Camera Input : Yes
  • Apple CarPlay : Yes
  • Android Auto : Yes
  • USB Mirroring : Yes

Features:

  • digital multimedia receiver with AM/FM tuner (does not play discs)
  • 7" capacitive touchscreen
  • high-resolution (1280x720 pixels) display
  • fits in double-DIN (4" tall) dash openings
  • HD Radio tuner built-in
  • Bluetooth hands-free calling and audio streaming (external microphone included)
  • Apple CarPlay compatible (wired and wireless)
  • Android Auto compatible (wired and wireless)
  • built-in iPod, iPhone, and iPad control
  • playback and control of music files on compatible Android devices
  • Pandora and Spotify control with iPhone and Android
  • full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)
  • plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
  • plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
  • plays lossless FLAC audio files up to 96kHz/24-bit
  • 24-bit digital-to-analog converter (DAC)

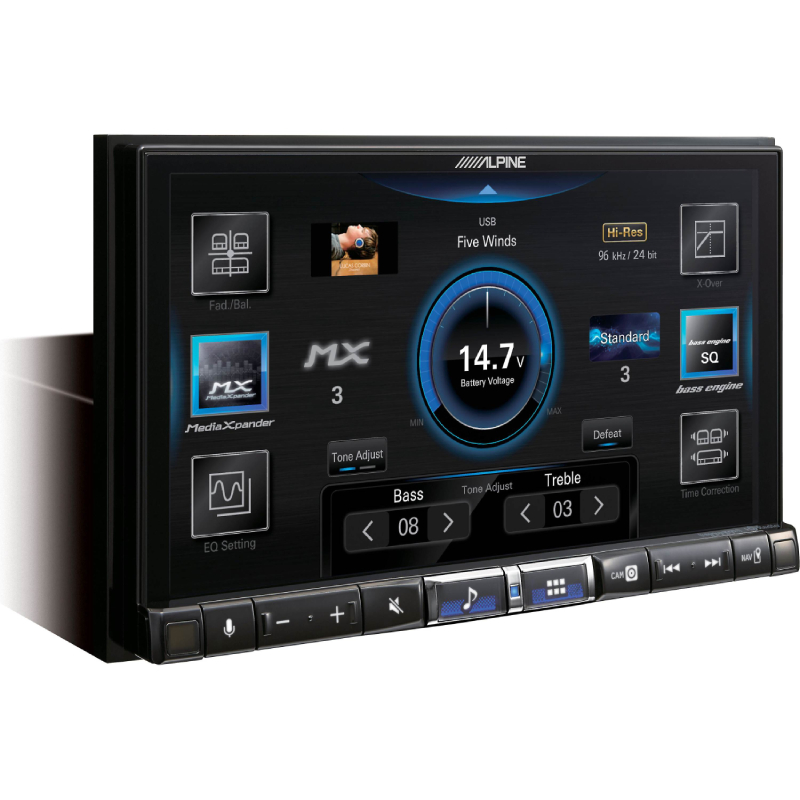

  • 13-band parametric equalizer (Basic or Advanced)
  • 6-channel time correction
  • high- and low-pass filters
  • Bass Engine SQ
  • MediaXpander HD



Specifications:

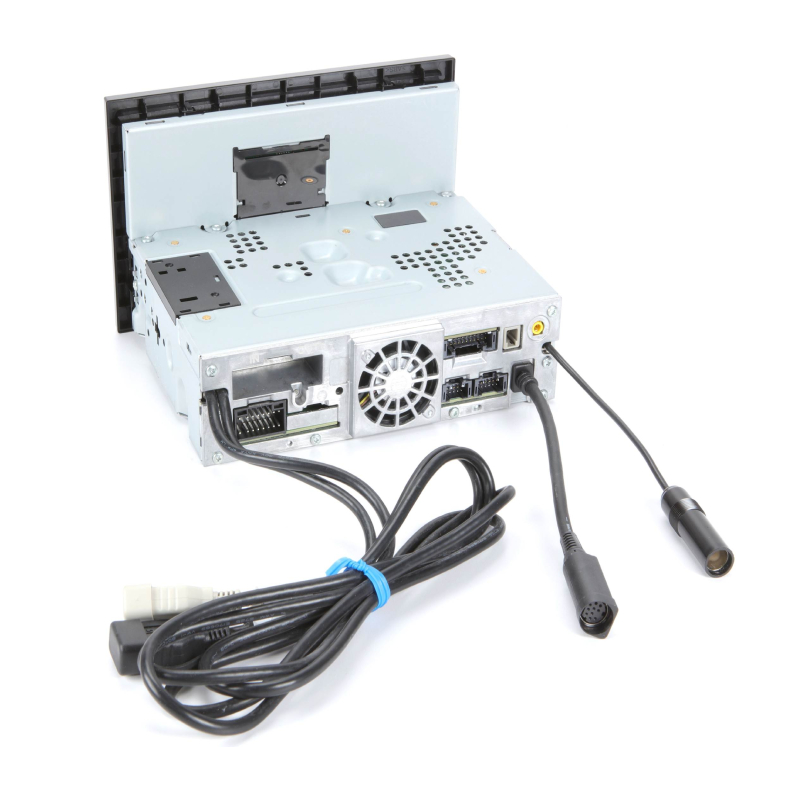

  • AUX Input: Mini (rear)
  • Audio/video Input: HDMI (rear)
  • USB Input: Rear (2)
  • USB Port Power: 2.4A, 1.5A
  • Backup Camera Input: Yes
  • Second Camera Input: Yes
  • CarPlay: Wireless
  • Android Auto: Wireless
  • Siri Control: CarPlay only
  • Alexa Voice Control: N
  • Android Control: Yes
  • Memory Card Slot: USB memory
  • Bluetooth Compatible: Built-in
  • Satellite Radio Ready: SiriusXM 2.0 (360L)
  • HD Radio: Y
  • Navigation: Optional
  • iPod: Compatibility
  • Full size: No
  • Nano: No
  • Touch: No
  • iPhone: 6S and newer
  • RMS Power (CTA-2006): 18 watts
  • RMS Power (Manufacturer): 18 watts
  • Peak Output: 50 watts
  • RMS Power Bandwidth: 20-20kHz
  • Preamp Outputs: 6-channel
  • Sub Preamp Outputs: Yes
  • Switchable Rear Preamp Outputs: No
  • Video Screen: Yes
  • Navigation App Compatible: (iOS) Apple, Google, Waze
  • Navigation App Compatible: (Android) Google, Waze
  • Preamp Voltage: 4 volts
  • Screen Size: 7
  • Screen Type: Swipeable (Capacitive)
  • Display: Color
  • Key Button Color: White
  • EQ Bands: 13
  • Wireless Remote: No
  • Steering Wheel Control Compatible: Adapter required
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • FM Sensitivity: 9.3 dBf
  • European Tuning: No
  • Radio Data System: Yes
  • Music File Playback:MP3, WMA, AAC, FLAC, WAV
  • High-res Playback: FLAC (96kHz)



  • UPC: 793276084354
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Considering for its price, its a decent unit that offers lots of features, making my daily driving more entertaining. A solid receiver overall!

    Zeke
    10/20/2023

  • can you say assume this radio bumps my second alpine radio this one one of the best buys on the market the high resolution music play back sound like u in the studio with the art the set you station or tidal an bump

    Dwight j Richardson
    11/16/2023

  • A perfect fit on my Wrangler. The Carplay was easy to connect and use, and the sound is way much better now with the also newly installed Kickers that I got last month. HD Radio and supports XM tuner. Really worth the price.

    Lincoln
    2/5/2024

  • Great sound quality

    JOSE
    6/3/2024

  • with Alpine stereos, you'll surely get high-quality audio performance, and I'm truly getting with my 507. it has great options for optimizing sound. CarPlay works very well, and its other features are great for the price. got some bigger display too.

    Paulo A.
    6/17/2024

  • It’s Alpine, has a fairly clean signal up to volume 29 tested with a a SMD DD1+ lots of source options and sound control

    Brandon
    6/21/2024

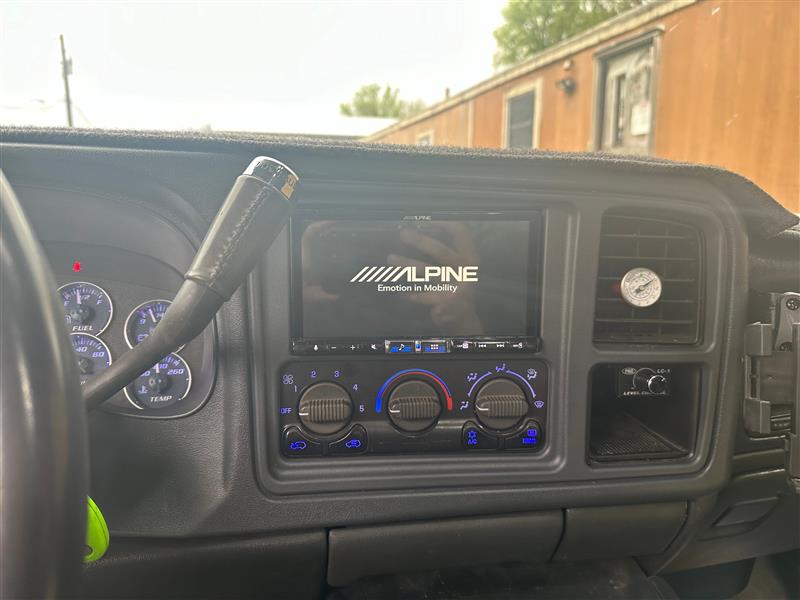

    product review image
