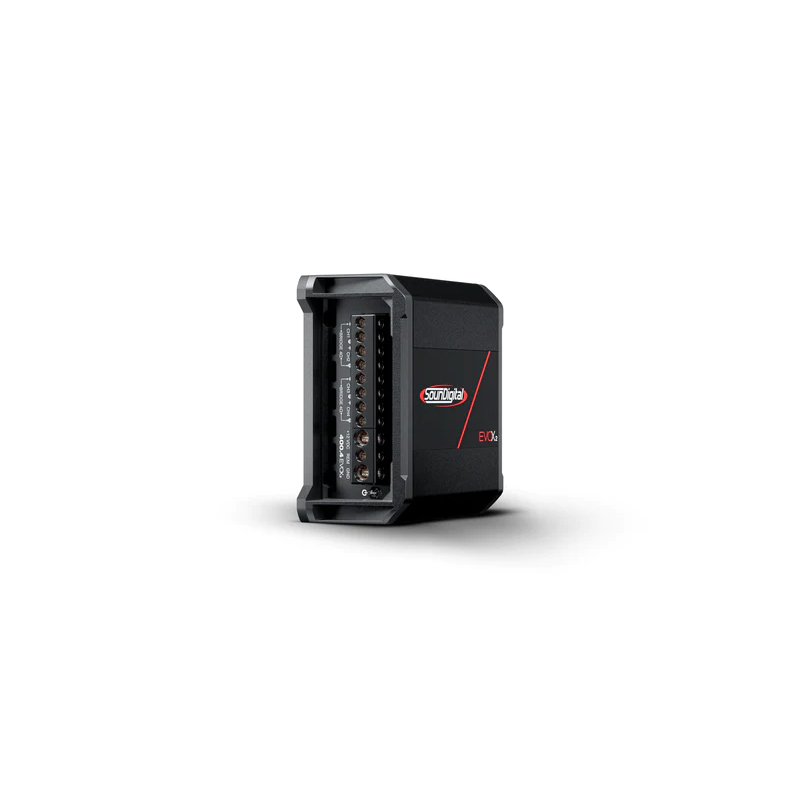

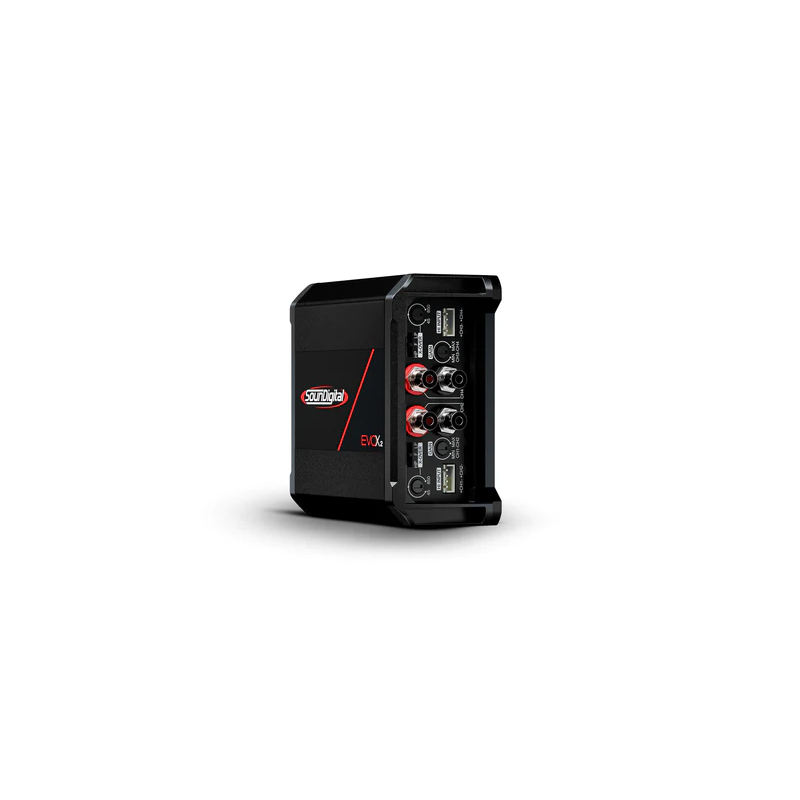

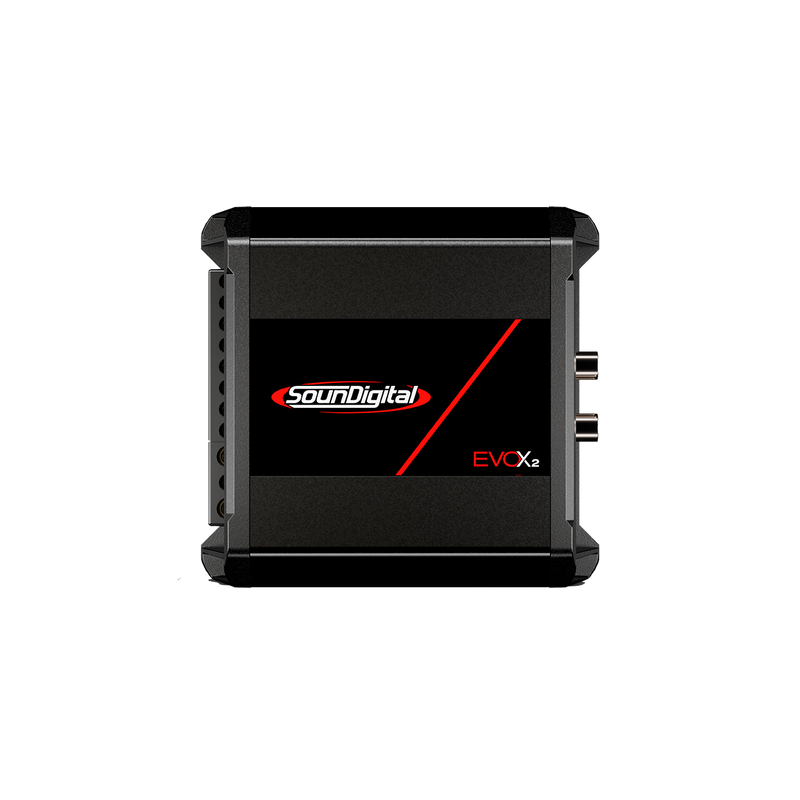

EVOX2 Series 4-Channel 400W 4 Ohms Class-D Vehicle Mini Amplifier
We are a SounDigital authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •4 Channel Class-D Mini Amplifier
- •Quick installation guide with warranty certificate
- •Allen wrench 2.0mm
- •Cables for high level input
- •Soundigital promotional sticker
Amplify Your Power Sports Experience
With the 400.4 EVOX2 amplifier, you get the best of both worlds: compact design and robust power delivery. This amplifier boasts 400 watts RMS of power distributed over 4 channels, ensuring immersive audio performance across all your Power Sports projects, whether on water, clay, or any other terrain.
Advanced Sound Enhancement
Experience audio like never before with the exclusive and patented technologies embedded within the 400.4 EVOX2 amplifier. These innovative features work harmoniously to elevate sound fidelity and clarity, resulting in a cleaner and more faithful audio reproduction. No matter the environment, enjoy an enhanced auditory experience that's second to none.
Optimal Performance in Any Setting
Engineered to excel in Power Sports environments, the 400.4 EVOX2 amplifier is designed for maximum performance and efficiency. Its compact and modern design ensures seamless integration into any project, while its advanced technologies guarantee exceptional sound quality even in challenging conditions. Elevate your Power Sports adventures with the 400.4 EVOX2 amplifier, where every audio detail comes to life with precision and power.
PRODUCT HIGHLIGHTS
- • Resistant to moisture, water splash, and dust
- • Compact design
- • Conformal coated PCB
- • Crossover controls variable in Low pass, High pass, and Full range;
- • High efficiency Class D
- • Robust construction and resistant to vibrations and bumps
- • IP64 rating
- Maximum Power : 400 Watts
- Low Frequency Response : 45-850 Hz
- High Frequency Response : 45-850 Hz
- Number of Channels : 4
- Frequency Response : 5-22000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 4x100 Watts
- Amplifier Class : D
- Fuse Rating : 20x1 A
Features and Specifications :
- Resistant to moisture, water splash, and dust
- Compact design
- Conformal coated PCB
- Crossover controls variable in Low pass, High pass, and Full range
- High efficiency Class D<
- Robust construction and resistant to vibrations and bumps
- IP64 rating
Power Output:
- 2?: 4 x 100 WRMS
- 4?: 4 x 66 WRMS
- 8?: 4 x 44 WRMS
- Bridge Power @ 4?: 2 x 200 WRMS
- Bridge Power @ 8?: 2 x 132 WRMS
- Frequency Response (-3dB): 5Hz to 22kHz
- Low Pass Filter (12dB/Oct.): 45Hz to 850Hz
- High Pass Filter (12dB/Oct.): 45Hz to 850Hz
- Operating Voltage: 8V to 16V
- Signal-to-Noise Ratio (SNR): 96dB
Input Sensitivity:
- RCA: 0.2V to 2V
- High Level: 1.5V to 15V
- Current Draw (Music): 17A
- Current Draw (Max.): 34A
- Total Efficiency: 83%
- Damping Factor: 200
- Power Cable: 10mm² (8 AWG)
- Audio Output Cable: 2 x 1.5mm² (15 AWG)
- Recommended Fuse (Music): 20A
- Recommended Minimum Battery Capacity: 20Ah
Dimensions:
- Width: 4.4 inches
- Length: 4.8 inches
- Height: 2 inches
- Weight: 0.58 Kg
- UPC: 7898644525729
