Hertz Deici Series 4-Channel 1000W Max Power Class A/B Car Audio Amplifier
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

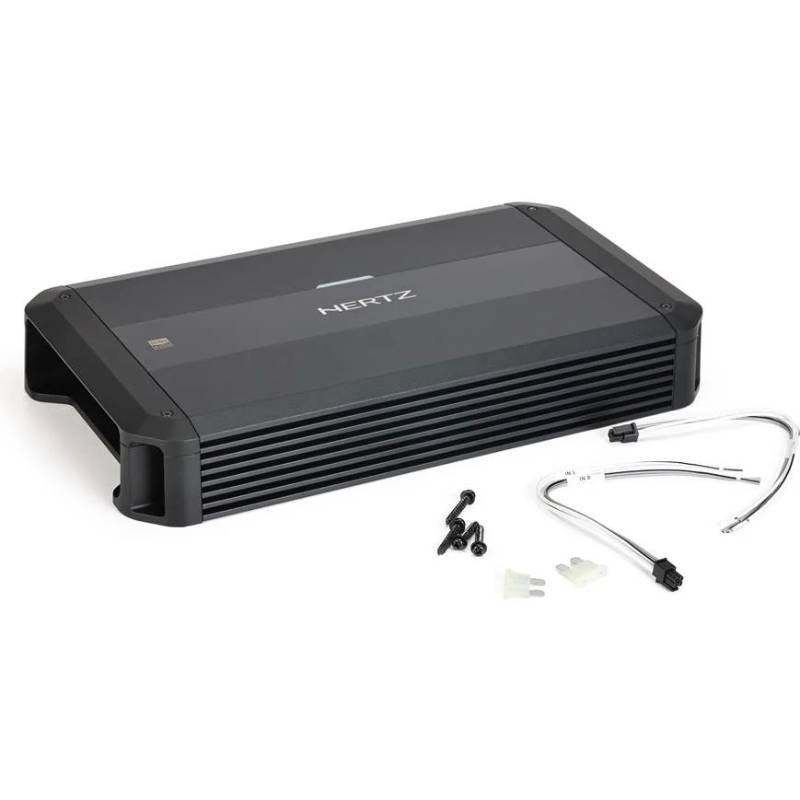

What's Inside?
- •4-Channel amplifier
- •(2) Speaker IN Connector
- •(2) FUSE 25 AMPS
- •HEX Key 4mm
- •HEX Key 2mm
- •(4) Mounting screws 25mm
- •Quick Start Guide
- •Warranty Card

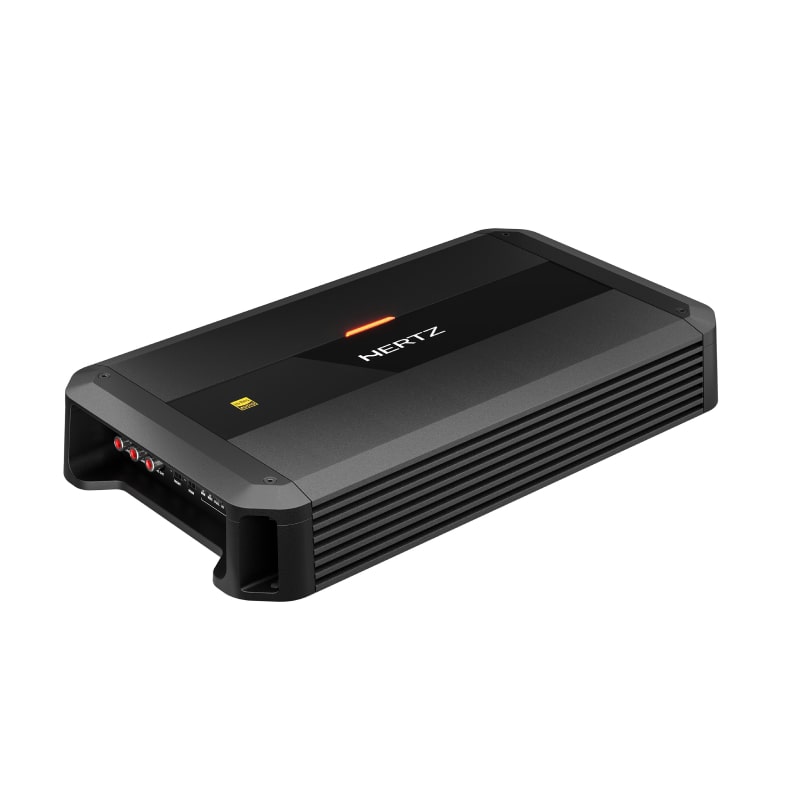

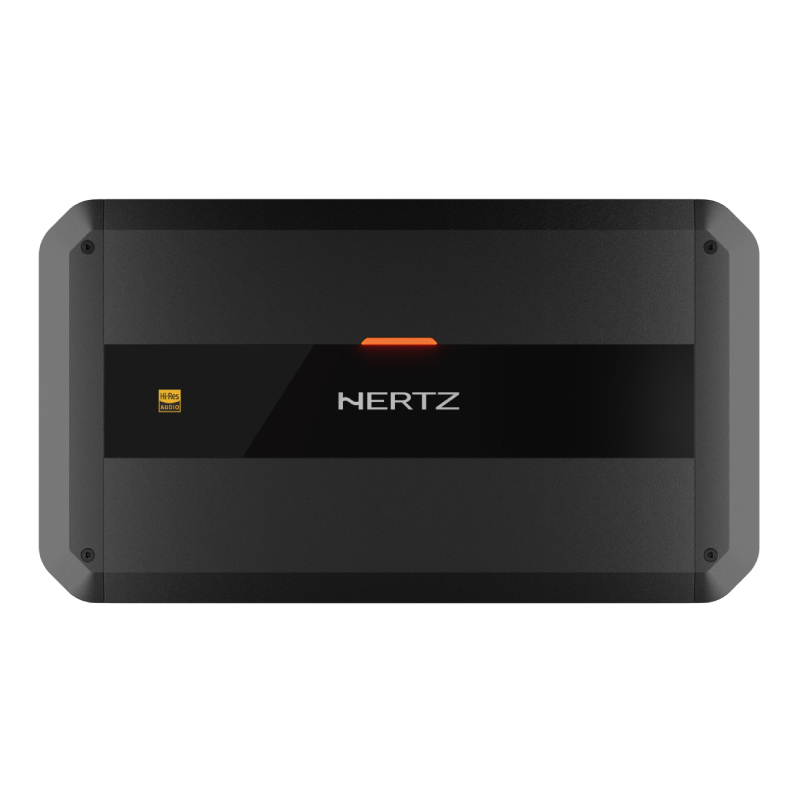

Hertz DIECI POWER Amplifier DP 4.400
Compact yet powerful, this High-Resolution Audio Certified amplifier delivers an impressive frequency response of 10 Hz to 45 kHz with a fully bridgeable 4-channel Class-AB design and 2Ω stability, ensuring every nuance of your music is reproduced with crystal-clear precision, making it the ideal choice for uncompromised, potent audio performance in a space-saving form.
Experience high-noise rejection
With the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences. Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
- Maximum Power : 1000 Watts
- Number of Channels : 4
- Frequency Response : 10-45000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 30 A
Channels: 4 - 3 - 2
POWER SUPPLY:
- Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 25 A)
- Operating power supply voltage: 6.5 ÷ 16.5 VDC
- Idling current: 0.85 A
- Standby current draw: 10 uA
- Consumption, MIN load impedance (Max Musical Power): 30 A
- Remote IN: 4 ÷ 15 VDC (1.5 mA)
- ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
- Efficiency: 60%
AMPLIFIER STAGE:
- Distortion - THD @ 100 Hz, 70% Rated Power: 0.01%
- Damping factor @ 1 kHz, 1W: 130
- Bandwidth @ -3 dB: 10Hz ÷ 45kHz
- S/N ratio (A-weighted @ 1 V Input): 101 dBA
- Minimum load impedance:
- @ 4 Ch: 2
- @ 3 Ch: 2 + 2 + 4
- @ 2 Ch: 4
- Adjustable Crossovers: Yes
These specifications are now present
Output Power (RMS) @ 1% THD:
- 4Ch @ 4Ω: 75 W x 4
- 4Ch @ 2Ω: 105 W x 4
- 3Ch @ 4Ω: 75 W x 2 + 210 W x 1
- 3Ch @ 2Ω / 4Ω: 105 W x 2 + 210 W x 1
- 2Ch @ 4Ω: 210 W x 2
Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4Ch @ 4Ω: 90 W x 4
- 4Ch @ 2Ω: 125 W x 4
- 3Ch @ 4Ω: 90 W x 2 + 250 W x 1
- 3Ch @ 2Ω / 4Ω: 125 W x 2 + 250 W x 1
- 2Ch @ 4Ω: 250 W x 2
Total Power:
INPUTS / FILTERS:
- Inputs: Pre-In / Speaker-In
- Pre Out: Full Range (Front)
- Pre-In sensitivity: 0.32 ÷ 8 VRMS
- Speaker-In sensitivity: 1.6 ÷ 40 VRMS
- Front Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct.
- Front Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct.
- Rear Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct.
- Rear Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct.
- Bass Boost 50Hz: 0 ÷ 9 dB
- UPC:
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
