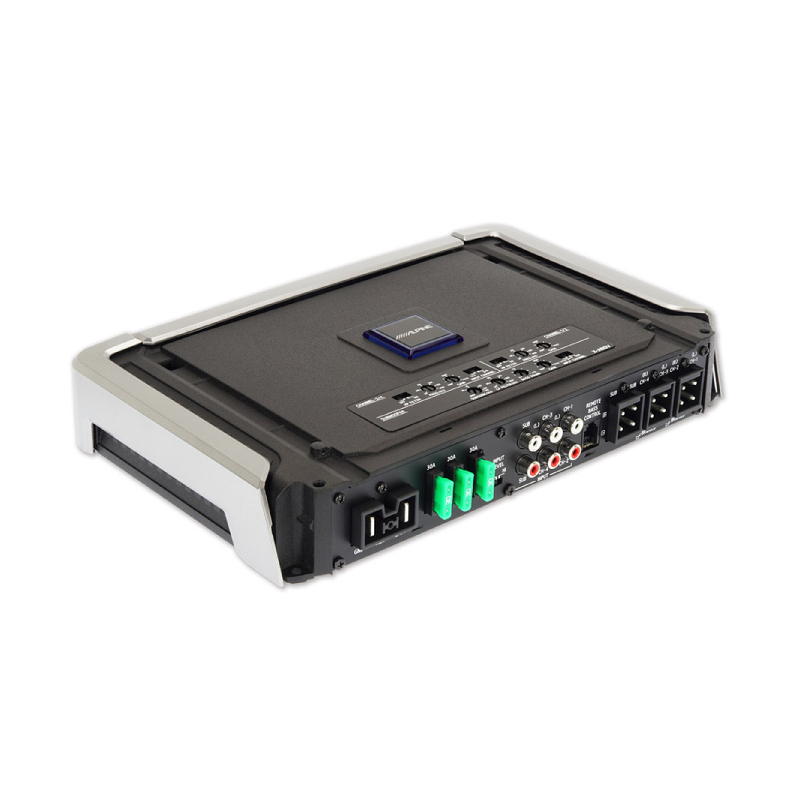

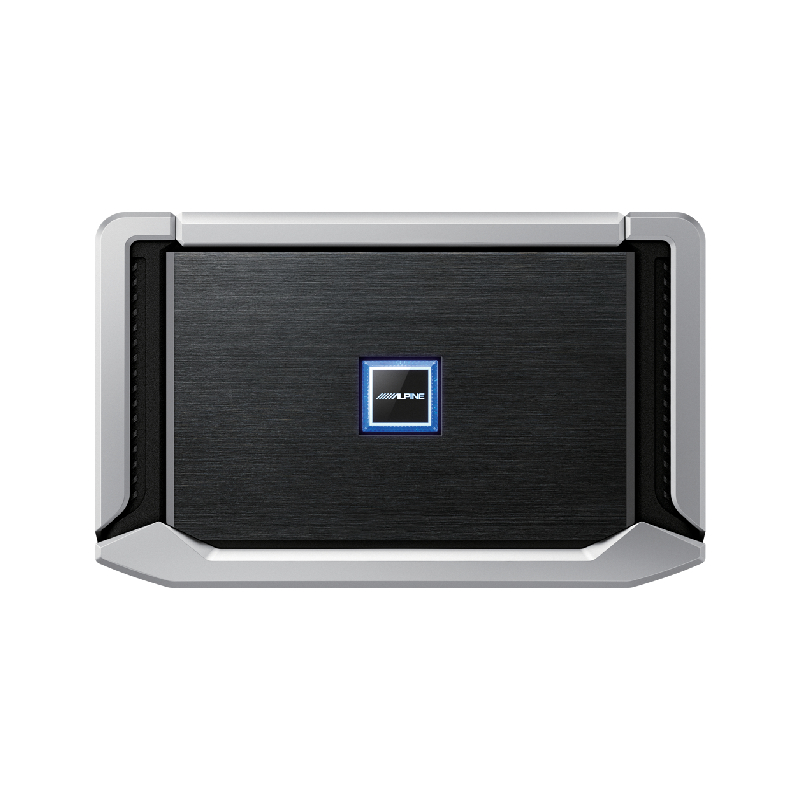

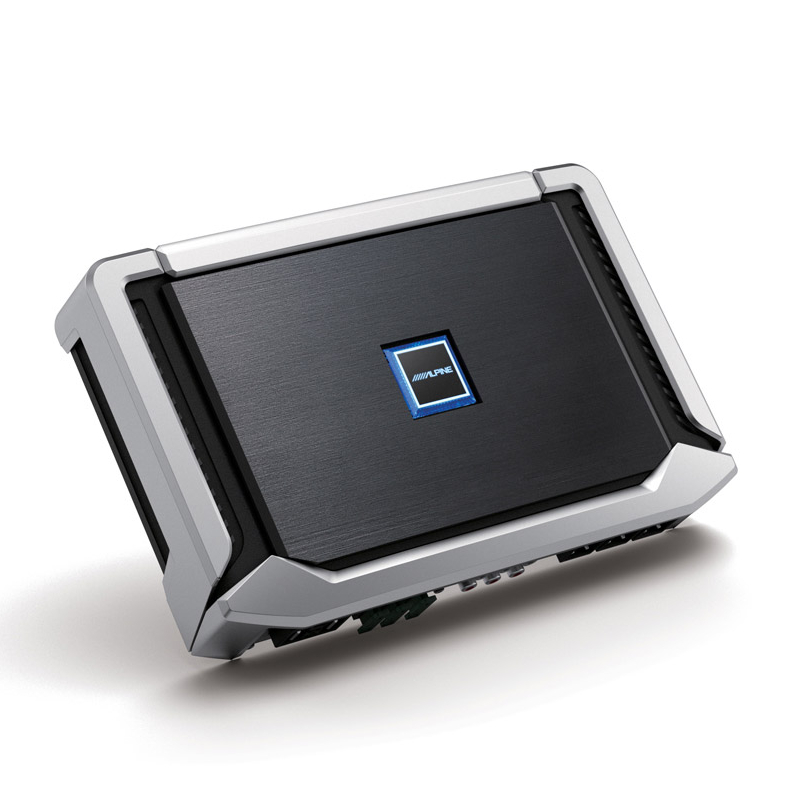

Alpine  X-A90V

X-Series 100W x 4 RMS @2Ohms (900W Max Power) Class-D 5-Channel Stable Amplifier

Item #50250

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


Alpine Banner for Onlinecarstereo

Alpine X-Series Class-D 5-Channel Stable Amplifier

Alpine_iLX-407

We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-Channel amplifier
  • • (3) 30A ATO fuses (installed)

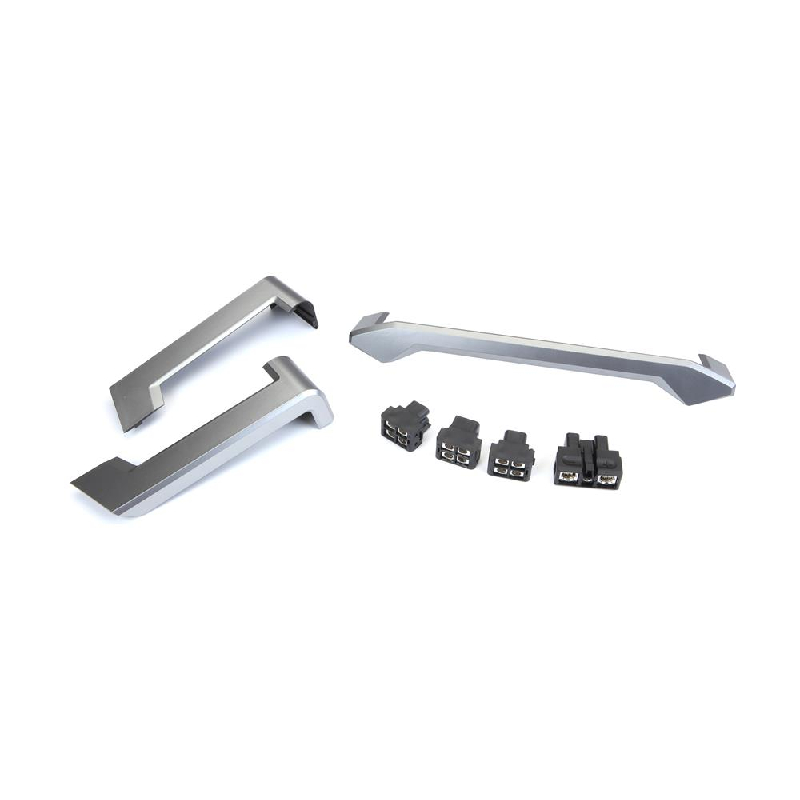

  • • Terminal Cover Left
  • • Terminal Cover Right
  • • Terminal Cover Front
  • • Battery connector plug
  • • (3) Speaker connector plugs
  • • Logo Plate (self-adhesive)
  • • (4) Self-tapping screws (Length 3/4")
  • • 2mm Allen wrench
  • • 4mm Allen wrench
  • • Owner's Manual
Alpine_X-A90V
CRITICAL EVALUATION OF IN-CAR SOUND

Alpine’s top engineers from all over the world gathered in Alpine headquarters to deeply research and evaluate sound systems from both the aftermarket and high-end OE manufacturers. Many systems today have incredible dynamic range and reach sufficient volume levels, but lacked the reality of instruments and spatial imaging. As a result, Alpine ID was born, a sound philosophy that continues to inspire us to create a new level of sonic performance.

ALPINE: IMAGE DEFINED

Or Alpine ID for short, is the new Alpine global sound culture with an evolutionary approach for solving what’s missing in most car audio systems these days: great spatial imaging and depth of sound stage. It centers on developing matched sound systems with core components that work together to achieve greater realism in the sound stage while maintaining great dynamic range and accuracy.



Alpine_X-A90V
Alpine_X-A90V
KEEPING THE HEAT DOWN WHILE FAITHFULLY REPRODUCING MUSIC

At the core of the X-Series Amplifier's chassis is a solid cast aluminum heat sink which keeps the amplifier cool when performing at its peak power levels. Excess heat is removed from the amplifier through the newly designed heat sink profile which both improves airflow and increases surface cooling area. The fan-less channels located on both sides of the amp allow for convection flow of air; hot air naturally rises out from the top of the amplifier, which causes a vacuum that sucks in cool air from below. This smart design allows for continuous thermal control for an uninterrupted listening experience.

PROVEN POWER

X-Series Amplifiers come with their very own birth sheet which reveals each amplifier's true power rating.



Alpine_X-A90V
Alpine_X-A90V
KEEPING THE HEAT DOWN WHILE FAITHFULLY REPRODUCING MUSIC

At the core of the X-Series Amplifier's chassis is a solid cast aluminum heat sink which keeps the amplifier cool when performing at its peak power levels. Excess heat is removed from the amplifier through the newly designed heat sink profile which both improves airflow and increases surface cooling area. The fan-less channels located on both sides of the amp allow for convection flow of air; hot air naturally rises out from the top of the amplifier, which causes a vacuum that sucks in cool air from below. This smart design allows for continuous thermal control for an uninterrupted listening experience.

  • Maximum Power : 900 Watts
  • Low Frequency Response : 50-400 Hz
  • High Frequency Response : 50-400 Hz
  • Number of Channels : 5
  • Frequency Response : 10-60000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 75x4 Watts
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 90 A
  • XP750-SE OFFER : Yes

Features:

  • 5-channel car amplifier
  • 75 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
  • 100 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 200 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
  • CEA-2006 compliant
  • Class-D amplifier technology
  • Channels 1-4:
  • frequency response: (+0/-1 dB) 15 to 30,000 Hz
  • variable high-pass filter (50-400 Hz, 12 dB/octave)
  • frequency response: (+0/-1 dB) 10 to 300 Hz
  • variable low-pass filter (50-400 Hz, 24 dB/oct)
  • variable subsonic filter (8-40 Hz, 24 dB/octave)
  • variable bass boost (0-12 dB at 50 Hz)



Specifications::

  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope (dB/octave): 24 dB/octave
  • High-Pass Crossover Frequency: 50-400 Hz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 50 Hz
  • Fan Cooled: No
  • Fuse Rating: 90
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Width (inches): 11-3/4
  • Height (inches): 2-1/16
  • Depth (inches): 8-3/8
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • RMS Power Output (Watts x Channels): 75 x 4 / 500 x 1
  • Peak Power Output (Watts x Channels): N/A
  • Power at 2 Ohms (Watts x Channels): 100 x 4
  • Bridged Power (Watts x Channels): 200 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 10-60k Hz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 87 dB
  • Input Voltage: 14.4v
  • UPC: 793276040572
  • Weight: 12
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
