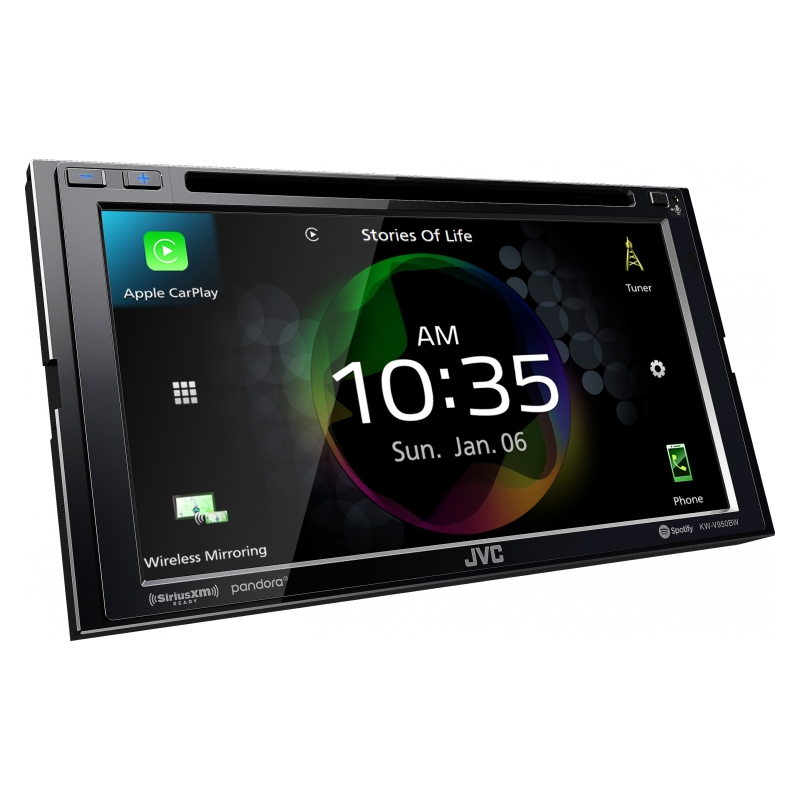

JVC KW-V950BW 6.8" Bluetooth Multimedia Receiver featuring Clear Resistive Touch Monitor, Wireless Apple CarPlay, Wireless Android Auto, High-Resolution Audio, iDatalink Maestro Ready, 13-Band EQ
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •DVD receiver w/ integrated 6.8" monitor (15A fuse)
- •Wiring harness
- •Two 39" USB extension cables
- •GPS antenna (attached 11.5' cable terminated by a proprietaery connector)
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- •7" Male minijack to female RCA adapter cable
- •6 Pan-head ISO-mount screws
- •6 Flat-head ISO-mount screws
- •Owner's Manual
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 2
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
KW-V950BW 2-DIN Multimedia Receiver
Monitor
- Screen Size: 6.8" Wide VGA
- Touch Panel: Clear Resistive
- Monitor Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Blue
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
- Live Wallpaper: Yes
Media Playback
- MP3 Compatible with Tag: CD / DVD / USB
- WMA Compatible with Tag: CD / DVD / USB
- WAV Compatible with Tag: CD / DVD / USB
- AAC Compatible with Tag: CD / DVD / USB
- FLAC Compatible with Tag: CD / DVD / USB( Up to 192kHz/24bit )
- H.264 Compatible: CD / DVD / USB
- WMV Compatible: CD / DVD / USB
- MPEG 1/2 Compatible: CD / DVD / USB
- MPEG 4 Compatible: CD / DVD / USB
- AVI/MKV Compatible: CD / DVD / USB
- JPEG File Playback: CD / DVD / USB
- PNG File Playback: CD / DVD / USB
- BMP File Playback: CD / DVD / USB
CD Player
DVD Player
- DVD-R/-RW, +R/+RW Compatible: Yes
- Video CD Playback: Yes
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)
- Hands Free Call: Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes
Wi-Fi Control
Android Control
- Android Auto[2]: Yes (via Wi-Fi or USB)
- Mirroring for Android: Yes (via Wi-Fi)
- Android Music Playback: Yes
- Pandora Control: Yes (via Bluetooth(R))
- Spotify Control: Yes (via Bluetooth(R))
iPod/iPhone Control

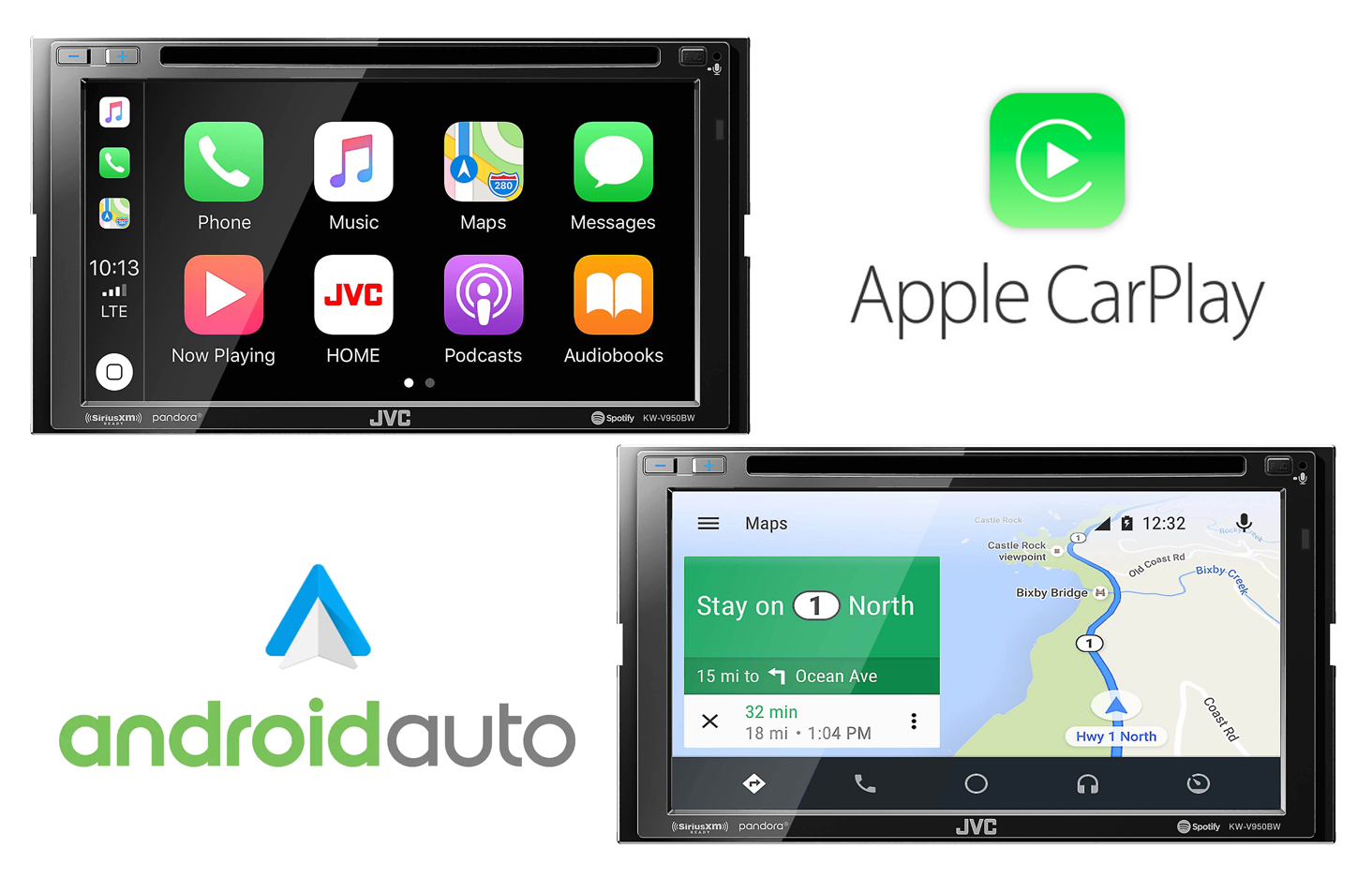

- CarPlay[3]: Yes (via Wi-Fi or USB)
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
- Pandora Control: Yes (via USB or Bluetooth(R))
- Spotify Control: Yes (via USB or Bluetooth(R))
USB
- USB Port: x2 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner
- SiriusXM Ready: Yes
- Radio Broadcast Data System (RBDS): Yes
- Digital Processing Tuner: Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- Automatic Presetting (Strong Station Sequential Memory): Yes
- FM Frequency Range: 87.9 - 107.9MHz
- AM Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- MOS-FET Amplifier: Yes
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8Preset + 4user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- High-Resolution Audio: Yes
- K2 Technology: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes
- Dual-Zone Function: Yes
- Inputs and Outputs
- AV Input: mini jack (AV-IN or Camera-IN switchable)
- Video Out: RCA
- Rear view camera Input: Yes
- Front view camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General
- iDatalink Maestro Ready: Yes
- Remote Control Application: Yes
- Back Up Memory: Yes
- Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Dimensions (W x H x D)
- Installation Size: 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
- Weight: 4.63 lbs. (2.1kg)
- Unit weight in individual package: 6.39 lbs. (2.9kg)
- UPC: 046838079016
- Weight: 8.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
